Product Introduction

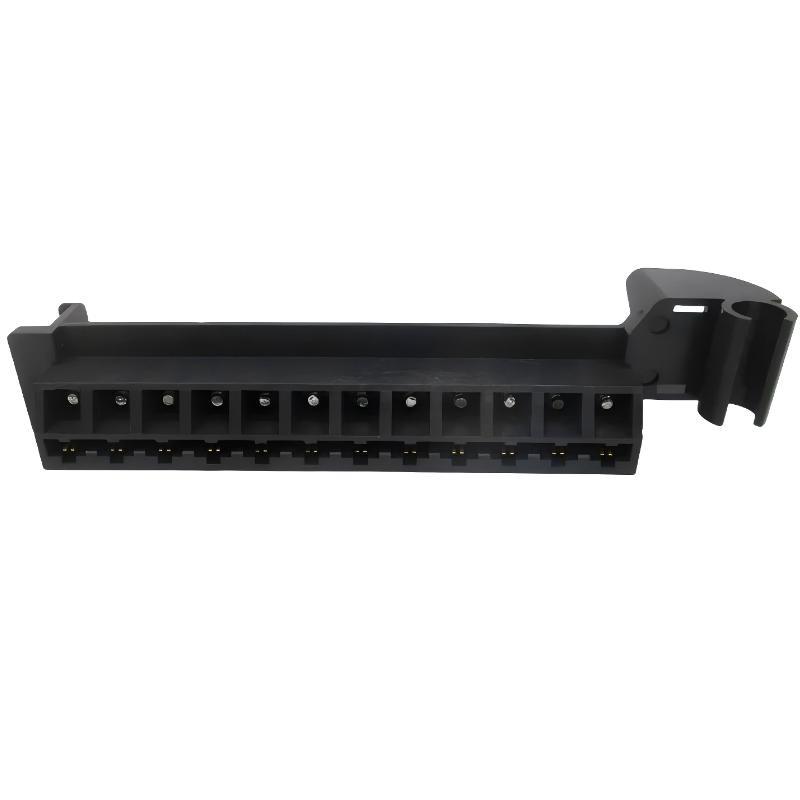

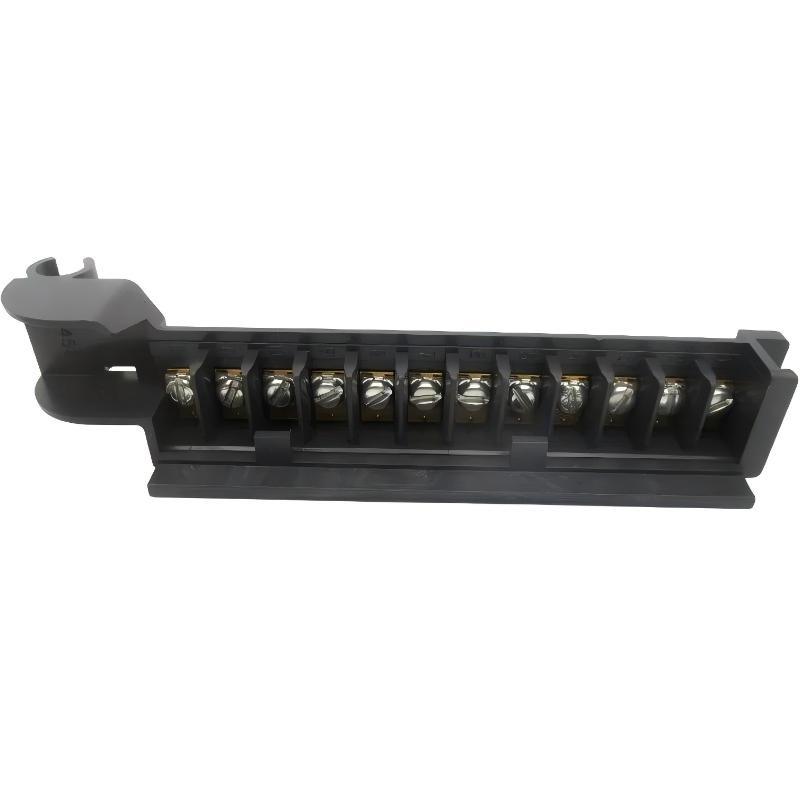

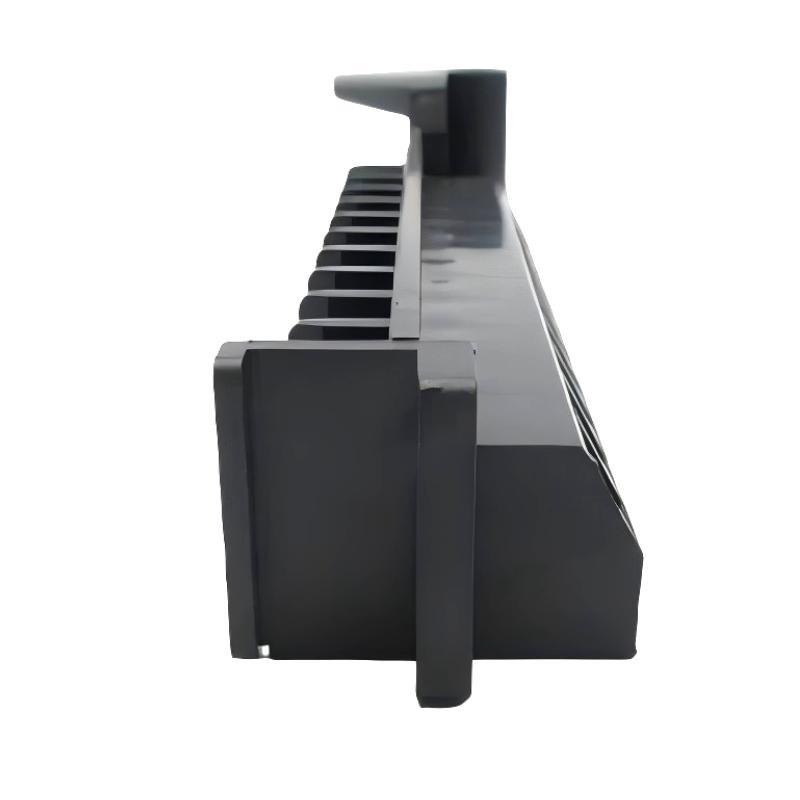

The Allen-Bradley 1771-WB Field Wiring Arm is an accessory designed for the Allen-Bradley 1771 PLC-5 I/O System. It provides a convenient interface for field wiring, allowing technicians to connect PLC-5 modules to external devices efficiently and safely.
The wiring arm features 12 terminals with gold-plated contacts, ensuring reliable electrical connections and minimizing signal loss or corrosion over time. It organizes field wiring neatly and simplifies installation in the 1771 chassis.
The 1771-WB is ideal for industrial automation, process control, and manufacturing environments, where organized field wiring is critical for system reliability and safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Modèle | 1771-WB |
| Marque | Allen-Bradley |
| Module Type | Field Wiring Arm |
| Series | 1771 PLC-5 I/O Series |
| Terminals | 12 |
| Contact Material | Gold-plated |
| Installation Method | 1771 I/O Chassis Mount |
| Application Type | Field wiring for PLC modules |
| Dimensions | 100 × 25 × 80 mm |
| Poids | 0.07 kg |
Applications
• Field wiring interface
Provides reliable connection points between PLC-5 modules and external devices or sensors.
• Industrial automation systems
Used to organize and manage wiring for digital, analog, or communication modules in PLC racks.
• Process control applications
Simplifies wiring for systems controlling valves, pumps, sensors, and actuators.
• Compact control panels
Small and lightweight design allows easy integration in tight spaces or modular control cabinets.
• Maintenance and troubleshooting
Organized wiring layout helps technicians identify connections and perform service tasks efficiently.
Advantages
• Gold-plated contacts
Ensures reliable electrical connections and reduces the risk sur corrosion or signal degradation.
• Compact and lightweight
Easy to install in 1771 PLC racks.
• Supports 12 terminals
Provides sufficient connection points for typical I/O module wiring needs.
• Improves wiring organization
Helps maintain a clean and manageable wiring layout for industrial automation systems.
• Compatibility with 1771 PLC modules
Integrates seamlessly with PLC-5 racks and modules for reliable field connections.
• Facilitates maintenance
Simplifies troubleshooting, upgrades, and modifications in field wiring configurations.
