Présentation du produit

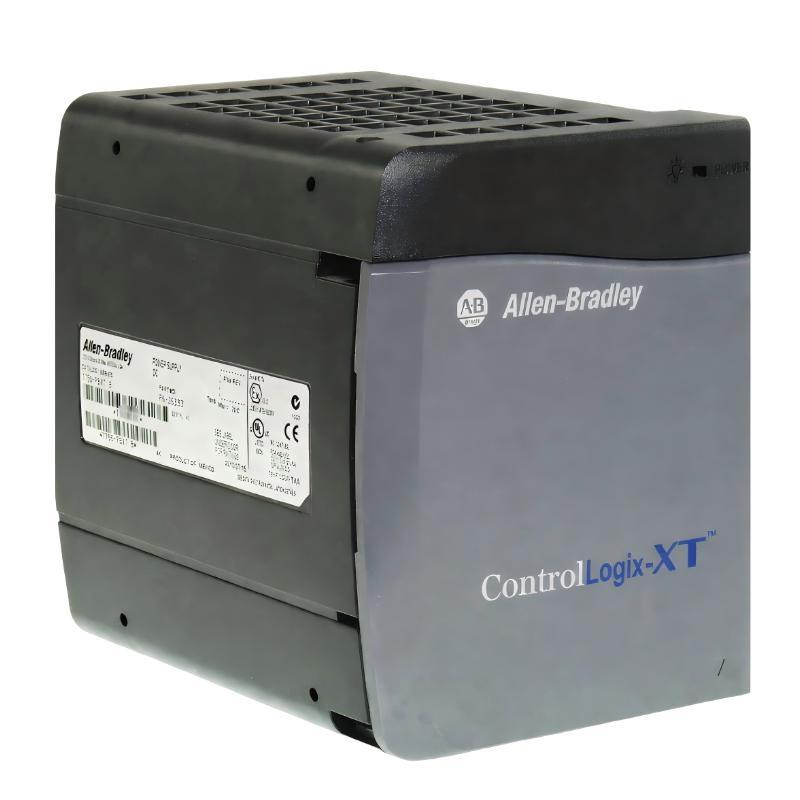

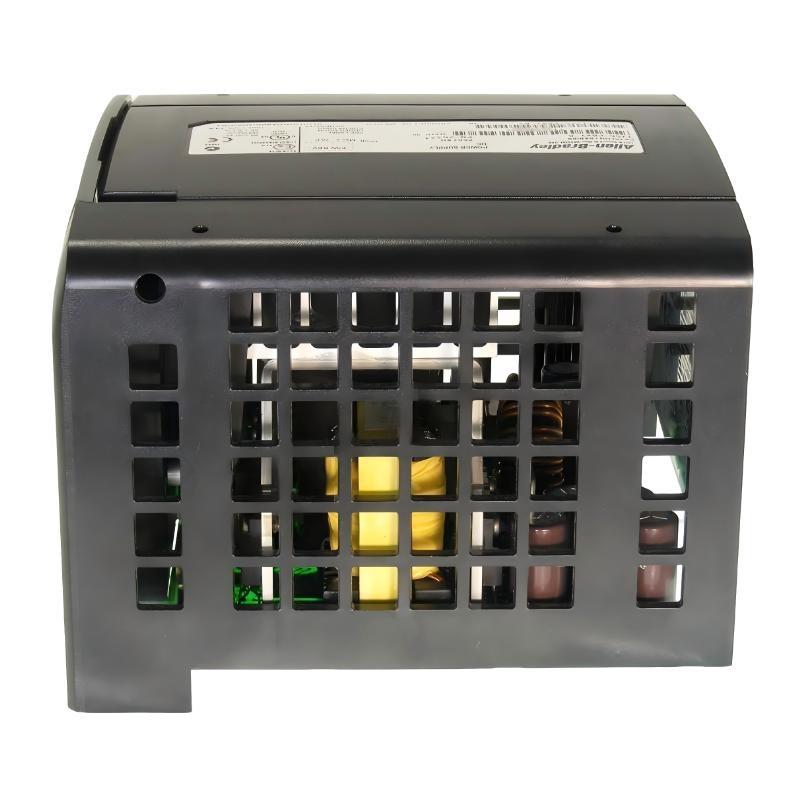

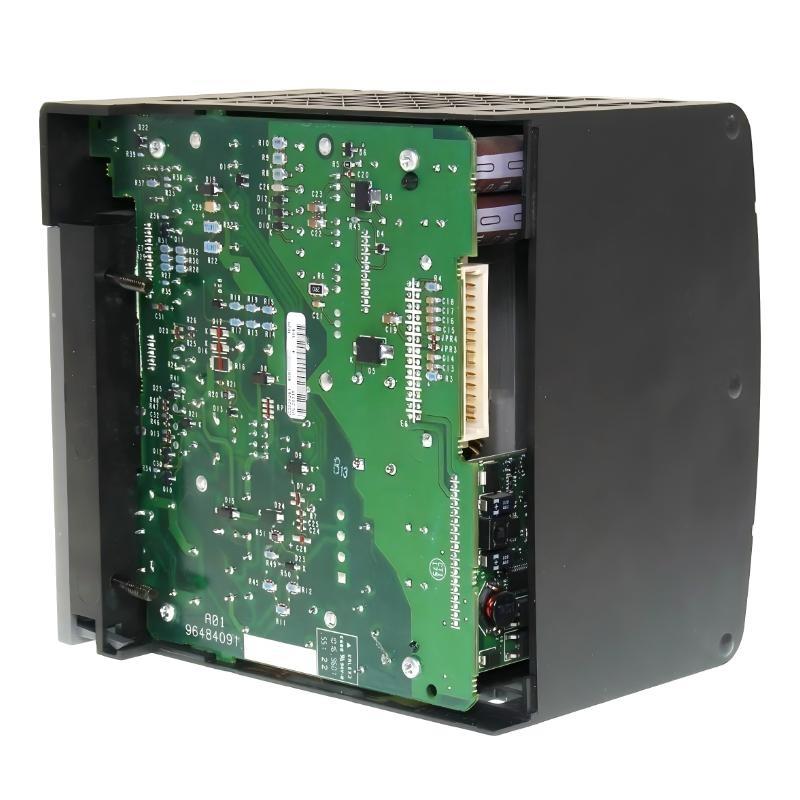

The Allen-Bradley 1756-PBXT is a ControlLogix XT DC power supply engineered for use in extreme industrial environments. Designed as part sur the ControlLogix XT (Extended Temperature) series, this power supply delivers stable backplane power to ControlLogix chassis systems operating in harsh conditions where standard temperature-rated modules may not be suitable.
The 1756-PBXT converts a DC input voltage into regulated backplane power required by ControlLogix controllers, communication modules, and I/O modules. With a 52-watt output capacity, it supports a wide range sur system configurations while maintaining consistent voltage regulation and thermal stability.
Built for demanding industries such as oil & gas, mining, power generation, and heavy manufacturing, the XT series ensures reliable performance across expanded temperature ranges. The 1756-PBXT integrates directly into the left side sur a ControlLogix chassis and supplies power through the backplane without requiring additional wiring to individual modules.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle | 1756-PBXT |
| Marque | Allen-Bradley |
| Series | ControlLogix XT |
| Module Type | DC Power Supply |
| Input Voltage Range | 18–32 VDC |
| Output Power | 52 Watts |
| Backplane Output | Regulated DC Backplane Power |
| Installation Position | Left Side sur ControlLogix Chassis |
| Redundancy Support | Supported in Redundant Configurations |
| Protection Features | Overvoltage, Overcurrent, Thermal Protection |
| Status Indicators | Power Status LED |
| Cooling Method | Natural Convection |
| Dimensions | 140 × 112 × 145 mm |
| Poids | 0.95 kg |
Applications
• Supplying regulated backplane power to ControlLogix XT systems
• Industrial installations requiring extended temperature operation
• Oil & gas, mining, and heavy industrial automation
• Remote installations exposed to extreme environmental conditions
• Redundant ControlLogix architectures requiring reliable DC power input
Advantages
• Designed for extended temperature environments under the XT series standard
• Stable 52-watt power output supporting multiple I/O and communication modules
• Wide 18–32 VDC input range for flexible DC system integration
• Integrated protection features improving system safety and reliability
• Direct chassis mounting for simplified installation and wiring
• Compatible with redundant ControlLogix system configurations
