Présentation du produit

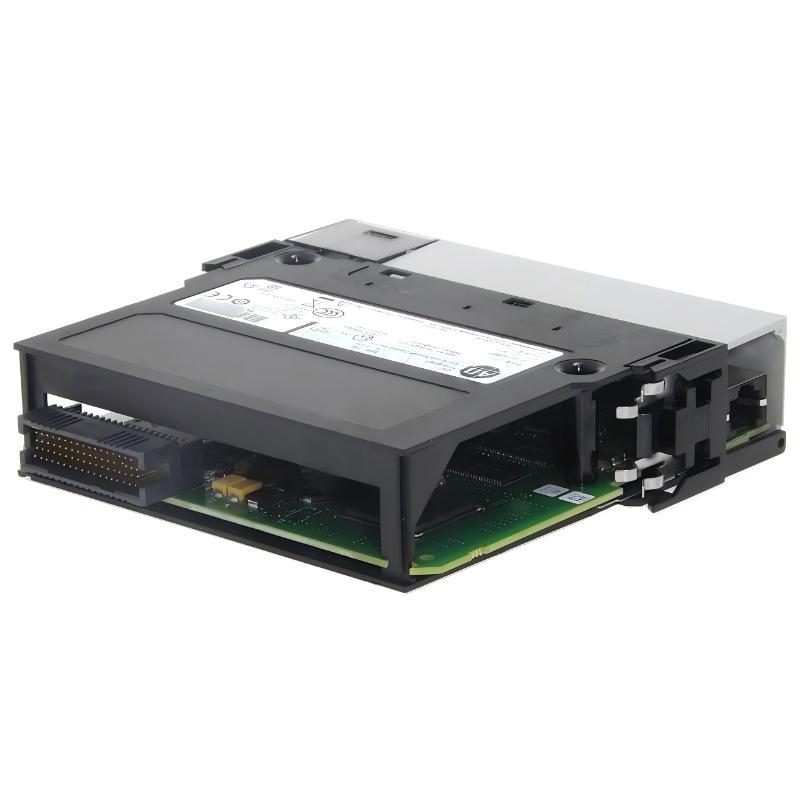

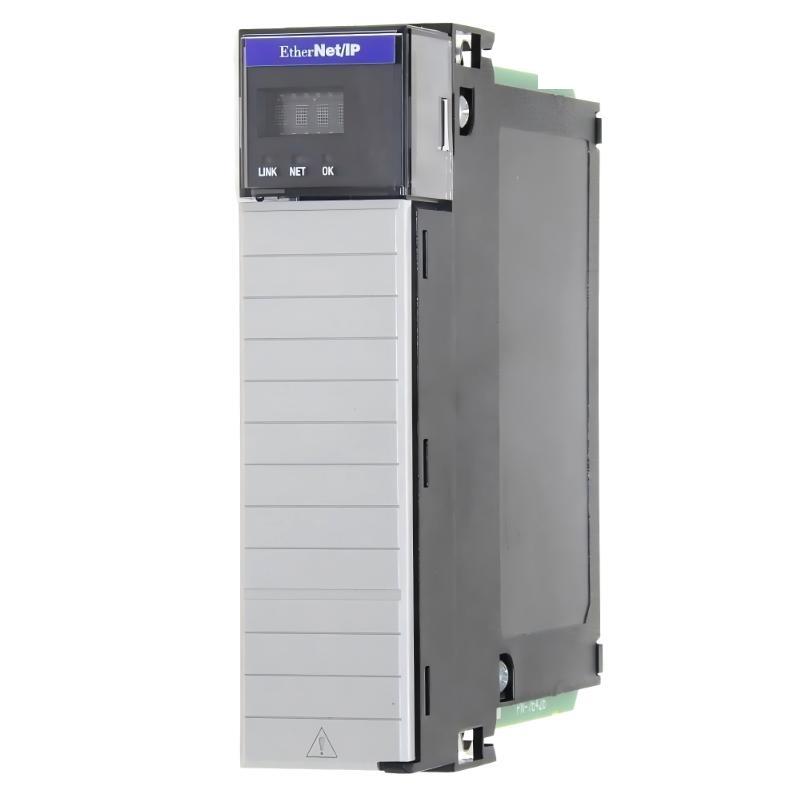

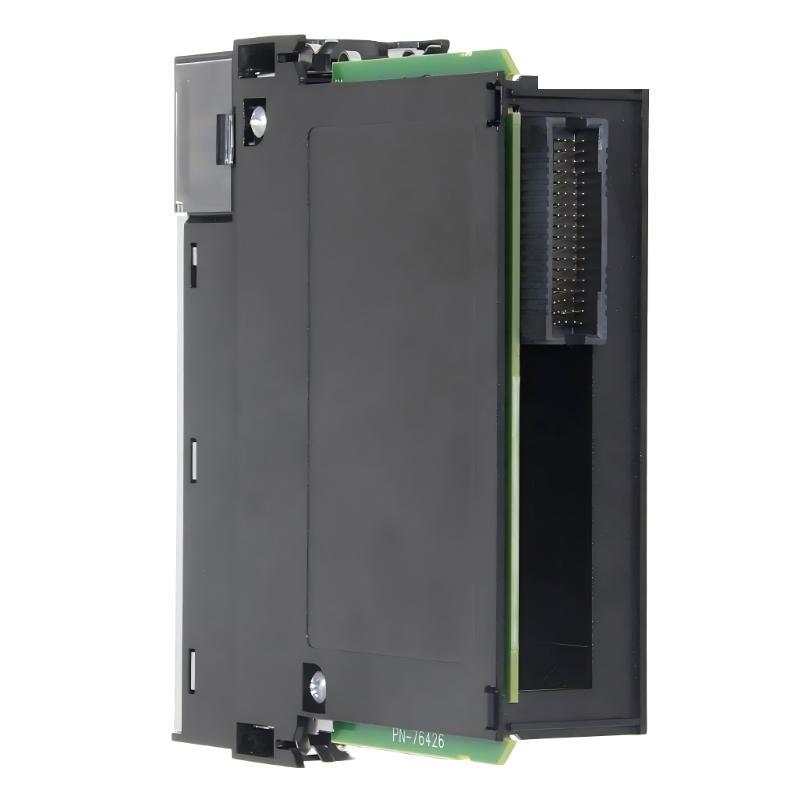

The Allen Bradley 1756-ENBT ControlLogix EtherNet/IP Bridge Module is designed to provide reliable Ethernet/IP communication between ControlLogix controllers and Ethernet-based industrial devices. It enables high-speed data exchange with I/O modules, drives, HMIs, and supervisory systems, forming a critical link between the controller backplane and plant networks.
As a widely used communication module in ControlLogix systems, the 1756-ENBT supports deterministic communication and stable network performance. Its proven design makes it suitable for a broad range sur industrial automation applications requiring consistent and dependable Ethernet connectivity.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Type | EtherNet/IP Communication Module |
| Fabricant | Allen Bradley |
| Series | ControlLogix |
| Modèle / Référence | 1756-ENBT |
| Network Protocol | EtherNet/IP |
| Controller Communication | ControlLogix backplane |
| Backplane Current | 700 mA @ 5 V DC |
| Auxiliary Current | 3 mA @ 24 V DC |
| Insulation Voltage | 30 V continuous |
| Power Dissipation | 3.7 W |
| Thermal Dissipation | 12.6 BTU/hr |
| Enclosure Type | Open |
| Slot Width | 1 slot |
| Installation Location | ControlLogix chassis, any slot |
| Operating Temperature | 0 to 60 °C |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Poids | 0.23 kg |
Applications
• EtherNet/IP Industrial Networks
Provides communication between ControlLogix controllers and Ethernet-based field devices.
• Distributed I/O Systems
Connects remote I/O racks and intelligent devices to the controller over Ethernet/IP.
• Manufacturing Automation
Used in assembly lines, packaging systems, and material handling applications.
• Process Control Systems
Supports communication in continuous and batch process environments.
• HMI and SCADA Connectivity
Enables data exchange between controllers and visualization or supervisory systems.
• Plant Network Integration
Forms a bridge between control-level systems and plant-wide Ethernet networks.
Advantages
• Proven EtherNet/IP Performance
Widely deployed design with reliable and predictable communication behavior.
• Seamless ControlLogix Integration
Installs directly into ControlLogix chassis and communicates through the backplane.
• Deterministic Data Exchange
Supports time-critical industrial control applications.
• Efficient Power and Thermal Design
Optimized for stable operation within control cabinets.
• Flexible Installation
Can be installed in any available ControlLogix chassis slot.
• Broad Application Compatibility
Supports a wide range sur Ethernet/IP devices and automation architectures.
