Présentation du produit

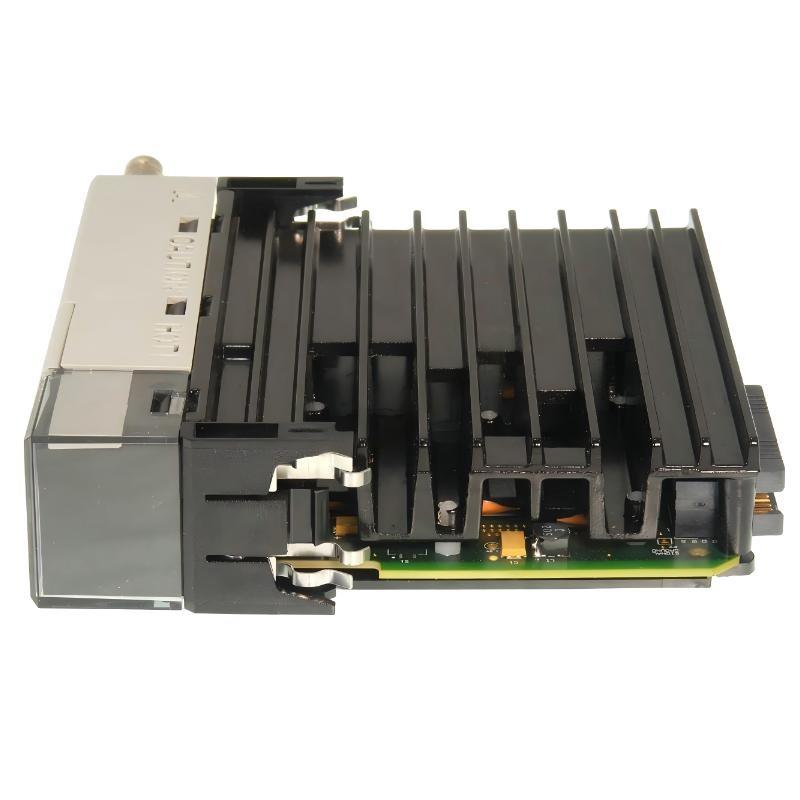

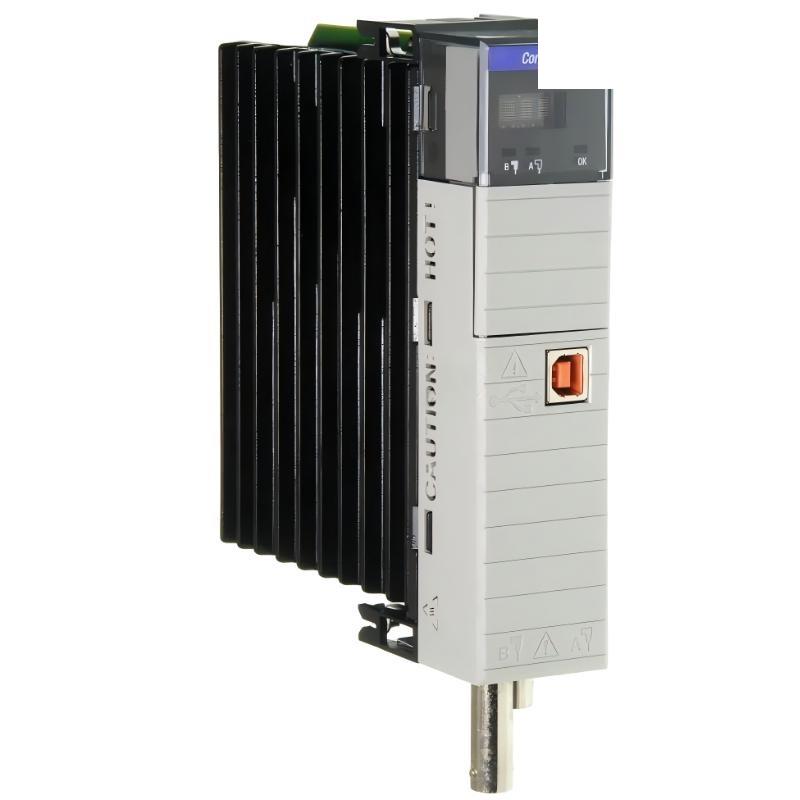

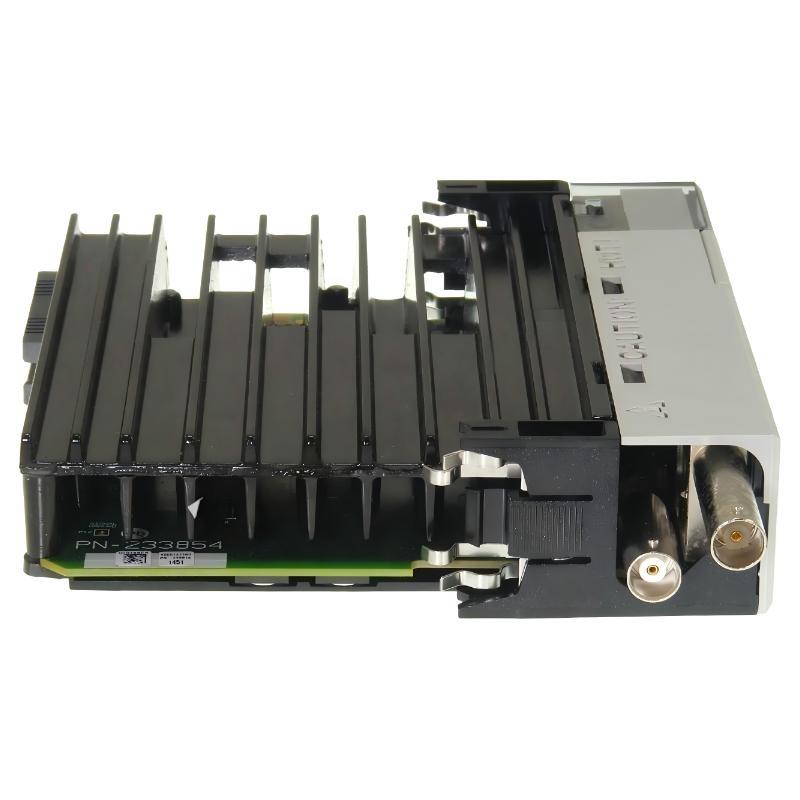

The Allen-Bradley 1756-CN2R is a ControlLogix ControlNet communication module designed for high-speed, deterministic networking between ControlLogix controllers, I/O modules, and other ControlNet devices. It provides reliable real-time data transmission and supports a large number sur nodes and connections, enabling complex industrial automation networks.
The 1756-CN2R allows integration sur ControlLogix systems into distributed control architectures, surfering robust communication, high throughput, and flexible network configuration. Its design ensures compatibility with standard ControlNet devices while providing efficient management sur network traffic for critical industrial processes.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Communication Module |
| Communication Protocol | ControlNet |
| Transmission Rate | 5 Mbps |
| Maximum Nodes | 99 |
| Logix Connections | 128 |
| Total Connections (Max) | 131 |
| Wiring Catégorie | 1 on ControlNet ports, 3 on USB ports |
| Enclosure Type Rating | Open-style |
| Power Dissipation | 6.7 W |
| Thermal Dissipation | 22.9 BTU/h |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Chassis Compatibility | ControlLogix chassis |
| Control Platform | ControlLogix automation system |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Poids | 0.293 kg |
Applications
• Used for real-time networking sur ControlLogix controllers and I/O modules in distributed control systems
• Suitable for high-speed industrial communication networks with multiple nodes and devices
• Applied in manufacturing, process automation, and batch control systems
• Enables integration with existing ControlNet networks and external devices
• Ideal for systems requiring deterministic, high-throughput communication and robust network management
Advantages
• High transmission rate (5 Mbps) ensures fast and reliable data exchange
• Supports up to 99 nodes and 131 total connections for large-scale network deployment
• Seamless integration with ControlLogix controllers simplifies network setup and configuration
• Low power and thermal dissipation minimize energy usage and heat generation
• Open-style enclosure rating allows flexible mounting in industrial panels
• Designed for robust performance in electrically noisy and industrial environments
