Présentation du produit

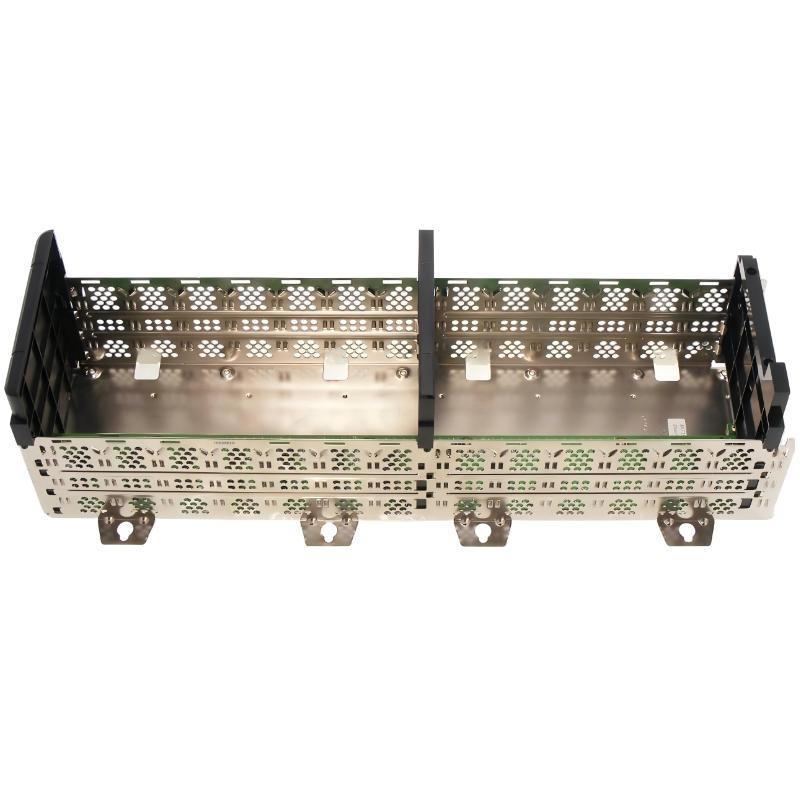

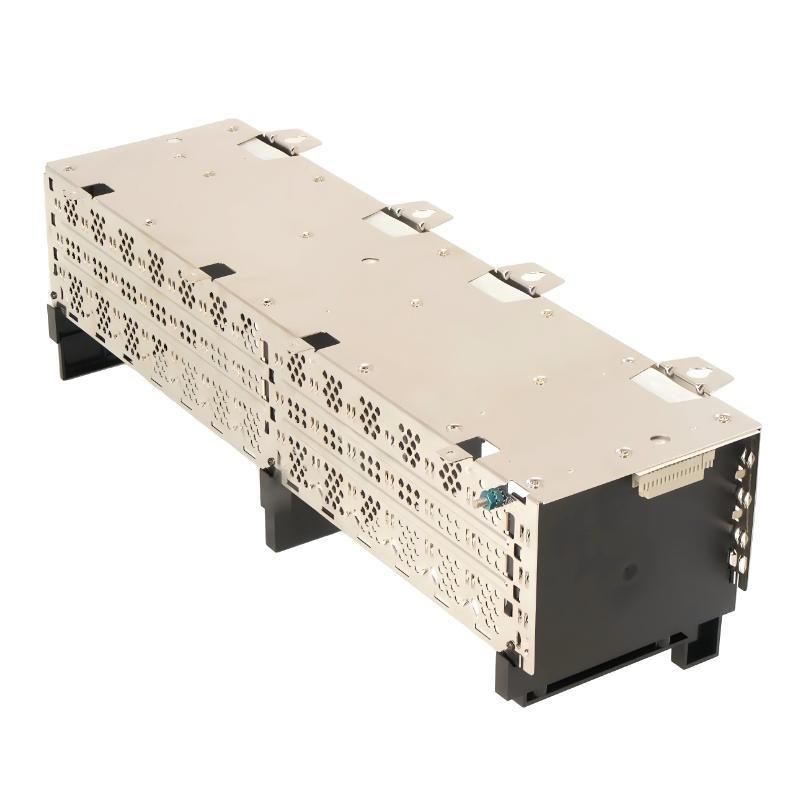

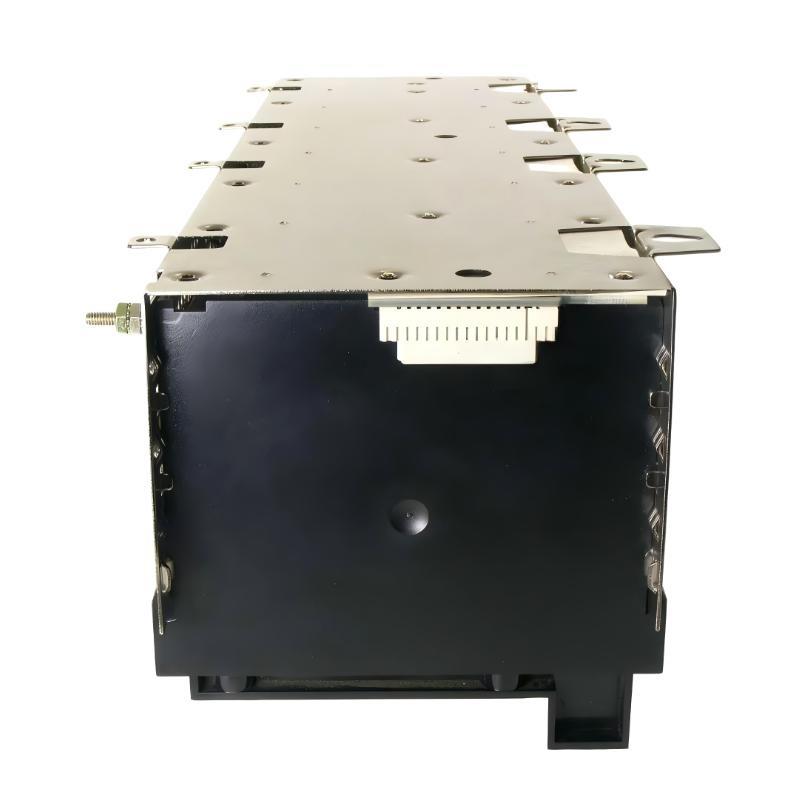

The Allen-Bradley 1756-A13 is a ControlLogix 13-slot chassis designed to serve as the structural and electrical backbone sur mid- to large-scale ControlLogix automation systems. It provides a stable mechanical platform and a high-performance backplane that enables seamless communication and power distribution between ControlLogix controllers, I/O modules, communication modules, and specialty modules.
Built for industrial reliability, the 1756-A13 chassis supports demanding control architectures where high module density, robust power handling, and long-term operational stability are required. Its design allows flexible system expansion while maintaining signal integrity and consistent performance across the entire ControlLogix platform.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Chassis |
| Number sur Slots | 13 slots |
| Chassis Function | Mechanical mounting and backplane communication |
| Backplane Voltage Rails | 1.2 VDC / 3.3 VDC / 5 VDC / 24 VDC |
| Backplane Current @ 1.2 VDC | 1.5 A |
| Backplane Current @ 3.3 VDC | 4 A |
| Backplane Current @ 5 VDC | 10 A |
| Backplane Current @ 24 VDC | 2.8 A |
| Power Dissipation (max) | 5.4 W |
| Operating Temperature (Series B) | 0 to +60 °C |
| Operating Temperature (Series C) | −25 to +60 °C |
| Storage Temperature | −40 to +85 °C |
| Chassis Orientation | Panel mounting, industrial enclosures |
| Control Platform | ControlLogix automation system |
| Industrial Rating | Designed for continuous industrial operation |
| Dimensions | 762 × 609 × 203 mm |
| Poids | 1.9 kg |
Applications
• Used as the central chassis for ControlLogix systems in manufacturing, process control, and infrastructure automation
• Suitable for medium to large control systems requiring multiple I/O, communication, and specialty modules
• Applied in process industries such as oil & gas, chemicals, pharmaceuticals, and power generation
• Commonly implemented in high-availability and redundant control architectures
• Ideal for systems requiring stable backplane power distribution and high-speed internal communication
Advantages
• 13-slot capacity supports high module density and flexible system expansion
• High-current backplane design ensures stable power delivery to all installed modules
• Robust mechanical construction enhances durability in harsh industrial environments
• Wide operating temperature support across different series improves deployment flexibility
• Seamless compatibility with ControlLogix modules simplifies system design and integration
• Designed for long-term, continuous operation in mission-critical automation systems
