Présentation du produit

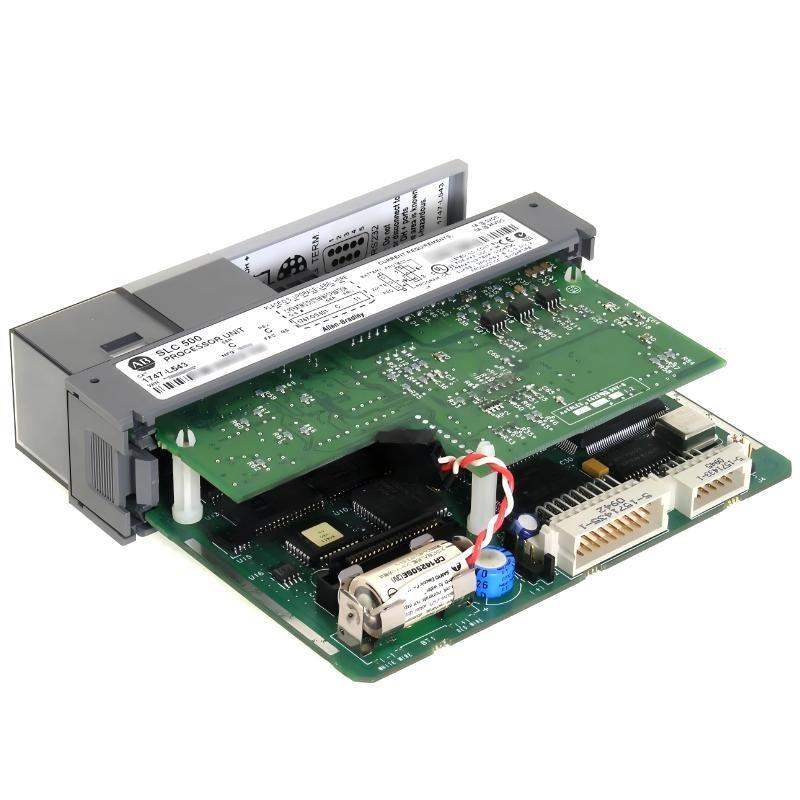

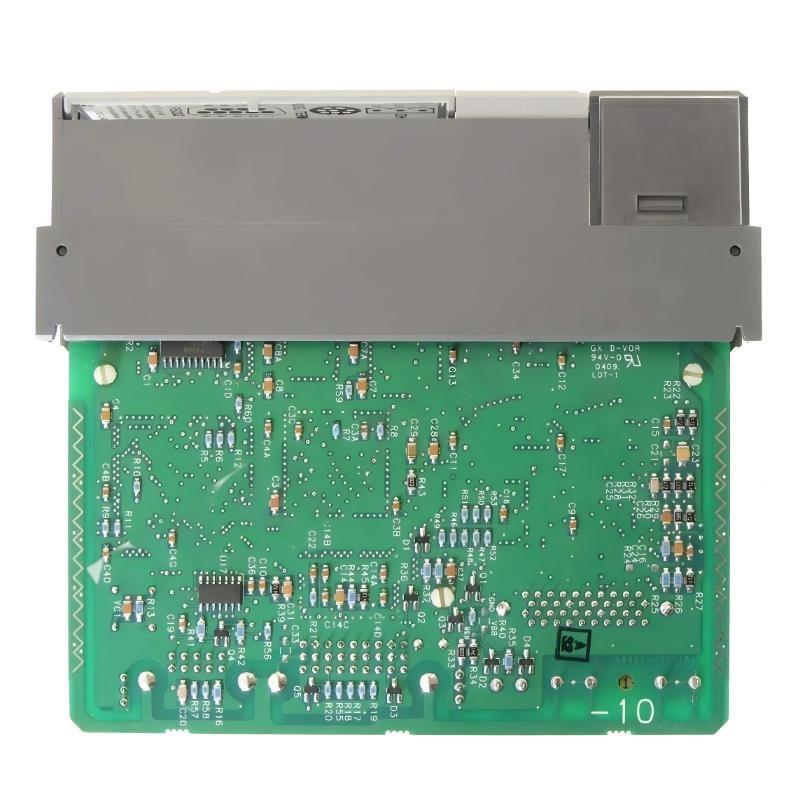

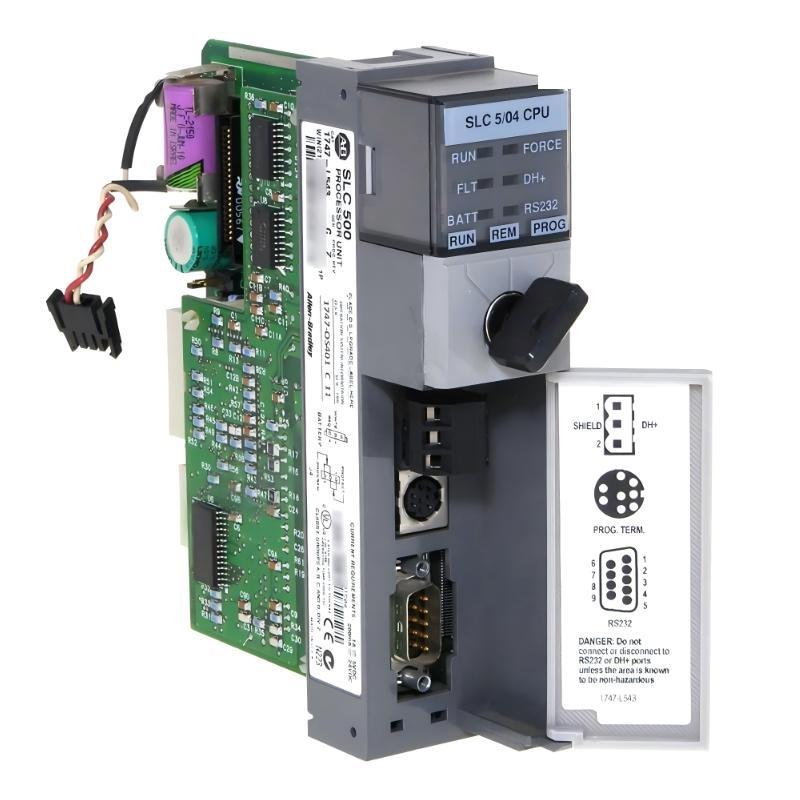

The Allen-Bradley 1747-L543 CPU Processor Unité Module is a high-performance controller designed for the SLC™ 500 automation platform. It serves as the central processing unité sur the control system, responsible for executing user logic, managing memory, and coordinating communication between I/O modules and external devices.
Built for industrial environments where reliability, deterministic control, and stable execution are essential, the 1747-L543 provides sufficient processing capacity and memory resources for medium to large-scale control tasks. It supports complex ladder logic programs, structured data handling, and real-time interaction with digital I/O networks.
This processor is widely used in legacy and long-life industrial systems where SLC 500 architecture remains a proven and trusted solution. Its compatibility with RSLogix 500 ssurtware makes it straightforward for engineers to configure, troubleshoot, and maintain existing installations.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | CPU Processor Unité |
| Series | SLC 500 |
| User Program Memory | 64 KB |
| Data / Logic Memory | 64K |
| Maximum Digital I/O Capacity | 8192 Digital I/O |
| Programming Ssurtware | RSLogix 500 |
| Supply Voltage Range | 5 – 24 VDC |
| Backplane Current Draw | 1000 mA |
| User Supply Current | 200 mA |
| Communication Capability | Backplane-based I/O and module communication |
| Processor Architecture | Dedicated industrial control processor |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Poids | 0.45 kg |
Applications
• Industrial automation control systems where deterministic logic execution and stable cycle times are required
• Manufacturing lines handling discrete processes such as assembly, packaging, and material handling
• Legacy system upgrades that require maintaining compatibility with existing SLC 500 hardware
• Process monitoring systems managing large quantities sur digital I/O signals
• Machine control applications where reliable ladder logic execution is critical
• Utility and infrastructure control systems operating continuously with minimal downtime
Advantages
• High I/O handling capability, supporting up to 8192 digital I/O points, suitable for large control architectures
• Stable and proven SLC 500 platform, widely deployed and well understood by automation engineers
• RSLogix 500 compatibility, allowing easy programming, diagnostics, and maintenance
• Robust industrial design, ensuring reliable operation in harsh electrical and environmental conditions
• Efficient memory structure, enabling organized handling sur logic, data files, and control routines
• Long service lifecycle, making it ideal for plants that prioritize system continuity and spare part consistency
