Overview – A Compact Powerhouse for SLC 500 Systems

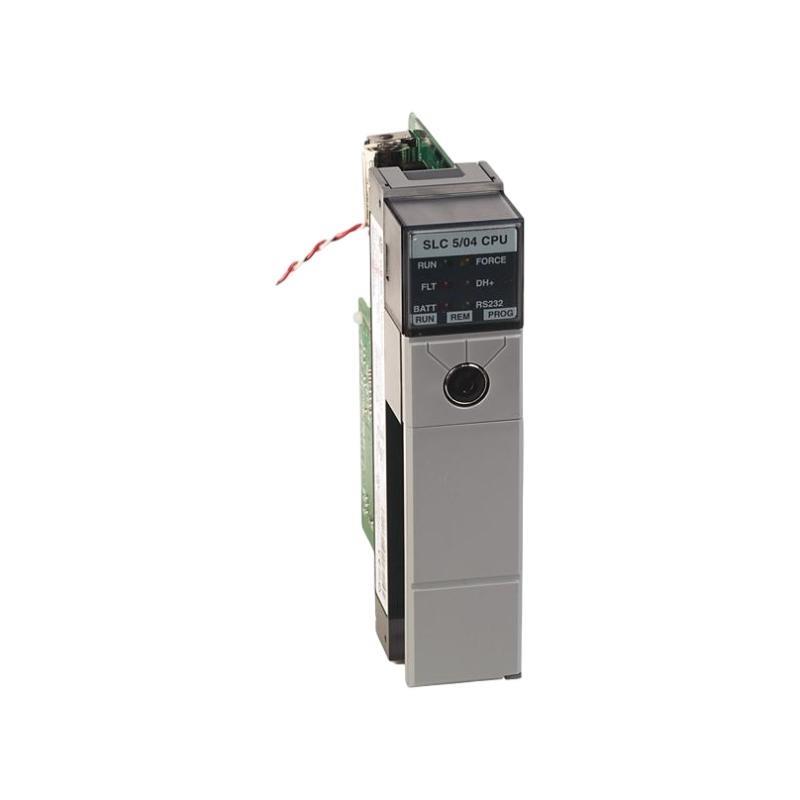

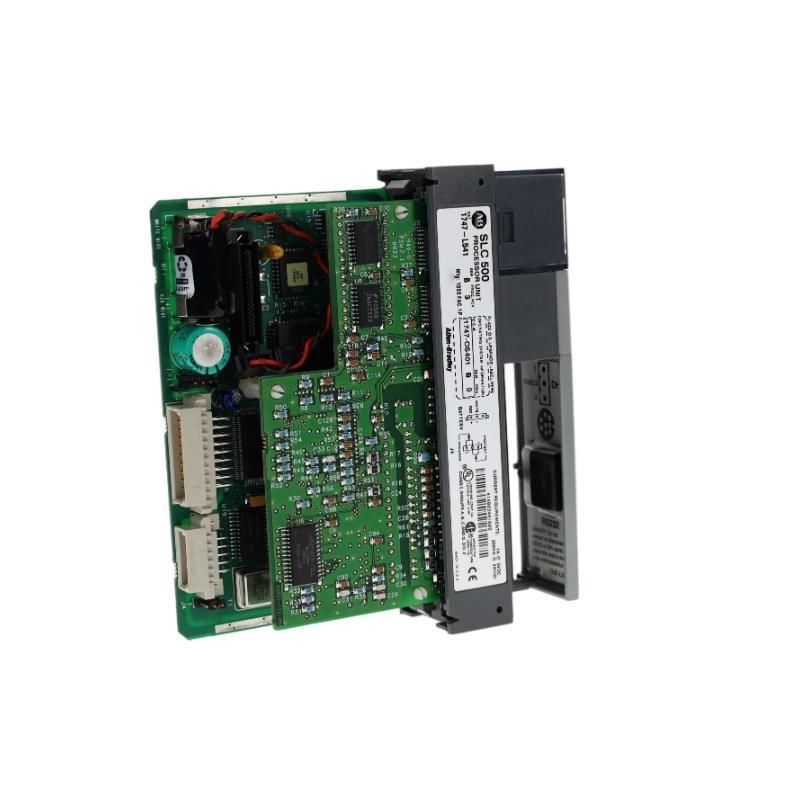

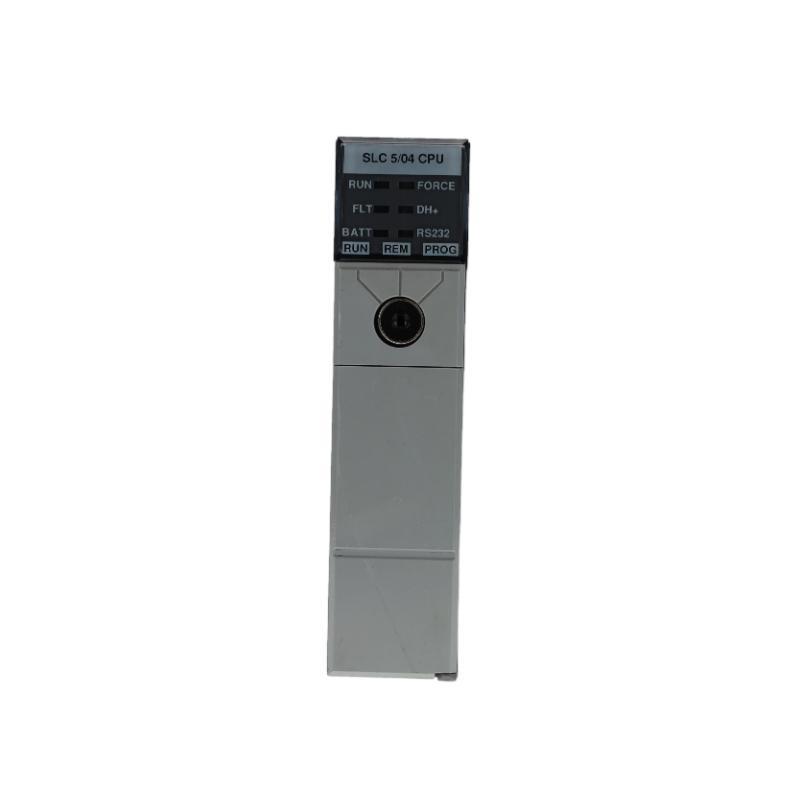

The Allen Bradley 1747-L541 is a SLC 5/04 CPU Processor Module, engineered for medium to large-scale automation tasks that demand reliable performance and efficient communication. As part sur the proven SLC 500 platform, this processor combines Rockwell’s industrial reliability with flexible networking options, including DH+ (Data Highway Plus) and RS-232 ports, ensuring seamless data exchange across legacy and modern control networks.
Its high processing speed, expanded memory, and modular architecture make it a solid choice for applications that require real-time control and long-term system stability.
Core Specifications & Dimensions
| Parameter | Specification |
|---|---|
| Fabricant | Allen Bradley / Rockwell Automation |
| Series | SLC 500 |
| Module Type | CPU Processor Module (SLC 5/04) |
| Catalog Number | 1747-L541 |
| Processor Type | 5/04 Controller |
| User Memory | 16 KB |
| Program Scan Time | 0.9 ms per 1K instructions |
| Communication Ports | 1 × DH+, 1 × RS-232/422/423 |
| I/O Capacity | Up to 30 local I/O modules |
| Remote I/O Support | Yes, via 1747-SN module |
| Data Highway Plus Speed | 57.6 or 230.4 Kbps |
| Instruction Set | Ladder Logic, Sequencer, and PID |
| Expansion Slots Supported | 3, 5, 7, or 13-slot chassis |
| Battery Backup | Yes, lithium battery for memory retention |
| Power Supply Requirement | 5V DC at 0.65 A |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 145 mm × 43 mm × 152 mm (5.7 in × 1.7 in × 6.0 in) |
| Poids | 0.45 kg (1.0 lb) |
| Certifications | UL, CE, CSA, Class I Div 2, RoHS |
Field Applications
The 1747-L541 is highly regarded in industrial automation for its stability, flexible communication, and compatibility with existing SLC infrastructure. It is surten deployed in:
-
Packaging Systems – Coordinating conveyor belts, sensors, and pneumatic devices.
-
Material Handling Equipment – Managing motor-driven actuators and sortation logic.
-
Water and Wastewater Treatment Plants – Handling analog process signals and interlocks.
-
Food & Beverage Lines – Integrating batch control, filling, and inspection stations.
-
Machine Tool Automation – Supervising spindle operations, coolant systems, and motion feedback.
Its proven architecture allows for easy maintenance and minimal downtime in continuous operations.
Technical Advantages
-
Proven Reliability: Field-tested design for over two decades in industrial environments.
-
Fast Processing: Sub-millisecond scan time ensures responsive control.
-
Multiple Network Options: DH+ for peer-to-peer PLC communication and RS-232 for SCADA or HMIs.
-
Scalable Memory: 16 KB user memory for medium-complexity control tasks.
-
Seamless Integration: Works with both local and distributed I/O networks.
-
Robust Diagnostics: Built-in LED status indicators and comprehensive fault reporting.
-
Battery-Backed RAM: Prevents program loss during unexpected power interruptions.
-
Backwards Compatibility: Compatible with older SLC modules, protecting prior investments.
