Présentation du produit

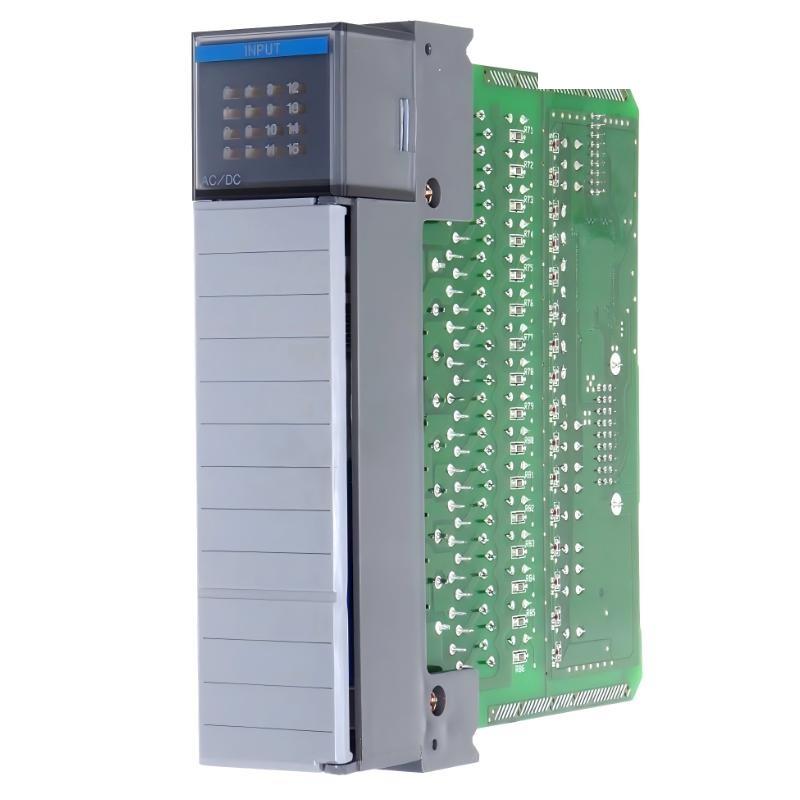

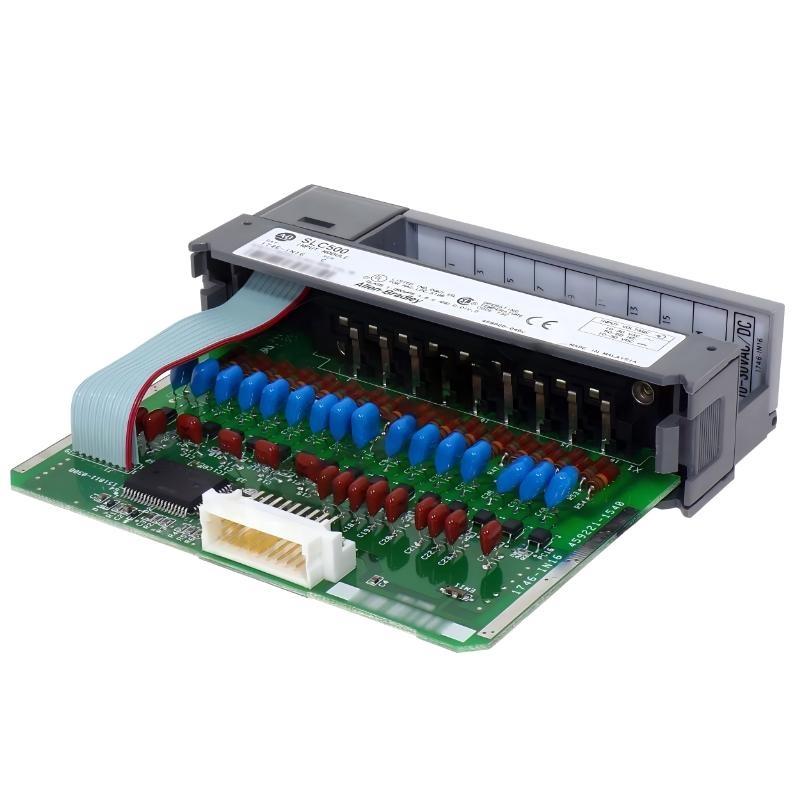

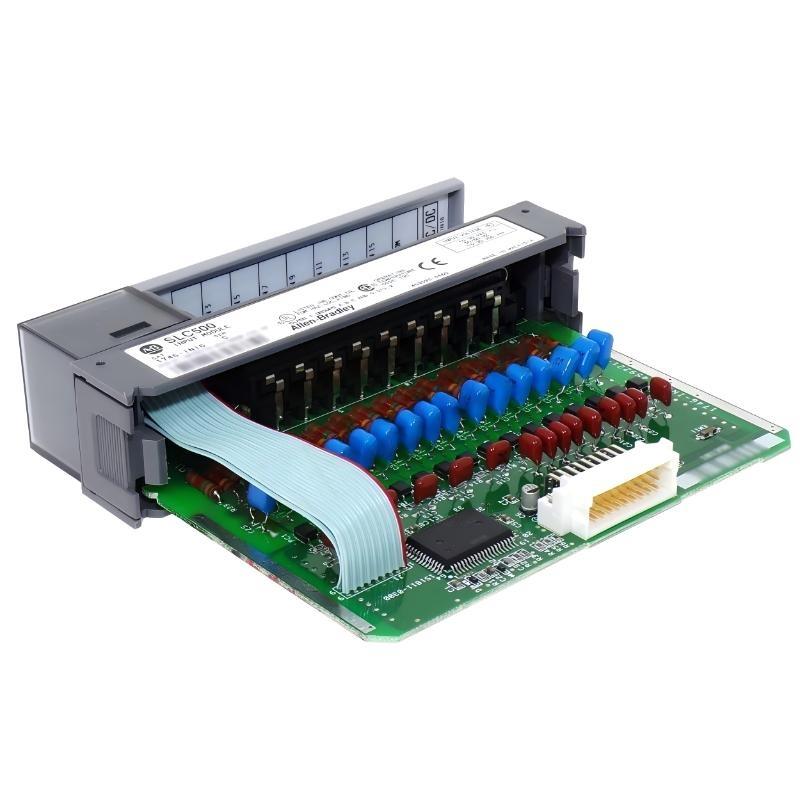

The Allen Bradley 1746-IN16 SLC 500 Digital Input Module is a reliable 16-channel digital input module designed for use within the SLC 500 control system family by Rockwell Automation. It is engineered to monitor field signals from various AC/DC input devices and transmit accurate status information to the programmable controller.
This module supports both 24V AC and DC input signals, making it highly adaptable in mixed-signal environments. With 16 input points grouped per common, it simplifies wiring while maintaining signal integrity. The design ensures stable signal acquisition even in electrically noisy industrial settings, which is critical for maintaining control system reliability.
Widely deployed in legacy and ongoing automation systems, the 1746-IN16 remains a practical choice for maintaining and expanding existing SLC 500 installations where proven stability and compatibility are essential.
Spécifications du produit
| Parameter | Value |
|---|---|
| Module Type | SLC 500 Digital Input Module |
| Input Type | Digital AC/DC |
| Number sur Inputs | 16 Points |
| Input Voltage Range | 24 V AC/DC |
| Frequency Range | 50/60 Hz |
| Points per Common | 16 |
| Input Current (Typical) | ~8 mA @ 24V |
| Signal Delay (On/Off) | Typical 8–12 ms |
| Backplane Current | Approx. 0.085 A @ 5V |
| Isolation | Electrical Isolation Between Field and Backplane |
| Wiring Configuration | Partagerd Common |
| Status Indicators | Individual LED per Channel |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | Chassis-based (SLC 500 Rack) |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Poids | 0.27 kg |
Applications
● Used for monitoring field input signals such as push buttons, limit switches, and sensors
● Suitable for industrial control panels requiring stable AC/DC signal acquisition
● Applied in manufacturing automation systems, especially legacy SLC 500 platforms
● Common in material handling systems, detecting position and status signals
● Ideal for process control environments, where reliable discrete input feedback is required
● Used in retrsurit and maintenance projects, extending the life sur existing SLC systems
Advantages
● Supports both AC and DC input signals, increasing application flexibility
● Provides 16 input channels per module, improving system density
● Designed for stable operation in noisy environments, ensuring signal accuracy
● Integrated LED indicators per channel for quick diagnostics and troubleshooting
● Compatible with existing SLC 500 systems, reducing upgrade complexity
● Proven reliability with long-term deployment in industrial automation systems
