Présentation du produit

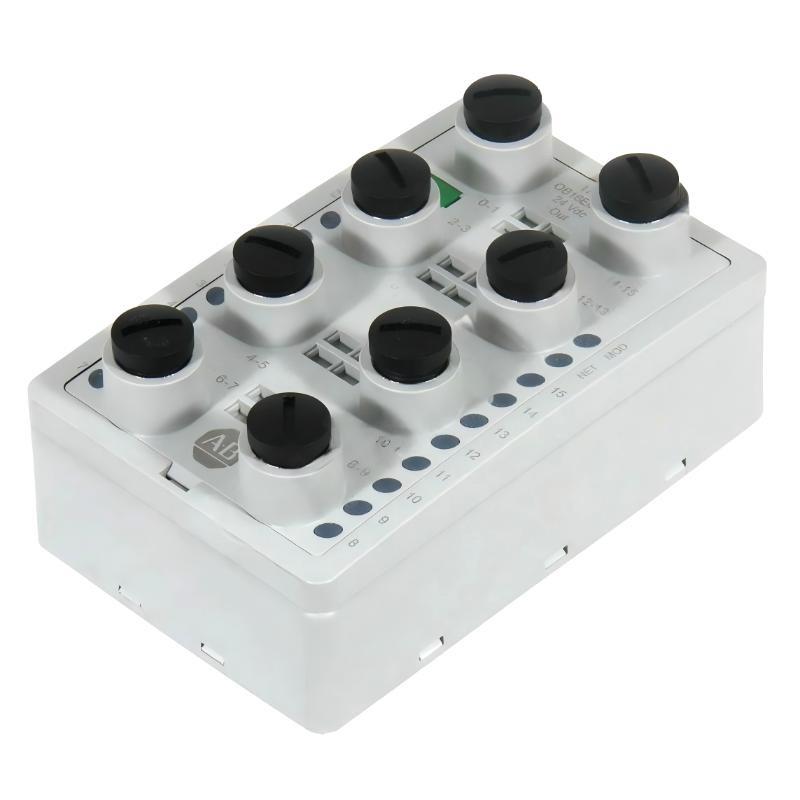

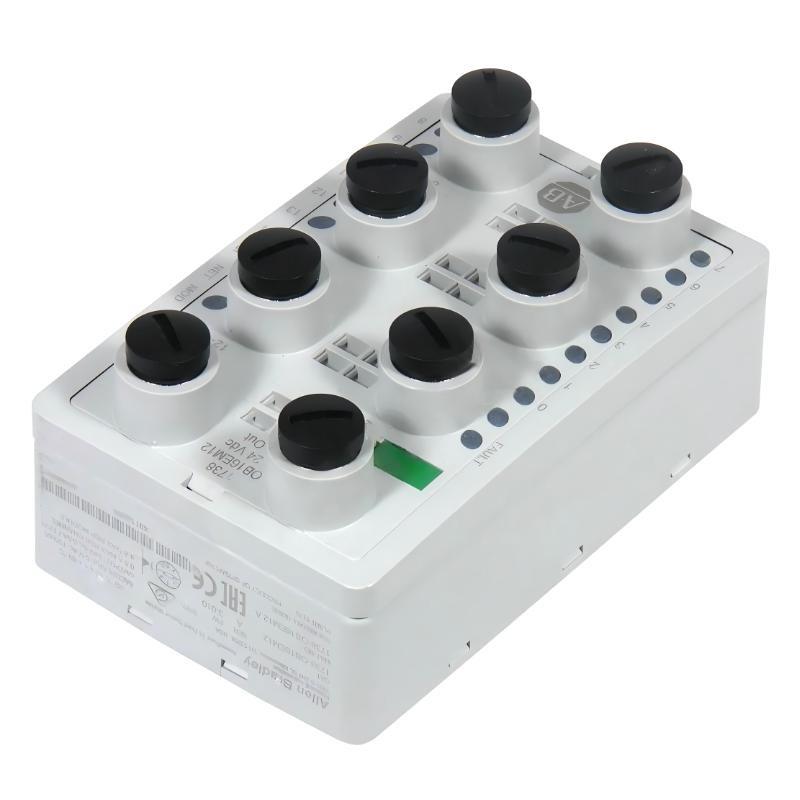

The Allen Bradley 1738-OB16EM12 ArmorPoint Digital Output Module is a high-density digital output module developed for the ArmorPoint I/O platform by Rockwell Automation. It provides 16 digital output channels and is designed for direct on-machine installation in demanding industrial environments.
Unlike traditional cabinet-mounted I/O, this module is built with a sealed housing that allows it to operate reliably in exposed conditions such as dust, moisture, and vibration. It eliminates the need for protective enclosures, significantly reducing installation complexity and system cost in distributed automation architectures.
The 1738-OB16EM12 is engineered to deliver stable 24 VDC output signals to field devices such as actuators, solenoids, and indicators. With its compact design and M12 connectivity, it enables efficient wiring, fast deployment, and reliable long-term operation in modern industrial systems.
Spécifications du produit
| Parameter | Value |
|---|---|
| Module Type | ArmorPoint Digital Output Module |
| Number sur Outputs | 16 Outputs |
| Output Voltage | 24 VDC |
| Current Rating | 3 A |
| POINTBus Current | 75 mA |
| Signal Type | Digital Output |
| Connection Type | M12 Connectors |
| Protection Rating | IP67 / Industrial Sealed Design |
| Design Type | On-machine Mount, Sealed |
| Isolation | Electrical isolation supported |
| Mounting Type | Direct Machine Mount / DIN Rail Compatible |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 120 x 42 x 72 mm |
| Poids | 0.29 kg |
Applications
● Used in on-machine control applications, driving actuators, solenoids, and relays directly
● Suitable for distributed automation systems, reducing wiring between control cabinets and field devices
● Applied in packaging and assembly lines, where multiple outputs are required in a compact space
● Ideal for material handling systems, enabling real-time control sur motors and indicators
● Common in automotive production environments, supporting decentralized control architecture
● Used in harsh industrial environments, where sealed modules ensure stable operation
Advantages
● Provides 16 high-density digital outputs, reducing the number sur modules required
● Supports 3 A current rating, suitable for a wide range sur industrial loads
● Enables on-machine installation, eliminating the need for control cabinets
● Uses M12 connectors, simplifying wiring and improving connection reliability
● Designed with sealed industrial construction, ensuring durability in harsh environments
● Enhances system flexibility through distributed I/O architecture
