Présentation du produit

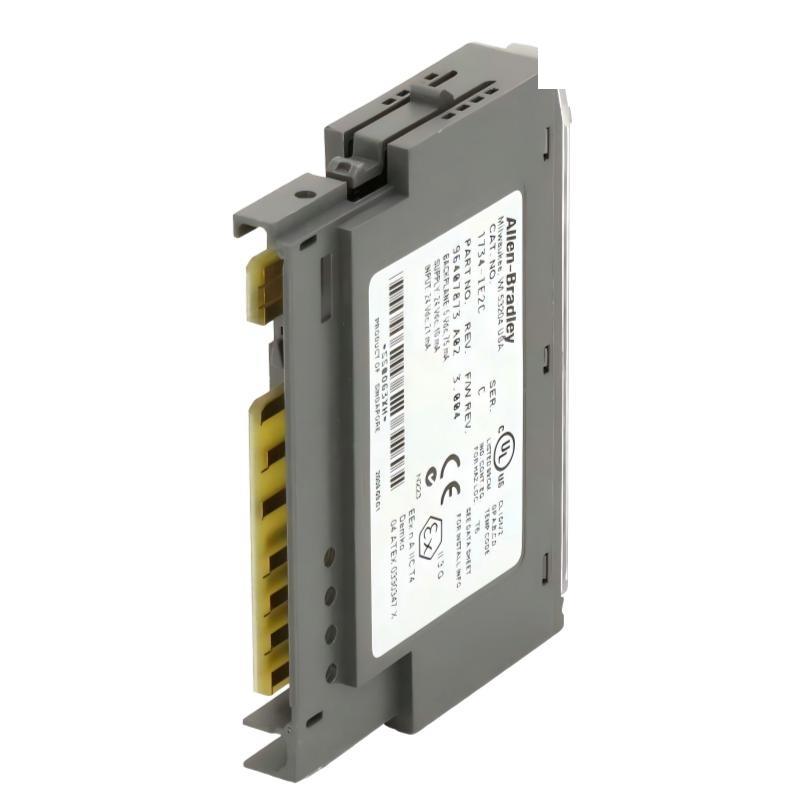

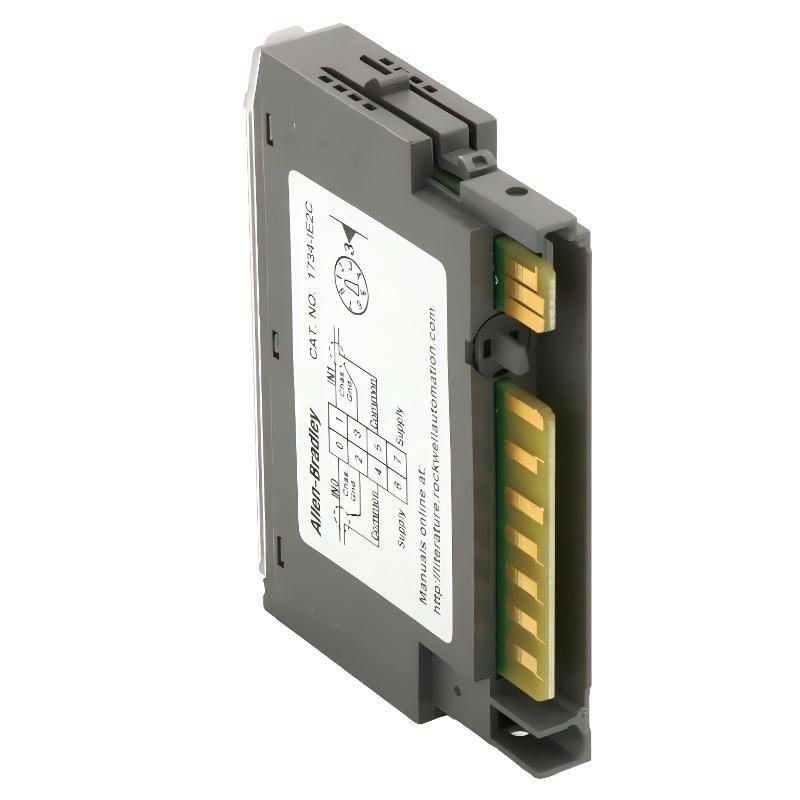

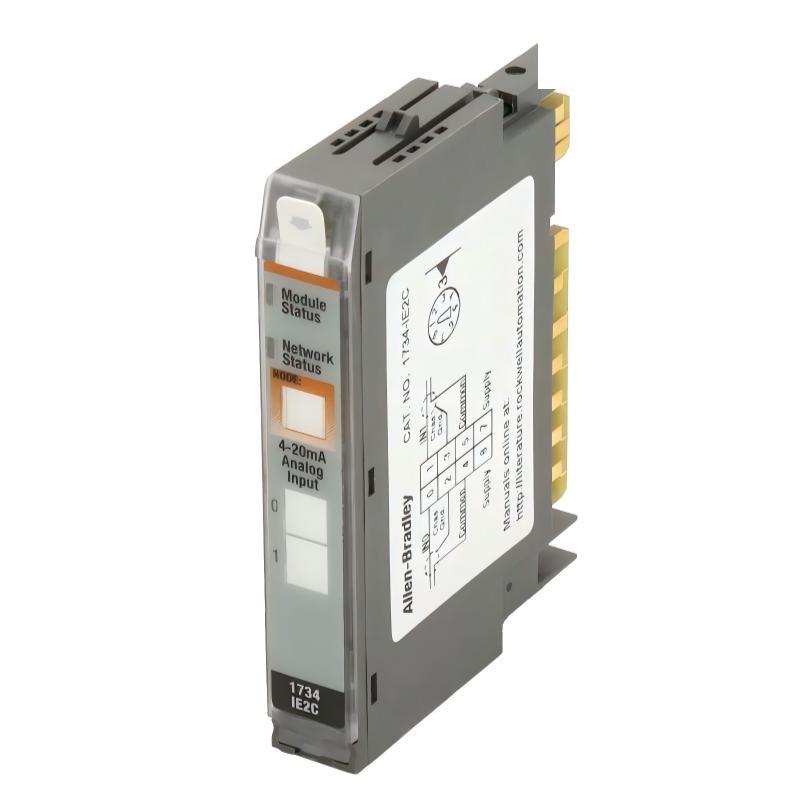

The Allen-Bradley 1734-IE2C Analog Current Input Module POINT I/O is a high-precision industrial module designed for acquiring analog signals in distributed automation systems. It provides 2 single-ended current inputs capable sur measuring 0…20mA and 4…20mA signals, delivering 16-bit signed resolution for accurate process monitoring.
The module’s open-style design and DIN-rail mounting allow flexible installation in compact control panels and distributed I/O networks. Its robust construction ensures reliable performance across a wide temperature and humidity range, making it suitable for applications where precise analog signal acquisition is critical.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Series | Point I/O (Bul. 1734) |
| Component Type | Analog Input Module |
| Number sur Analogue Inputs | 2 qty |
| Analogue Input Type(s) | Current: Single-Ended |
| Analogue Input Range(s) | 0 … 20 mA, 4 … 20 mA |
| Analogue Resolution, Input | 16 bit (signed) |
| Power Supply | 24V DC |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| Dimensions | 56 × 12 × 75.5 mm |
| Poids | 0.036 kg |
Applications
• Process Control Monitoring
Acquires current signals from transmitters for accurate process measurement.
• Distributed I/O Systems
Integrates into POINT I/O networks for scalable analog signal acquisition.
• Industrial Sensing
Supports connection sur pressure, flow, or temperature sensors providing current outputs.
• Data Logging and Analysis
Provides high-resolution analog inputs for precise monitoring and control.
• Automation Panel Integration
Compact form factor enables installation in high-density panels.
• System Expansion
Adds additional analog input channels to existing control systems.
Advantages
• High-Resolution Input
16-bit signed resolution ensures precise measurement sur process signals.
• Dual Current Input Channels
Supports both 0…20 mA and 4…20 mA standard signals for compatibility with diverse sensors.
• Wide Operating Temperature Range
Operates from -20 °C to 55 °C, suitable for industrial environments.
• High Humidity Tolerance
Supports relative humidity up to 95% RH, non-condensing.
• Compact and Modular Design
Small footprint allows integration into tight control panels.
• DIN-Rail Mounting Flexibility
Simplifies installation and expansion sur analog I/O networks.
