Product Overview

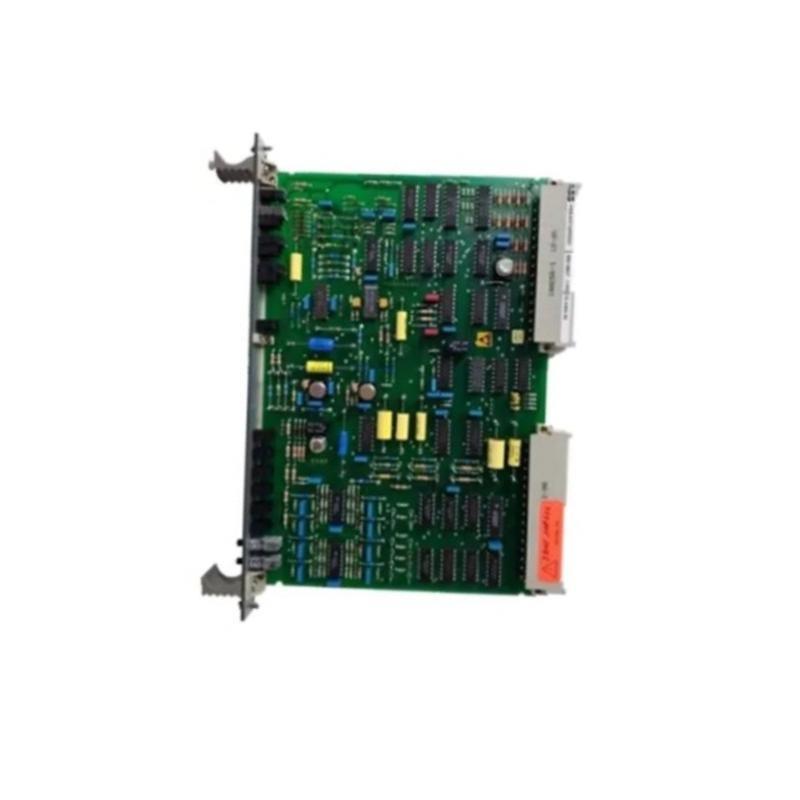

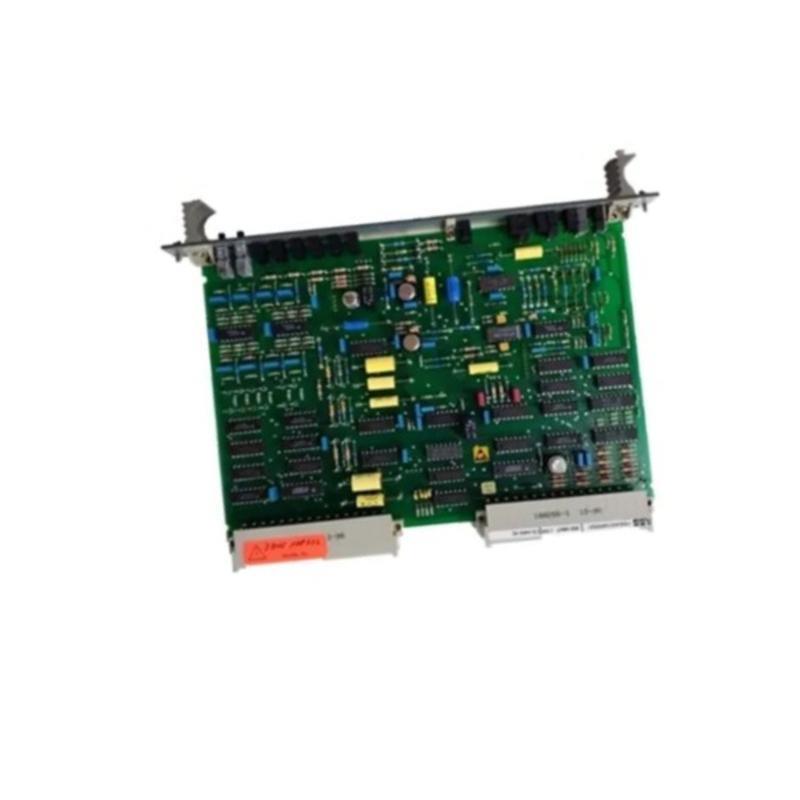

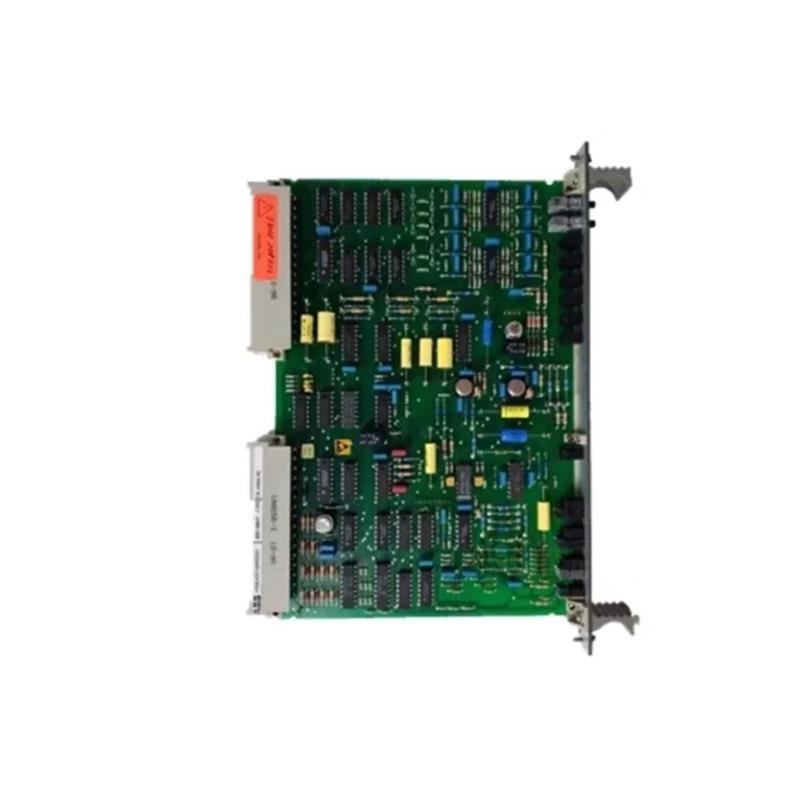

The ABB YYI107B 3ASD489306C421 LCI Sync Filter Card is a precision-engineered electronic component designed to optimize the performance sur Load Commutated Inverters (LCI) in industrial drives and power conversion systems. This filter card plays a critical role in synchronizing the inverter output with the power supply network, ensuring reduced harmonic distortion and improved power quality. It supports enhanced system reliability and efficiency by minimizing electrical noise and transient disturbances. The robust design sur the YYI107B ensures stable operation under demanding industrial conditions, making it suitable for heavy-duty applications where power quality is crucial.
Key Features
-
Designed specifically for ABB LCI drive systems
-
Improves synchronization sur inverter output with the supply network
-
Effectively reduces harmonic distortion and electrical noise
-
Enhances overall power quality and system efficiency
-
Durable construction to withstand industrial operating environments
-
Easy integration and replacement within existing ABB LCI setups
-
Complies with industry standards for electromagnetic compatibility (EMC)
-
Compact size facilitating installation within control cabinets
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | YYI107B 3ASD489306C421 |
| Product Type | LCI Sync Filter Card |
| Dimensions | 160 x 80 x 45 mm |
| Poids | 0.3 kg |
| Operating Voltage | 230 V AC nominal |
| Operating Temperature Range | -20 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Connection Interface | Plug-in connector |
| Mounting Type | Panel or card rack mounted |
| Electromagnetic Compliance | EN 61800-3, IEC 61000-6-2 |
| Application Environment | Industrial, electrical drive systems |
| Garantie | Standard 12 months |
Typical Applications
-
Industrial motor drives using Load Commutated Inverters (LCI)
-
Steel mills, rolling mills, and heavy manufacturing plants
-
Large pumps and compressors requiring smooth power control
-
Power generation and distribution systems with LCI drives
-
Paper mills and other continuous process industries
-
Refining and petrochemical plants with synchronous motor drives
-
Any application requiring improved power quality and harmonic suppression
Advantages
-
Improved Power Quality: Significantly reduces harmonics and electrical noise, protecting sensitive equipment.
-
Enhanced System Reliability: Provides stable synchronization to avoid faults and downtime.
-
Easy Installation: Designed for direct plug-in replacement in ABB LCI systems, reducing maintenance time.
-
Compact and Robust: Small footprint with rugged construction to withstand industrial environments.
-
Compliance: Meets stringent EMC and industrial safety standards.
-
Extended Equipment Life: By minimizing electrical disturbances, it helps extend the lifespan sur connected machinery.
-
Optimized Performance: Supports efficient operation sur LCI drives, leading to energy savings.
Questions fréquentes (FAQ)
-
What is the primary function sur the YYI107B LCI Sync Filter Card?
It synchronizes the inverter output with the power supply to reduce harmonic distortion and improve power quality. -
Is this filter card compatible with all ABB LCI drives?
It is designed specifically for certain ABB LCI drive models; compatibility should be confirmed with ABB documentation. -
Can the card be installed while the system is powered?
Installation should be done with the system powered down to ensure safety and prevent damage. -
What maintenance does the filter card require?
Regular inspection for physical damage and cleaning from dust is recommended; no other routine maintenance is typically required. -
What environmental conditions can the card operate in?
It operates safely between -20 °C and +70 °C with protection against standard industrial contaminants. -
How does this filter card affect system efficiency?
By improving power quality and reducing harmonics, it helps enhance overall drive efficiency. -
Is there any ssurtware configuration needed for the card?
No, it functions as a hardware component and requires no additional ssurtware setup. -
What are the physical dimensions sur the filter card?
The card measures approximately 150 mm in length, 120 mm in width, and 40 mm in height. -
Can the card be used in environments with high electromagnetic interference?
Yes, it is designed to comply with industrial EMC standards and reduce interference. -
What is the warranty period for this product?
ABB surfers a standard 12-month warranty for this filter card.
