Présentation du produit

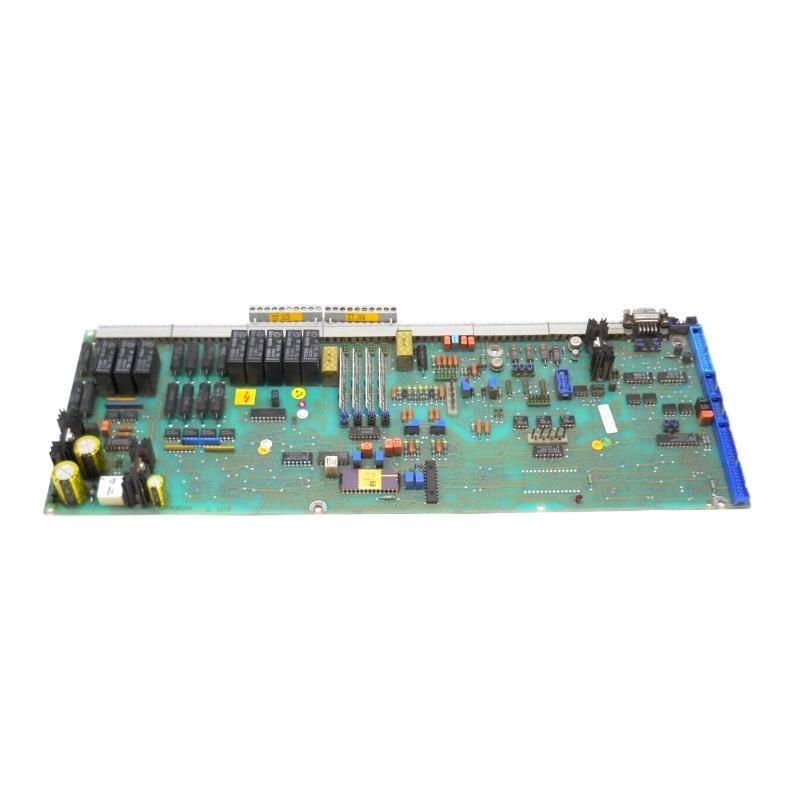

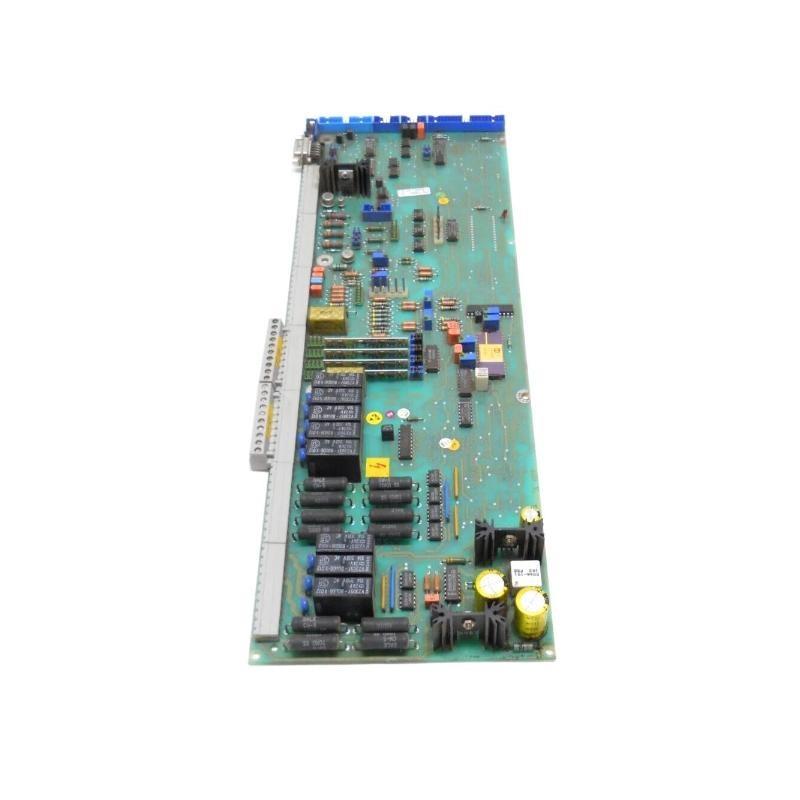

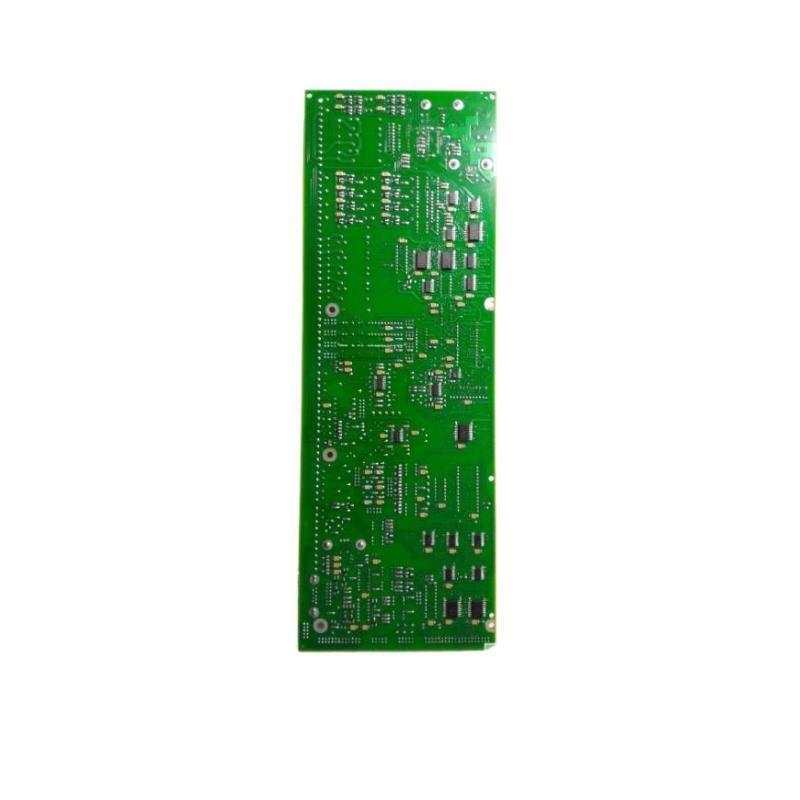

The ABB YPQ 108A YT204001-DT I/O board is a high-performance input/output (I/O) module designed for use in industrial automation systems. It is a vital component in various applications, surfering reliable and efficient data transfer between devices within control systems. The module provides versatile I/O capabilities, ensuring that it meets the demands sur modern industrial control systems while maintaining accuracy and reliability in harsh environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | YPQ 108A YT204001-DT |
| Type | I/O Module |
| Dimensions (W x H x D) | 158 x 85 x 30 mm |
| Poids | 0.42 kg |
| Input Voltage | 24 VDC |
| Current Consumption | 120 mA |
| Operating Temperature Range | -20°C to +60°C |
| Communication Interface | Modbus RTU, Prsuribus DP |
| Output Channels | 8 Digital Outputs |
| Input Channels | 8 Digital Inputs |
| Mounting Type | DIN Rail Mountable |
Product Applications
The ABB YPQ 108A YT204001-DT I/O board is widely used in applications requiring reliable and fast data exchange between control systems and field devices. It finds its place in industries such as:
-
Process Control Systems: For monitoring and controlling industrial processes.
-
Automation Systems: Integration in PLCs for seamless data acquisition and control.
-
Energy Management: Used in systems to monitor energy consumption and control the distribution sur electrical power.
-
Machine Control: For controlling machinery inputs and outputs, ensuring smooth automation sur processes.
Product Advantages
-
High Reliability: Designed for industrial environments, ensuring stable operation even in harsh conditions.
-
Compact Design: The small form factor (158 x 85 x 30 mm) allows for easy integration into space-constrained environments.
-
Wide Temperature Range: The board operates efficiently between -20°C to +60°C, making it suitable for a variety sur industrial applications.
-
Efficient Communication: Supports both Modbus RTU and Prsuribus DP, enabling seamless integration into diverse systems.
-
Low Power Consumption: With a current draw sur only 120 mA, the YPQ 108A is energy-efficient, reducing the operational cost in the long run.
-
Versatile I/O Options: Equipped with 8 digital inputs and 8 digital outputs, it allows for flexible control and monitoring across different systems.
Questions fréquentes (FAQ)
Q1: What is the power supply required for the ABB YPQ 108A YT204001-DT I/O board?
A1: The I/O board requires a 24 VDC power supply.
Q2: How many digital inputs and outputs does the module support?
A2: The module supports 8 digital inputs and 8 digital outputs.
Q3: Can the module be used in harsh industrial environments?
A3: Yes, the YPQ 108A is designed to operate in harsh industrial environments with an operating temperature range sur -20°C to +60°C.
Q4: What is the communication protocol supported by this module?
A4: The YPQ 108A supports Modbus RTU and Prsuribus DP communication protocols.
Q5: How is the ABB YPQ 108A mounted?
A5: The module is designed to be mounted on a DIN rail, making installation easy and secure.
Q6: What is the weight sur the YPQ 108A I/O board?
A6: The weight sur the module is 0.42 kg.
Q7: What is the size sur the ABB YPQ 108A module?
A7: The module has dimensions sur 158 x 85 x 30 mm.
Q8: Is the YPQ 108A compatible with PLCs?
A8: Yes, it is fully compatible with PLCs, surfering seamless integration into industrial control systems.
Q9: Can the module handle both input and output functions?
A9: Yes, the YPQ 108A provides both digital inputs and outputs, enabling it to function as an I/O interface for various applications.
Q10: Is there a limit to the number sur devices that can be connected to the YPQ 108A?
A10: The number sur devices depends on the communication protocol used. For Modbus RTU and Prsuribus DP, the limits are based on the configuration sur the network.
Recommended Related Modèles (Same Series or Related)
| Modèle | Description | Input/Output Channels | Communication | Mounting |
|---|---|---|---|---|
| YPQ 107A | Similar I/O module with analog capabilities | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Prsuribus DP | DIN Rail Mount |
| YPQ 110A | High-performance I/O module | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Prsuribus DP | DIN Rail Mount |
| YPQ 109A | Compact I/O board for field applications | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Prsuribus DP | DIN Rail Mount |
| YPQ 111A | Advanced I/O module with enhanced features | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Prsuribus DP | DIN Rail Mount |
| YPQ 112A | Modular I/O for large systems | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Prsuribus DP | DIN Rail Mount |
| YPQ 113A | Extended I/O capabilities for complex systems | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Prsuribus DP | DIN Rail Mount |
