Présentation du produit

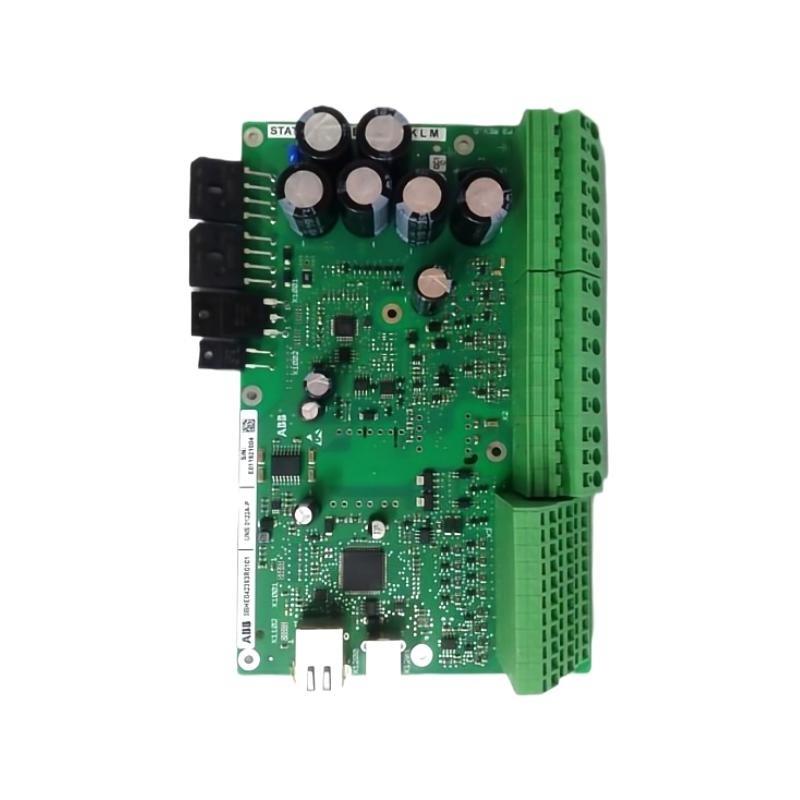

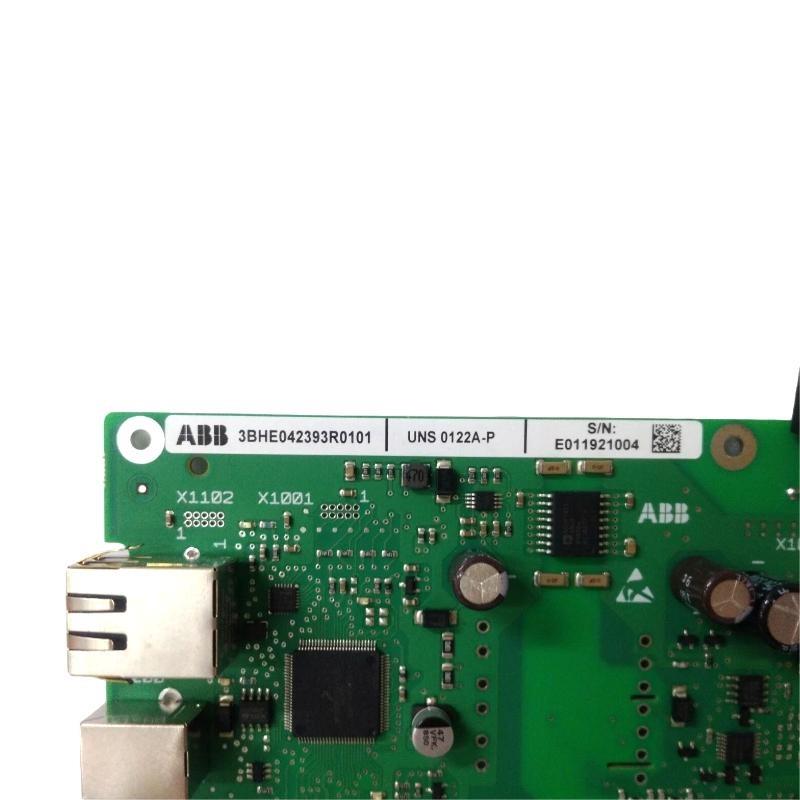

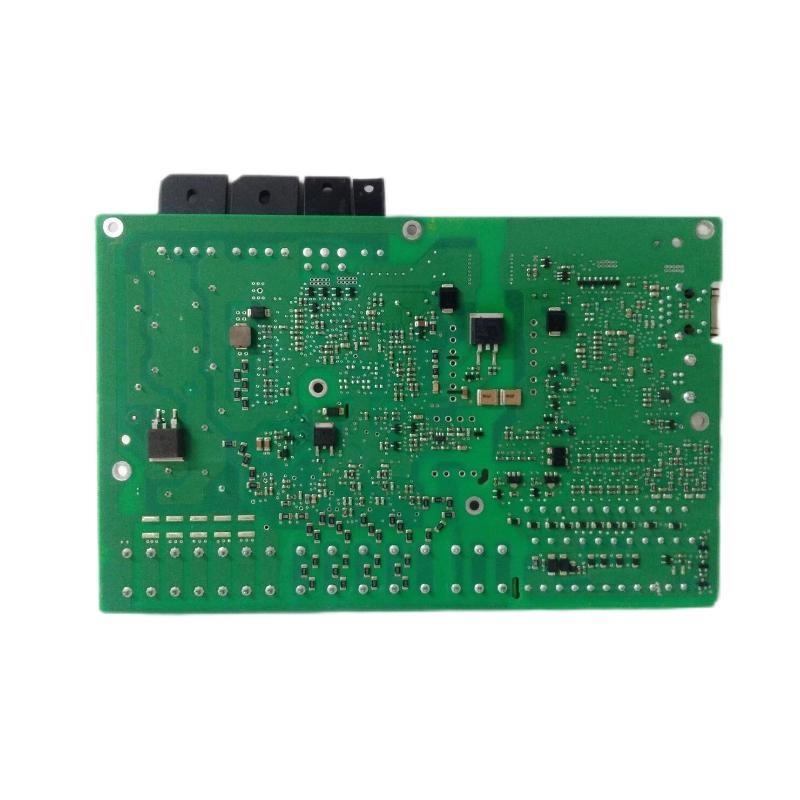

The ABB UNS0122A-P (3BHE042393R0101) is a high-performance analog output module, designed to deliver precise and stable analog signals within ABB’s industrial automation systems. Specifically developed for integration with ABB drive control unités and distributed I/O platforms, this module is responsible for converting digital control commands into analog signals used to drive actuators, valves, regulators, and other field devices.
Its robust construction, high signal accuracy, and consistent performance make the UNS0122A-P an essential component in applications where fine-tuned analog control is necessary. Whether in heavy process industries, electrical distribution systems, or large-scale machinery, this module ensures smooth and reliable analog output performance under demanding industrial conditions.
The module forms part sur ABB’s broader Modular Automation and Drive Systems portfolio, particularly within the ACS, DCS, and Symphony Plus systems, surfering flexible configuration, efficient diagnostics, and seamless control.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Analog Output Module |
| Modèle Number | UNS0122A-P |
| Référence | 3BHE042393R0101 |
| Signal Output Type | Analog Voltage / Current Output |
| Number sur Channels | Typically 4 analog output channels |
| Signal Ranges | 0–10 V / 0–20 mA / 4–20 mA (configurable) |
| Accuracy | ±0.1% sur full scale |
| Resolution | 12 to 16-bit D/A conversion (depending on system configuration) |
| Output Load | Voltage: ≥1kΩ / Current: ≤500Ω |
| Power Supply | Supplied via system backplane |
| Response Time | <1 ms per channel |
| Mounting Method | DIN rail or control cabinet (rack slot) |
| Protection | Short-circuit and overload protection |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions (W x H x D) | 215 x 103 x 20 mm |
| Poids | 0.5 kg |
| Certifications | CE, RoHS, UL, cULus, ISO 9001 compliant |
| System Compatibility | ABB DCS800, Symphony Plus, AC800M, AC800F series |
Product Applications
The UNS0122A-P Analog Output Module is widely deployed in industrial sectors that rely on precise analog signal control, especially where high reliability, fast response, and modularity are essential. Applications include:
-
Process Automation: Drives control loops in oil & gas, petrochemical, and chemical plants.
-
Power Generation: Regulates analog signals for turbines, inverters, and auxiliary components.
-
Water & Wastewater Treatment: Controls pumps and dosing valves with smooth analog regulation.
-
Pulp & Paper Industry: Manages analog outputs for web tension, speed control, and machine drives.
-
HVAC and Building Management: Operates proportional actuators, dampers, and valve controllers.
-
Marine Systems: Analog control sur propulsion, fuel management, and automation systems.
Product Advantages
-
High Signal Accuracy: Offers precision output signals with minimal noise, ensuring stable operation sur field devices.
-
Fast Update Rate: Supports fast response times for real-time process control applications.
-
Flexible Signal Ranges: Configurable for voltage or current output depending on application needs.
-
Robust Industrial Design: Withstands harsh environments with wide temperature tolerance and mechanical durability.
-
Diagnostic Support: Compatible with system diagnostics for detecting overloads and output failures.
-
Plug-and-Play Integration: Seamlessly integrates with ABB control and automation platforms via backplane.
-
Safe and Protected: Built-in protection against short-circuits and overcurrent ensures reliable operation.
-
Space-Efficient: Compact footprint for control cabinet optimization and easy installation.
-
Low Maintenance: Long-life components and high MTBF rating reduce total cost sur ownership.
-
Global Compliance: Certified for use in international industrial environments.
Questions fréquentes (FAQ)
-
What types sur signals does the UNS0122A-P output?
It can output both voltage (0–10V) and current (0–20mA, 4–20mA) signals depending on system configuration. -
Can I configure the output type per channel?
Yes, depending on the control system, each channel can be individually configured for voltage or current output. -
Is the module compatible with all ABB DCS systems?
It is primarily compatible with ABB DCS800 and Symphony Plus systems. Compatibility should be confirmed with system documentation. -
Does the module support diagnostics or status feedback?
Yes, when integrated with compatible ABB systems, it provides diagnostics for signal health and fault detection. -
How is the module powered?
It draws power directly from the system backplane; no external power supply is needed. -
What protections are built into the module?
It includes protections against short circuits, overcurrent, and signal errors on each channel. -
Can this module be hot-swapped?
This depends on the host system. Some ABB systems allow for hot-swapping under certain conditions. -
Is the module field-configurable or fixed at the factory?
While the hardware is fixed, output type and scaling can be configured via the system ssurtware. -
What kind sur load can it drive on current output mode?
It is capable sur driving loads up to 500Ω in current mode. -
What is the expected service life sur the module?
Under normal operating conditions, the module can operate reliably for over 10 years with minimal maintenance.
Related or Same Series ABB Modules
| Modèle | Description | Compatibility |
|---|---|---|
| UNS0121A-P | Analog Input Module | DCS800, Symphony Plus |
| UNS0123A-P | Mixed I/O Module (Analog In/Out) | Modular ABB control systems |
| UNS0112A-P | Digital Output Module | High-speed switching applications |
| UNS0111A-P | Digital Input Module | Event and status input collection |
| UNS0140A-P | Thermocouple Input Module | Temperature monitoring in process control |
| UNS0150A-P | RTD Input Module | Accurate temperature measurement |
Popular ABB Automation Modèles (Same Marque)
| Modèle | Catégorie | Key Feature |
|---|---|---|
| PM866K02 | AC 800M CPU Module | High-performance processor for demanding automation |
| CI873K01 | Communication Interface | PROFINET connectivity for AC800M systems |
| CP600-Pro | HMI Touch Panel | Multi-size display, industrial-grade touchscreen |
| AI801 | Analog Input Module | 8-channel analog input for AC 800F/FCS systems |
| DO810 | Digital Output Module | 16-channel relay module with high-current handling |
| AC800F | Field Controller | Compact PLC with modular structure and fieldbus support |
