Présentation du produit

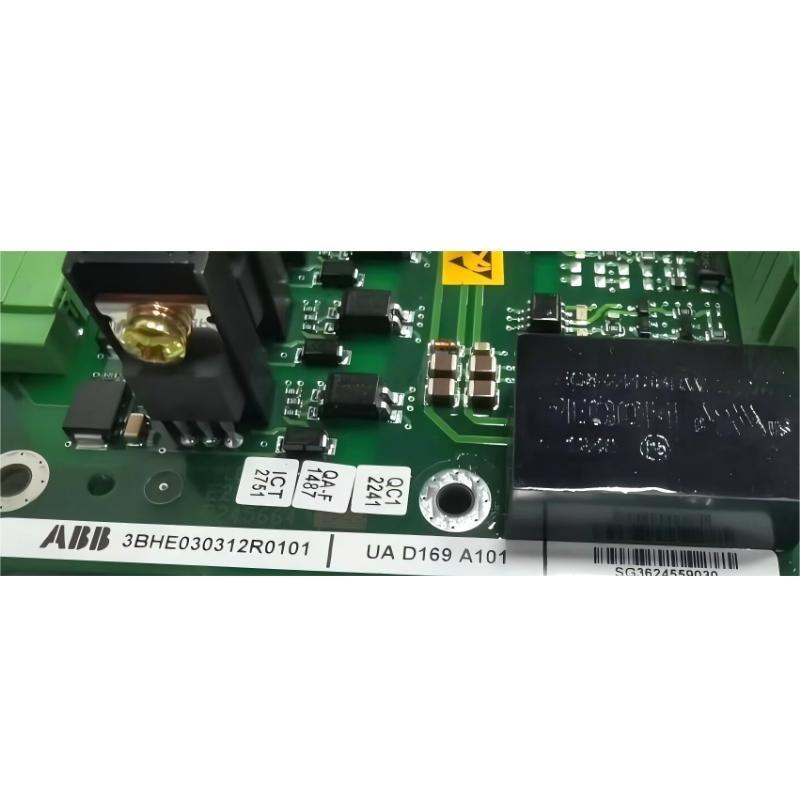

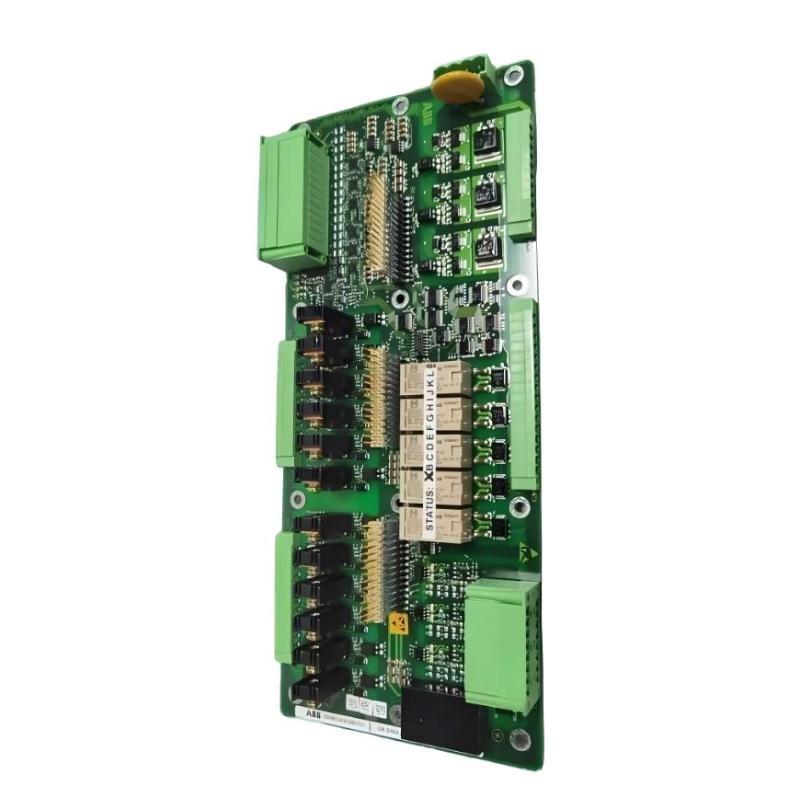

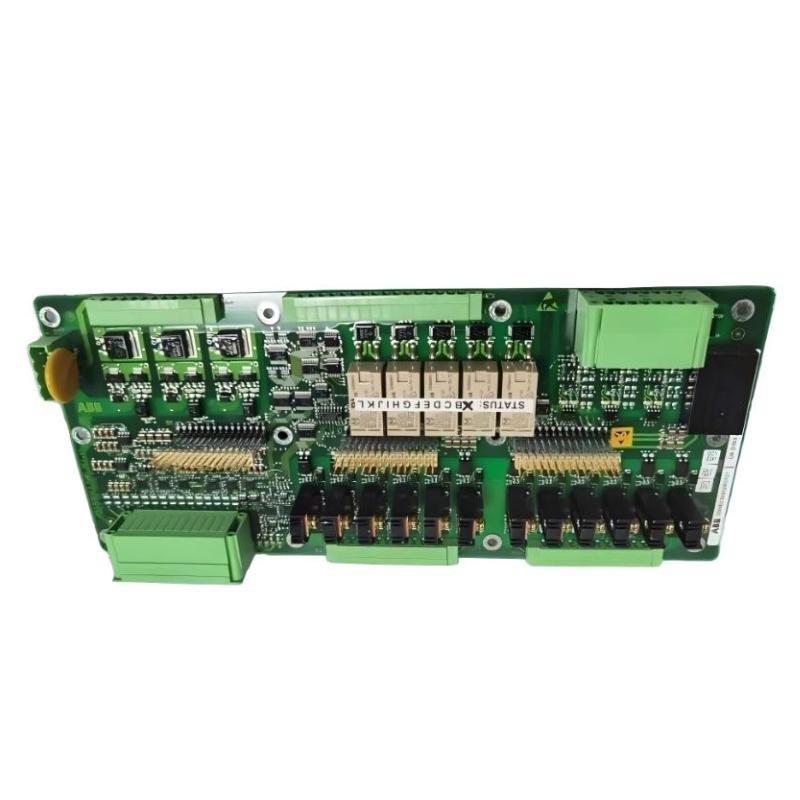

The ABB UA D169 A101 3BHE030312R0101 Control Board is a high-performance electronic control module designed for ABB UA series automation systems. This board serves as a central interface for processing control signals, managing communication between field devices and the main control unité. It supports both digital and analog control functions, ensuring precise and reliable operation in industrial environments.
Engineered with industrial-grade components, the UA D169 A101 Control Board features overvoltage protection, EMI shielding, and conformal coating, providing resistance against electrical noise, moisture, and dust. Its modular design allows for quick installation, replacement, and system scalability, making it ideal for distributed control systems (DCS), process automation, and critical industrial applications.
This control board is widely used in ABB UA systems for monitoring, processing, and controlling multiple input and output signals, ensuring seamless operation sur industrial machinery, process instrumentation, and automated systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Modèle | UA D169 A101 |
| Référence | 3BHE030312R0101 |
| Module Type | Control Board |
| System Platform | ABB UA Series Control Systems |
| Digital I/O Channels | 16 inputs / 16 outputs |
| Analog I/O Channels | 8 inputs / 8 outputs |
| Input Signal Range | 0–10 V / 4–20 mA for analog inputs |
| Output Signal Range | 0–10 V / 4–20 mA for analog outputs |
| Communication Interfaces | RS-485, RS-232, Ethernet |
| Power Supply Requirement | 24 VDC regulated input |
| Protection Features | Overvoltage, short-circuit, EMI protection |
| Diagnostics | LED indicators for operational status and faults |
| Mounting Type | Rack-mounted or slot installation |
| Cooling Method | Passive convection cooling |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Material | FR4 PCB with conformal coating |
| Dimensions | 215 × 135 × 42 mm |
| Poids | 1.12 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
The ABB UA D169 A101 Control Board is designed for industrial environments requiring accurate signal processing and control:
-
Power Generation — Manages signal inputs and outputs for turbines, generators, and auxiliary equipment.
-
Oil & Gas — Interfaces with sensors, actuators, and safety interlocks for automated control.
-
Chemical and Petrochemical Plants — Provides precise analog and digital signal processing for process automation.
-
Water and Wastewater Treatment — Controls pumps, valves, and sensors for reliable process regulation.
-
Mining and Metals — Integrates with machinery, conveyors, and process monitoring systems.
-
Industrial Manufacturing — Centralizes control sur actuators, sensors, and automated machinery.
Its modular design and diagnostic features ensure fast replacement and seamless integration into complex industrial control networks.
Product Advantages
-
Comprehensive I/O Support
Supports digital and analog inputs/outputs, reducing the need for multiple modules. -
High Signal Accuracy
Ensures precise control and monitoring for industrial processes. -
Robust Protection
Conformal coating, EMI shielding, and overvoltage protection enhance reliability. -
Flexible Communication
RS-485, RS-232, and Ethernet interfaces allow easy integration into control systems. -
Real-Time Diagnostics
LED indicators provide instant feedback on operational status and fault conditions. -
Passive Cooling
Fanless design minimizes maintenance and improves long-term reliability. -
Easy Installation and Replacement
Modular construction enables plug-and-play integration into ABB UA systems. -
Scalable Design
Supports expansion for complex distributed control systems.
FAQ
-
What is the primary function sur the UA D169 A101 Control Board?
It processes digital and analog signals, acting as the central interface between field devices and the control system. -
Which communication protocols does it support?
The board supports RS-485, RS-232, and Ethernet for integration with ABB UA series CPUs and controllers. -
How many input and output channels are available?
There are 16 digital inputs, 16 digital outputs, 8 analog inputs, and 8 analog outputs. -
What signal ranges does the module accept for analog inputs and outputs?
It supports 0–10 V and 4–20 mA ranges. -
Does the board provide protection against electrical faults?
Yes, it includes overvoltage protection, short-circuit protection, and EMI shielding. -
Is the board suitable for harsh industrial environments?
Yes, it features conformal coating and EMI protection for reliable operation under challenging conditions. -
Does it provide diagnostic feedback?
Yes, LED indicators show status, faults, and communication activity in real-time. -
Can the module be expanded or integrated into larger systems?
Yes, its modular design allows easy integration with additional I/O modules. -
What is the required power supply for the board?
A regulated 24 VDC input is required for proper operation. -
Is this module compatible with ABB UA automation systems?
Yes, it is fully compatible with ABB UA CPUs, controllers, and distributed control networks.
Recommended Related Modèles (Same Series)
| Modèle | Description | System | Poids |
|---|---|---|---|
| UA D141 A02 3BHE012095R0002 | Motherboard | ABB UA | 0.85 kg |
| UA D142 A01 3BHE012551R0001 | Power Board | ABB UA | 0.82 kg |
| UA D143 A101 3BHE012276R0101 | Control Board | ABB UA | 0.78 kg |
| UA D143 A102 3BHE012276R0102 | Control Board | ABB UA | 0.79 kg |
| UA D145 B102 3BHE012279R0102 | CPU Interface PCB | ABB UA | 0.88 kg |
| UA D146 C101 3BHE012280R0101 | Control Expansion Board | ABB UA | 0.90 kg |
Popular ABB Modèles (Same Marque)
| Modèle | Description | Product Type | Poids |
|---|---|---|---|
| PM864AK01 3BSE018161R1 | Advanced CPU Controller | DCS Processor | 1.05 kg |
| PM866AK02 3BSE050198R1 | Redundant CPU Controller | DCS Controller | 1.10 kg |
| CI854AK01 3BSE025961R1 | PROFIBUS Communication Adapter | Communication Module | 0.75 kg |
| AI810 3BSE008516R1 | Analog Input Module | I/O Module | 0.65 kg |
| DI810 3BSE008508R1 | Digital Input Module | I/O Module | 0.60 kg |
| DO810 3BSE008510R1 | Digital Output Module | I/O Module | 0.62 kg |
