Présentation du produit

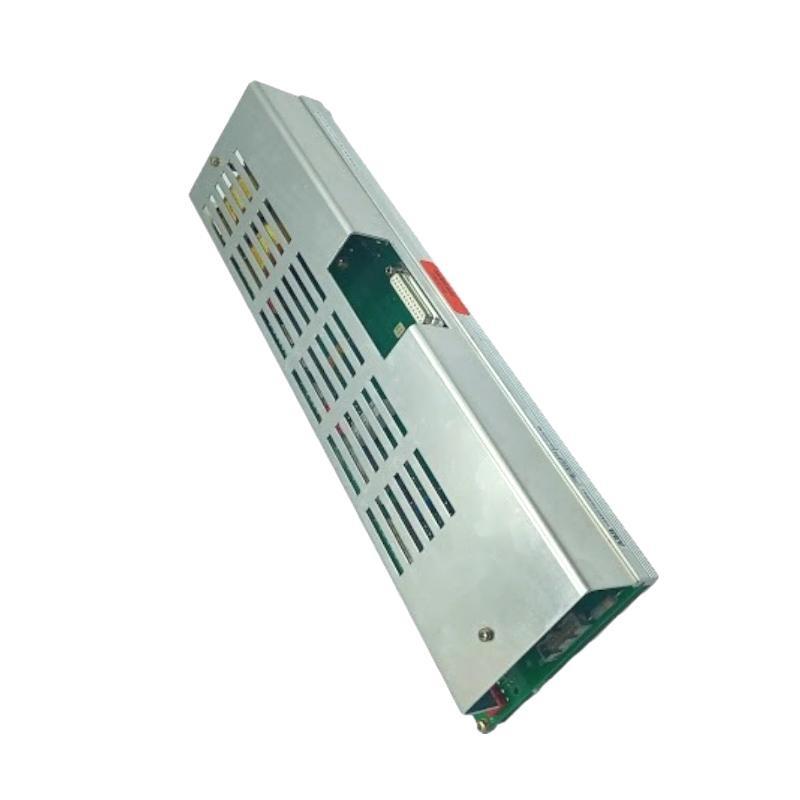

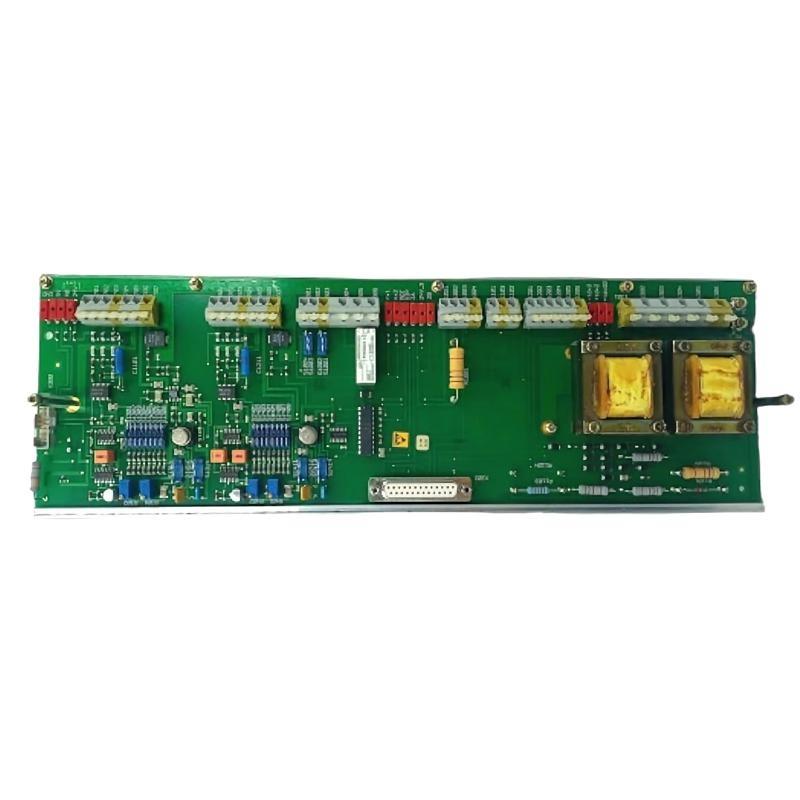

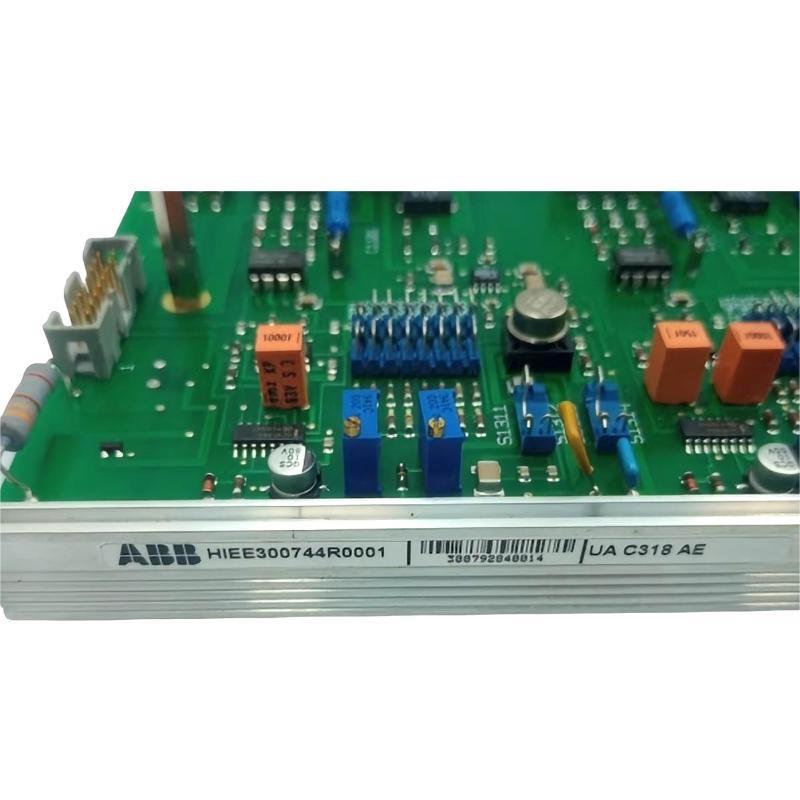

The ABB UA C318 AE HIEE300744R0001 Inverter Motherboard is an industrial-grade control board engineered for ABB’s high-performance drive and inverter systems. Acting as the core logic platform sur the inverter, it manages power conversion, signal processing, and communication between peripheral modules. Designed for heavy-duty industrial environments, the motherboard integrates advanced semiconductor components, high-speed communication interfaces, and multi-layer PCB architecture to ensure stable operation under demanding conditions such as variable loads, fluctuating voltages, and continuous 24/7 duty cycles.
Its design emphasizes precise motor control, energy efficiency, and robust diagnostics. The board’s embedded control firmware supports real-time data acquisition and rapid response to changes in process parameters, allowing plant operators to maintain productivity and reduce downtime.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | UA C318 AE HIEE300744R0001 |
| Marque | ABB |
| Product Type | Inverter Motherboard / Control PCB |
| Input Voltage Range | 24 V DC (control power) |
| Operating Voltage (Signal) | 5 V / 3.3 V logic levels |
| Control Interfaces | RS-485, CANopen, Modbus RTU, Fiber-Optic (optional) |
| Processor/MCU | 32-bit industrial DSP with hardware PWM |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| PCB Layers | 6-Layer FR-4, lead-free |
| Protection | Conformal coating, surge suppression, ESD protection |
| Cooling | Passive convection; compatible with forced-air systems |
| Dimensions (L × W × H) | 260 × 180 × 25 mm |
| Poids | 0.75 kg |
| Compliance | CE, UL, RoHS |
| Typical Power Consumption | <15 W |
| MTBF (Mean Time Between Fail.) | >100,000 hours (under recommended conditions) |
Applications
-
Variable-Frequency Drives (VFDs): Provides precise motor speed control for pumps, compressors, and fans.
-
Renewable Energy Systems: Integrates with solar or wind inverter unités to manage DC-AC conversion.
-
Process Automation: Controls conveyor belts, mixers, and other motion equipment in manufacturing plants.
-
HVAC Systems: Enhances efficiency sur large-scale heating, ventilation, and air-conditioning unités.
-
Water Treatment Facilities: Ensures stable operation sur high-power pumping systems.
-
Heavy Industry: Suitable for mining, steel production, and chemical processing environments.
Advantages
-
High Reliability: Rigorously tested to withstand industrial temperature ranges and high vibration.
-
Advanced Communication: Multiple industrial protocols for easy integration with PLCs and SCADA systems.
-
Energy Efficiency: Optimized DSP algorithms reduce switching losses and improve power factor.
-
Enhanced Diagnostics: Built-in fault logging and real-time monitoring simplify maintenance.
-
Scalability: Modular design supports future firmware updates and expansion sur I/O.
-
Protective Features: ESD, surge, and over-current protections increase lifespan and operational safety.
FAQ
-
What communication protocols are supported by this motherboard?
It supports RS-485, CANopen, Modbus RTU, and optional fiber-optic links. -
Can firmware be updated in the field?
Yes, on-board flash updates can be performed through the maintenance port or via RS-485. -
What is the recommended control power supply?
A stable 24 V DC ±10 % power supply with less than 50 mV ripple is recommended. -
How does the board handle electromagnetic interference (EMI)?
A 6-layer PCB with dedicated ground planes, shielding, and conformal coating minimizes EMI impact. -
Is it compatible with ABB ACS800 and ACS880 series drives?
Yes, it integrates seamlessly with both ACS800 and ACS880 drive families. -
What are the protection mechanisms for over-current conditions?
Hardware current sensing combined with firmware-based shutdown protects against over-current. -
How is heat dissipation managed?
Passive convection is standard, with optional forced-air cooling if enclosure conditions require it. -
What diagnostic tools are available?
Built-in self-test routines, error LEDs, and data logging accessible via ABB DriveWindow or similar ssurtware. -
Is there support for redundant communication paths?
Dual-channel RS-485 and optional fiber redundancy are available for critical applications. -
What is the maximum switching frequency supported by the onboard DSP?
The DSP supports PWM switching frequencies up to 20 kHz depending on configuration.
Related Modèles (Same Series/Compatible)
| Modèle Number | Description |
|---|---|
| UA C318 AF HIEE300745R0001 | Enhanced inverter motherboard with extended I/O |
| UA C319 AE HIEE300746R0001 | High-speed control board for ABB drives |
| UA C320 AE HIEE300747R0001 | Compact variant for mid-range drives |
| UA C321 AE HIEE300748R0001 | Motherboard with advanced fiber-optic comms |
| UA C322 AE HIEE300749R0001 | Heavy-duty version for harsh environments |
| UA C318 BE HIEE300750R0001 | Low-power variant with optimized efficiency |
Popular ABB Modèles (Same Marque)
| Modèle Number | Description |
|---|---|
| ACS880-01-07A6-3 | High-performance single drive for industrial motors |
| ACS800-104-0030 | Widely used VFD with advanced control algorithms |
| DCS880 | DC drive system with precise torque control |
| ACS355 | Compact VFD for light industrial applications |
| ACS580 | All-compatible drive for HVAC and pumping |
| ACS550 | General-purpose drive with integrated control panel |
