Présentation du produit

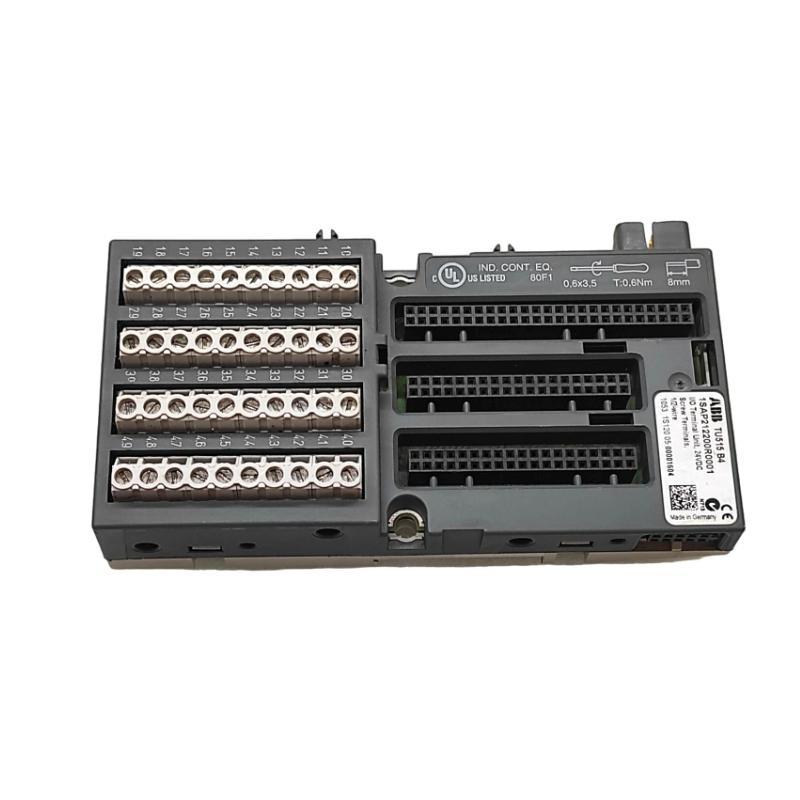

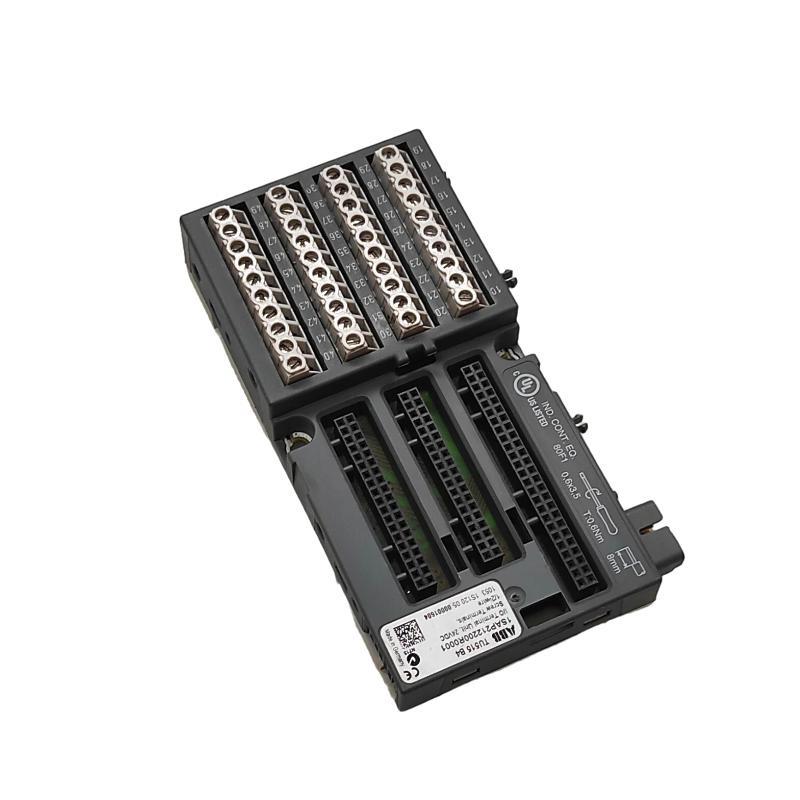

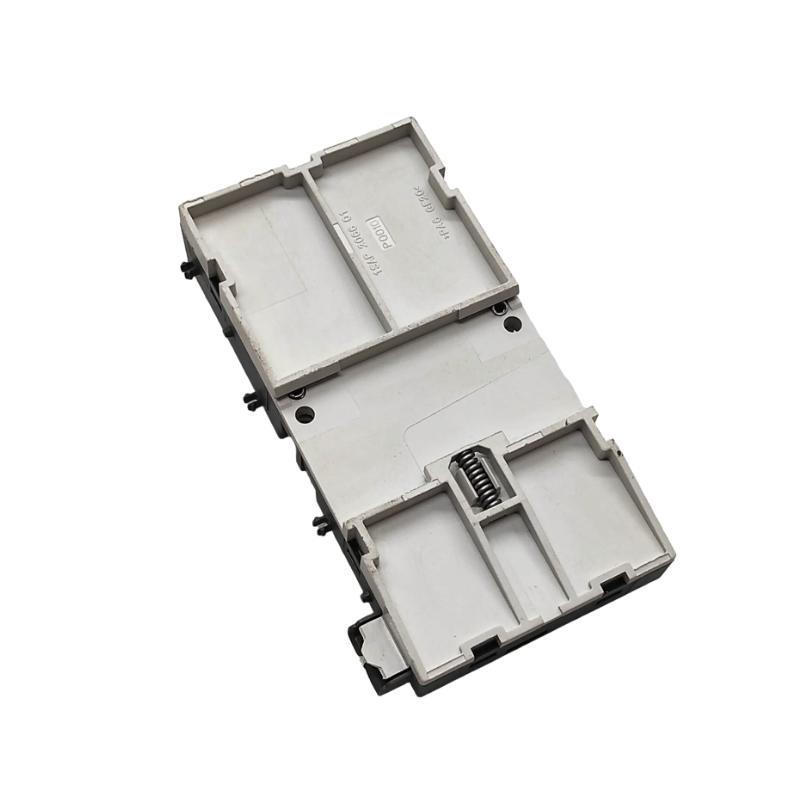

The ABB TU515 (1SAP212200R0101) is a high-quality I/O terminal unité designed for use within the ABB AC500 and S500 modular automation systems. This terminal unité provides the essential interface between I/O modules and field wiring, ensuring organized, reliable, and scalable signal management in industrial control environments.
As a robust DIN-rail mountable module, the TU515 enables quick wiring and modular connection sur signal lines to digital or analog I/O modules. With clear labeling and screw-type terminals, it simplifies installation and maintenance. The TU515 supports fast module replacement (hot-swap compatible), and its IP20 housing ensures safe operation inside control cabinets.
Engineered to withstand industrial conditions, it is widely used in process automation, machine building, infrastructure, and energy sectors. The TU515 enhances system integrity, reduces wiring complexity, and ensures stable operation in even the most demanding automation environments.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | TU515 |
| Ordering Code | 1SAP212200R0101 |
| Product Type | I/O Terminal Unité |
| Marque | ABB |
| Series | S500 / AC500 |
| Terminal Type | 40-point screw terminal block (20 × 2 rows) |
| Wiring Method | Screw-type terminal connections |
| Mounting | DIN Rail 35 mm (standard industrial rail) |
| Compatibility | Compatible with S500 I/O modules, AC500 series |
| Operating Voltage | Max. 250 V AC |
| Insulation Resistance | > 100 MΩ @ 500 V DC |
| Dielectric Strength | 2.0 kV AC for 60 seconds |
| Protection Rating | IP20 (suitable for cabinet installation) |
| Color | Light grey (industrial standard) |
| Material | Flame-retardant thermoplastic |
| Temperature Range | -25°C to +70°C operating |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Certifications | CE, UL, cULus, RoHS compliant |
| Dimensions (H × W × D) | 28 x 135 x 67.5 mm |
| Poids | 0.232 kg |
Product Applications
The ABB TU515 1SAP212200R0101 terminal unité is used in a wide range sur industrial control applications:
-
Industrial Automation Systems: Connects sensors, actuators, and process I/O in factory control networks.
-
Energy Management: Applied in power plants and substations for signal distribution to PLCs and RTUs.
-
Machine Building: Interfaces control unités with safety sensors, limit switches, and other machine signals.
-
Water Treatment Plants: Provides safe I/O connectivity for flow meters, level sensors, and motor starters.
-
HVAC and Building Control: Integrates environmental sensors with automation controllers in building systems.
-
Renewable Energy: Supports wind turbine and solar PV system control by managing I/O wiring for field devices.
Product Advantages
-
Simplified Wiring Design: Organized terminal layout reduces errors and speeds up commissioning.
-
DIN Rail Compatibility: Easy to install and remove from control panels with standard rail mounting.
-
Robust Industrial Build: Flame-retardant materials and screw terminals surfer secure connections in harsh settings.
-
Hot-Swappable Interface: Supports field-replacement sur I/O modules without shutting down the system.
-
Reliable Signal Handling: High dielectric strength and insulation resistance ensure electrical safety.
-
Scalable Architecture: Easily integrates with additional modules to expand automation system capacity.
-
Space-Efficient Design: Compact dimensions save panel space while maintaining clarity and accessibility.
Questions fréquentes (FAQ)
-
What is the function sur the ABB TU515 1SAP212200R0101?
It acts as a wiring interface between ABB I/O modules and field devices such as sensors and actuators. -
Which controller families are compatible with this terminal unité?
It is designed for the ABB AC500 and S500 I/O module families. -
What type sur terminals does it use?
It uses 40 screw terminals (20 x 2 rows) for reliable mechanical and electrical connections. -
Can I use this module in outdoor applications?
No, it is rated IP20 and should be used in enclosed control cabinets. -
Is hot-swapping supported for connected I/O modules?
Yes, it supports the hot-swapping sur I/O modules, provided system safety guidelines are followed. -
How is the TU515 mounted?
It is mounted on a 35 mm DIN rail, which is standard in industrial panels. -
Does it support both analog and digital modules?
Yes, it is compatible with a range sur ABB analog and digital I/O modules from the S500 series. -
What environmental conditions can it operate in?
The unité is rated for -25°C to +70°C and up to 95% humidity (non-condensing). -
Is this product UL certified?
Yes, it has UL and cULus certifications in addition to CE and RoHS compliance. -
Is it replaceable without system downtime?
Yes, when designed properly, terminal unités like the TU515 allow module replacement with minimal disruption.
Related Modèles (Same Series or Function)
| Modèle Number | Description | Function |
|---|---|---|
| TU514 (1SAP212400R0001) | Standard I/O Terminal Unité | General-purpose terminal for S500 modules |
| TU516 (1SAP212300R0001) | Extended Terminal Unité | Supports wider range sur analog signals |
| TU510 (1SAP212100R0001) | Compact Terminal Unité | Designed for tight panel spaces |
| TU517 (1SAP212500R0001) | Terminal Unité with Integrated Fuses | Adds safety for critical I/O wiring |
| TU518 (1SAP212600R0001) | Analog-Specific Terminal Unité | Optimized for analog input/output connections |
| TU520 (1SAP212700R0001) | High-Density Terminal Unité | For systems requiring more I/O connections |
Popular ABB Modèles (Same Marque)
| Modèle Number | Description | Application |
|---|---|---|
| PM581-ETH (1SAP140600R0071) | AC500 CPU with Ethernet | High-performance PLC for networked control |
| AI523 (1SAP250100R0001) | 8-Channel Analog Input Module | Measures voltage/current from field devices |
| DI524 (1SAP250200R0001) | 16-Channel Digital Input Module | Captures binary input signals from machines |
| DO526 (1SAP250300R0001) | 16-Channel Digital Output Module | Controls relays, actuators, and outputs |
| CI501 (1SAP111100R0270) | Communication Interface (Prsuribus) | Integrates Prsuribus DP devices |
| CP600 HMI Series | Touchscreen Human-Machine Interfaces | Operator interface for ABB control systems |
