Présentation du produit

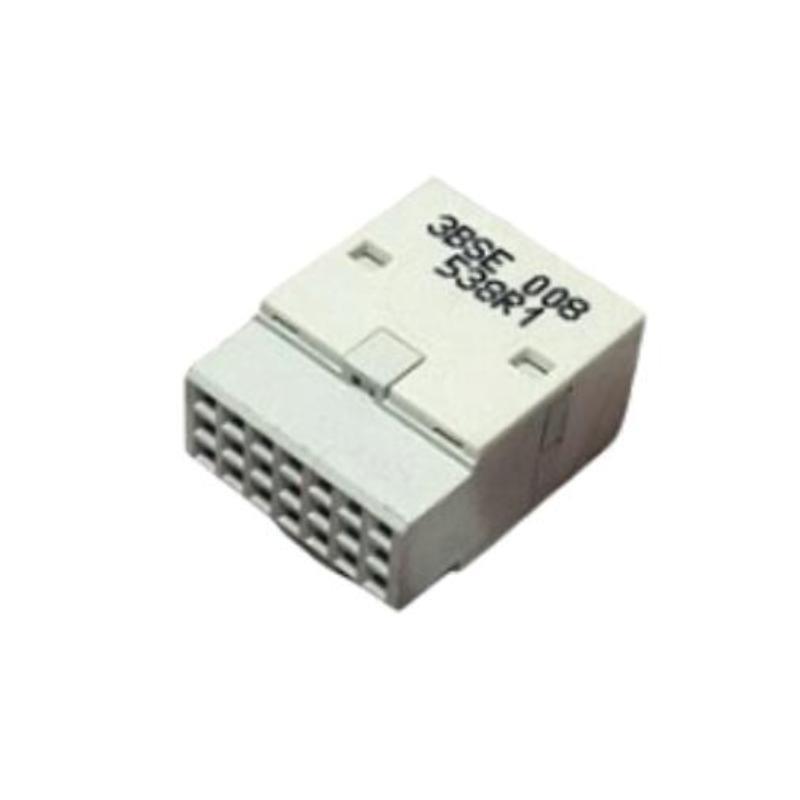

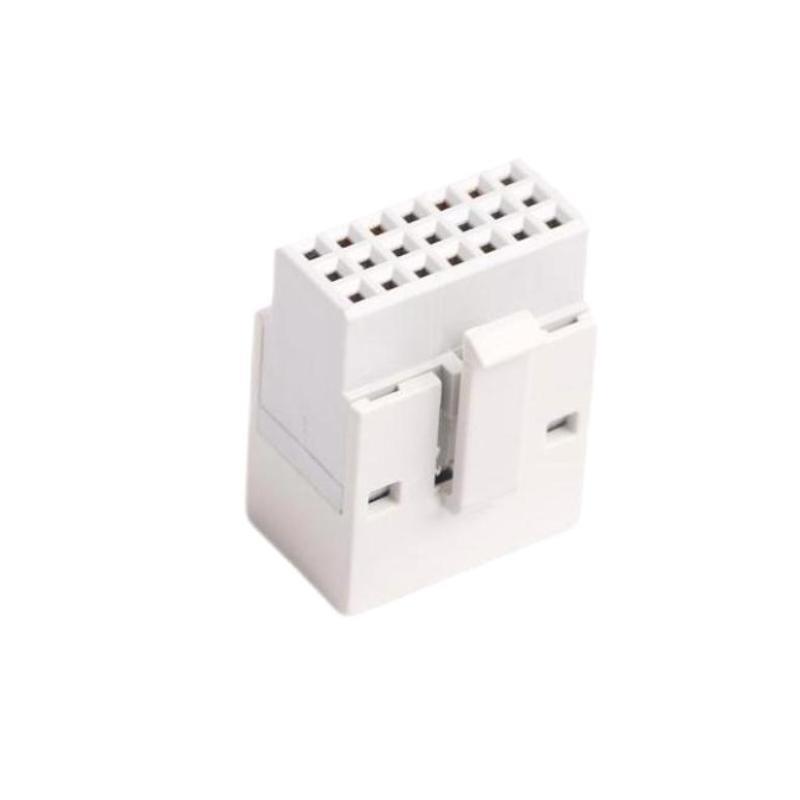

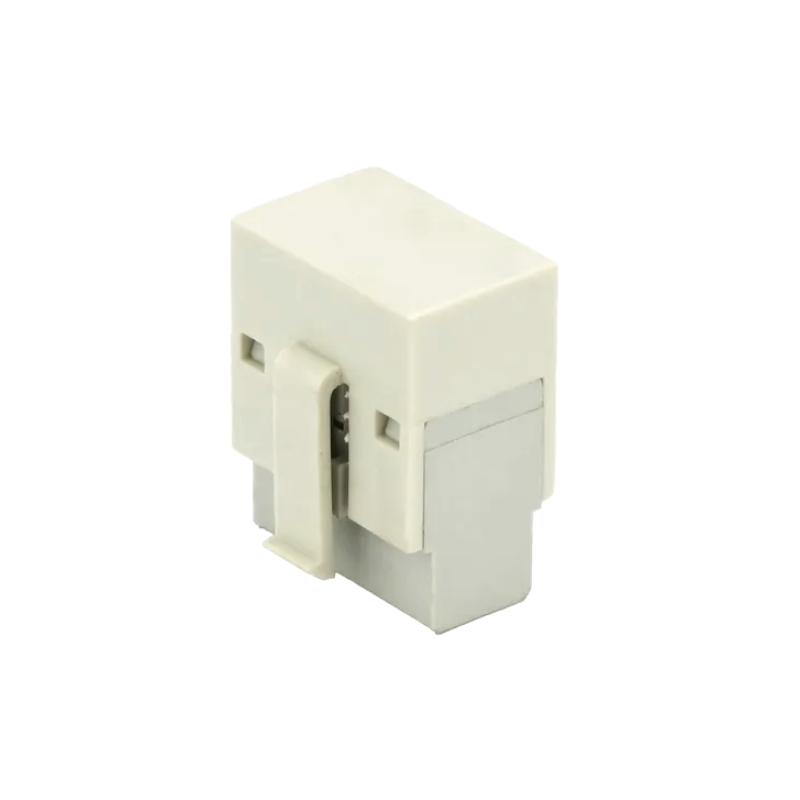

The ABB TB807 3BSE008538R1 is a high-performance terminal unité designed for industrial automation and control systems. It is part sur ABB’s renowned series sur terminal blocks, known for reliability, durability, and ease sur installation. This product is widely used in process control, power distribution, and modular system integrations, surfering a secure and efficient connection solution for electrical and signal wiring.
Spécifications du produit
The table below outlines the key technical parameters sur the ABB TB807 3BSE008538R1:
| Parameter | Value |
|---|---|
| Modèle Number | TB807 3BSE008538R1 |
| Type | Terminal Block |
| Rated Voltage | 300V AC/DC |
| Rated Current | 10A |
| Wire Size | 0.2–4 mm² (AWG 24–12) |
| Contact Material | High-conductivity Copper Alloy |
| Insulation Material | Flame-retardant Polyamide (UL94 V0) |
| Operating Temperature | -40°C to +100°C |
| Mounting Type | DIN Rail Mounting |
| Dimensions | 13 x 19 x 17 mm |
| Poids | 0.01 kg |
| Certifications | UL, CE, IEC |
Applications
The ABB TB807 3BSE008538R1 is suitable for a wide range sur industrial and commercial applications, including:
-
Process Automation: Used in PLCs, DCS, and SCADA systems for secure signal and power transmission.
-
Power Distribution: Ensures reliable connections in electrical panels and switchgear.
-
Machinery & Equipment: Provides robust wiring solutions for heavy machinery and control cabinets.
-
Building Automation: Facilitates structured cabling in HVAC, lighting, and security systems.
Product Advantages
-
High Reliability: Engineered for long-term performance in harsh environments.
-
Easy Installation: Tool-less or screw-type clamping for quick wiring.
-
Compact Design: Space-saving form factor ideal for dense control panels.
-
Safety Compliance: Meets international standards (UL, CE, IEC) for electrical safety.
-
Versatility: Compatible with a wide range sur wire sizes and conductor types.
-
Durability: Resistant to vibration, heat, and chemical exposure.
Questions fréquentes (FAQ)
-
What is the maximum current rating sur the TB807 3BSE008538R1?
The terminal block supports up to 10A continuous current. -
Can this terminal block be used for both AC and DC applications?
Yes, it is rated for 300V AC/DC. -
What wire sizes are compatible?
It accepts 0.2–4 mm² (AWG 24–12) wires. -
Is the TB807 flame-retardant?
Yes, it uses UL94 V0-rated polyamide for fire resistance. -
Does it require special tools for installation?
No, it supports tool-less or screw-type clamping for easy wiring. -
What is the operating temperature range?
It functions reliably between -40°C to +100°C. -
Is DIN rail mounting mandatory?
Yes, it is designed for DIN rail mounting (35mm standard). -
Are these terminals reusable?
Yes, the clamping mechanism allows for multiple wire insertions. -
Does ABB provide warranty coverage?
Standard warranty applies; check with ABB or authorized distributors. -
Can the TB807 be used in outdoor environments?
Only with additional IP-rated enclosures, as it is not inherently waterprosur.
Recommended Related Modèles
Same Series / Related Modèles
| Modèle Number | Description |
|---|---|
| TB806 3BSE008537R1 | 8A Terminal Block, Compact Design |
| TB808 3BSE008539R1 | 12A High-Current Terminal Block |
| TB810 3BSE008541R1 | 16A Heavy-Duty Terminal Block |
| TB805 3BSE008536R1 | 6A Signal Terminal Block |
| TB809 3BSE008540R1 | 15A DIN Rail Terminal Block |
| TB804 3BSE008535R1 | 5A Low-Current Terminal Block |
Popular ABB Modèles (Autres Series)
| Modèle Number | Description |
|---|---|
| ABB 1SBL263001R1000 | Miniature Circuit Breaker (MCB) |
| ABB 2CDS271001R0104 | Contactor (9A, 230V AC) |
| ABB 1SFA616105R1000 | Push Button Switch (Red, 22mm) |
| ABB 2CMA100140R1000 | Relay Module (24V DC, 8-Pin) |
| ABB 1SVR730850R0300 | Surge Protector (3P, 40kA) |
| ABB 2CLA210080R1300 | Power Supply (24V DC, 10A) |
