Présentation du produit

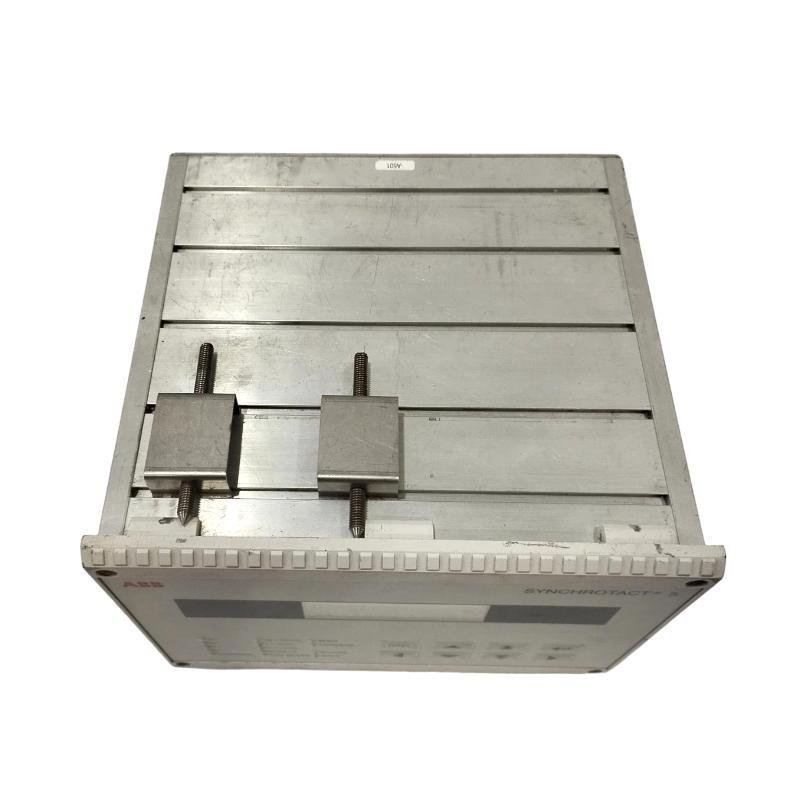

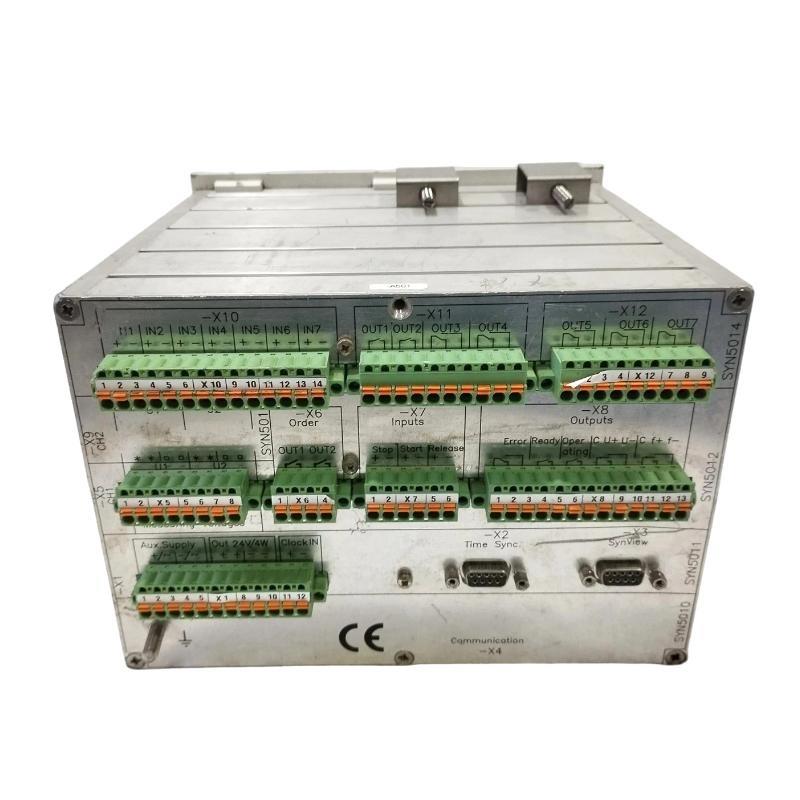

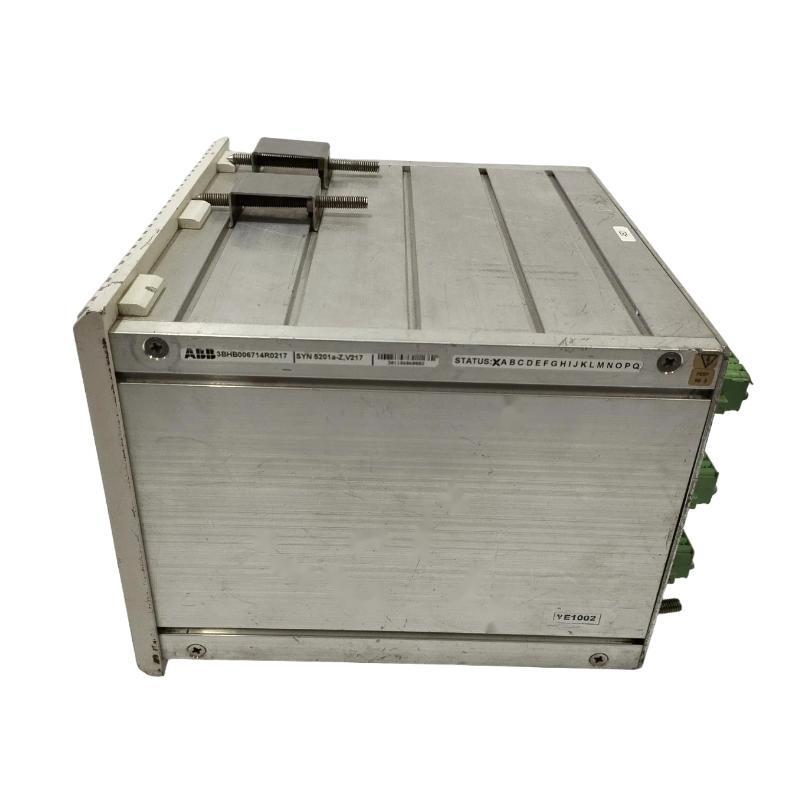

The ABB SYN 5201a-Z,V217 3BHB006714R0217 Synchronization Device is a precision-engineered synchronization module designed for advanced industrial automation, power conversion, and motor control systems. As part sur ABB’s SYN 5200 series, this device provides accurate synchronization and signal coordination between multiple controllers, converters, and drive unités in complex automation environments.
It plays a key role in ensuring precise timing alignment between interconnected equipment, enabling optimal phase coordination and real-time data exchange. Built with a robust digital architecture, the SYN 5201a-Z,V217 surfers both electrical and optical communication interfaces, guaranteeing reliable synchronization under demanding electrical and environmental conditions.
This model is optimized for single-channel automatic synchronization with high immunitéy to electromagnetic interference (EMI) and noise. Its compact form factor, combined with ABB’s high-quality PCB design, ensures consistent operation and easy integration into control panels, distributed control systems (DCS), and power electronic modules.
In industries such as power generation, marine, oil and gas, and heavy machinery, the SYN 5201a-Z,V217 provides the precise control and timing reliability necessary for continuous process stability and energy efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | SYN 5201a-Z,V217 |
| Référence | 3BHB006714R0217 |
| Product Type | Synchronization and Phase Control Device |
| Input Voltage | 24 VDC ±10% |
| Power Consumption | 8 W typical |
| Synchronization Channels | 1 input channel, 1 output channel |
| Synchronization Accuracy | ≤ 0.1 microseconds |
| Clock Reference | 20 MHz precision oscillator |
| Signal Interface | Optical fiber and TTL |
| Communication Interface | RS-485, CANopen, ABB Sync Bus |
| Input/Output Isolation Voltage | 1500 VAC |
| Protection Features | Overvoltage, ESD, short-circuit, and reverse polarity protection |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Cooling Method | Natural convection |
| Indicators | LED diagnostics for synchronization and communication status |
| Compliance | CE, UL, RoHS, IEC 61010-1 |
| Mounting Type | DIN rail or rack-mounted |
| Enclosure Material | High-reliability multilayer PCB with protective conformal coating |
| Dimensions (H × W × D) | 226 × 171 × 220 mm |
| Poids | 4 kg |
Applications
The ABB SYN 5201a-Z,V217 3BHB006714R0217 Synchronization Device is designed for advanced automation environments where signal synchronization and timing precision are essential. It plays a crucial role in the coordination sur drives, converters, and control systems. Typical applications include:
-
Industrial Drives and Converters: Synchronizes ABB drive systems in multi-motor or multi-axis applications.
-
Power Generation Systems: Aligns phase and timing between generator sets and grid synchronization controllers.
-
Process Automation Systems: Ensures precise communication timing between distributed control modules.
-
Marine and Offshore Equipment: Synchronizes propulsion and power control systems in marine vessels.
-
Renewable Energy Systems: Used in synchronization sur inverter outputs in wind and solar installations.
-
Test and Calibration Systems: Provides reference synchronization signals in testing and measurement environments.
-
High-Speed Machinery: Coordinates drive control for rotating equipment requiring precise phase matching.
-
Motor Synchronization Systems: Maintains timing and phase balance between large electric motors.
-
Robotics and Motion Control: Provides real-time synchronization for multi-axis motion platforms.
-
Power Electronics Systems: Supports synchronization sur rectifiers, inverters, and converters for stable power control.
Product Advantages
-
Exceptional Synchronization Accuracy: Delivers sub-microsecond timing precision for complex control systems.
-
Automatic Phase Alignment: Built-in algorithms allow real-time correction and adjustment sur phase timing.
-
High Noise Immunitéy: Optical isolation and advanced filtering reduce susceptibility to EMI and signal distortion.
-
Versatile Communication Support: Compatible with ABB’s RS-485, CANopen, and Sync Bus interfaces.
-
Robust Environmental Endurance: Performs reliably under temperature and humidity extremes.
-
Comprehensive Protection: Integrated circuit protection against voltage surges and polarity reversal.
-
Compact and Modular Design: Simplifies installation in space-limited electrical cabinets.
-
Advanced Diagnostic Capabilities: LED indicators and serial interfaces enable effective status monitoring.
-
Seamless ABB Integration: Fully compatible with ABB drives, converters, and process control systems.
-
High System Reliability: Engineered for continuous operation with minimal maintenance needs.
FAQ
1. What is the primary function sur the ABB SYN 5201a-Z,V217 device?
It provides precise synchronization and phase coordination between ABB drives, converters, and control modules.
2. What type sur synchronization accuracy does this device achieve?
It achieves synchronization precision better than 0.1 microseconds.
3. Which communication protocols does it support?
The device supports RS-485, CANopen, and ABB Sync Bus communication protocols.
4. Can it be used in both single and redundant synchronization systems?
Yes, it can operate as a primary synchronization module or as part sur a redundant synchronization configuration.
5. What is the typical input voltage and power requirement?
It operates at 24 VDC with a typical power consumption sur 8 watts.
6. Does the device include optical communication support?
Yes, it supports optical fiber interfaces for high-speed and noise-immune signal transmission.
7. How can system diagnostics be performed on this device?
Diagnostics can be monitored through LED indicators and via data access over the serial communication port.
8. What kind sur protection does the device provide?
It includes overvoltage, short-circuit, reverse polarity, and electrostatic discharge protection.
9. Can it be integrated into ABB DCS or ACS drive systems?
Yes, it is fully compatible with ABB’s DCS (Distributed Control Systems) and ACS drive platforms.
10. What kind sur clock reference is used for synchronization?
It uses a stable 20 MHz precision oscillator as its internal timing reference.
Related Modèles (Same Series or Function)
| Modèle | Description | Voltage | Communication Interface |
|---|---|---|---|
| SYN 5100a-Z,V0221 3BHB006717R0221 | Control Synchronization Module | 24 VDC | RS-485 / Optical |
| SYN 5200a-Z,V211 3BHB006713R0211 | Multi-Channel Synchronization Controller | 24 VDC | CAN / ABB Sync Bus |
| SYN 5201-0271 3BHB006714R0277 | Auto Single-Channel Synchronization Device | 24 VDC | RS-485 / CAN |
| SYN 5201a-Z,V211 3BHB006714R0211 | Phase Synchronization Module | 24 VDC | RS-485 / Optical |
| SYN 5300A-Z 3BHB008113R0004 | High-Speed Synchronization Processor | 24 VDC | ABB Sync Bus |
| SYN 5400A 3BHB009220R0021 | Multi-System Synchronization Controller | 24 VDC | Optical / CANopen |
