Présentation du produit

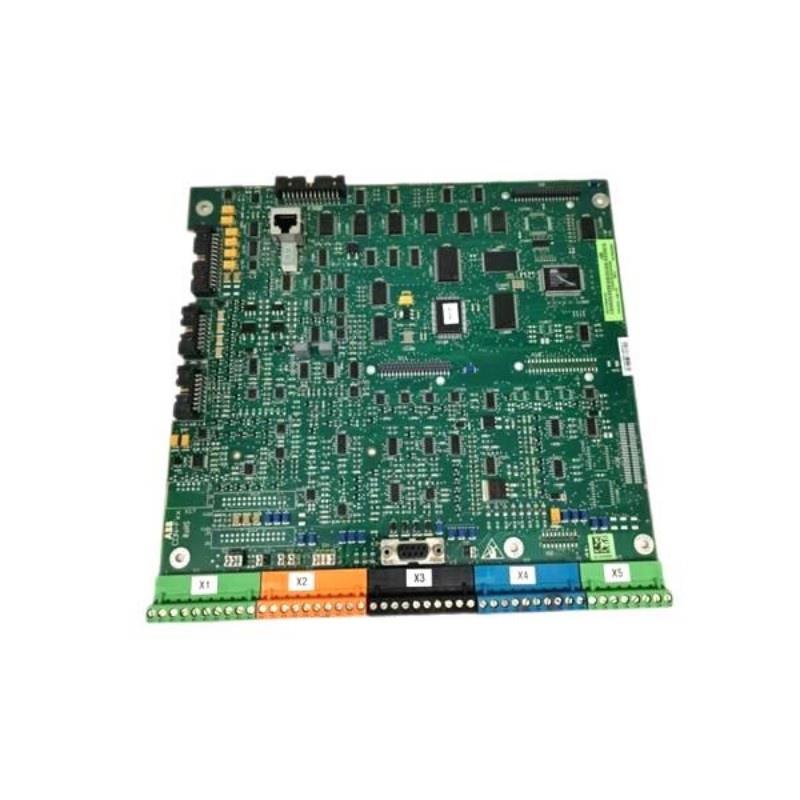

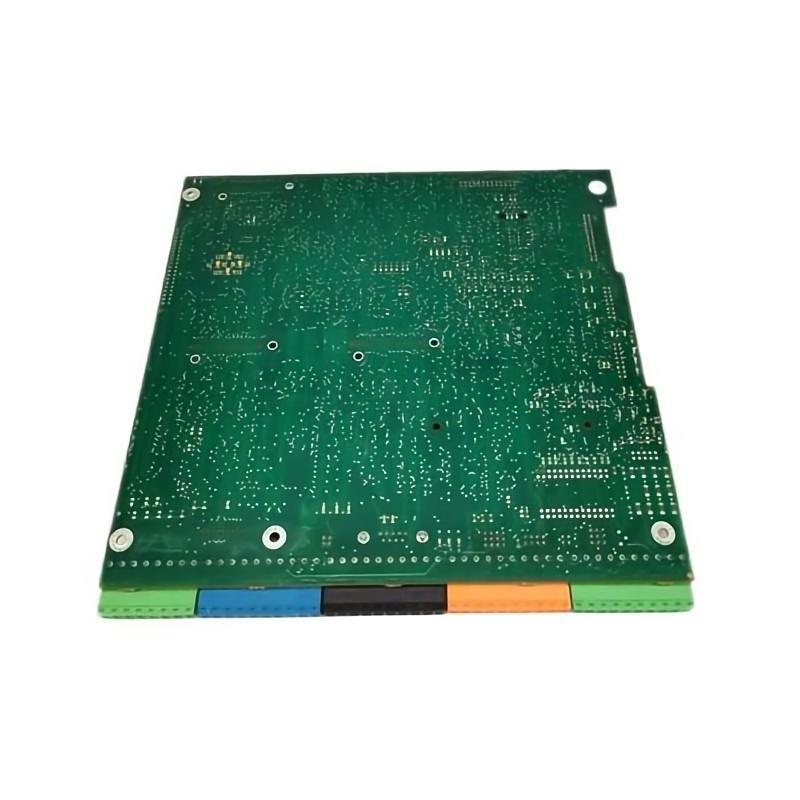

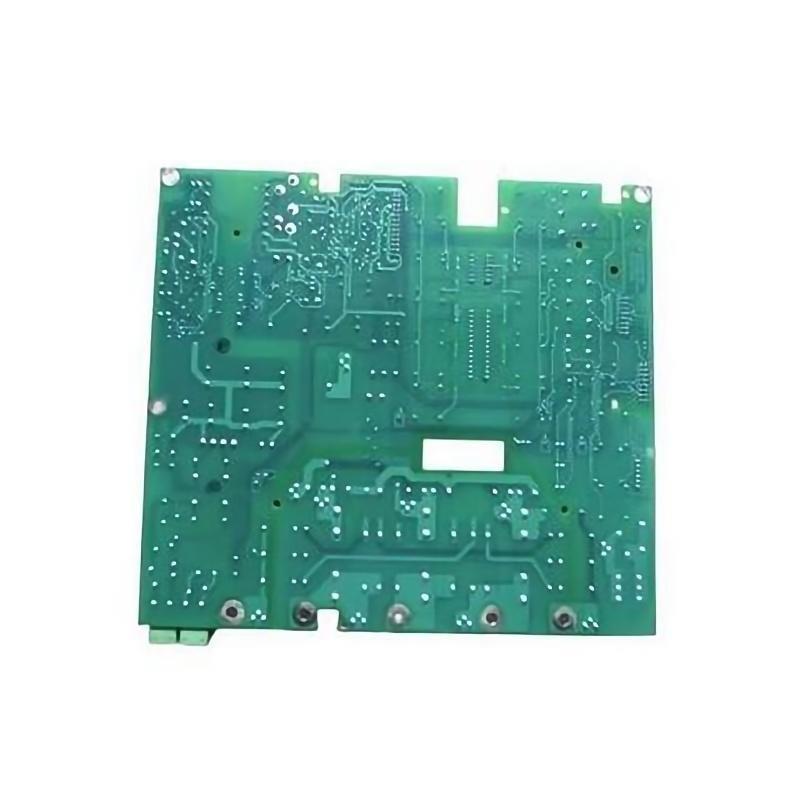

The ABB SDCS-PIN-F01a 3ADT316300R1502 Power Interface Board is a key component in ABB’s DCS and drive systems, designed to facilitate reliable power interfacing between different modules. As a power interface board, it ensures safe distribution, electrical protection, and effective signal transfer across the control architecture.
Manufactured with ABB’s hallmark attention to quality and industrial robustness, the SDCS-PIN-F01a is an enhanced version sur its predecessor (F01), surfering improved integration, refined layout, and compatibility with evolving drive system platforms. It is specifically tailored for use in ABB’s DC drive systems, such as the DCS500 and DCS600 series, where precision, reliability, and durability are paramount.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | SDCS-PIN-F01a |
| Référence | 3ADT316300R1502 |
| Function | Power Interface Board |
| System Compatibility | ABB DCS500 / DCS600 DC Drive Systems |
| Input Voltage | Typically 24 V DC (system dependent) |
| Output Channels | Multiple terminals for power and signal lines |
| Mounting Type | PCB/rack-mountable with front-facing connectors |
| Board Dimensions | 265 x 282 x 40 mm |
| Poids | 0.48 kg |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Humidity Tolerance | 5% – 95%, non-condensing |
| Cooling | Natural convection |
| Isolation Features | Electrical isolation between signal paths |
| Certifications | CE, RoHS, UL, IEC 61508 compliance |
Product Applications
The SDCS-PIN-F01a is commonly deployed in a variety sur industrial environments that rely on ABB’s DC drive systems for motor control, process regulation, and automated production. It is particularly suitable for:
-
Metallurgical Processing Plants – For controlling high-current DC motors in rolling mills and casting lines.
-
Pulp & Paper Industry – Used in DCS systems driving large paper machine sections with fine power distribution control.
-
Cement and Mining Operations – For high-reliability performance in dusty, high-vibration environments.
-
Power Plants – In turbine control systems or auxiliary drives where redundant power interfacing is required.
-
Marine & Offshore Applications – Supporting automation in propulsion or winch systems using DC drives.
Product Advantages
-
Enhanced Electrical Isolation
Ensures safe interaction between different control voltages and signal levels. -
Compact and Easy to Integrate
Slim prsurile and standardized mounting make it easy to deploy into existing ABB systems. -
Reliable Signal and Power Distribution
Offers consistent, uninterrupted power flow and data signal paths within the control cabinet. -
High Tolerance to Harsh Environments
Built to withstand temperature extremes, humidity, and mechanical shock typical sur industrial use. -
Low Maintenance and Long Service Life
Designed for continuous operation with minimal need for manual inspection or servicing.
Questions fréquentes (FAQ)
-
What role does the SDCS-PIN-F01a board play in the drive system?
It acts as a bridge between the power supply and the drive modules, ensuring proper voltage distribution and signal interface within the system. -
Is the F01a version compatible with all DCS500 and DCS600 configurations?
It is compatible with most configurations, but system layout and firmware version should always be verified before installation. -
How should this board be installed in the cabinet?
The board is rack-mounted using front connectors. It slides into its dedicated slot and secures without the need for complex wiring. -
What precautions should be taken before replacing this board?
Always disconnect system power completely and follow standard electrostatic discharge (ESD) safety procedures before handling the board. -
Does the board require firmware or ssurtware updates?
N° This board operates as a passive interface and does not store or run firmware. -
What are signs sur improper board connection?
You may notice irregular behavior in the drive system, such as unstable module voltage or communication interruptions between components. -
Can the board be cleaned during routine maintenance?
Yes. Dust and contaminants can be gently removed using dry compressed air or an anti-static brush. Avoid using liquids or solvents. -
Is the board affected by ambient temperature changes?
It operates reliably within the specified temperature range, but extreme conditions outside that range should be avoided for system stability. -
How is the board identified during inspection?
The part number 3ADT316300R1502 is printed on the label, along with version markings and connector references for field identification. -
What tools are needed for installation or replacement?
No special tools are required. Just follow the rack-insertion mechanism and secure any retaining clips if applicable. Always wear an anti-static wrist strap during handling.
Related or Same-Series Modèles
| Modèle Number | Description | Key Use Case |
|---|---|---|
| SDCS-PIN-F01 | Earlier version sur F01a | Legacy DCS500 systems |
| SDCS-CON-01 | Communication interface board | Signal interfacing between modules |
| SDCS-PIN-01 | General power input interface board | Power supply integration |
| SDCS-POW-01 | Dedicated power supply module | Stable power to drive electronics |
| SDCS-IOB-01 | I/O Board for digital/analog signals | Sensor and actuator interfacing |
| SDCS-COM-8 | Serial communication board | Serial protocol integration |
Popular ABB Produits (Same Marque)
| Modèle Number | Product Name | Primary Application |
|---|---|---|
| ACS880-07 | Industrial AC Drive Cabinet | Advanced motor control |
| CP600-Pro | HMI Control Panel | Operator interface for DCS |
| RTU560 | Remote Terminal Unité | Utility and energy sector monitoring |
| 800xA System | Distributed Control System | Plant-wide process control |
| Freelance DCS | Compact Control System | Scalable automation architecture |
| Ekip Touch | Trip Unité with Touchscreen | Breaker control and diagnostics |
