Présentation du produit

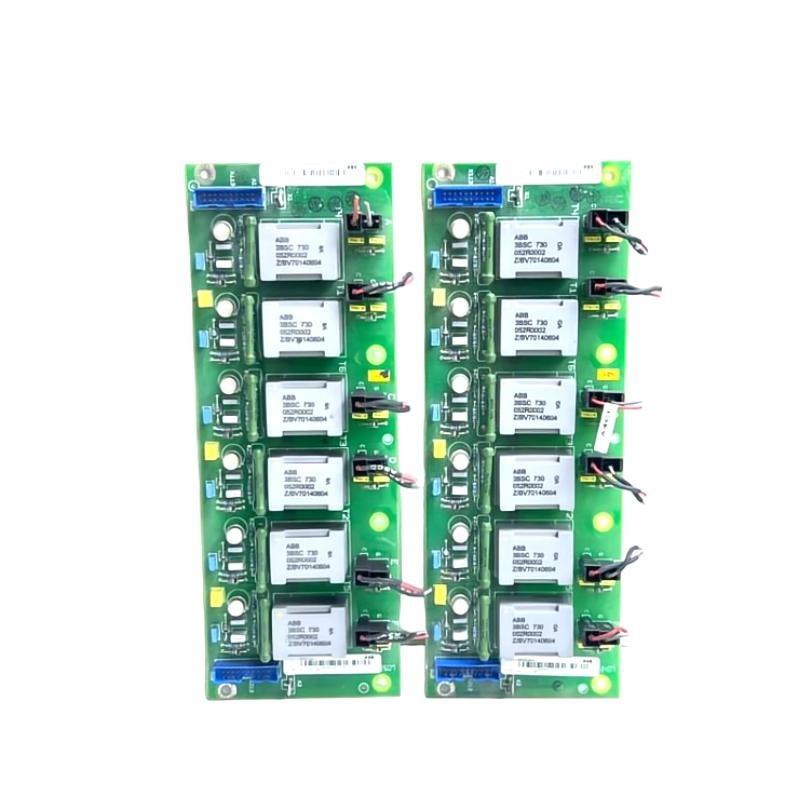

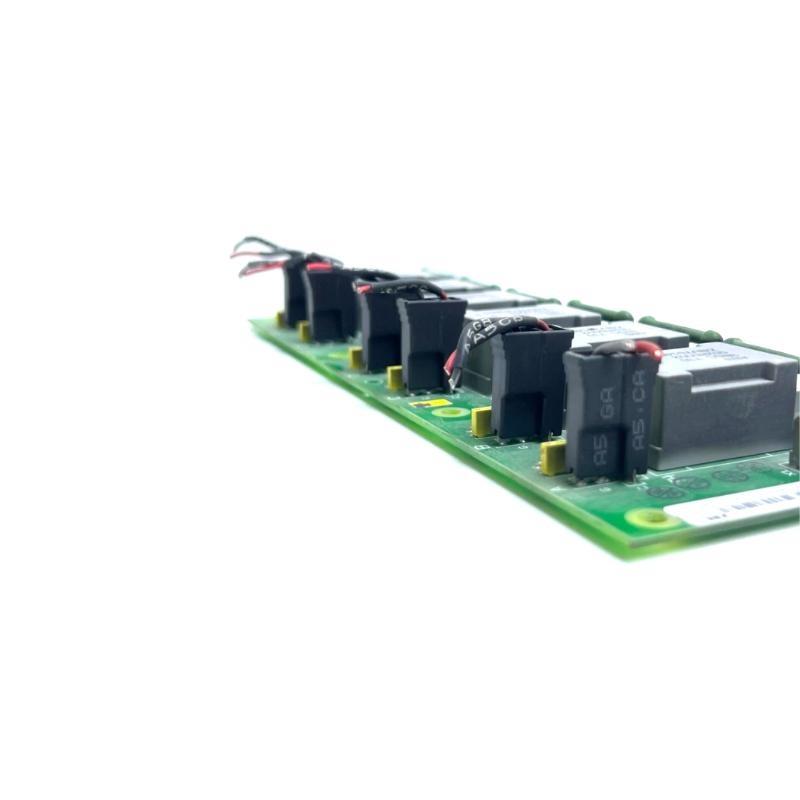

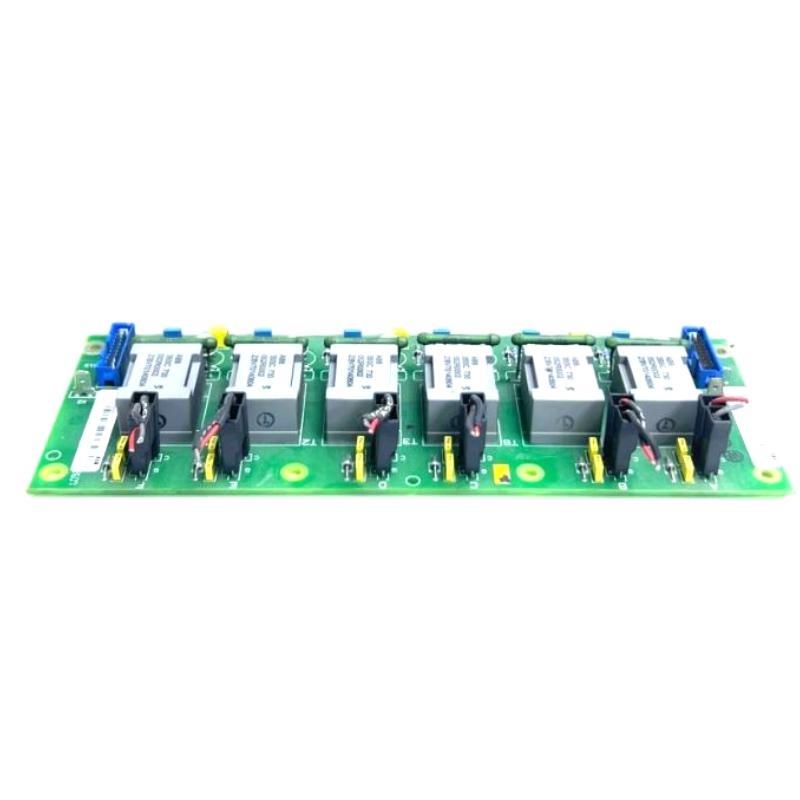

The ABB SDCS-PIN-48 (Référence: 3BSE004939R0002) is a high-reliability pulse transformer board designed to interface between control and power sections in ABB DCS400 DC drive systems. Its primary role is to provide galvanically isolated gate firing pulses to power semiconductor devices like thyristors and IGBTs, ensuring safe and precise triggering without allowing electrical disturbances to propagate.
This board is engineered to operate in demanding industrial environments, where electrical isolation, signal integrity, and robust construction are critical. The SDCS-PIN-48 is favored for its reliability, ease sur integration, and long-term operational stability, making it a core component in drive system configurations for heavy-duty applications.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Name | SDCS-PIN-48 |
| Référence | 3BSE004939R0002 |
| Function | Pulse transformer board for isolated gate signal transmission |
| System Compatibility | ABB DCS400 DC Drive Systems |
| Pulse Type | Digital gate firing pulses |
| Isolation Type | Galvanic isolation (>2.5 kV) |
| Input Signal Voltage | Logic-level 24 VDC (from control unité) |
| Mounting Method | Plug-in module, rack-mounted |
| Operation Temperature | 0°C to +70°C (32°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity Tolerance | 5%–95% RH (non-condensing) |
| Certifications | CE, RoHS compliant (within certified ABB systems) |
| Connector Interface | ABB proprietary slot connector |
| Dimensions (L × W × H) | 265 x 282 x 40 mm |
| Poids | 0.328 kg |
Applications
The SDCS-PIN-48 pulse transformer board is a critical interface module in high-power drive control systems where safe and accurate triggering sur power semiconductors is essential.
Common application areas include:
-
Steel Industry: Rolling mills, annealing lines, and furnaces
-
Paper & Pulp: Paper machine drives, winders, and cutters
-
Mining & Conveyance: Drive control for crushers, conveyors, and hoists
-
Marine & Offshore: Propulsion control, winch systems, and lift motors
-
Power Generation: Auxiliary drive systems in hydropower and thermal plants
-
Manufacturing Automation: Synchronization sur motor drives in production lines
Product Advantages
-
Robust Electrical Isolation
Ensures reliable operation by separating control signals from high-voltage circuits. -
Stable Gate Pulse Output
Delivers high-integrity pulses that reduce misfiring and improve switching accuracy. -
Industrial Reliability
Built for 24/7 operations in harsh industrial environments. -
Easy Installation
Plug-in module with ABB standard connector interface; no additional setup required. -
No Calibration Needed
Designed as a maintenance-free component with long service life. -
System Integrity
Reduces ground loop and electrical noise interference within drive cabinets.
Questions fréquentes (FAQ)
-
What does the SDCS-PIN-48 board do?
It transmits isolated gate firing pulses to thyristors or IGBTs. -
Which systems is it compatible with?
It is designed for use in ABB DCS400 DC drive systems. -
Is it hot-swappable?
No, the system should be powered down before replacement. -
What isolation level does it provide?
Over 2.5 kV galvanic isolation. -
Does it need programming or configuration?
No, it operates as a fixed-function hardware module. -
What could cause a failure in this board?
Overvoltage, poor ventilation, or ESD damage during handling. -
How can I identify a board malfunction?
Motor fails to start, gate firing faults, or drive error codes appear. -
Can it be used in humid environments?
Yes, up to 95% RH non-condensing within a sealed drive cabinet. -
What kind sur maintenance is required?
None, apart from ensuring the cabinet is clean and dry. -
How is it installed?
It is inserted into a designated slot in the drive rack and connects automatically.
Related Modèles (Same Series or Function)
| Modèle Number | Référence | Description |
|---|---|---|
| SDCS-PIN-46 | 3BSE004939R1003 | Pulse transformer board for gate pulse delivery |
| SDCS-PIN-51 | 3BSE004939R0002 | High-noise immunitéy version sur pulse board |
| SDCS-POW-1 | 3BSE004939R0005 | Power supply board for ABB DCS drive system |
| SDCS-IOB-3 | 3BSE004939R0007 | Input/output board for signal interfacing |
| SDCS-CON-4 | 3BSE004939R0004 | Main control board in DCS400 systems |
| SDCS-PIN-26 | 3BSE004939R0012 | Compact pulse transformer for tight-space installations |
Popular ABB Modèles (Same Marque)
| Modèle Number | Référence | Function |
|---|---|---|
| PM864AK01 | 3BSE018161R1 | CPU module for AC800M controller |
| CI854AK01 | 3BSE030220R1 | PROFIBUS communication module |
| AI810 | 3BSE008516R1 | 8-channel analog input module (S800 I/O) |
| DO810 | 3BSE008510R1 | 16-channel digital output module |
| PM861AK01 | 3BSE018157R1 | Mid-range CPU controller module |
| IMMFP12 | 3BHT300010R1 | Multifunction processor for Advant system |
