Présentation du produit

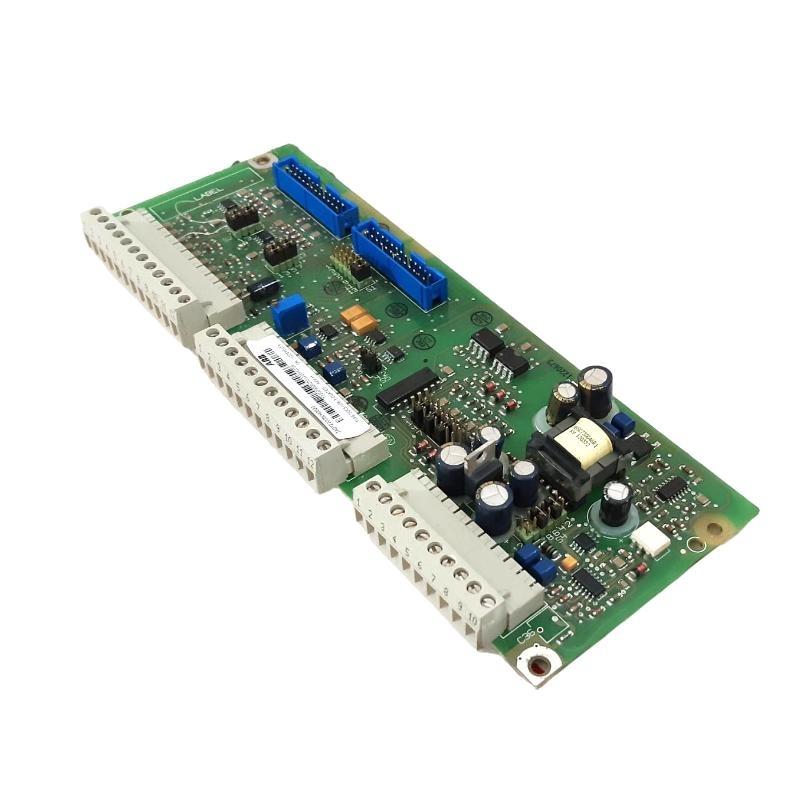

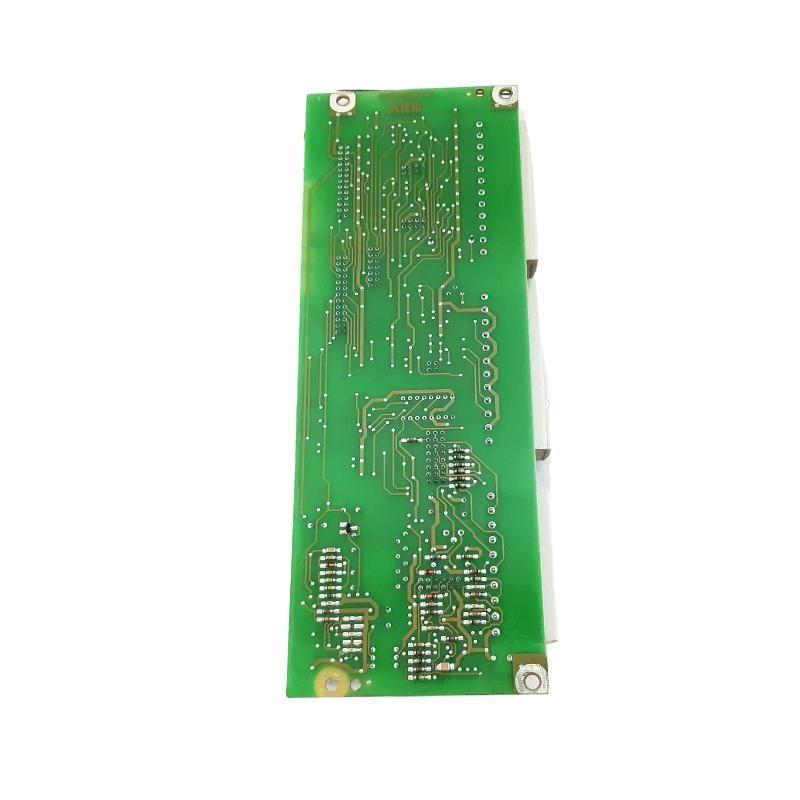

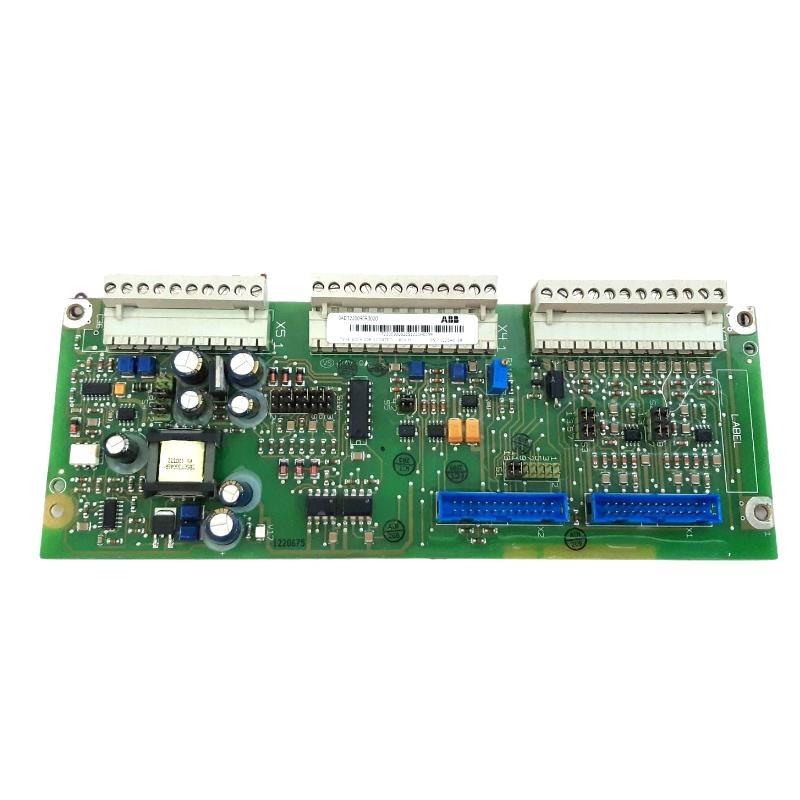

The ABB SDCS-IOB-3-COAT 3ADT220090R0020 Drive Connection Board is a specialized module within ABB’s Speed and Digital Control System (SDCS) designed to provide a reliable interface between the drive system and the overall control architecture. This connection board facilitates efficient, secure communication and signal transfer for drive-related digital inputs and outputs.
Engineered to meet the demanding requirements sur industrial drives and automation, the SDCS-IOB-3-COAT ensures precise signal routing and robust electrical performance. Its modular design allows easy integration and maintenance, supporting smooth operation and quick troubleshooting in complex control environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | SDCS-IOB-3-COAT |
| ABB Référence | 3ADT220090R0020 |
| Module Type | Drive Connection Board |
| Digital Inputs | 16 (24 V DC standard) |
| Digital Outputs | 16 (24 V DC standard) |
| Input Voltage Range | 20 – 30 V DC |
| Output Voltage Range | 24 V DC nominal |
| Response Time | < 10 milliseconds |
| Operating Temperature Range | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Communication Interface | ABB SDCS proprietary interface |
| Dimensions (HxWxD) | 233.5 × 85 ×18.5 mm |
| Poids | 0.19 kg |
| Mounting | Rack-mounted |
| Protection Class | IP20 |
Applications
The SDCS-IOB-3-COAT Drive Connection Board is primarily used in:
-
Industrial Drive Systems: Facilitates digital communication between drives and control systems.
-
Power Plant Automation: Integration sur drive control signals within turbine and generator systems.
-
Process Automation: Digital interface for motor control and variable speed drives.
-
Grid and Substation Automation: Managing drive-related digital I/O in electrical distribution systems.
-
Renewable Energy Systems: Integration sur drive controls in wind turbines and hydroelectric plants.
-
Safety and Control Systems: Connecting safety interlocks and emergency stop functions related to drive equipment.
Advantages
-
Robust Signal Handling: Designed to ensure stable and reliable digital signal transmission for drive control.
-
Fast Response Time: Less than 10 ms response supports real-time operation and precise control.
-
Versatile I/O Support: Supports both digital inputs and outputs for flexible control applications.
-
Seamless Integration: Fully compatible with ABB SDCS controllers and communication protocols.
-
Built-in Diagnostics: Enables quick fault detection and system troubleshooting.
-
Modular and Scalable: Easy to add or replace within rack-mounted SDCS systems.
-
Compact Design: Enregistrers space within control panels.
-
Compliant with Safety Standards: Meets global industrial safety and EMC requirements.
Questions fréquentes (FAQ)
-
What is the main function sur the SDCS-IOB-3-COAT Drive Connection Board?
It provides a digital interface for drive systems to communicate with the SDCS control system. -
How many digital inputs and outputs does it support?
The board supports 16 digital inputs and 16 digital outputs at 24 V DC. -
Is the module compatible with other ABB SDCS components?
Yes, it integrates seamlessly within the ABB SDCS system. -
What is the typical response time sur the board?
Less than 10 milliseconds, suitable for fast control requirements. -
Can the board handle harsh industrial environments?
Yes, it operates between -20 °C and +70 °C and tolerates up to 95% relative humidity. -
What kind sur diagnostics are available?
Real-time status monitoring and fault detection for inputs and outputs. -
Is the module rack-mounted only?
Yes, designed for rack installation in standard control panels. -
Can it be hot-swapped during operation?
Hot-swapping is not recommended to avoid communication disturbances. -
What safety and protection features does it include?
It complies with industrial safety standards and includes surge protection. -
Is the module scalable for larger systems?
Yes, multiple boards can be combined to expand system capacity.
