Présentation du produit

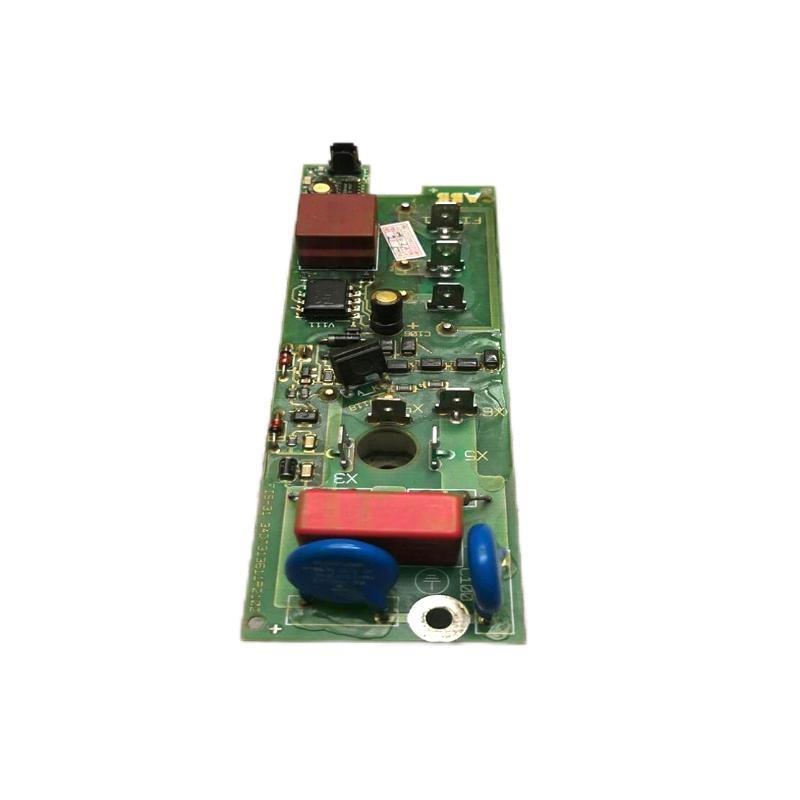

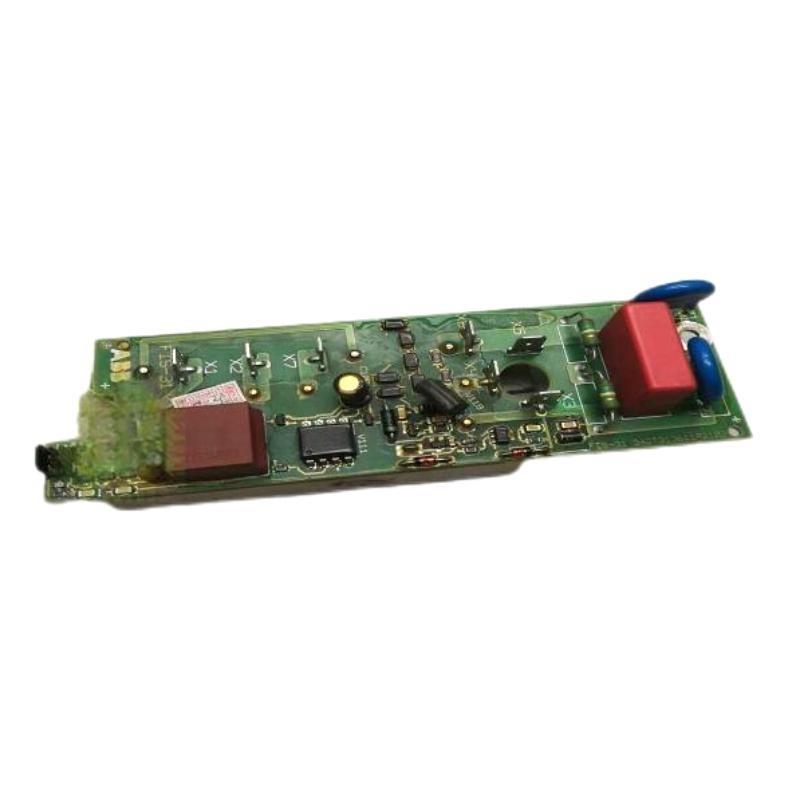

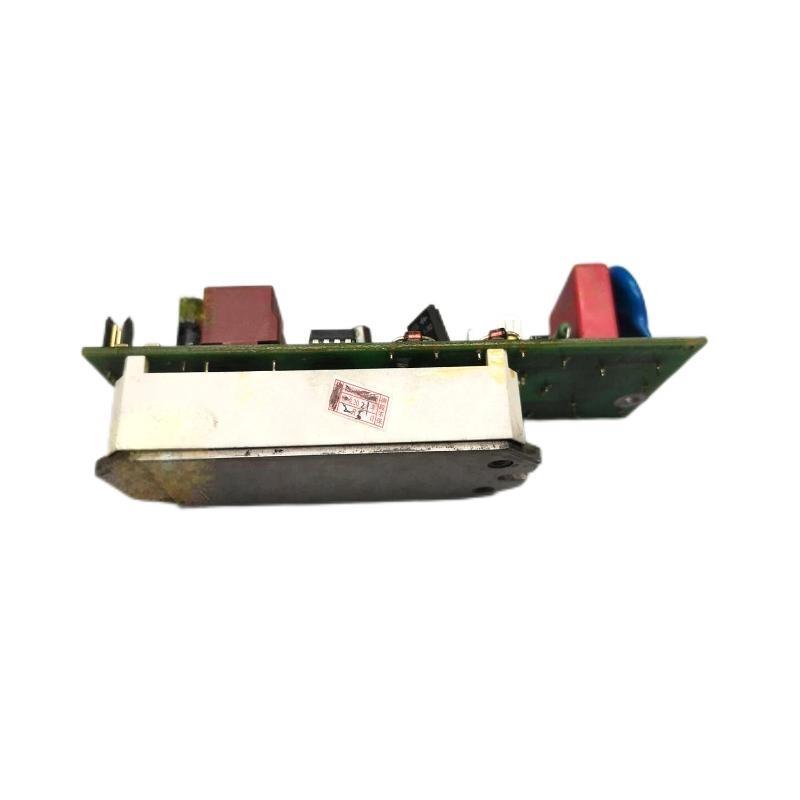

The ABB SDCS-FIS-3A/31 Excitation Plate is a specialized module designed as part sur ABB’s comprehensive SDCS excitation control system. This excitation plate plays a critical role in regulating the excitation current supplied to synchronous generators, ensuring precise control over generator speed and voltage stability. Built to meet rigorous industrial standards, the SDCS-FIS-3A/31 excitation plate is engineered for high reliability and accuracy in demanding power generation environments.
This component is essential for maintaining optimal generator performance, allowing for rapid response to load changes while protecting electrical and mechanical systems from undue stress. The excitation plate integrates seamlessly within ABB’s modular SDCS platform, making it a trusted solution in power plants and large-scale industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | SDCS-FIS-3A/31 |
| Function | Excitation Plate for DC Speed Regulation |
| Input Voltage Range | 24 V DC nominal |
| Output Current Range | Up to 5 A DC |
| Response Time | < 20 milliseconds |
| Operating Temperature Range | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Communication Interface | Proprietary ABB SDCS protocol |
| Dimensions (HxWxD) | 150 x 65 x 20 mm |
| Poids | 0.2 kg |
| Mounting | Rack-mounted |
| Protection Class | IP20 standard enclosure |
Applications
The ABB SDCS-FIS-3A/31 excitation plate is suited for a range sur industrial and power system applications:
-
Synchronous Generator Excitation: Ensures stable excitation current to maintain voltage and speed stability in generators.
-
Turbine Speed Control: Critical for maintaining consistent turbine shaft speed in steam, gas, and hydro turbines.
-
Industrial DC Drives: Supports speed regulation in large DC motor applications.
-
Power Plant Control Systems: Integral part sur the control loop for excitation regulation in thermal and hydroelectric power plants.
-
Grid Stability Support: Helps maintain grid frequency and voltage levels by precise generator control.
-
Renewable Energy Plants: Used in excitation control for wind and hydroelectric generation unités.
Advantages
-
Precise Excitation Control: Maintains exact excitation levels to optimize generator performance.
-
High Reliability: Designed to operate continuously under industrial conditions with minimal failure rates.
-
Fast Dynamic Response: Responds quickly to changes in load and system demands, protecting mechanical components.
-
Modular Integration: Compatible with ABB SDCS systems for straightforward upgrades and expansions.
-
Energy Efficient: Minimizes excitation current wastage, reducing operational costs.
-
Diagnostic Capabilities: Equipped with self-monitoring features for early fault detection.
-
Long Operational Life: Constructed with high-quality components to ensure durability.
-
Standards Compliance: Meets relevant international safety and electromagnetic compatibility standards.
Questions fréquentes (FAQ)
-
What is the function sur the SDCS-FIS-3A/31 excitation plate?
It regulates the DC excitation current for synchronous generators to maintain stable speed and voltage. -
Is this excitation plate compatible with ABB’s SDCS control system?
Yes, it is designed for full compatibility within ABB’s SDCS platform. -
What input voltage does the excitation plate require?
It operates with a 24 V DC nominal power supply. -
Can the module operate under harsh environmental conditions?
Yes, it supports an operating temperature range sur -20 °C to +70 °C and humidity levels from 5% to 95%, non-condensing. -
Does the excitation plate support remote monitoring?
Yes, it can be monitored and controlled remotely through ABB’s SDCS interface. -
What safety features are built into the excitation plate?
The device includes built-in diagnostics and complies with international safety standards to prevent faults and hazards. -
How surten does the excitation plate need maintenance?
Routine inspections and diagnostics checks are recommended; no consumable parts require regular replacement. -
Is the SDCS-FIS-3A/31 suitable for retrsuritting older systems?
Yes, it is commonly used to upgrade legacy excitation control systems. -
How fast is the module’s response time?
The excitation plate responds within 20 milliseconds to system changes. -
Does this module help improve energy efficiency?
Yes, by optimizing excitation current use, it contributes to lower energy consumption.
Related and Recommended Modèles
| Related/Similar Modèles | Description | ABB Référence |
|---|---|---|
| SDCS-FIS-3A | DC Speed Regulator Module | 3ADT313600R0001 |
| SDCS-FIS-31 | Enhanced Excitation Module | 3ADT313600R0002 |
| SDCS-EXC-100 | Standard Excitation Controller | 3BHT200001R0101 |
| SDCS-EXC-200 | Advanced Excitation Controller | 3BHT200002R0201 |
| SDCS-DCM-10 | DC Motor Control Module | 3BHT200003R0301 |
| SDCS-DCM-20 | High-Performance Motor Controller | 3BHT200004R0401 |
| Popular ABB Modèles | Application | ABB Référence |
|---|---|---|
| ACS880 | Variable Frequency Drive (VFD) | 3HAC028002-001 |
| ACS550 | General Purpose Drive | 3HAC023982-001 |
| PM850 | Process Automation Controller | 3BHT300004R0101 |
| Relion 615 | Protection Relay | 1SDA075675R1 |
| RTU560 | Remote Terminal Unité | 3BHT300011R0101 |
| ABB Ability System 800xA | Distributed Control System | N/A |
