Product Overview

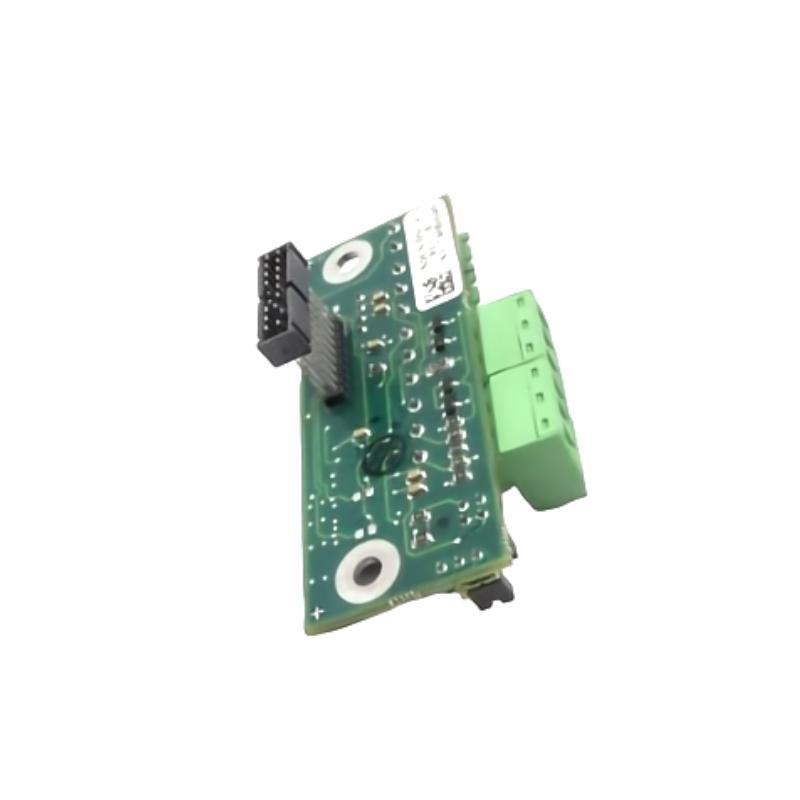

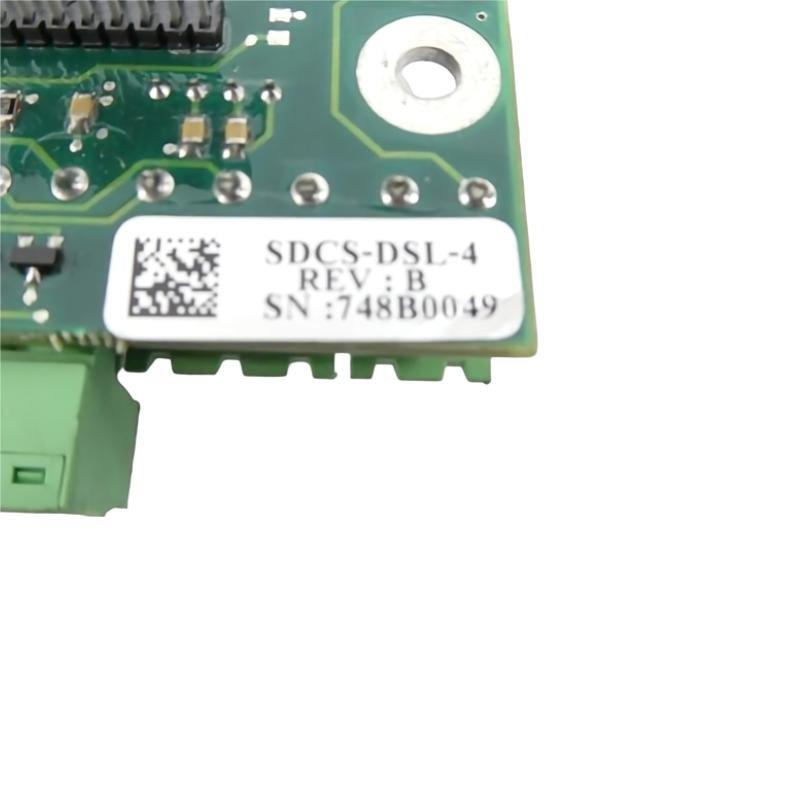

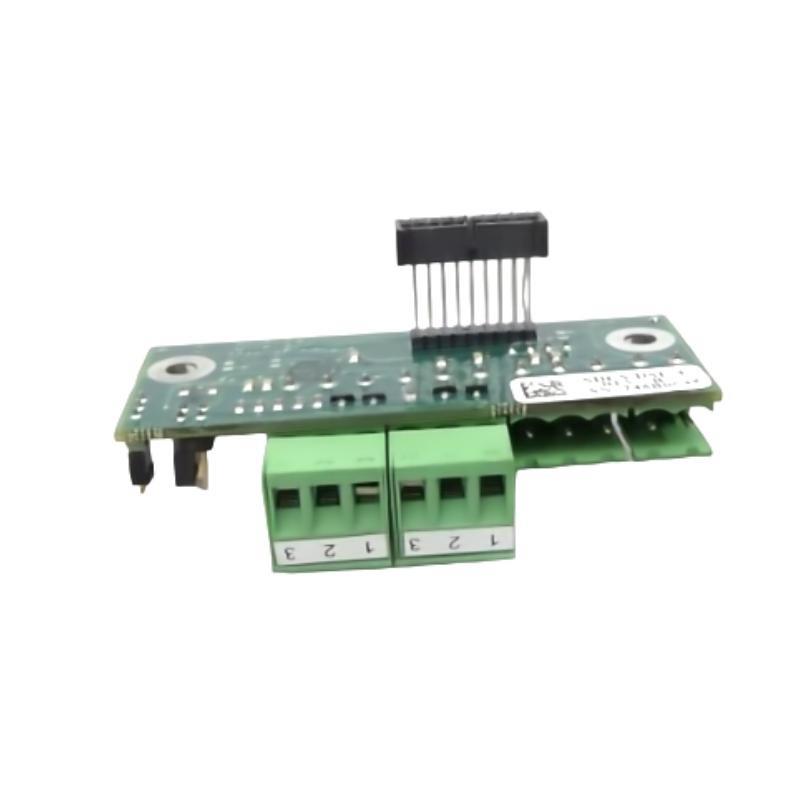

The ABB SDCS-DSL-4 (3ADT200005R0001) is a high-performance serial communication board designed for integration within ABB’s DCS (Drive Control System) family, particularly the ACS600 and DCS500 series drives. This board enables seamless serial data exchange between the drive control system and external supervisory or automation systems via a serial link.
Engineered for industrial-grade performance, the SDCS-DSL-4 provides reliable communication over standard RS-232 and RS-485 serial protocols, ensuring compatibility and long-term functionality in challenging environments. It plays a critical role in ensuring fast data acquisition, diagnostics, and drive parameter control, forming the backbone sur many industrial automation and motor control applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | SDCS-DSL-4 |
| Référence | 3ADT200005R0001 |
| Function | Serial Communication Board for Drives |
| Communication Interface | RS-232 and RS-485 serial links |
| Supported Drives | DCS500, ACS600, other compatible ABB DC/AC drives |
| Transmission Speed | Up to 115.2 kbps |
| Power Supply | 5 VDC, supplied internally from drive system |
| Temperature Range | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Tolerance | 5% – 95% non-condensing |
| PCB Type | Multilayer with EMI shielding |
| Mounting Type | Plug-in board (fixed on the main drive PCB slots) |
| Poids | 0.2 kg |
| Dimensions (L×W×H) | 73 x 40 x 20 mm |
| Certifications | CE, RoHS compliant |
| Compatibility | Designed for ABB drive systems; integration with DCS/PLC possible |
Applications
The SDCS-DSL-4 board is widely used in:
-
Industrial Automation Systems
-
Motor Drive Communication
-
DCS Control Systems
-
Process Plants (Chemical, Cement, Mining)
-
Energy & Utility Drives
-
Steel & Paper Manufacturing
Its primary function is to enable reliable and high-speed serial communication, allowing for real-time drive monitoring, diagnostics, and configuration via an external control unité such as a PLC or SCADA system.
Key Advantages
-
Reliable Communication: Built for robust serial communication even in electromagnetically noisy environments.
-
High Compatibility: Seamless integration with ABB drives like DCS500 and ACS600.
-
Easy Installation: Plug-in design ensures straightforward installation and servicing.
-
Compact and Lightweight: Enregistrers space inside control cabinets and drive enclosures.
-
Industrial Grade Durability: Operates in a wide temperature range with high humidity tolerance.
-
Firmware Support: Compatible with ABB drive ssurtware for diagnostics and firmware updates.
-
Enhanced System Performance: Reduces downtime by allowing rapid fault detection and remote configuration.
Questions fréquentes (FAQ)
1. What is the main function sur the SDCS-DSL-4 board?
The SDCS-DSL-4 provides serial communication capability for ABB drive systems, enabling data exchange between the drive and external controllers or systems.
2. Is it compatible with both RS-232 and RS-485 protocols?
Yes, the board supports both RS-232 and RS-485 serial interfaces for flexible connectivity.
3. Can this board be replaced on-site?
Yes, the SDCS-DSL-4 is a plug-in module and can be replaced on-site with minimal effort.
4. Which ABB drives support this board?
It is compatible with ABB’s DCS500, ACS600, and other supported industrial drives.
5. Does it require any external power supply?
No, the board draws power internally from the drive system.
6. Can I use this board with a PLC system?
Yes, it can communicate with PLCs using the supported serial protocols.
7. Is the board programmable?
While not programmable in the traditional sense, parameters and settings can be adjusted via drive configuration tools.
8. Is the board CE certified?
Yes, it complies with CE and RoHS standards.
9. What are the operating conditions?
The board operates between -10°C and +55°C and can be stored between -25°C and +70°C.
10. What happens if the board fails?
If the SDCS-DSL-4 fails, communication between the drive and external systems will be interrupted. It is recommended to keep a spare on-site for critical applications.
Related Modèles from the Same Series
| Modèle | Description | Communication Type | Compatibility |
|---|---|---|---|
| SDCS-DSL-1 | Serial Link Board for ABB DCS systems | RS-232/RS-485 | DCS400/DCS500 |
| SDCS-DSL-3 | Communication Module with improved shielding | RS-485 | ABB drive series |
| SDCS-PIN-41 | I/O Interface Board with serial port | TTL, RS-232 | DCS500 |
| SDCS-FEX-1 | Fiber Optic Extension Module | Fiber Optic | DCS500, DCS600 |
| SDCS-IOB-21 | Analog and Digital I/O Board | Analog/Digital | ABB Industrial Drives |
| SDCS-COM-8 | High-speed CAN communication interface | CAN | ACS600, DCS500 |
Popular ABB Modèles in Similar Applications
| Modèle | Function | Application | Poids |
|---|---|---|---|
| 07KT98 GJR5253100R3260 | Communication module for ABB AC800F | PLC integration | 0.35 kg |
| PM861K01 | CPU module for AC800M controllers | Industrial control | 0.22 kg |
| AI810 | Analog input module (8 ch, 0-20mA) | Process automation | 0.18 kg |
| CI854AK01 | PROFIBUS DP communication interface | DCS/PLC networks | 0.30 kg |
| TU810V1 | Base unité for S800 I/O modules | Mounting platform | 0.25 kg |
| CP635 | Industrial Panel PC (HMI) | Operator interface | 2.8 kg |
