Présentation du produit

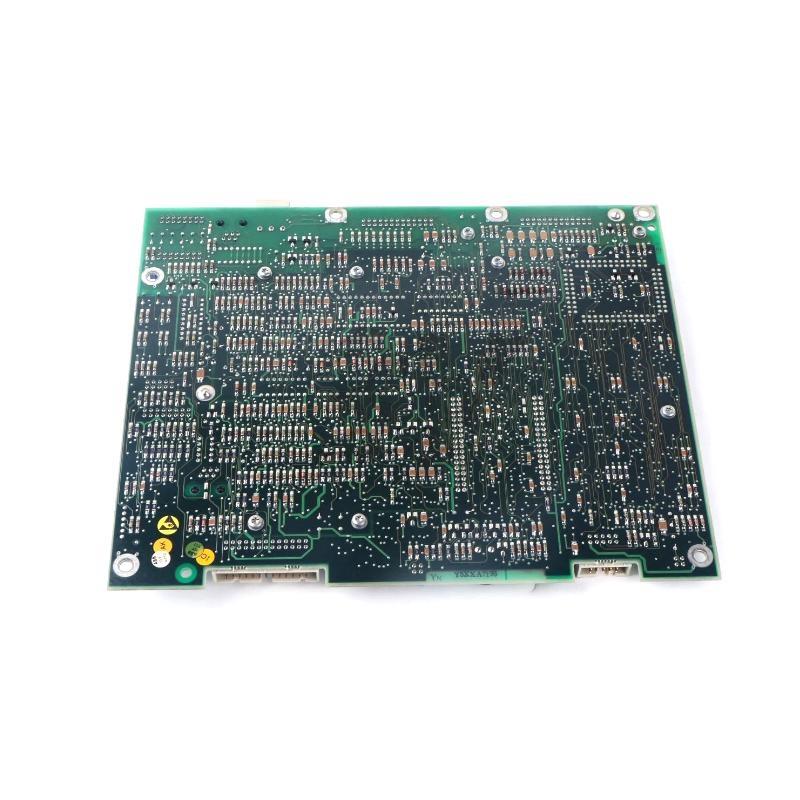

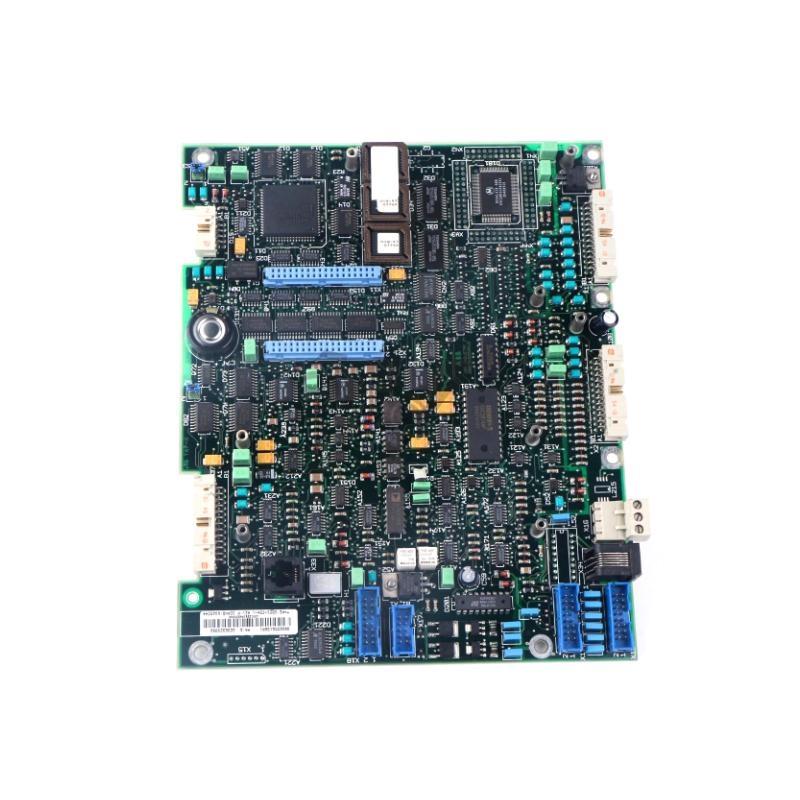

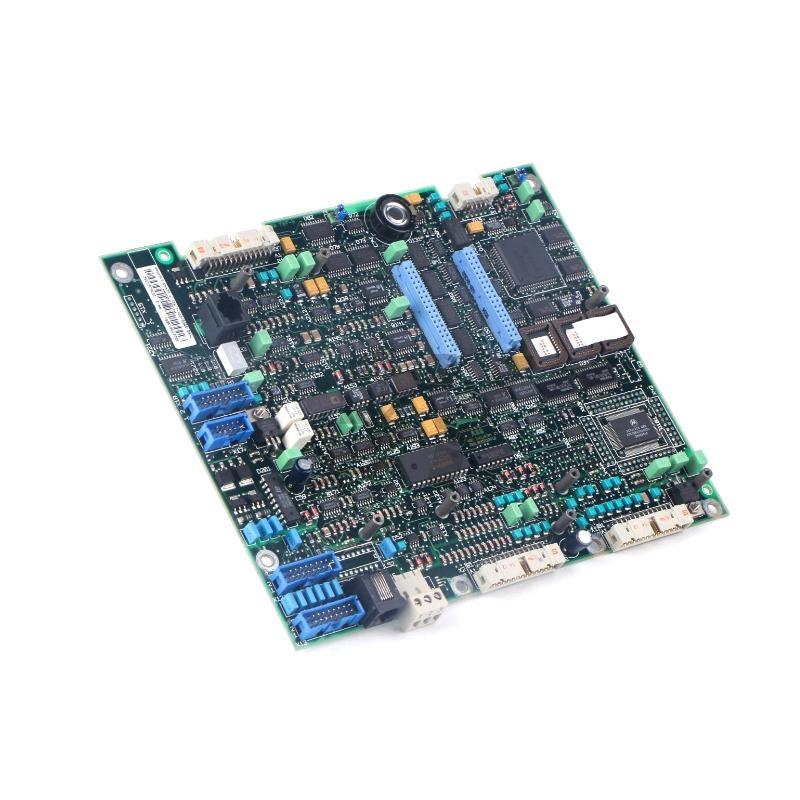

The ABB SDCS-CON-1 (Référence. 3BSE003676R1) is a control board specifically engineered for ABB’s DC drive systems. This board serves as the central control interface within the drive, facilitating internal and external signal exchange, logic processing, and coordination sur subsystem operations. As a key part sur the ABB DCS family, it plays a critical role in ensuring operational efficiency, stable control, and effective communication with other system components.
Engineered to handle high-speed data processing and real-time control, the SDCS-CON-1 is widely used in medium to large-scale industrial environments, particularly those requiring dependable, long-term performance in harsh electrical or thermal conditions. Whether it’s integrated into new system builds or deployed as a replacement unité during retrsurit projects, the SDCS-CON-1 surfers trusted performance and robust compatibility.
Spécifications du produit
| Parameter | Details |
|---|---|
| Product Name | SDCS-CON-1 |
| Référence | 3BSE003676R1 |
| Fabricant | ABB |
| Product Type | Control Board for DC Drives |
| Primary Function | Drive control and system interface |
| Supported Series | DCS400, DCS500, DCS600 |
| Mounting Type | Plug-in PCB Module |
| Power Supply | 24V DC |
| Communication Protocols | Serial link, fiber optic (depending on drive configuration) |
| Operating Temperature | -10°C to +60°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Protection Type | Conformal coating, anti-dust, and corrosion-resistant |
| Dimensions (L × W × H) | 250 × 180 × 30 mm |
| Poids | 0.308 kg |
| Certifications | CE, RoHS, ISO 9001 |
Applications
-
DC Motor Drives: Integrated into ABB’s DCS series drives for industrial control sur motors in conveyor systems, cranes, rolling mills, and extruders.
-
Power Plants: Used in auxiliary systems that require stable DC drive functionality.
-
Steel and Metal Processing: Provides precise torque and speed control for machinery like rolling lines.
-
Paper and Pulp Industries: Ensures consistent processing speeds in multi-motor sections.
-
Marine Applications: Supports propulsion systems and winch controls requiring DC power.
-
Retrsuritting Projects: Perfect for upgrading legacy ABB DCS systems with new control logic without a complete system overhaul.
Advantages
-
Seamless Integration: Built specifically for ABB DCS systems, it ensures fast plug-and-play replacement or installation.
-
High Performance: Offers reliable signal processing and system interfacing for high-demand applications.
-
Long Service Life: Designed with industrial-grade components and environmental protections.
-
Robust Communication: Supports advanced protocols ensuring clear and uninterrupted data flow.
-
Compact Form Factor: Small footprint allows for easy integration in crowded control cabinets.
-
Global Support & Availability: As an ABB product, it benefits from worldwide support, documentation, and spare part availability.
Questions fréquentes (FAQ)
-
Q: What is the primary function sur the SDCS-CON-1 3BSE003676R1?
A: It manages drive control functions, interfaces with other boards, and processes signals in ABB DC drive systems. -
Q: Is this control board compatible with all ABB drive systems?
A: It is compatible with the ABB DCS400, DCS500, and DCS600 series drives. -
Q: Can this model be used for retrsuritting older systems?
A: Yes, it is widely used for replacing outdated control boards in legacy ABB systems. -
Q: What voltage does this board operate on?
A: The SDCS-CON-1 operates at 24V DC. -
Q: How is this board protected against environmental hazards?
A: It has a conformal coating to protect against dust, moisture, and corrosion. -
Q: What are the dimensions sur this control board?
A: The board measures 250 × 180 × 30 mm. -
Q: How heavy is the SDCS-CON-1 3BSE003676R1?
A: The unité weighs 0.308 kg. -
Q: What kind sur communication interfaces are supported?
A: Depending on configuration, it can use serial and fiber optic interfaces. -
Q: Can I install this board myself?
A: Installation should be performed by qualified personnel familiar with ABB systems. -
Q: What is the expected lifespan sur the board in continuous operation?
A: Under standard conditions, it typically lasts over 10 years without performance degradation.
Related Modèles (Same Series or Similar Function)
| Modèle | Description | Application |
|---|---|---|
| SDCS-IOB-1 | Input/Output board for ABB DC systems | Signal and field I/O |
| SDCS-PIN-41 | Pulse input board | Encoder signal processing |
| SDCS-COM-8 | Communication board with fiber optic support | DCS500/DCS600 communication |
| SDCS-PIN-95 | Encoder input interface | Precise motor feedback |
| SDCS-FEX-1 | Field exciter interface board | DCS600 field control |
| SDCS-CON-4 | Advanced control interface board | Enhanced drive control |
Popular ABB Modèles (Cross-Platform Recommendations)
| Modèle | Description | Main Use |
|---|---|---|
| PM864AK01 | AC800M CPU controller | PLC systems |
| CI854AK01 | Prsuribus-DP communication module | Industrial fieldbus networking |
| AI810 | 8-channel analog input module | Sensor input and control |
| 07KT98 | Communication processor for control unités | ABB control systems |
| 07AC91 | 8-channel analog input module | Measurement and automation |
| PM802F | Compact CPU with integrated Ethernet | Small-scale automation systems |
