Présentation du produit

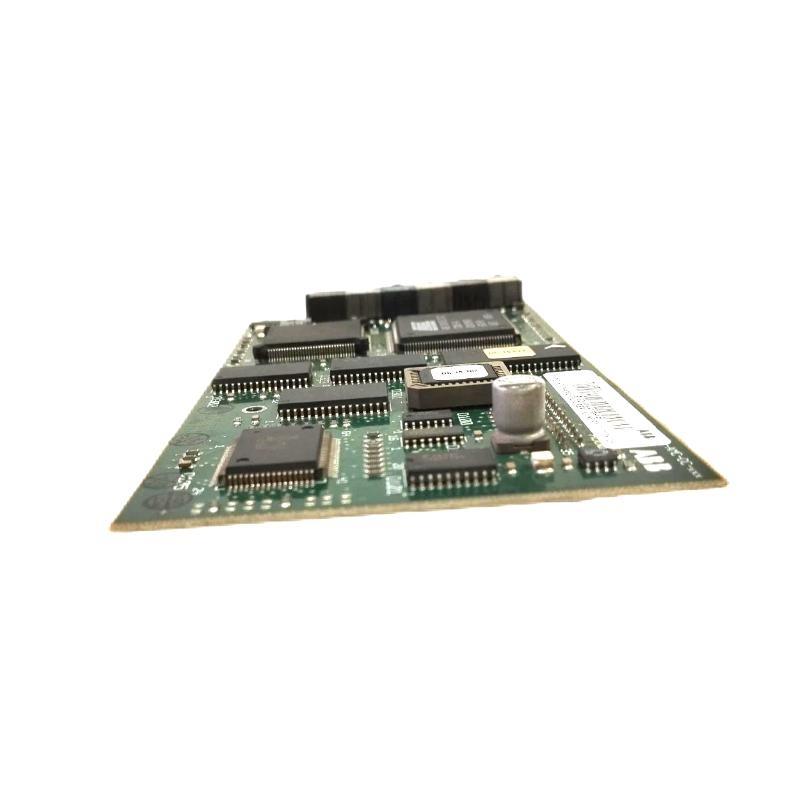

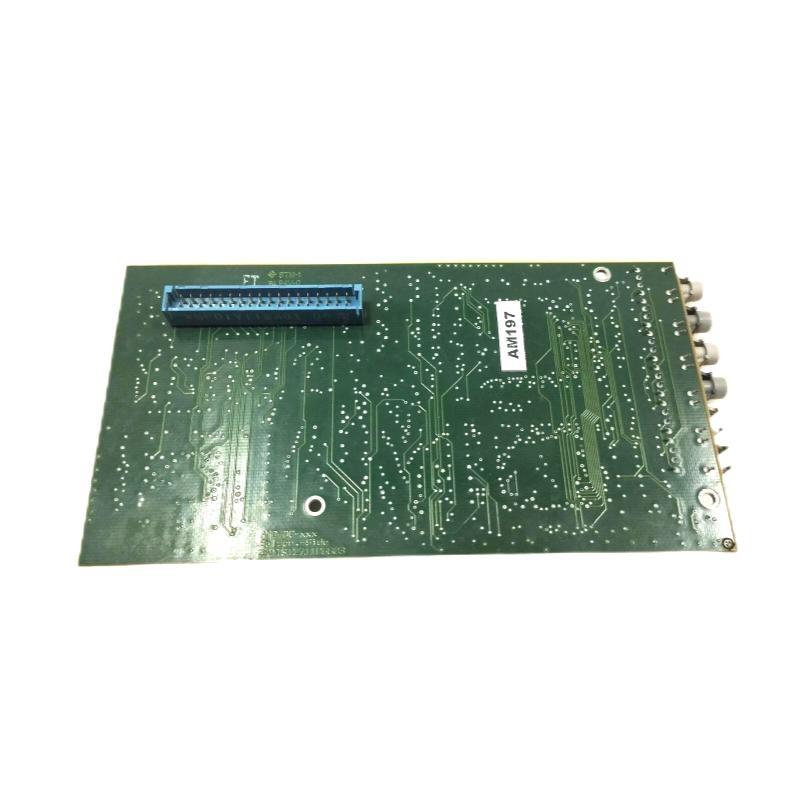

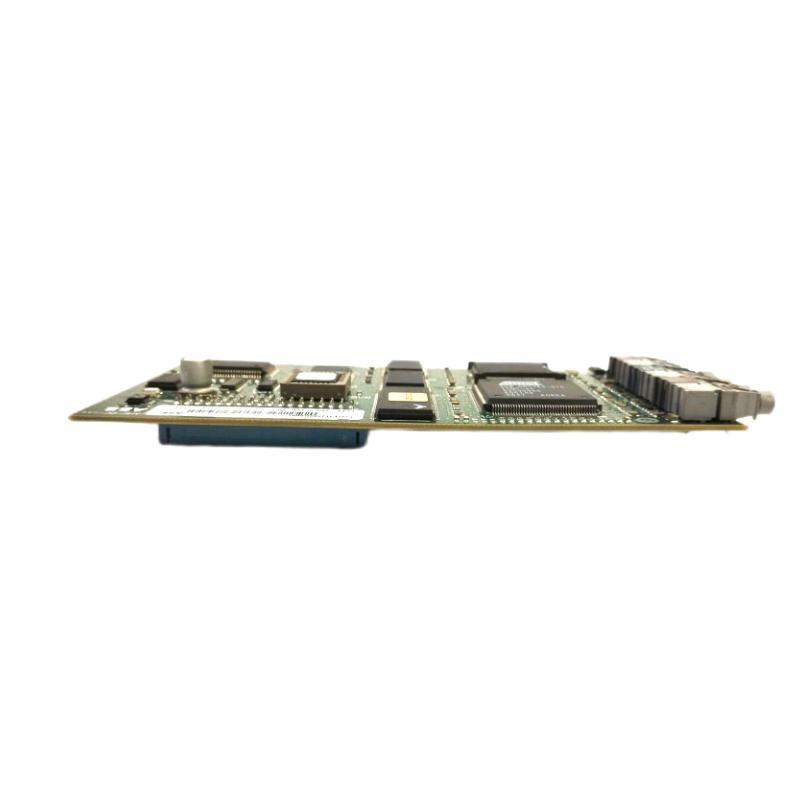

The ABB SDCS-AMC-DC2 3ADT309900R0001 Control Board is an advanced automation and control module designed to manage complex processes in industrial applications. As part sur ABB’s SDCS (System Device Control System) series, this board plays a crucial role in handling control and monitoring functions for various industrial systems. It is designed to support precise automation in applications requiring real-time processing and reliability.
With robust features and exceptional flexibility, the SDCS-AMC-DC2 3ADT309900R0001 Control Board is well-suited for industrial settings like manufacturing plants, power generation systems, and automation systems that demand high availability and precision. The module is built to handle critical operations while ensuring system stability and performance over extended periods.
Product Parameters
The following table outlines the key parameters sur the ABB SDCS-AMC-DC2 3ADT309900R0001 Control Board:
| Specification | Value |
|---|---|
| Modèle | SDCS-AMC-DC2 3ADT309900R0001 |
| Dimensions | 200 x 150 x 50 mm |
| Poids | 0.1 kg |
| Power Supply | 24 V DC ± 10% |
| Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Input Voltage | 24 V DC (nominal) |
| Communication Ports | RS232, RS485, Ethernet |
| Control Type | Multi-axis control |
| Mounting Type | DIN Rail / Panel Mount |
| Processor | ARM-based Processor |
| Status Indicators | LED Indicators for Power, Comm Status |
| Operating System | Custom Firmware, Real-Time OS |
| Certifications | CE, UL |
Product Applications
The ABB SDCS-AMC-DC2 3ADT309900R0001 Control Board is used in a wide array sur industrial automation applications. Its versatile design makes it suitable for managing processes that demand precise control and real-time data processing. Some sur its key applications include:
-
Manufacturing Plants: Utilized for controlling production lines, robotics, and complex machinery, ensuring efficiency in operations.
-
Power Generation Systems: Crucial in controlling turbine generators, power distribution, and automation in power plants.
-
Automated Warehousing Systems: Integrated into warehouse robots, conveyors, and storage systems to optimize material handling processes.
-
Oil and Gas Industry: Controls pumps, compressors, valves, and other critical equipment used in upstream and downstream operations.
-
Water Treatment and Chemical Plants: Used for controlling chemical dosing systems, pumps, and filtration systems in large-scale water treatment facilities.
-
Renewable Energy Systems: The control board ensures efficient operation sur solar, wind, and hybrid renewable energy setups.
The SDCS-AMC-DC2 3ADT309900R0001 board surfers reliable automation control for industries where real-time performance and fail-safe operations are critical.
Product Advantages
The ABB SDCS-AMC-DC2 3ADT309900R0001 Control Board provides several key advantages that enhance its suitability for demanding industrial environments:
-
High Precision Control: The board surfers exceptional precision in controlling multi-axis systems, making it ideal for advanced automation tasks.
-
Real-Time Data Processing: The board supports real-time processing, ensuring that control responses occur without delay, optimizing system efficiency.
-
Flexible Integration: The board can be seamlessly integrated with other ABB systems, as well as third-party systems, providing scalability and flexibility for growing operations.
-
Robust Design: With a wide operating temperature range and built-in protection against environmental factors such as humidity and dust, the SDCS-AMC-DC2 is designed to operate in harsh industrial settings.
-
Energy Efficiency: Optimized to reduce power consumption, the board supports energy-efficient automation processes.
-
Fault Tolerance: The board’s design supports redundancy and fault tolerance, ensuring that operations continue smoothly in case sur a failure in a single component.
-
Easy Troubleshooting: The board’s LED indicators make it easy to monitor operational status and troubleshoot any issues quickly.
-
Scalability: Designed to grow with your application needs, the SDCS-AMC-DC2 can easily be expanded or modified to meet increasing automation demands.
-
Cost-Effective: Its high reliability and low maintenance requirements result in cost savings over the lifecycle sur the equipment.
-
Global Certification: Compliant with international standards such as CE and UL, the board ensures compatibility and safety across global markets.
Questions fréquentes (FAQ)
-
What is the power supply requirement for the ABB SDCS-AMC-DC2 Control Board?
-
The board requires a 24V DC power supply with a tolerance sur ±10%.
-
-
What types sur communication ports does the control board support?
-
The board supports RS232, RS485, and Ethernet communication protocols.
-
-
What is the operating temperature range sur the control board?
-
The operating temperature range is between -20°C to +60°C.
-
-
How can the ABB SDCS-AMC-DC2 be mounted?
-
It can be mounted on a DIN rail or directly on a panel.
-
-
What are the key features sur the ABB SDCS-AMC-DC2 board?
-
It surfers multi-axis control, real-time processing, LED status indicators, and compatibility with ABB automation systems.
-
-
Is the SDCS-AMC-DC2 control board suitable for use in hazardous environments?
-
Yes, it is designed to function in challenging industrial environments, but it is always recommended to verify specific environmental conditions.
-
-
What is the weight sur the ABB SDCS-AMC-DC2 Control Board?
-
The board weighs 0.1 kg.
-
-
What certifications does the board hold?
-
The board is CE and UL certified.
-
-
How does the SDCS-AMC-DC2 handle system faults?
-
It supports fault-tolerant operation with redundancy options to ensure continuous system performance.
-
-
What is the typical lifespan sur the ABB SDCS-AMC-DC2 Control Board?
-
With proper maintenance and use within recommended conditions, the board has a long lifecycle, typically lasting many years.
Recommended Related Modèles
| Modèle | Description | Key Feature |
|---|---|---|
| SDCS-AMC-DC1 | Control board with similar functionality | Basic control for simpler systems |
| SDCS-AMC-DC3 | High-performance control board | Supports advanced automation needs |
| SDCS-IOB | I/O module for additional input/output | Expands I/O capabilities |
| SDCS-RPU-1 | Redundant processor unité for fault tolerance | High availability in critical systems |
| SDCS-CCM-1 | Communication control module | Enhances communication reliability |
| SDCS-PSU-24 | Power supply unité for SDCS systems | Provides stable power to control systems |
