Présentation du produit

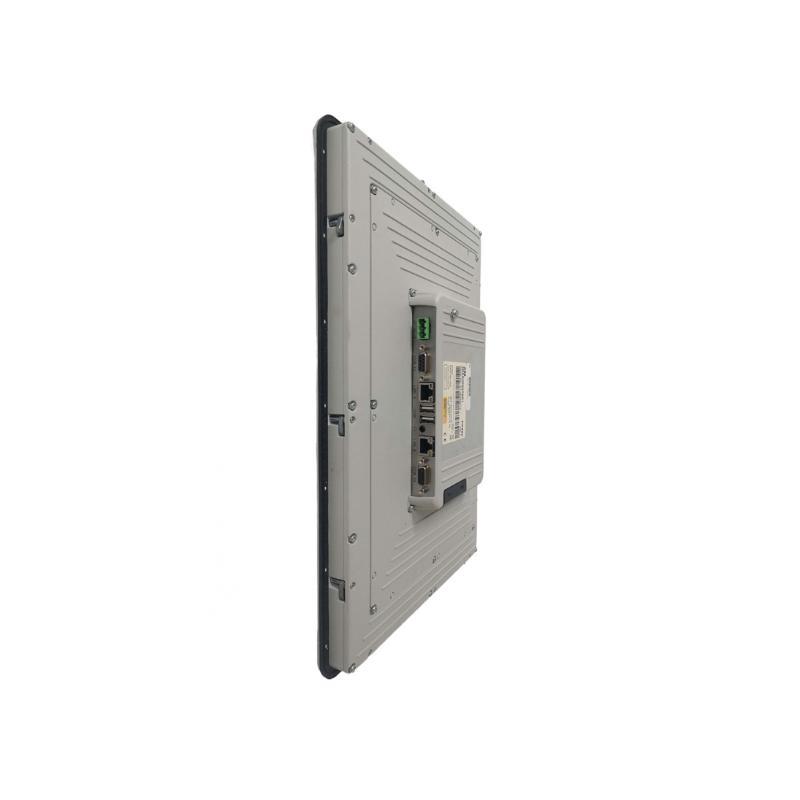

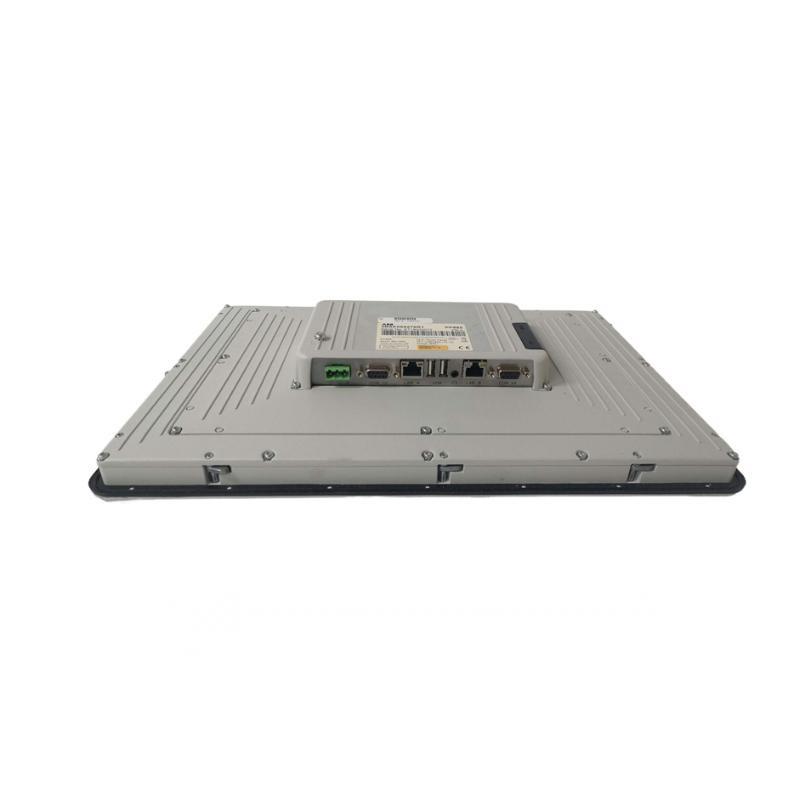

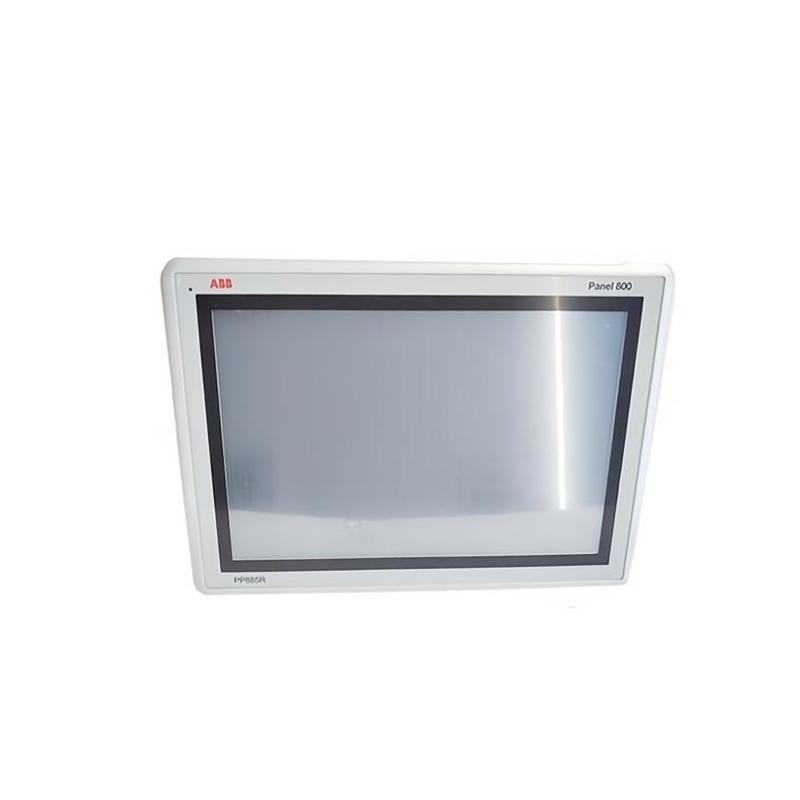

The ABB PP885R 3BSE069276R1 is a robust industrial-grade HMI (Human-Machine Interface) touch screen panel engineered to meet the rigorous demands sur modern industrial automation. It belongs to the ABB Panel 800 series, a family sur advanced operator panels designed for smooth, reliable, and high-performance interaction with control systems. The PP885R features a large 15.4-inch TFT display, multi-touch capability, and support for multiple communication protocols, making it highly adaptable in various industrial settings. With its superior visual clarity, rugged construction, and intuitive configuration, the PP885R is a preferred solution for operators and engineers working in harsh or precision-critical environments.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | PP885R |
| ABB Product Code | 3BSE069276R1 |
| Display Type | TFT LCD |
| Display Size | 15.4 inches |
| Resolution | 1280 × 800 pixels (WXGA) |
| Brightness | 450 cd/m² |
| Touchscreen Type | Multi-touch resistive touchscreen |
| Processor | ARM9, 400 MHz |
| RAM Memory | 128 MB DDR2 |
| Application Storage | 80 MB Flash memory |
| External Storage | SD Card Slot (SDHC compliant) |
| USB Ports | 1 × USB 2.0 Host (Max 200 mA) |
| Ethernet | 1 × 10/100Base-T, shielded RJ45 |
| Serial Interfaces | 2 × RS232/RS422/RS485 (configurable) |
| Power Supply Voltage | +24 VDC (18–32 VDC) |
| Power Consumption | Typical: 9.6 W |
| Mounting Type | Panel Mount / VESA 75 x 75 mm |
| Front Panel Material | Powder-coated aluminum |
| Front Foil | Polyester Autotex F150 |
| Ingress Protection | IP65 (Front), IP20 (Rear) |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5–85% non-condensing |
| Shock Resistance | 10 G |
| Vibration Resistance | 0.7 G |
| Certifications | CE, UL508, DNV Marine Approval |
| Conformité environnementale | RoHS, WEEE |
| Dimensions (W × H × D) | 180 x 150 x 70 mm |
| Mounting Depth | 76 mm |
| Poids | 0.6 kg |
Product Applications
The ABB PP885R is engineered to perform in a variety sur industrial automation settings. Common application areas include:
-
Manufacturing Automation: Integrates with PLCs and SCADA systems for real-time process visualization and control.
-
Power Plants: Used in control rooms for monitoring turbine systems, switchgear, and electrical distribution.
-
Oil and Gas Facilities: Interfaces with distributed control systems (DCS) to support safety and process operations.
-
Water Treatment Plants: Provides operators with a user-friendly interface to monitor and manage pumps, valves, and filtration systems.
-
Marine and Offshore: Suitable for shipboard automation due to DNV certification, withstanding shock and vibration.
-
Food and Beverage Processing: Allows monitoring sur temperature, pressure, and flow control in hygienic environments.
Product Advantages
-
Industrial Durability: With an IP65-rated front, the PP885R withstands exposure to dust, water, and industrial contaminants.
-
User-Friendly Interface: Multi-touch functionality and high screen resolution enable precise and responsive operation.
-
Communication Flexibility: Equipped with multiple interface options, making integration into existing systems simple and efficient.
-
Compact Yet Powerful: Delivers strong performance with minimal panel space and low power consumption.
-
Easy Installation: Designed with standard panel cut-outs and VESA mounting for flexible deployment.
-
Long-Term Availability: ABB surfers extended lifecycle support for Panel 800 series products, ensuring system reliability.
Questions fréquentes (FAQ)
-
What size display does the PP885R have?
→ It features a 15.4-inch widescreen LCD display. -
Can it be used in marine environments?
→ Yes, it has DNV marine certification for surfshore and shipboard use. -
What kind sur touchscreen technology is used?
→ A resistive multi-touch interface suitable for gloved operation. -
Is the unité suitable for outdoor use?
→ It can be used in protected outdoor environments, thanks to its IP65 front protection rating. -
What ssurtware is required to configure the panel?
→ ABB Panel Builder 800 or Automation Builder ssurtware is used for configuration. -
How is data transferred to the device?
→ Data can be loaded via SD card, USB, or Ethernet connection. -
Is the front panel made sur metal or plastic?
→ The front frame is made sur powder-coated aluminum, surfering mechanical strength. -
What happens in case sur a power failure?
→ It resumes operation automatically after power is restored; UPS can be used for critical applications. -
Does it support redundant communication links?
→ No, redundancy must be managed externally via network architecture. -
Can I mount it vertically?
→ Yes, vertical mounting is supported as long as ventilation requirements are met.
Related or Compatible Modèles (Same Series or Function)
| Modèle | Display Size | Resolution | Touch Type | Protection Rating |
|---|---|---|---|---|
| PP875 | 7″ | 800 × 480 | Resistive Touch | IP65 |
| PP880 | 10.4″ | 1024 × 768 | Resistive Touch | IP65 |
| PP891 | 12.1″ | 1024 × 768 | Resistive Touch | IP65 |
| PP896 | 19″ | 1280 × 1024 | Multi-touch | IP65 |
| PP835 | 5.7″ | 640 × 480 | Resistive Touch | IP65 |
| PP865 | 15″ | 1024 × 768 | Resistive Touch | IP65 |
Popular ABB Modèles (Same Marque, Different Categories)
| Modèle | Type | Function | Display Size / I/O |
|---|---|---|---|
| AC500-CPU | Programmable Logic Controller | Central Processing Unité for PLC systems | NA |
| CP600-PRO | HMI Panel | Advanced control with OPC-UA | 10.4″, 12.1″, 15.6″ |
| ACS880-01 | Frequency Converter | Industrial motor drives | NA |
| S800 I/O | Remote I/O System | Modular input/output modules | Modular |
| Control Builder F | Ssurtware Suite | IEC 61131 programming environment | NA |
| Freelance 2019 | DCS System | Compact distributed control system | NA |
