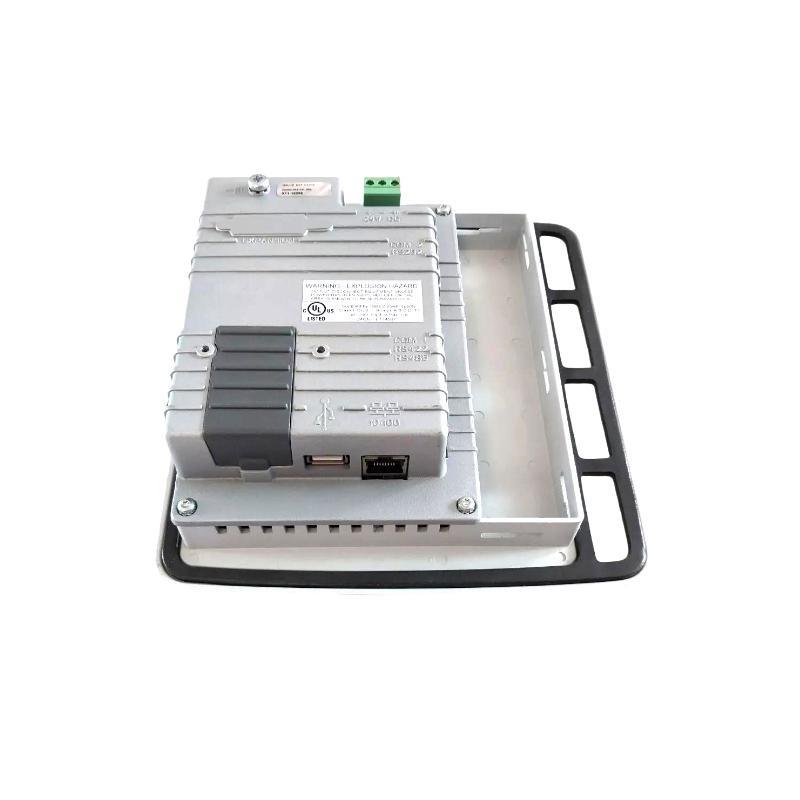

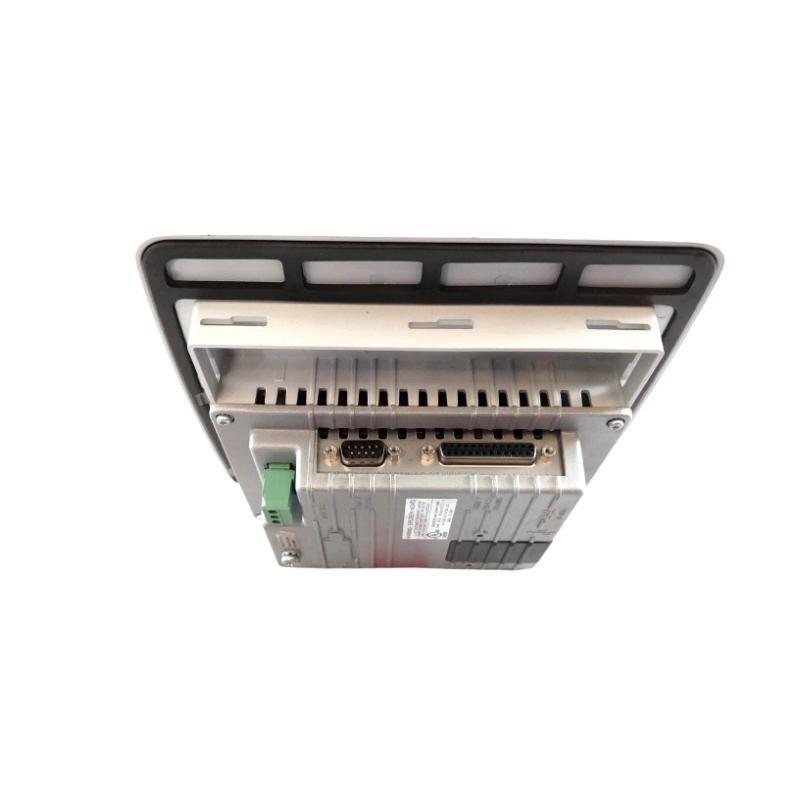

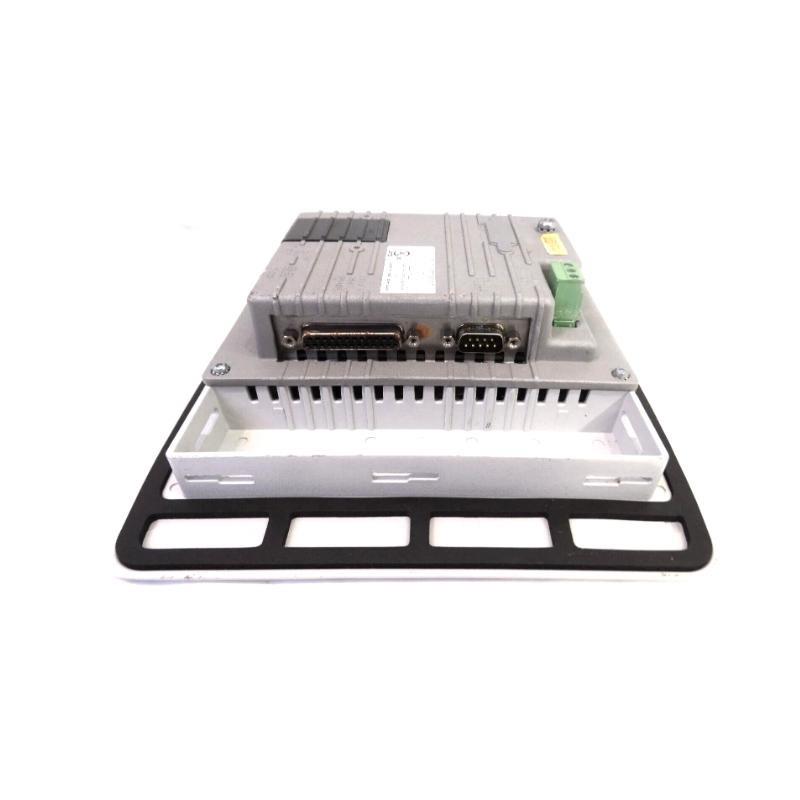

Product Overview
The ABB PP820 is a robust operator panel from the Panel 800 series, designed to surfer efficient HMI communication between operators and automation systems. Engineered for object-oriented operation and reliable industrial usage, it is equipped with key features like text display, dynamic indication, alarm handling, and recipe management. It is programmed using the Panel Builder 800 configuration ssurtware.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | PP820 |
| Article Number | 3BSE042243R1 |
| Display | 240 x 64 pixels, monochrome FSTN-LCD |
| Display Area (W × H) | 127.0 × 33.8 mm |
| Backlight | LED, lifetime > 35,000 h at 25 °C |
| Front Panel Dimensions | 202 × 187 × 6 mm |
| Mounting Depth | 57 mm (157 mm incl. clearance) |
| Poids | 0.95 kg |
| Power Supply | +24 V DC (20–30 V DC) |
| Power Consumption | 0.15 A (normal), 0.35 A (max) |
| Serial Ports | RS232 (9-pin), RS422/485 (25-pin) |
| Ethernet Port | Shielded RJ45 |
| USB Port | USB Host Type A (USB 1.1), 500 mA max output |
| Application Memory | 12 MB (including fonts) |
| Real-Time Clock | ±20 PPM (±1 min/month @ 25 °C) |
| RTC Battery | CR2450 (Panasonic/Sanyo), min. 3-year lifespan |
| Ambient Temperature | Vertical: 0–50 °C, Horizontal: 0–40 °C |
| Storage Temperature | -20–70 °C |
| Protection Class (Front) | IP66 |
| Protection Class (Rear) | IP20 |
| Certifications | CE, UL 508, UL 1604 Class I Div 2, DNV, NEMA 4X |
Applications
-
Human-Machine Interface (HMI) for industrial automation systems
-
Monitoring and control sur PLCs, drives, and servos
-
Ideal for use in control cabinets and operator stations
-
Suitable for food & beverage, chemical, water treatment, and marine applications
Product Advantages
-
Robust Protection: IP66-rated front panel ensures durability in harsh environments
-
Flexible Communication: Multiple interfaces (RS232, RS422/485, Ethernet, USB)
-
User-Friendly Configuration: Supports intuitive project design with Panel Builder 800
-
Compact Form Factor: Slim design fits tight spaces in control enclosures
-
Reliable Operation: Long backlight life, built-in real-time clock, and solid-state memory
-
Certified Safety: Meets global industrial standards for safe installation and operation
Questions fréquentes (FAQ)
Q1: What is the display resolution sur the PP820 panel?
A1: It has a resolution sur 240 × 64 pixels with a monochrome transflective LCD.
Q2: What ssurtware is used to configure the PP820?
A2: Panel Builder 800 is used for configuration and project design.
Q3: Can the panel connect to Ethernet networks?
A3: Yes, it has a built-in shielded RJ45 Ethernet port.
Q4: What is the power supply requirement?
A4: The panel operates on +24 V DC, with an acceptable range sur 20–30 V DC.
Q5: Does the panel support USB devices?
A5: Yes, it includes a USB Host Type A (USB 1.1) port with a 500 mA max output.
Q6: What is the typical lifetime sur the LED backlight?
A6: Over 35,000 hours at 25 °C ambient temperature.
Q7: Is the panel suitable for outdoor use?
A7: No, it is intended for indoor use only and is not sunlight-resistant.
Q8: What is the sealing rating for the front panel?
A8: The front panel is IP66 rated, suitable for wash-down and dust environments.
Q9: Can this panel be used in hazardous areas?
A9: Yes, it is UL certified for Class I, Division 2 Groups A, B, C, D environments.
Q10: What battery does the real-time clock use?
A10: It uses a CR2450 lithium battery (Panasonic or Sanyo recommended).
Related Panel 800 Modèles
| Modèle | Display Size | Display Type | Resolution | Dimensions (mm) |
|---|---|---|---|---|
| PP835A | 6.5″ | TFT LCD | 640 x 480 | 215 × 170 × 50 |
| PP845A | 10.4″ | TFT LCD | 800 x 600 | 300 × 240 × 60 |
| PP865A | 15″ | TFT LCD | 1024 x 768 | 400 × 310 × 60 |
| PP810 | 3.8″ | STN-LCD | 320 x 240 | 140 × 100 × 45 |
| PP815A | 5.7″ | TFT LCD | 320 x 240 | 180 × 140 × 50 |
| PP820A | 5.1″ | Monochrome LCD | 240 x 64 | 202 × 187 × 6 |
