Présentation du produit

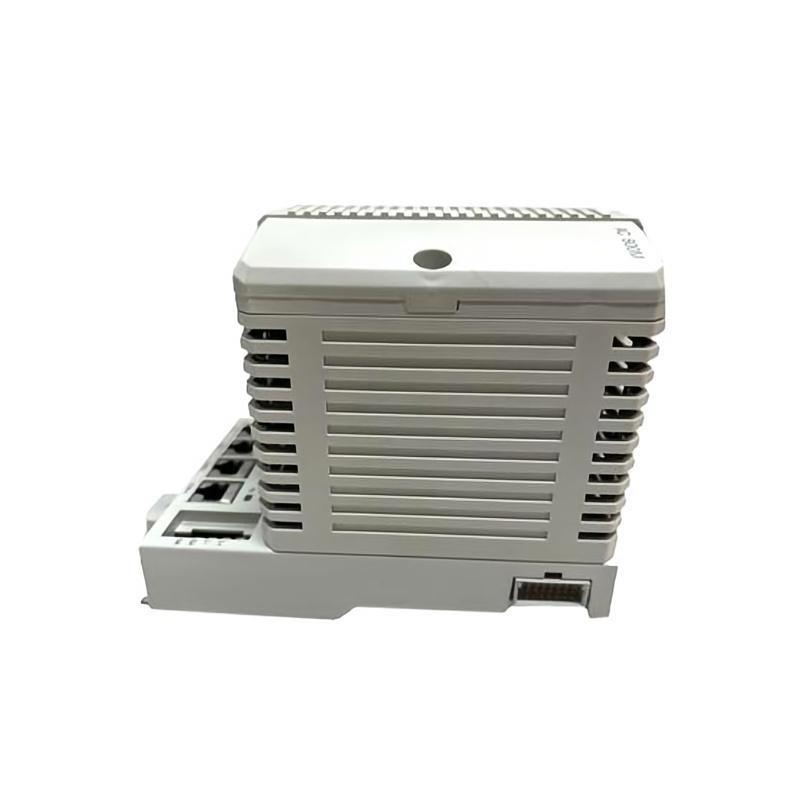

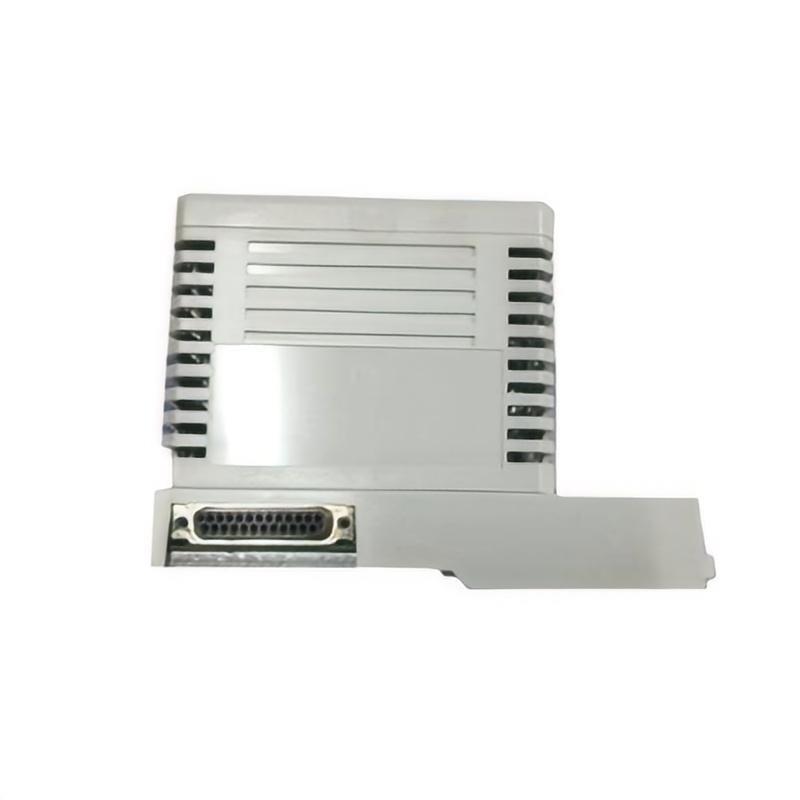

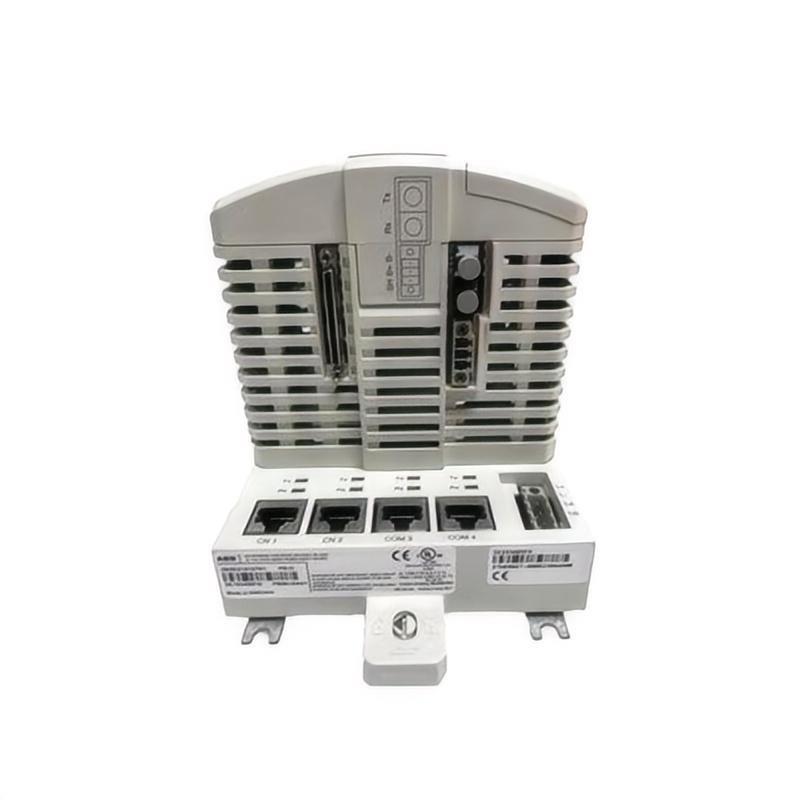

The ABB PM866K02 (part number 3BSE050199R2) is a high-performance redundant processor unité designed for use within ABB’s AC 800M automation family. This module plays a central role in delivering secure and continuous operation in mission-critical industrial environments where system uptime and fault tolerance are essential.
Designed for use in dual-processor (redundant) configurations, the PM866K02 ensures that even in the event sur a hardware failure, process control remains uninterrupted. It supports advanced networking capabilities, real-time data processing, and tight integration with ABB’s 800xA control system.Whether installed in a chemical plant, refinery, or power station, the PM866K02 provides the reliability and speed that modern process industries demand.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | PM866K02 Redundant Processor Unité |
| Référence | 3BSE050199R2 |
| Fabricant | ABB |
| System Compatibility | AC 800M, System 800xA |
| Processor | 32-bit RISC processor with real-time OS |
| Memory | 16 MB SRAM, 32 MB Flash, battery-backed RAM |
| Communication Module | CM867 (included) |
| Redundancy Support | Yes (for CPU and communication redundancy) |
| Battery Pack | Included for memory backup |
| Ethernet Ports | 2 × 10/100 Mbps RJ45 (via CM867 module) |
| Serial Communication | 1 × RS-232/485 |
| Mounting Type | DIN rail or cabinet mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Power Supply Voltage | 24 VDC (18–30 V range) |
| Certifications | CE, UL, FM, CSA, RoHS, IEC 61131 compliant |
| Dimensions (W × H × D) | 135 × 186 × 119 mm |
| Poids | 2.8 kg |
Product Applications
The ABB PM866K02 is widely deployed in a variety sur industries requiring high system availability and secure process control:
-
Oil & Gas Refineries – Redundant processing ensures 24/7 operation in hazardous environments.
-
Power Generation Plants – Controls critical turbine and boiler processes with high reliability.
-
Chemical and Petrochemical Industries – Manages complex batch and continuous operations.
-
Water and Wastewater Facilities – Offers stable long-term control for municipal and industrial water systems.
-
Pharmaceutical Manufacturing – Supports strict process reliability and traceability needs.
-
Pulp and Paper Mills – Controls and automates continuous process lines with high availability.
Product Advantages
-
True Redundancy Support: Enables hot standby configurations for maximum system uptime.
-
High Integration: Seamlessly integrates with ABB 800xA and fieldbus systems like PROFIBUS, Ethernet/IP.
-
Secure Memory Retention: Battery-backed RAM preserves data during outages.
-
Industrial-Grade Durability: Built to operate in demanding environments with minimal maintenance.
-
Ready-to-Use Kit: Comes with CM867 communication module and battery pack, simplifying deployment.
-
Extended Lifecycle: Long product lifecycle and ongoing support from ABB ensure investment protection.
-
Fast Processor: Efficient handling sur complex automation logic and large I/O networks.
-
Modular Scalability: Easy to expand and customize as system requirements grow.
-
Global Certifications: Approved for use in regulated markets worldwide.
-
Diagnostic Capability: Built-in diagnostics for predictive maintenance and troubleshooting.
Questions fréquentes (FAQ)
-
What is the function sur the PM866K02 unité?
It acts as a central controller within ABB’s AC 800M system, with redundancy for fault-tolerant operations. -
Is the communication module included in this part number?
Yes, the CM867 module is included in the PM866K02 kit. -
What does the battery pack do?
The battery ensures data retention in volatile memory during power failures or maintenance. -
Can PM866K02 be used without redundancy?
Yes, while it supports redundancy, it can also function as a standalone CPU. -
Is this model compatible with ABB System 800xA?
Absolutely. PM866K02 is designed to integrate seamlessly with 800xA environments. -
What is the purpose sur the CM867 communication module?
It provides Ethernet and serial connectivity for networking and remote access. -
How does the unité ensure system uptime?
Through hot-swappable redundant CPUs and communication modules that take over instantly on failure. -
Can it be programmed using ABB’s standard tools?
Yes, it is configured using Control Builder and integrated within 800xA ssurtware suite. -
What’s the difference between PM866K01 and PM866K02?
PM866K02 includes updated firmware, enhanced support, and a bundled communication/battery kit. -
What is the average lifespan sur the PM866K02?
With regular maintenance, it can exceed 10–15 years in industrial use.
Related or Compatible Modèles
| Modèle | Description | System | Dimensions (mm) | Poids |
|---|---|---|---|---|
| PM866K01 | Redundant Processor Unité (earlier version) | AC 800M | 127 × 186 × 126 | 1.5 kg |
| PM861AK01 | Standard CPU with lower memory | AC 800M | 115 × 186 × 105 | 1.3 kg |
| PM864AK01 | Mid-range CPU unité | AC 800M | 127 × 186 × 110 | 1.4 kg |
| PM867K01 | High-performance redundant CPU | AC 800M | 135 × 186 × 130 | 1.7 kg |
| CI867K01 | Communication interface module for redundancy | AC 800M | 120 × 130 × 65 | 0.4 kg |
| BC810K02 | Battery pack for CPU memory backup | AC 800M | 60 × 60 × 20 | 0.2 kg |
Popular ABB Automation Modèles
| Modèle | Description | Catégorie | Dimensions (mm) | Poids |
|---|---|---|---|---|
| AC500 PM595 | High-performance PLC CPU | PLC Controller | 142 × 186 × 75 | 0.95 kg |
| ACS880-01 | Variable speed drive for general applications | Motor Drive | 297 × 420 × 237 | 9.5 kg |
| IRC5 Controller | Robot controller with motion control | Robotics | 600 × 500 × 300 | 45 kg |
| DCS880 | DC drive for demanding applications | DC Motor Drive | 300 × 460 × 250 | 12.5 kg |
| REF615 | Feeder protection relay | Protection Relay | 230 × 175 × 150 | 2.1 kg |
| CP600 HMI | Human-Machine Interface touch panel | HMI Panel | 170 × 130 × 45 | 0.6 kg |
