Product Overview

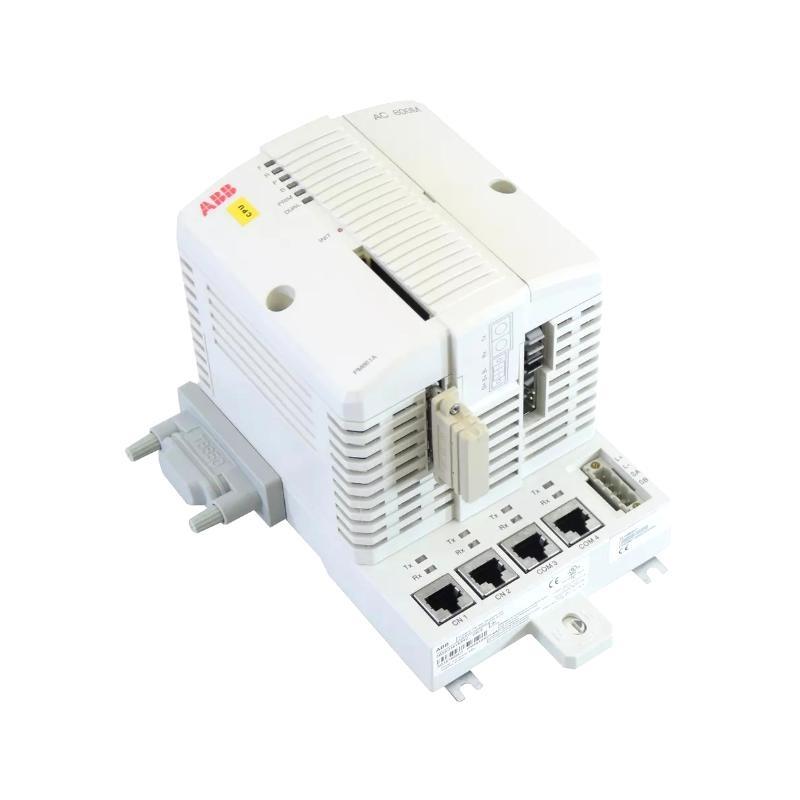

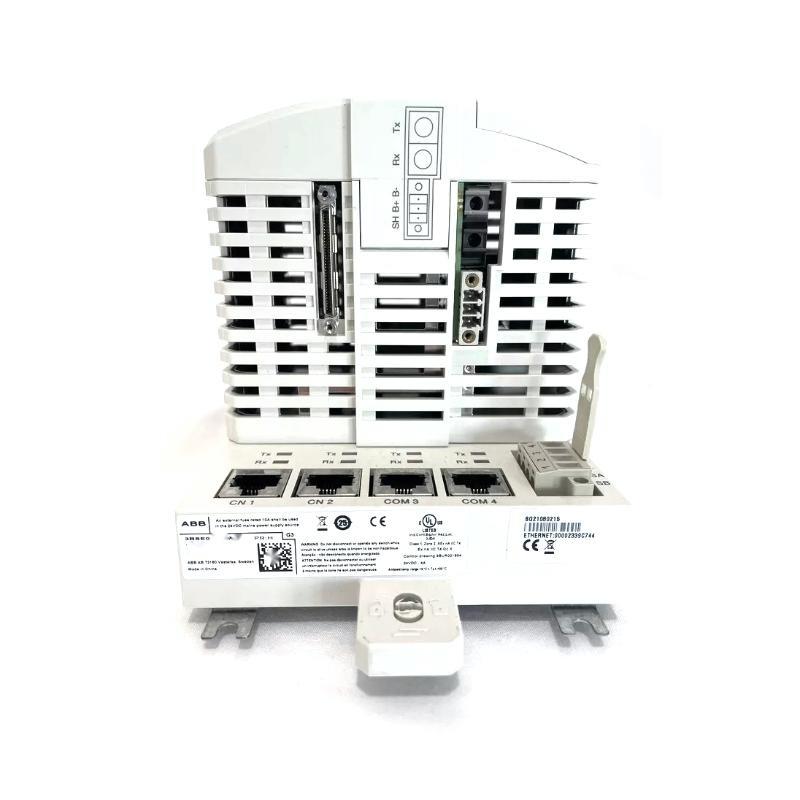

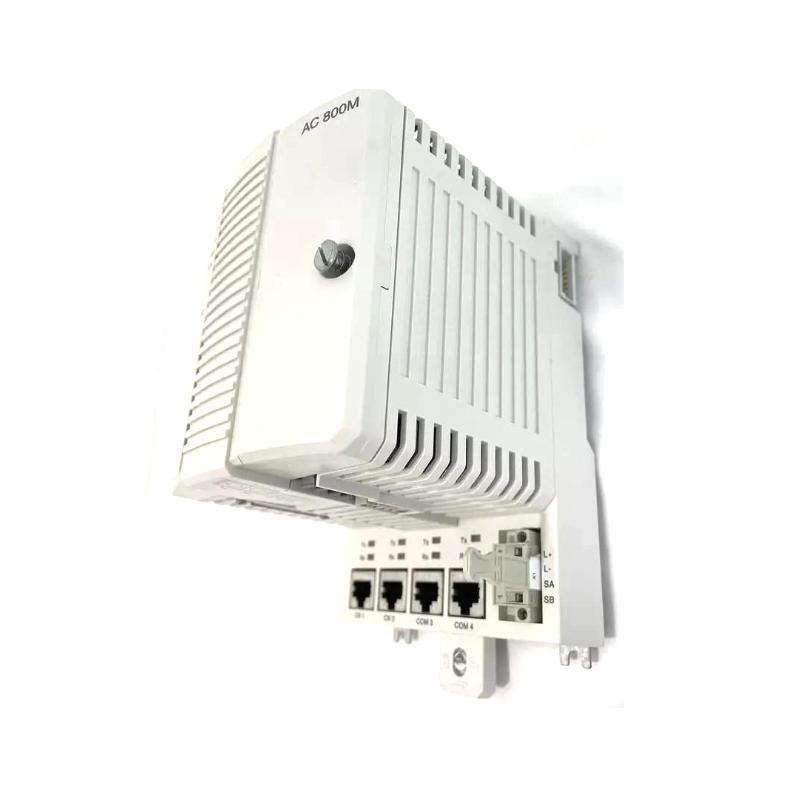

The ABB PM861A 3BSE018158R1 is a powerful and highly versatile CPU processor unité designed to support demanding industrial automation applications. Part sur the ABB AC 800M and Freelance control systems, the PM861A surfers high-performance processing power and ensures reliable control for a wide range sur industrial systems. This unité is engineered for use in automation, process control, and monitoring systems, where efficiency, real-time control, and scalability are paramount.
The PM861A is equipped with advanced features that allow it to handle complex tasks, such as data processing, system communication, and real-time control. The processor’s flexibility allows it to integrate seamlessly with other ABB systems, field devices, and communication networks, providing an optimized control solution. Furthermore, the module surfers robust diagnostic and fault tolerance capabilities, ensuring continuous and reliable operation.
This CPU unité is suitable for a wide array sur applications, from manufacturing and power generation to water treatment and transportation systems. It can be configured to support a variety sur I/O modules and can scale easily as operational needs evolve. The PM861A is built for high performance, ensuring your system remains operational even under demanding conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | PM861A 3BSE018158R1 |
| Processor Type | 32-bit Processor |
| Series | ABB AC 800M Series |
| Processor Speed | High-speed processing for demanding control tasks |
| Communication Ports | Ethernet, Prsuribus, Modbus, RS232/RS485 |
| Dimensions (L x W x H) | 135 × 186 × 119 mm |
| Poids | 1.2 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply | 24 VDC |
| Mounting | DIN rail or rack mount |
| Memory | 1 MB program memory, expandable |
| Real-time Clock | Yes, integrated real-time clock |
| I/O Capacity | Expandable with ABB I/O modules |
| Programming Langues | IEC 61131-3 compliant (Ladder Diagram, FBD, STL, etc.) |
| Safety Certifications | UL, CE, IECEx, ATEX |
Applications
The ABB PM861A CPU Processor Unité is designed for industrial control applications where high performance, reliability, and flexibility are required. Common applications include:
-
Manufacturing Automation: The PM861A is ideal for controlling automated production lines, robotics, and manufacturing processes, ensuring high precision and coordination.
-
Power Generation: It is widely used in power plants to control turbines, generators, and auxiliary systems, ensuring stable and efficient operations.
-
Water Treatment: The PM861A is perfect for monitoring and controlling processes in water treatment facilities, helping to manage pumps, filtration, and chemical dosing systems.
-
Transportation Systems: The unité is employed in controlling and monitoring transportation systems, including traffic management, railways, and automated vehicle systems.
-
Building Automation: It is used to control HVAC systems, lighting, and other critical infrastructure within large buildings or facilities.
-
Energy Management: The PM861A helps optimize energy distribution and consumption in industrial facilities, improving energy efficiency and reducing operational costs.
Key Advantages
-
High-Speed Processing: The PM861A provides fast and efficient data processing, ensuring high-speed execution for complex control tasks.
-
Flexible Communication: It supports a wide range sur communication protocols, including Ethernet, Prsuribus, Modbus, and RS232/RS485, making it easy to integrate with various devices and systems.
-
Compact Design: With dimensions sur 135 × 186 × 119 mm, the PM861A can fit into installations where space is limited, without compromising performance.
-
Real-Time Control: Equipped with an integrated real-time clock and high-speed processing capabilities, the PM861A ensures accurate, time-sensitive control sur systems.
-
Scalability: The PM861A can be easily expanded with ABB’s wide range sur I/O modules, making it suitable for small to large-scale installations.
-
Reliability and Durability: Built for industrial environments, the PM861A is engineered to deliver long-term reliability with minimal maintenance.
-
Redundancy Options: The module supports redundancy for mission-critical applications, providing continuous control in case sur failure.
-
Flexible Programming: It supports IEC 61131-3 compliant programming languages such as Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST).
-
Safety Compliance: The PM861A meets international safety certifications, including UL, CE, IECEx, and ATEX, ensuring it is safe for use in hazardous environments.
-
Energy Efficient: By optimizing control functions, the PM861A can contribute to reducing energy consumption in industrial processes.
Questions fréquentes (FAQ)
-
What communication protocols does the PM861A support?
The PM861A supports Ethernet, Prsuribus, Modbus, and RS232/RS485 communication protocols. -
What is the power supply requirement for the PM861A?
The PM861A requires a 24 VDC power supply. -
What is the weight sur the PM861A?
The weight sur the PM861A is 1.2 kg. -
What are the dimensions sur the PM861A?
The PM861A measures 135 × 186 × 119 mm. -
What is the operating temperature range sur the PM861A?
The PM861A operates within a temperature range sur 0°C to +60°C. -
Can the PM861A be expanded with additional I/O modules?
Yes, the PM861A can be expanded with ABB I/O modules to suit your system requirements. -
What programming languages are supported by the PM861A?
The PM861A supports IEC 61131-3 compliant programming languages such as Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST). -
Does the PM861A surfer redundancy features?
Yes, the PM861A supports redundancy options for mission-critical applications. -
What safety certifications does the PM861A have?
The PM861A is certified with UL, CE, IECEx, and ATEX safety standards. -
What memory does the PM861A have?
The PM861A comes with 1 MB sur program memory, which is expandable.
Recommended Related or Series Modèles
| Modèle | Description |
|---|---|
| PM860A | High-performance CPU for complex control tasks with enhanced features |
| PM880 | Advanced CPU for large-scale automation applications |
| PM810 | Compact CPU with a focus on cost-effective automation solutions |
| PM810V2 | Enhanced version with improved processing power and scalability |
| PM800 | High-speed CPU with expanded memory capacity and I/O options |
| PM861 | A previous version with similar functionality and features for smaller systems |
Popular ABB Modèles
| Modèle | Description | Key Features |
|---|---|---|
| PM863K01 | Advanced I/O module with high-speed Ethernet communication | High-speed communication, flexible input/output channels |
| PM863K02 | I/O module with extended diagnostic and control capabilities | Built-in diagnostics, real-time monitoring, modular design |
| PM864A | Modular I/O system with high reliability and scalability | Scalable, high reliability, multi-channel support |
| PM865K01 | Compact I/O module with enhanced security features | Integrated security, designed for industrial environments |
| PM866A | High-performance I/O module for large automation systems | High capacity, optimized for large-scale control systems |
| PM867K01 | Flexible I/O module with high-density input/output support | High-density I/O, flexible configurations for various applications |
