Présentation du produit

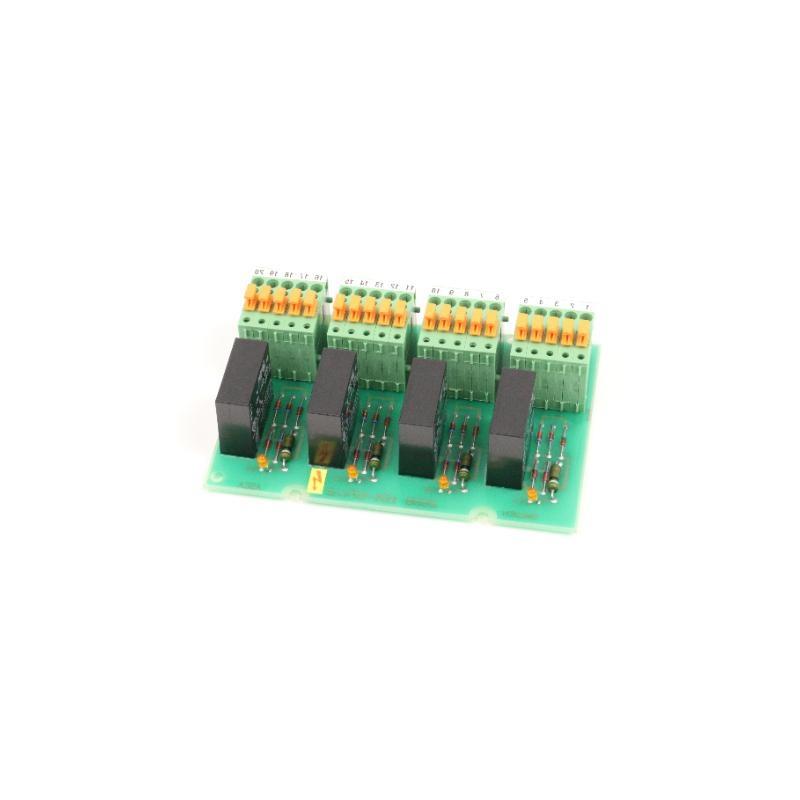

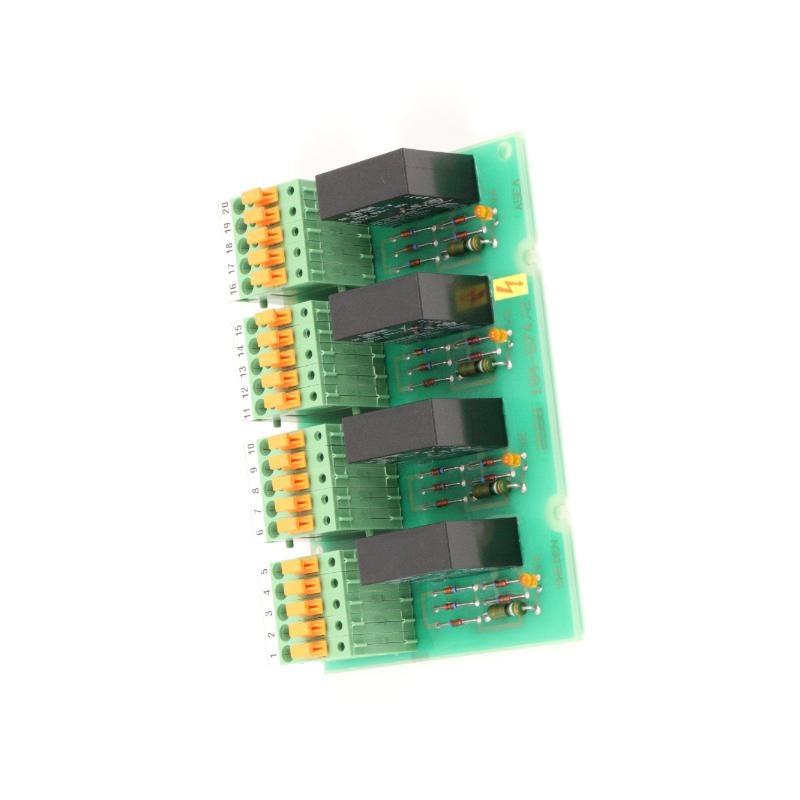

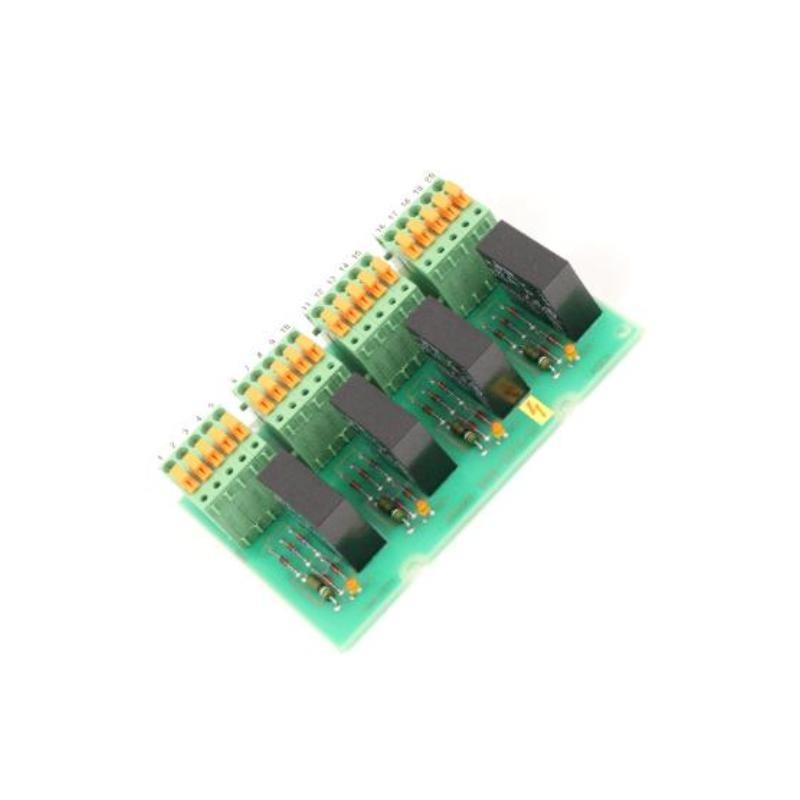

The ABB PFUK108 YM110001-SH is a field termination unité designed for integration into ABB’s industrial automation systems. Typically part sur the Symphony Plus, Freelance, or Advant MOD systems, this module serves as an interface between field wiring and control systems. It facilitates secure signal transmission from sensors or actuators to the controller via defined terminal blocks. ABB’s PFUK series is well known for its reliability, precise signal handling, and compact mounting design that supports ease sur maintenance and installation.
This specific model, YM110001-SH, stands out in signal conditioning and terminal connectivity. It is designed to operate in rigorous industrial environments including chemical, power, and oil & gas facilities. Its layout supports high-density signal termination, making it ideal for large-scale control cabinet configurations.
Product Advantages
-
Reliable Signal Interface: Ensures accurate and stable signal transmission from field devices to control systems.
-
Space-saving Design: Compact form factor allows for high-density mounting in cabinets.
-
Durable Build: Industrial-grade materials provide excellent resistance to vibration, dust, and temperature fluctuations.
-
Modular Compatibility: Fully compatible with ABB’s control and I/O systems, including Symphony Plus and Freelance.
-
Low Maintenance: Terminal design and labeling support easy identification and replacement.
-
Efficient Wiring: Facilitates clean, organized wiring and minimizes signal interference.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | PFUK108 YM110001-SH |
| Fabricant | ABB |
| Product Type | Field Termination Unité / Terminal Board |
| Series | PFUK |
| Dimensions | 120 x 80 x 60 mm |
| Poids | 0.205 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Connection Type | Screw Terminals (Numbered and Labeled) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Material | Industrial-grade Flame-Retardant Plastic |
| Signal Channels | 8 or more (depending on I/O configuration) |
| Grounding | Shielded with Dedicated Ground Points |
| Certification | CE, RoHS, UL compliant |
Product Applications
-
Power Generation Plants: Termination sur analog and digital signals from turbines, transformers, and control valves.
-
Oil & Gas: Used in upstream and midstream automation for reliable field-to-controller communication.
-
Chemical Processing: Ideal for connecting field instruments in hazardous and corrosive environments.
-
Water Treatment Facilities: Supports monitoring and control sur pumps, sensors, and valves.
-
Manufacturing Automation: Integrates with DCS/PLC systems to manage industrial processes.
-
Substation Automation: Suitable for interfacing with SCADA-connected remote terminal unités.
Product Advantages Recap
-
Seamless integration into ABB automation environments.
-
Accurate, secure field signal wiring interface.
-
Easy installation, labeling, and maintenance.
-
Robust for harsh industrial environments.
-
Modular design for customization and expansion.
-
Helps reduce wiring errors and maintenance costs.
Questions fréquentes (FAQ)
Q1: What type sur control system is the PFUK108 YM110001-SH compatible with?
A1: It is compatible with ABB Symphony Plus, Freelance, and Advant MOD DCS systems.
Q2: Is this terminal unité suitable for analog or digital signals?
A2: It can be configured for both analog and digital signal termination depending on the connected modules.
Q3: Can this product be mounted directly onto DIN rails?
A3: Yes, it supports DIN rail as well as panel mounting options.
Q4: What is the typical use case for this product in a power plant?
A4: It is used for signal termination from field devices like pressure transmitters, temperature sensors, and control relays.
Q5: Is this product certified for industrial use?
A5: Yes, it meets CE, RoHS, and UL standards for industrial environments.
Q6: Does it require special tools for wiring?
A6: No, standard screwdriver tools are sufficient for the screw-type terminals.
Q7: How many channels does this unité support?
A7: It supports at least 8 signal channels; the exact number depends on system configuration.
Q8: Is the unité hot-swappable?
A8: No, it is not designed for hot-swap. Ensure system power is surf during installation or maintenance.
Q9: What materials are used in construction?
A9: It is made with flame-retardant, industrial-grade plastic and corrosion-resistant metals.
Q10: Is there a shield grounding feature?
A10: Yes, dedicated grounding points are provided for shielded cable termination.
Recommended Modèles – Same Series / Related Modèles
| Modèle | Description |
|---|---|
| PFUK107 | 8-channel field termination unité |
| PFUK106 | 16-channel I/O terminal unité |
| PFUK120 | Relay interface board for digital outputs |
| PFUK122 | High-density analog termination unité |
| PFUK104 | Compact terminal module for digital inputs |
| PFUK109 | Field I/O connection board with fuse protection |
Popular ABB Modèles – Same Marque
| Modèle | Description | Dimensions (mm) | Poids (g) | Voltage Range |
|---|---|---|---|---|
| CI854AK01 | PROFINET communication interface | 115 x 90 x 40 | 350 | 24 V DC |
| AI810 | Analog Input Module (8 ch, 0–20mA) | 117 x 110 x 35 | 420 | 24 V DC |
| DI810 | Digital Input Module (16 ch, 24V DC) | 117 x 110 x 35 | 410 | 24 V DC |
| DO810 | Digital Output Module (16 ch, 24V DC) | 117 x 110 x 35 | 420 | 24 V DC |
| CI840A | Communication interface module | 120 x 90 x 45 | 360 | 24 V DC |
| PM865K01 | AC 800M CPU module | 180 x 120 x 60 | 620 | 24 V DC |
| TB820V2 | Module Termination Unité (MTU) | 100 x 90 x 30 | 300 | Passive |
| AI830A | Analog Input Module (8 x 4–20 mA) | 117 x 110 x 35 | 430 | 24 V DC |
