Présentation du produit

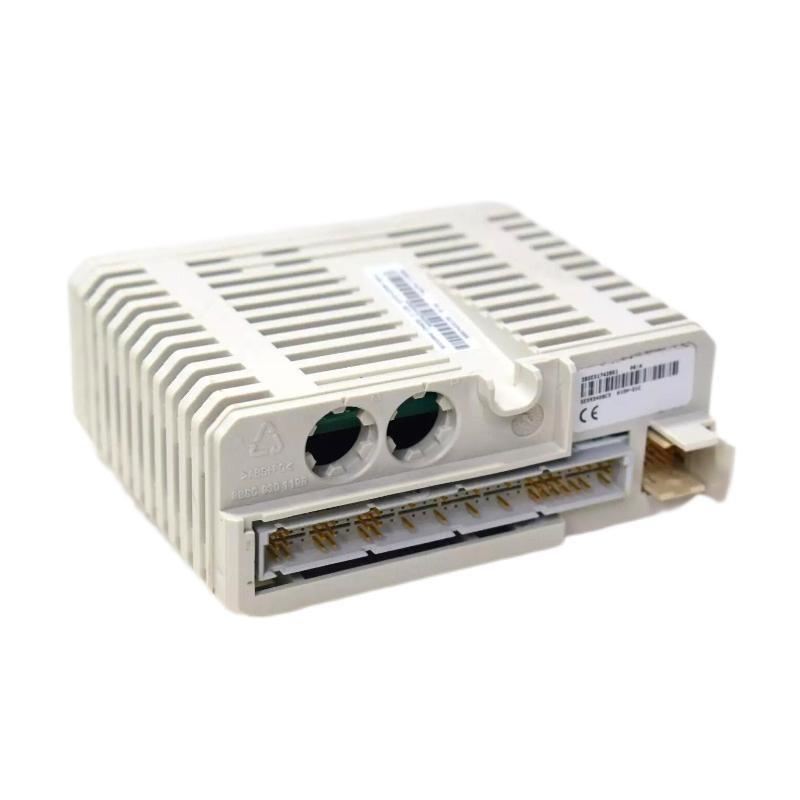

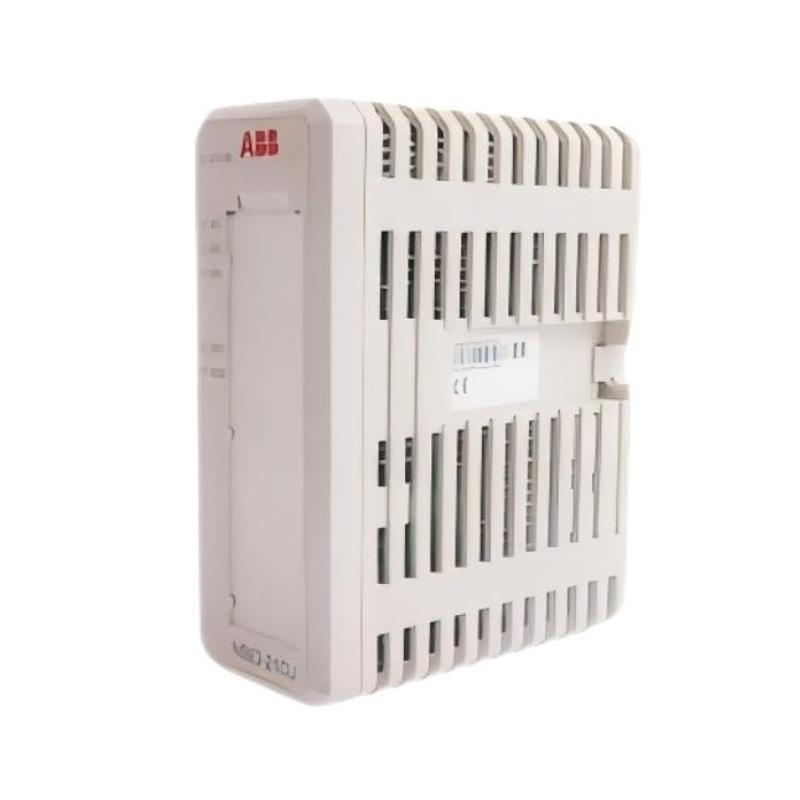

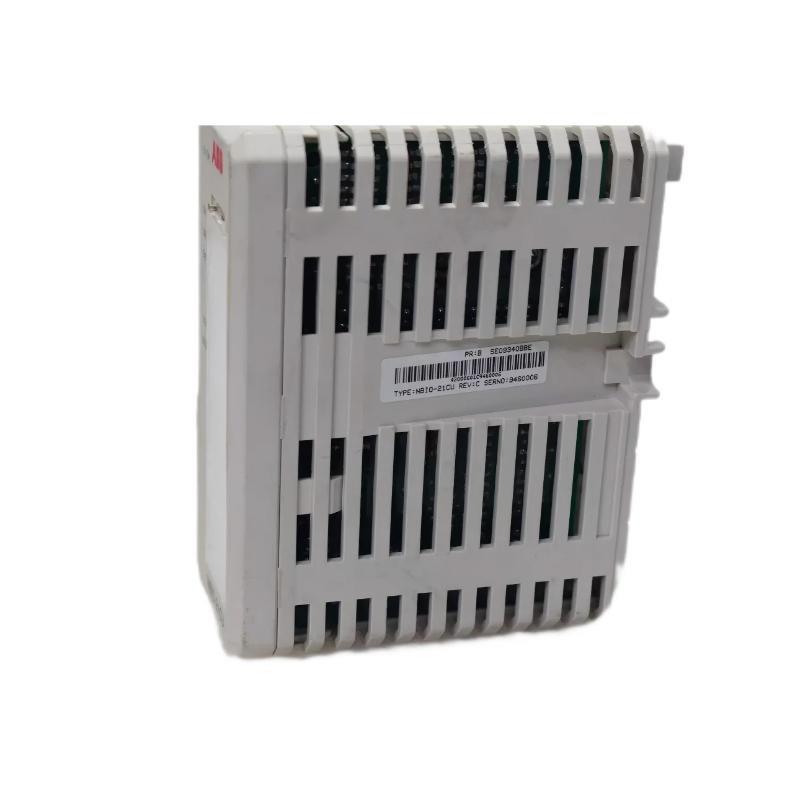

The ABB NBIO-21CU (3BHB011947R0121) is a fast basic I/O unité designed to meet the demands sur modern industrial automation systems. It surfers an efficient and reliable interface between field devices and the central controller, providing rapid digital and analog input/output processing. The unité is engineered to handle high-speed data exchange with minimal latency, ensuring real-time control and monitoring in various industrial environments.
The NBIO-21CU is built for durability and performance, featuring a robust housing suitable for harsh conditions. Its modular design facilitates easy integration into ABB’s broader automation systems, making it a versatile choice for engineers seeking dependable I/O solutions. This unité balances speed, accuracy, and flexibility, making it essential for applications where prompt and precise I/O operations are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | NBIO-21CU |
| Référence | 3BHB011947R0121 |
| Type | Fast Basic I/O Unité |
| Dimensions (L × W × H) | 150 × 130 × 75 mm |
| Poids | 5.443 kg |
| Operating Voltage | 24 V DC |
| Input Channels | Digital and analog inputs |
| Output Channels | Digital and analog outputs |
| Data Transfer Speed | High-speed communication with low latency |
| Operating Temperature | -25°C to +60°C |
| Mounting Type | Panel or DIN rail mounting |
| Connection Interface | Screw terminals and plug connectors |
| Protection Class | IP54 (dust and splash resistant) |
| Compliance | CE, UL, RoHS |
Product Applications
The ABB NBIO-21CU is widely used across diverse industrial sectors that require fast and reliable I/O operations:
-
Manufacturing Lines: Enables fast and accurate control sur machinery, conveyors, and robotic systems in assembly lines.
-
Process Automation: Supports real-time data acquisition and control in chemical, pharmaceutical, and food processing plants.
-
Energy Management: Utilized in power plants and renewable energy systems for monitoring and controlling equipment efficiently.
-
Water and Wastewater Treatment: Facilitates fast data exchange between sensors and control unités, ensuring precise process management.
-
Building Automation: Controls HVAC systems, lighting, and security devices in large commercial facilities.
-
Material Handling: Ideal for warehouses and logistics centers, providing rapid control sur automated storage and retrieval systems.
Product Advantages
-
High-Speed Operation
Designed to handle fast digital and analog I/O signals, ensuring minimal delay in data processing and system response. -
Robust Construction
With IP54 protection rating, the NBIO-21CU resists dust and splashing water, making it suitable for challenging industrial environments. -
Compact and Modular Design
Despite its powerful capabilities, the unité maintains a compact footprint (150 × 130 × 75 mm), allowing easy integration into existing panels or racks. -
Versatile Connectivity
Equipped with both screw terminals and plug connectors, it supports flexible wiring configurations and simplifies installation and maintenance. -
Wide Operating Temperature Range
Can reliably operate in temperatures ranging from -25°C to +60°C, suitable for various climates and conditions. -
Energy Efficient
Operates at a low voltage sur 24 V DC, reducing power consumption in large automation setups. -
Enhanced Signal Integrity
Supports noise-resistant communication, which minimizes data errors and increases overall system reliability. -
Easy Integration
Compatible with a broad range sur ABB automation systems, facilitating seamless communication and system scalability. -
Maintenance Friendly
The design allows quick access for inspection and replacement, reducing downtime during maintenance cycles. -
Compliance and Safety
Meets international standards including CE, UL, and RoHS, guaranteeing safety and quality in industrial use.
Questions fréquentes (FAQ)
-
Q: What is the main function sur the NBIO-21CU unité?
A: It acts as a fast basic input/output interface unité, managing digital and analog signals between field devices and control systems. -
Q: What are the physical dimensions sur the NBIO-21CU?
A: The unité measures 150 × 130 × 75 mm. -
Q: How much does the NBIO-21CU weigh?
A: The weight is 5.443 kg. -
Q: What is the operating voltage sur the unité?
A: It operates at 24 V DC. -
Q: Can the NBIO-21CU operate in harsh environments?
A: Yes, it has an IP54 rating protecting against dust and splashing water, and operates between -25°C and +60°C. -
Q: What types sur input and output signals does it support?
A: It supports both digital and analog inputs and outputs. -
Q: How is the unité mounted?
A: It can be mounted on panels or DIN rails. -
Q: Is the NBIO-21CU compatible with other ABB automation products?
A: Yes, it integrates easily with ABB’s automation systems. -
Q: What connectors does the NBIO-21CU use?
A: It uses screw terminals and plug-in connectors for flexible wiring. -
Q: Does the NBIO-21CU comply with industrial standards?
A: Yes, it complies with CE, UL, and RoHS standards.
