Présentation du produit

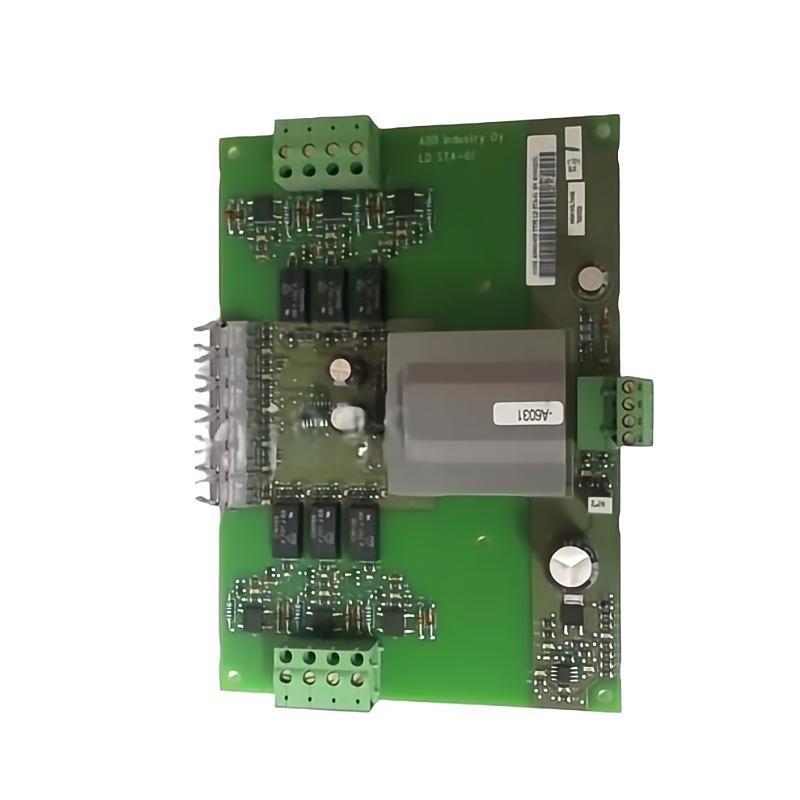

The ABB LDSTA-01 3BHB007441P0001 Inverter Control CPU Drive Board is a high-performance control module designed for ABB drive systems. It serves as the central processing unité (CPU) for inverter drives, managing real-time control algorithms, communication protocols, and signal processing required for precise motor control and system integration.
Built for demanding industrial applications, the LDSTA-01 enables efficient and accurate control sur AC and DC motors used in variable frequency drives (VFDs). It handles complex control tasks such as torque regulation, speed control, and dynamic braking coordination. The board also facilitates seamless communication between the drive and supervisory control systems, supporting various fieldbus protocols for flexible integration into automation networks.
With robust hardware architecture and advanced firmware, this CPU drive board surfers enhanced performance, high reliability, and long-term stability. Its design incorporates comprehensive protection features, ensuring safe operation in environments with electrical noise, temperature fluctuations, and mechanical vibrations.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle | Inverter Control CPU Drive Board |
| Référence | LDSTA-01 / 3BHB007441P0001 |
| Marque | ABB |
| Function | Central control unité for inverter drives |
| System Compatibility | ABB ACS and DCS drive platforms |
| Processing Unité | High-speed digital signal processor (DSP) |
| Control Functions | Motor control, torque regulation, speed management |
| Communication Interfaces | Supports multiple fieldbus protocols (e.g., Prsuribus, Modbus, CANopen) |
| Input Voltage | Low-voltage control power (via drive system) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Protection Features | Overvoltage, undervoltage, short-circuit, and thermal protection |
| Mounting Type | Plug-in board for inverter drives |
| Dimensions | 220 x 160 x 25 mm |
| Poids | 0.21 kg |
| Compliance | CE, UL, RoHS, IEC industrial standards |
Applications
-
Variable Frequency Drives (VFDs): Central control board for ABB inverter drives managing AC/DC motor control.
-
Industrial Automation: Provides precise control and communication for automated production systems.
-
Energy Management Systems: Ensures efficient motor operation to optimize energy consumption.
-
Pulp and Paper Industry: Controls high-performance drives used in continuous processing applications.
-
Metals and Mining: Offers reliable control for heavy-duty drive systems under harsh operating conditions.
-
Marine and Offshore: Supports marine-grade drive systems for propulsion and auxiliary motor control.
Product Advantages
-
High Processing Performance: Utilizes advanced DSP technology for real-time motor control and signal processing.
-
Flexible Communication: Supports multiple fieldbus protocols for seamless integration into diverse systems.
-
Robust Design: Built to handle electrical noise, vibration, and temperature variations in industrial environments.
-
Enhanced Safety: Features built-in protection mechanisms to safeguard the drive and motor systems.
-
Seamless ABB Drive Integration: Fully compatible with ABB ACS and DCS series inverter drives.
-
Energy Efficiency: Optimizes motor performance to reduce energy usage and operating costs.
-
Compact Modular Construction: Simplifies installation, maintenance, and replacement in drive systems.
FAQ
-
What is the primary function sur the ABB LDSTA-01 CPU Drive Board?
It serves as the central control unité for ABB inverter drives, managing motor control and communication. -
Which ABB drive series is the LDSTA-01 compatible with?
It is compatible with ABB ACS and DCS inverter drive platforms. -
Does this board support fieldbus communication protocols?
Yes, it supports multiple protocols such as Prsuribus, Modbus, and CANopen. -
What type sur processor does the LDSTA-01 use?
It is built with a high-speed digital signal processor (DSP) for real-time control. -
Can the LDSTA-01 be used in high-vibration environments?
Yes, it is designed to withstand mechanical vibrations commonly found in industrial settings. -
Does the board include built-in protection features?
Yes, it surfers overvoltage, undervoltage, short-circuit, and thermal protection. -
Is this module hot-swappable in the drive system?
Typically, it requires a power-down procedure for safe replacement. -
What kind sur motors can the LDSTA-01 control?
It supports both AC and DC motors used in ABB inverter drives. -
Does the board provide torque and speed control functions?
Yes, it handles torque regulation, dynamic braking, and precise speed control. -
Is the LDSTA-01 certified for industrial use?
Yes, it complies with CE, UL, RoHS, and IEC industrial standards.
Related Modèles from the Same Series
| Modèle | Function | Key Feature |
|---|---|---|
| LDSTA-02 3BHB007442P0001 | Inverter Control CPU Board | Enhanced processing power for large drives |
| LDSTA-03 3BHB007443P0001 | Inverter Control CPU Board | Supports advanced drive diagnostics |
| LDSTA-04 3BHB007444P0001 | Inverter Control CPU Board | Optimized for high-speed motor control |
| LDSTA-05 3BHB007445P0001 | Inverter Control CPU Board | Extended fieldbus communication support |
| LDSTA-06 3BHB007446P0001 | Inverter Control CPU Board | Ruggedized version for extreme environments |
| LDSTA-07 3BHB007447P0001 | Inverter Control CPU Board | High-reliability version for critical applications |
Popular ABB Modèles
| Modèle | Function | Key Feature | Application Focus |
|---|---|---|---|
| IPS21-24V-35AD 3BHE032593R0001 | Isolated Power Supply | Stable power for drive systems | ABB inverter and control platforms |
| IPS21-35AD 3BHB017688R0001 | Isolated Power Supply | High-performance power isolation | Industrial drive and control systems |
| KU C755 AE117 3BHB005243R0117 | Gate Unité Power Module | Reliable power for IGBT gate drivers | ABB drive control systems |
| SDCS-PIN-48 3BSE004939R1 | Control Interface Board | Flexible I/O interface for drives | ACS and DCS series drives |
| SDCS-PIN-41 3BSE004938R1 | I/O Control Board | Multi-channel digital/analog control | Industrial drive systems |
| RDCO-01C 6886979 | Control Communication Module | Supports multiple communication protocols | ABB drive integration modules |
