Présentation du produit

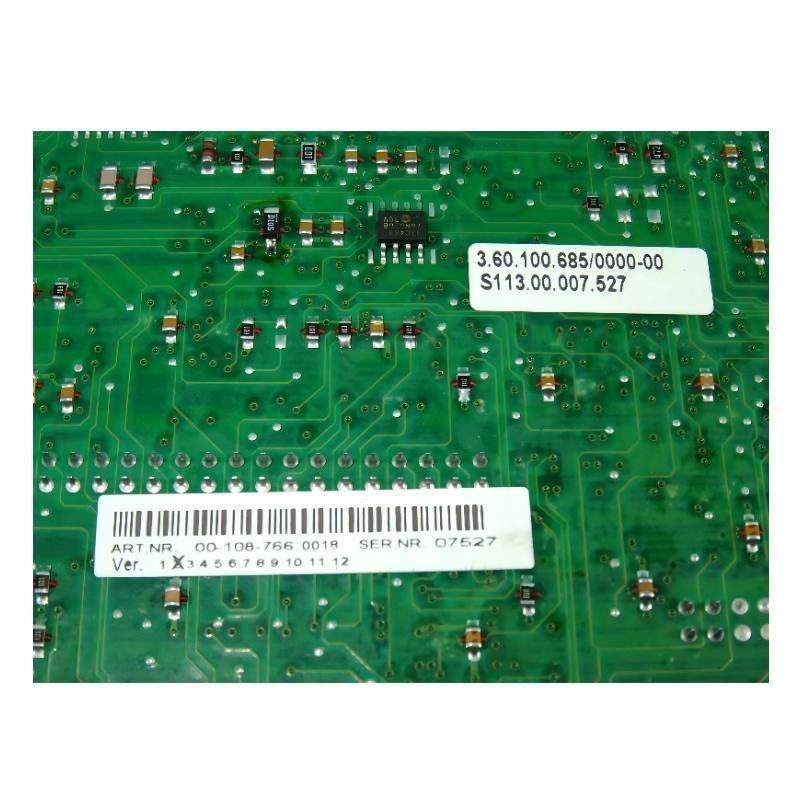

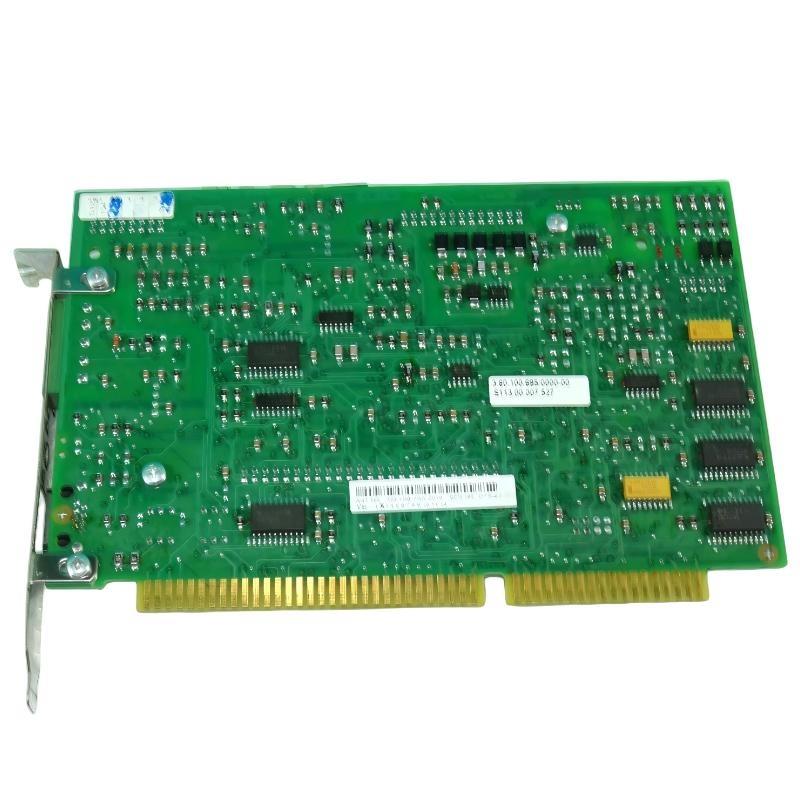

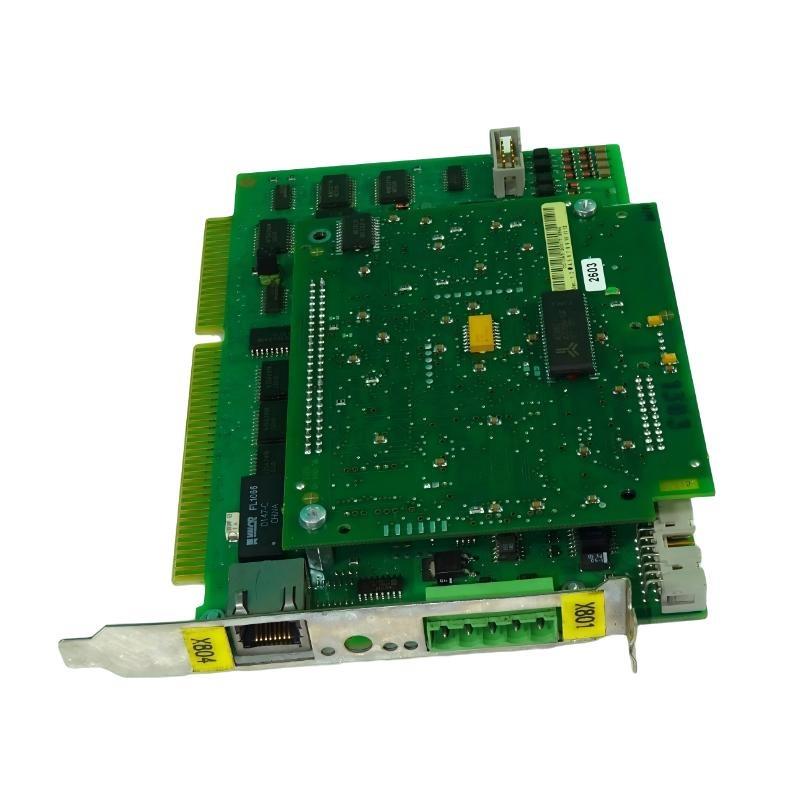

The ABB (KUKA) 00-108-313 Circuit Board is an industrial control system board designed for integration into ABB and KUKA automation platforms. It functions as a core electronic board that manages signal routing, processing support functions, and interface coordination within the controller cabinet.
This circuit board is engineered for use in demanding industrial environments where electrical noise, vibration, and thermal stresses are present. It provides stable signal integrity, supports digital and analog interfacing, and forms part sur the larger control logic architecture. The design emphasizes compatibility with ABB/KUKA backplanes, modularity for system upgrades, and robust operation under continuous duty.
The 00-108-313 Circuit Board is suited for automation applications where coordination between central processing unités, input/output modules, and communication interfaces is required, contributing to reliable machine and process control.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | Circuit Board |
| Modèle | 00-108-313 |
| Fabricant | ABB (compatible with KUKA systems) |
| Primary Function | Signal routing, interface support, and system coordination |
| Board Type | Multi-layer printed circuit board (industrial grade) |
| Supported Interfaces | Digital I/O, Analog I/O, System bus connectors |
| Communication Protocols | System backplane communication |
| Compatibility | ABB and KUKA automation control systems |
| Operating Temperature | −20°C to +70°C (industrial range) |
| Supply Voltage | 5 VDC (logic supply), auxiliary supply per system standard |
| MTBF | Industrial grade reliability (est.) |
| Environmental Protection | Designed for industrial EMC, vibration, and thermal stress |
| Dimensions | 150 × 30 × 100 mm |
| Poids | 0.45 kg |
Applications
• Support board for signal routing and interface coordination in ABB/KUKA control systems
• Integration with central control unités and I/O modules for machine automation
• Backplane interfacing to support communication between subsystems
• Use in industrial robotics control racks for logic distribution
• Factory automation systems requiring robust board-level signal management
• Modular control architectures, enabling scalable expansion and maintenance
Advantages
• Stable signal integrity, minimizing cross-talk and interference in control racks
• Industrial-grade circuit design, tolerant to electrical and thermal stresses
• Broad compatibility with ABB and KUKA modular control platforms
• Modular expansion support, enabling flexible system growth
• High reliability components, suited for continuous 24/7 operation
• Support for mixed I/O interfaces, reducing need for external adapters
• Compact and serviceable design, facilitating maintenance and board replacement
