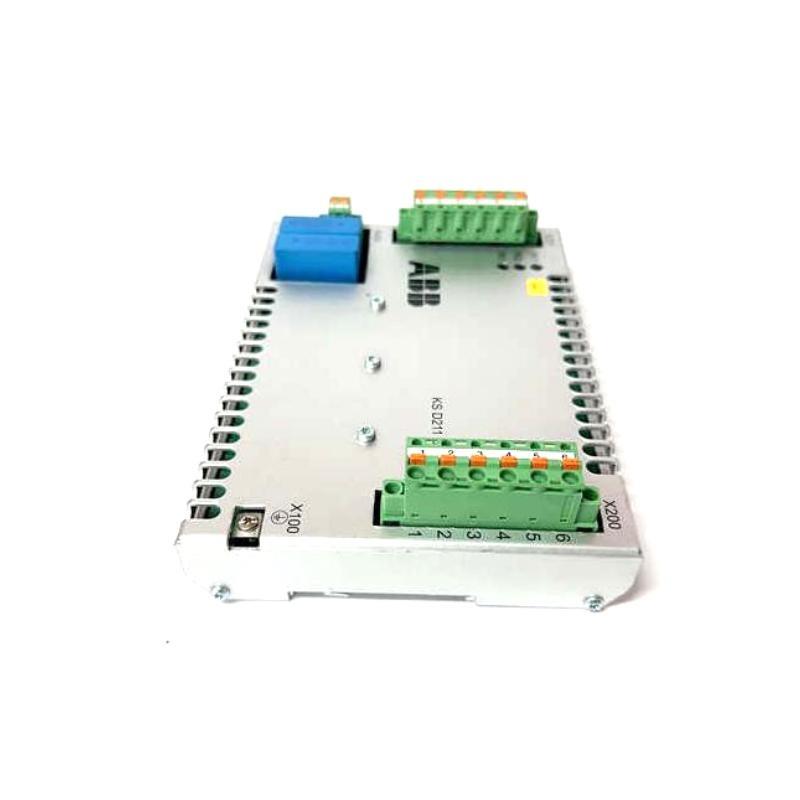

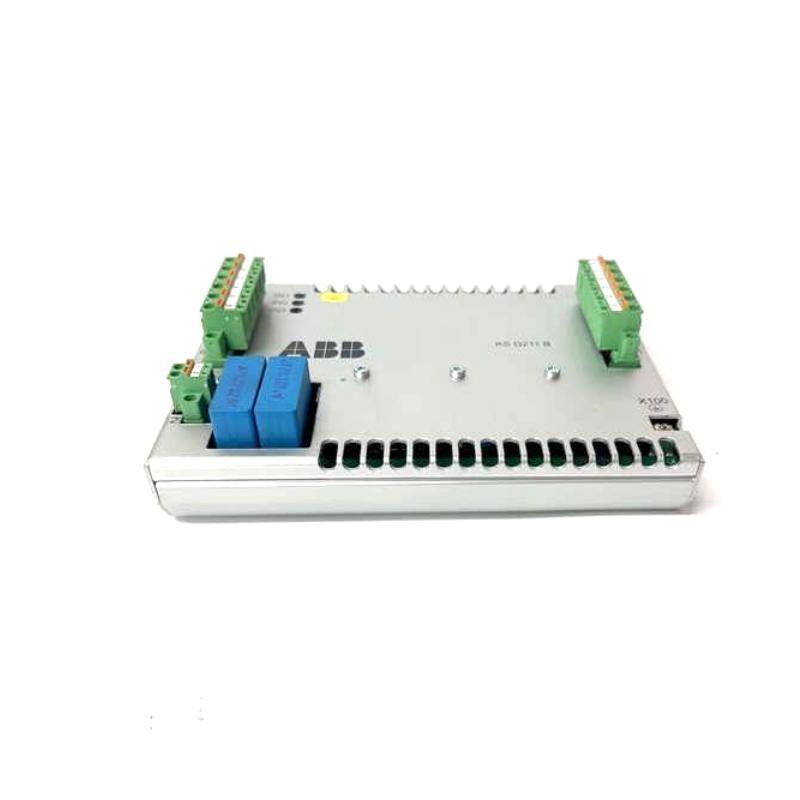

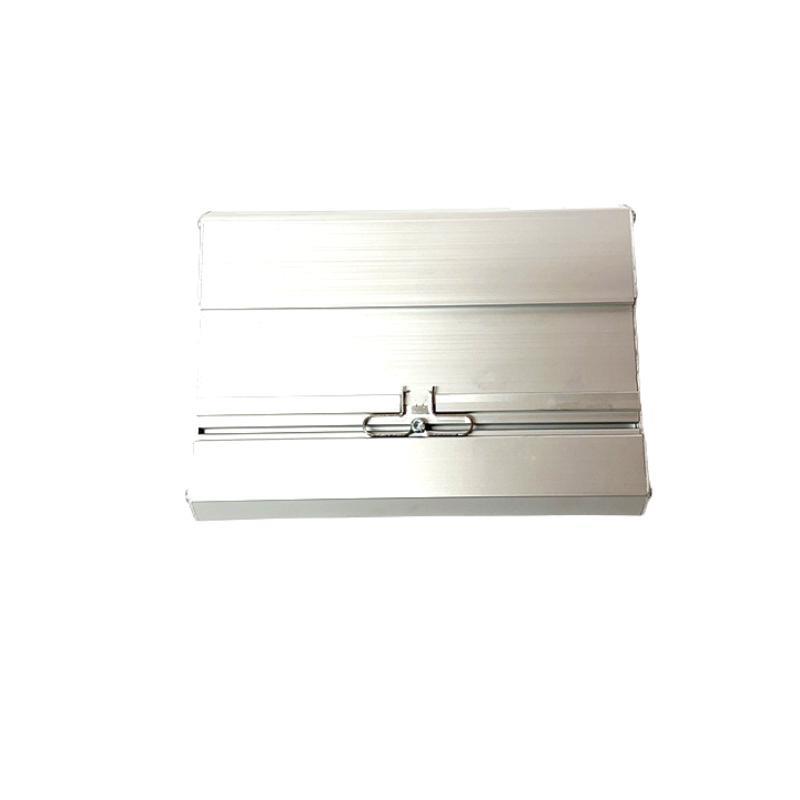

ABB KSD211B 3BHE022455R1101 Input Coupling Unité ICU Overview
The ABB KSD211B 3BHE022455R1101 Input Coupling Unité (ICU) is a reliable interface module designed to couple and condition input signals in industrial automation systems. It ensures accurate signal transmission and isolation, supporting stable and safe operation sur control systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | KSD211B 3BHE022455R1101 |
| Description | Input Coupling Unité ICU |
| Dimensions | 120 × 165 × 50 mm |
| Poids | 0.5 kg |
| Mounting | DIN-rail |
| Input Channels | Multiple (configurable) |
| Signal Isolation | Galvanic isolation |
| Operating Voltage | 24 V DC |
| Temperature Range | -20°C to +60°C |
Applications
The ABB KSD211B is commonly used in process industries, power plants, and manufacturing automation where precise signal coupling and isolation are required. It is ideal for critical systems where input signal integrity is essential for safety and performance.
Advantages
-
Compact and lightweight design
-
High signal integrity with galvanic isolation
-
Easy DIN-rail mounting
-
Wide operating temperature range
-
Robust construction for industrial environments
-
Compatible with ABB control systems
Questions fréquentes
Q1: What is the main function sur the ABB KSD211B?
A1: It provides signal coupling and isolation for input signals in automation systems.
Q2: Does it support DIN-rail mounting?
A2: Yes, it is designed for standard DIN-rail installation.
Q3: What is the operating voltage?
A3: The unité operates on 24 V DC.
Q4: Is it suitable for harsh environments?
A4: Yes, it is built to operate in industrial environments with a wide temperature range.
Q5: Does it provide signal isolation?
A5: Yes, it features galvanic isolation for input signals.
Q6: What is the weight sur the unité?
A6: The unité weighs 0.5 kg.
Q7: What are its physical dimensions?
A7: Its dimensions are 120 × 165 × 50 mm.
Q8: Can it be used with ABB DCS systems?
A8: Yes, it is compatible with ABB distributed control systems.
Q9: Is maintenance required frequently?
A9: No, it is a low-maintenance device.
Q10: Does it support multiple input signals?
A10: Yes, it is configurable for multiple input channels.
Recommended Related or Similar Modèles
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| KSD212B | Input Coupling Unité ICU | 120×165×50 | 0.5 kg |
| KSD213B | Input Coupling Unité ICU | 120×165×50 | 0.5 kg |
| KSD214B | Input Coupling Unité ICU | 120×165×50 | 0.5 kg |
| KSD215B | Input Coupling Unité ICU | 120×165×50 | 0.5 kg |
| KSD216B | Input Coupling Unité ICU | 120×165×50 | 0.5 kg |
| KSD217B | Input Coupling Unité ICU | 120×165×50 | 0.5 kg |
Popular ABB Modèles
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| PM861K01 | Processor Unité Kit | 186×161×40 | 0.6 kg |
| CI854AK01 | Fieldbus Communication Module | 120×150×40 | 0.4 kg |
| AI810 | Analog Input Module | 120×186×50 | 0.5 kg |
| DO810 | Digital Output Module | 120×186×50 | 0.5 kg |
| PM866 | Processor Unité | 186×161×40 | 0.6 kg |
| CI862 | HART Communication Module | 120×150×40 | 0.4 kg |
