Présentation du produit

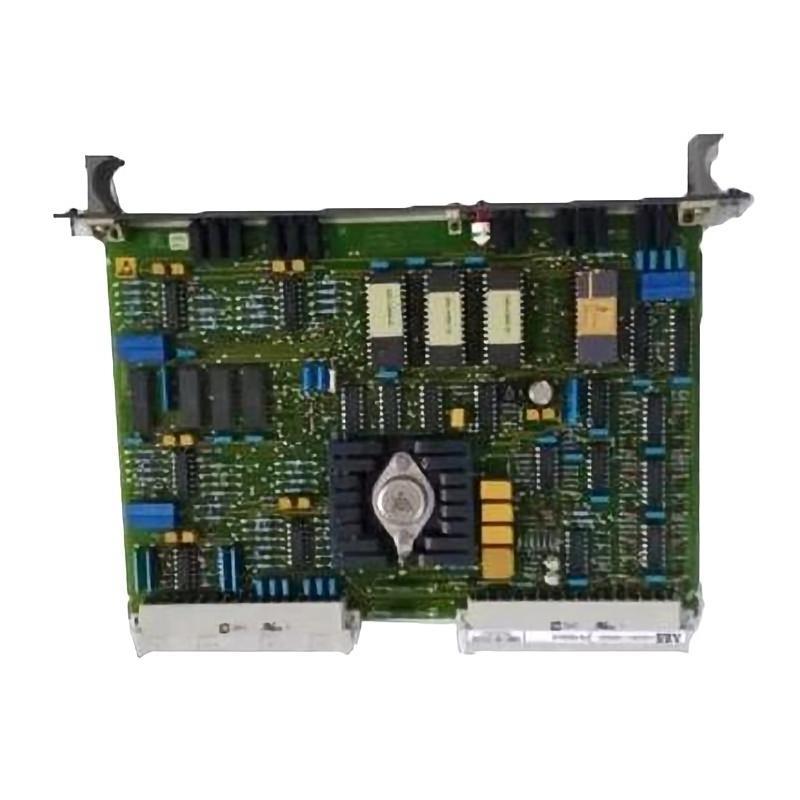

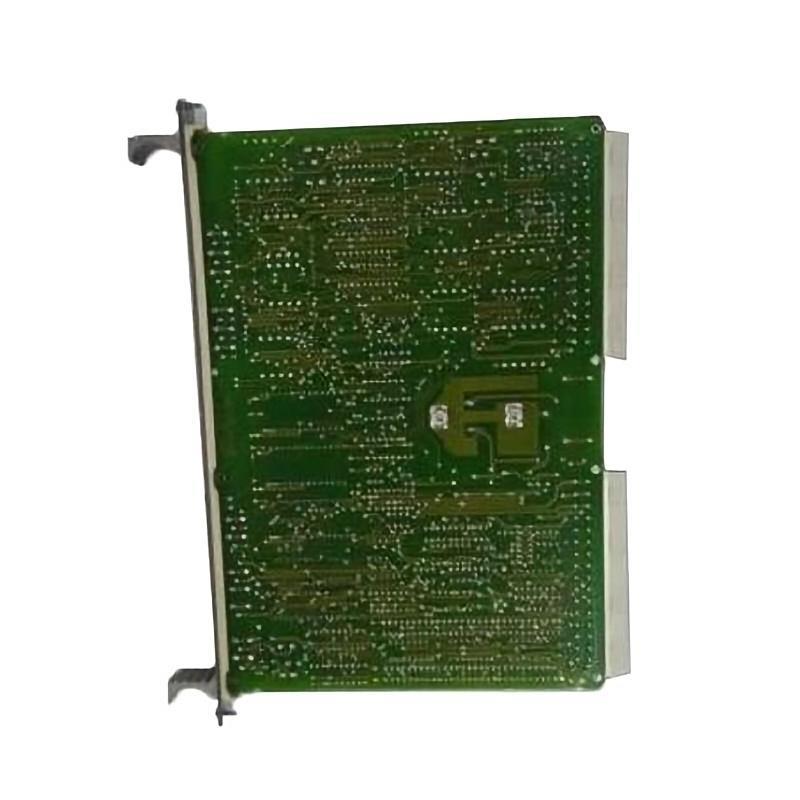

The ABB FM9925a-EV.1 HIEE451116R1 is a sophisticated circuit board module engineered for critical applications in industrial automation and process control. As a part sur ABB’s renowned control system components, this board is known for its excellent performance, operational stability, and compatibility with advanced control architectures.
This circuit board plays a crucial role in signal processing, data transmission, and inter-module communication within Distributed Control Systems (DCS). It is widely utilized in demanding environments such as power plants, chemical factories, pulp and paper mills, and marine automation systems, where high reliability and long lifecycle are essential.
ABB’s rigorous quality standards ensure that the FM9925a-EV.1 meets the demands sur continuous industrial operation. With conformal coating and robust circuitry, the board resists harsh conditions including temperature extremes, vibration, and electrical noise.
Spécifications du produit
| Parameter | Details |
|---|---|
| Product Name | FM9925a-EV.1 Circuit Board |
| Référence | HIEE451116R1 |
| Fabricant | ABB |
| Board Type | Signal Processing / Control Circuit Board |
| System Compatibility | ABB Advant, MOD 300, Symphony, Master DCS |
| PCB Layers | Multi-layer |
| Power Supply Voltage | 5V DC / ±15V DC (depending on configuration) |
| Connector Type | Edge Connector / Flat Cable Interface |
| Cooling Method | Passive Cooling (convection) |
| Signal Type | Digital and Analog Signals |
| Isolation | Galvanic Isolation on I/O Channels |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Installation | Rack-mounted inside system backplane |
| Conformal Coating | Yes |
| Dimensions (W x H x D) | 220 × 100 × 25 mm |
| Poids | 0.48 kg |
| Certifications | CE, RoHS, UL, ISO 9001 |
| PCB Protection Rating | IP00 (internal module) |
Product Applications
-
Power Generation: Supports turbine control, generator monitoring, and substation automation systems.
-
Chemical and Petrochemical Industries: Handles complex logic and analog processing for batch and continuous production systems.
-
Pulp & Paper Mills: Controls pulping machines, paper drying, and cutting mechanisms with high precision.
-
Water Treatment Plants: Integrates sensor and actuator data for flow, level, and chemical dosing control.
-
Marine Automation: Used in engine room control, power distribution monitoring, and safety systems.
-
Industrial Manufacturing: Ensures real-time decision making for robotics, motion controllers, and quality monitoring systems.
Product Advantages
-
High Reliability: Designed for 24/7 operation in mission-critical environments.
-
Seamless Integration: Fully compatible with legacy and modern ABB systems.
-
Robust Build Quality: Industrial-grade components ensure long service life.
-
Advanced Signal Handling: Supports both digital and analog channels with minimal interference.
-
Minimal Downtime: Quick installation and replacement reduce operational interruptions.
-
Compact Design: Space-saving form factor allows high-density mounting in control cabinets.
-
Galvanic Isolation: Protects internal circuits from electrical surges and faults.
-
No Moving Parts: Passive cooling and no mechanical wear enhance reliability.
-
Field Proven: Installed in thousands sur plants worldwide with proven operational history.
-
Certified Compliance: Meets international electrical and environmental safety standards.
Questions fréquentes (FAQ)
What is the FM9925a-EV.1 used for in ABB control systems?
It is a multifunctional circuit board used for processing control logic, interfacing with I/O modules, and managing communication between subsystems.
Which ABB systems are compatible with this board?
The board is commonly used in ABB Advant, MOD 300, and Symphony DCS platforms.
Is the FM9925a-EV.1 hot-swappable?
No, it must be installed and removed with power turned surf for safety and protection.
Can this board handle analog signals?
Yes, it supports both analog and digital signal types, depending on the configuration.
How is the board mounted in the system?
It is mounted on a system backplane within a standard control cabinet rack.
Is the board protected from dust or moisture?
While not IP-rated externally, it features a conformal coating for PCB protection in enclosed systems.
What certifications does the board have?
It complies with CE, RoHS, and UL certifications for industrial electronic components.
Can the FM9925a-EV.1 be used in outdoor environments?
It is not designed for direct outdoor use but performs reliably in protected industrial enclosures.
What kind sur maintenance is required for this module?
Aside from occasional visual inspection for dust or corrosion, it requires little to no maintenance due to its robust design.
How do I replace this board in a DCS cabinet?
After isolating power, release the retaining clips or screws, slide the board out sur the rack, and insert the new one in the correct slot, then power up the system.
Related Modèles from the Same or Compatible Series
