Présentation du produit

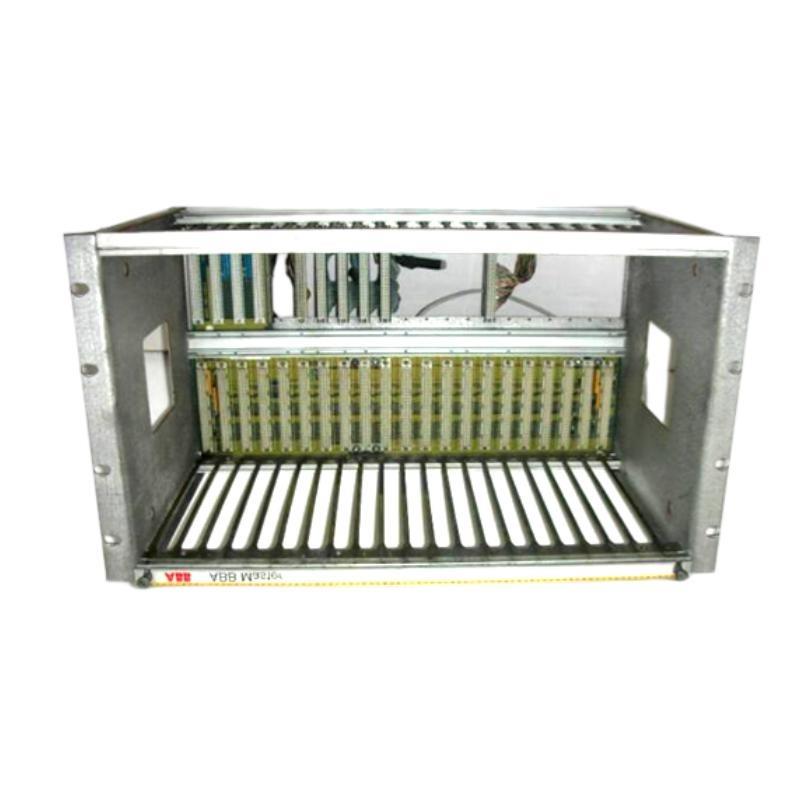

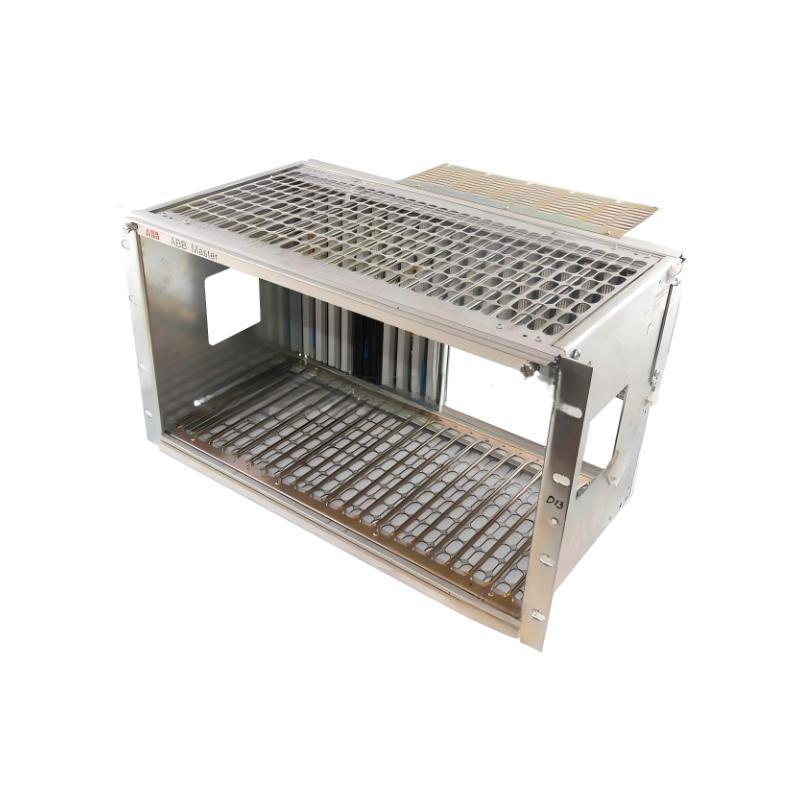

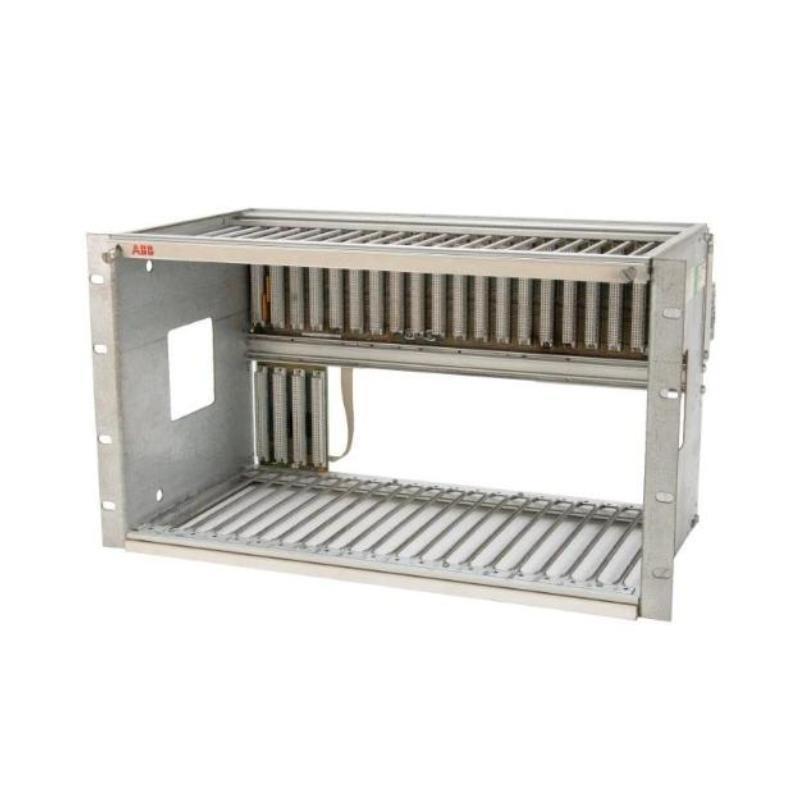

The ABB DSRF 181A 57310255-AX is a robust and highly efficient device frame designed for industrial applications, surfering enhanced flexibility and support for ABB’s modular control systems. Built to meet the rigorous demands sur industrial environments, this device frame is engineered to integrate seamlessly with other ABB components, ensuring reliable performance and ease sur maintenance. Its rugged design allows it to withstand various environmental challenges while maintaining superior operational stability.
Product Features and Advantages
-
Highly Durable: Designed for long-term use in harsh industrial conditions, with a frame built to withstand mechanical stress, vibration, and temperature fluctuations.
-
Modular Design: The frame can accommodate a variety sur ABB modules, providing scalability and flexibility in system configurations.
-
Efficient Cooling: Equipped with an advanced cooling system that ensures optimal operating temperatures, preventing overheating and ensuring system longevity.
-
Easy Installation and Maintenance: The modular construction allows for easier installation, upgrades, and maintenance, minimizing downtime and costs.
-
Compact Size: Despite its robust construction, the frame has a compact design that maximizes space utilization in control panels and cabinets.
Specifications Table
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 283.5 x 418.5 x 238.5 mm |
| Poids | 7.405 kg |
| Material | High-strength metal alloy |
| Temperature Range | -10°C to +60°C |
| Mounting Type | Rack-mounted |
| Power Supply | 24V DC |
| Compatibility | Compatible with ABB modular control systems |
| Cooling | Passive (ventilated) |
Applications
The ABB DSRF 181A 57310255-AX device frame is typically used in the following applications:
-
Industrial Automation: Ideal for control systems, where it serves as the backbone for various ABB modules in automation processes.
-
Power Distribution Systems: Used in power plants and substations for organizing and housing critical control equipment.
-
Process Control: In chemical, petrochemical, and manufacturing plants where the integration sur various control modules is necessary for optimized operation.
-
Energy Management Systems: Applied in energy production and distribution sectors to support monitoring and control functionalities.
-
OEM Applications: Original Equipment Fabricants use the frame in custom industrial automation solutions.
Advantages
-
Modularity and Scalability: The modular design sur the DSRF 181A allows for easy configuration changes and scalability as the needs sur the system evolve. New modules can be added or removed without disrupting the overall system.
-
Long Service Life: The high-quality materials and durable construction ensure a long operational life, reducing the need for replacements and costly maintenance.
-
Efficient Space Utilization: The compact frame design maximizes the use sur space, providing a clean and organized layout for modules and wiring.
-
Reliability: The robust design and cooling mechanisms make the device frame ideal for 24/7 operations, even in challenging environments.
-
Cost-Effectiveness: By using the DSRF 181A frame, users can reduce operational costs over time due to its durability, ease sur installation, and low maintenance needs.
Questions fréquentes (FAQ)
-
Q: What modules are compatible with the ABB DSRF 181A 57310255-AX?
-
A: The DSRF 181A is compatible with various ABB modular control systems and devices, including I/O modules, communication boards, and power supply unités.
-
-
Q: How does the cooling system in the device frame work?
-
A: The frame uses passive cooling, which relies on ventilation to maintain optimal temperatures inside the system. External fans can be used if additional cooling is required.
-
-
Q: What is the maximum weight that the frame can support?
-
A: The frame is designed to support a total weight sur up to 20 kg when fully populated with modules.
-
-
Q: Is the ABB DSRF 181A suitable for outdoor use?
-
A: The frame is primarily designed for indoor use. For outdoor applications, it should be placed in a protective enclosure.
-
-
Q: Can the device frame be easily upgraded?
-
A: Yes, the modular design allows for easy upgrades by adding or replacing modules without the need to replace the entire frame.
-
-
Q: What is the operating temperature range sur the ABB DSRF 181A?
-
A: The frame can operate within a temperature range sur -10°C to +60°C.
-
-
Q: Is the frame compatible with third-party modules?
-
A: The frame is specifically designed for ABB modules, and compatibility with third-party modules may be limited.
-
-
Q: Can the frame be used in hazardous environments?
-
A: The DSRF 181A is not specifically rated for hazardous environments, but it can be used in standard industrial settings with proper protection.
-
-
Q: What is the warranty period for the ABB DSRF 181A?
-
A: The device frame typically comes with a 1-year warranty, which can be extended through ABB’s service agreements.
-
-
Q: How is the device frame mounted?
-
A: The DSRF 181A is designed to be rack-mounted, ensuring a secure installation in control cabinets or enclosures.
-
Recommended Modèles
Related Modèles from the Same Series
| Modèle | Description | Key Features |
|---|---|---|
| DSRF 182A | Larger version sur the DSRF 181A, supports more modules | Same modular design with additional space |
| DSRF 183A | Advanced version with enhanced cooling system | Includes active cooling options |
| DSRF 180A | Compact version, ideal for smaller installations | Smaller footprint, similar functionality |
| DSRF 184A | Multi-frame configuration support | Designed for multi-frame setups |
| DSRF 185A | High-capacity version with more power support | Supports up to 10 kW sur power supply |
| DSRF 186A | Customizable version for specialized applications | Modular customization options available |
Popular Modèles from ABB
| Modèle | Description | Key Specifications |
|---|---|---|
| DSRF 150 | Industrial device frame designed for housing control modules and ensuring high reliability. | High load capacity, durable, easy integration. |
| DSRF 154 | Advanced device frame surfering additional cooling and power management features. | Enhanced cooling, robust construction, efficient. |
| DSRF 160 | Upgraded version with improved power distribution and modular flexibility. | Modular design, improved power handling capacity. |
| DSRF 155 | Heavy-duty device frame with superior shock resistance for harsh industrial environments. | Shockprosur, high-strength material, reliable. |
| DSRF 170 | Compact device frame optimized for small to medium-scale systems. | Compact, lightweight, flexible design. |
| DSRF 165 | Versatile device frame supporting higher-density configurations and advanced system integration. | High-density, expandable, easy-to-install. |
