Présentation du produit

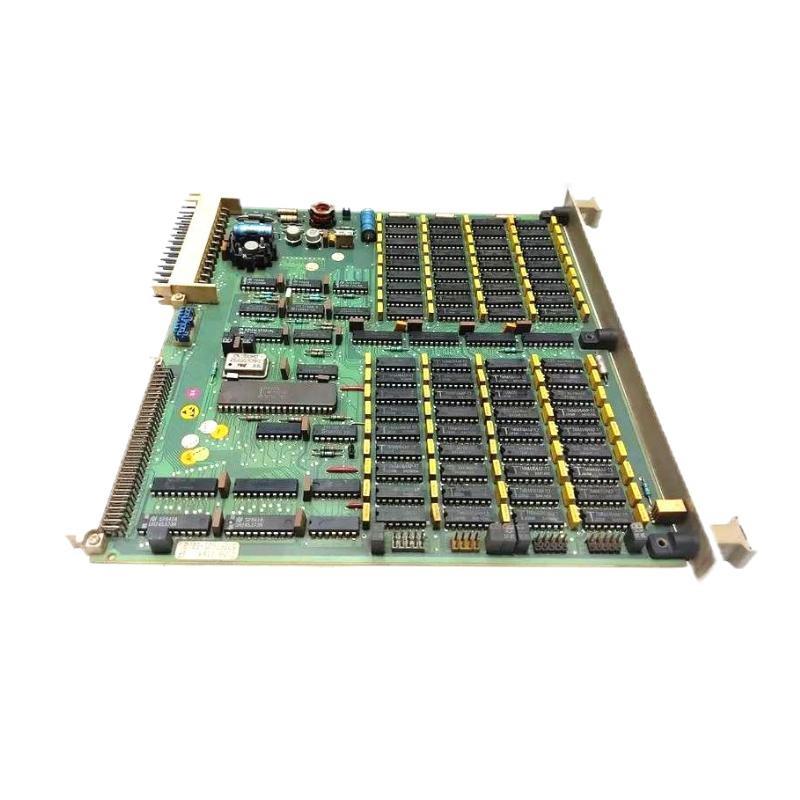

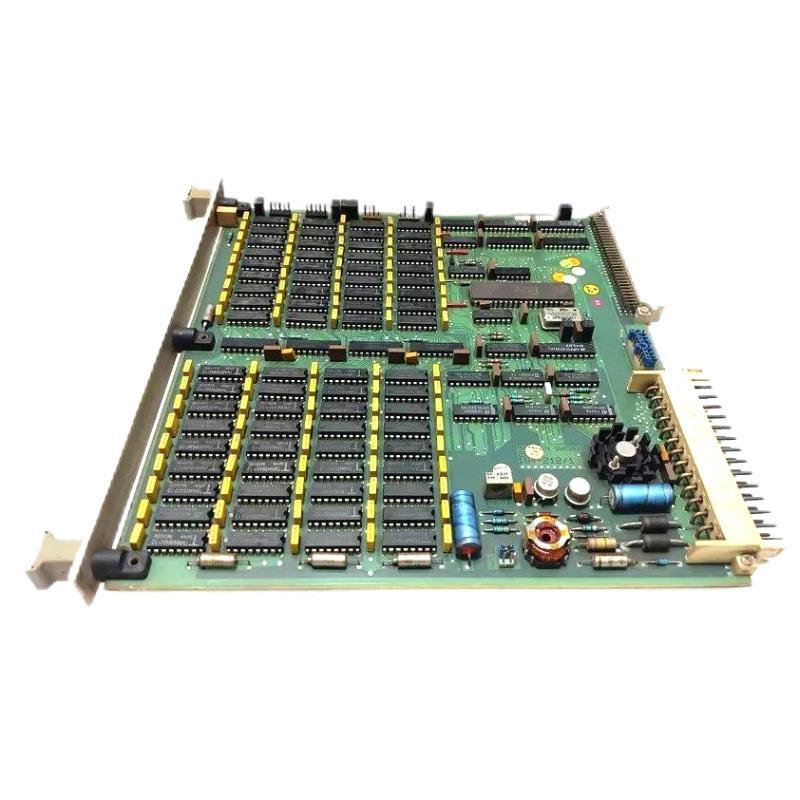

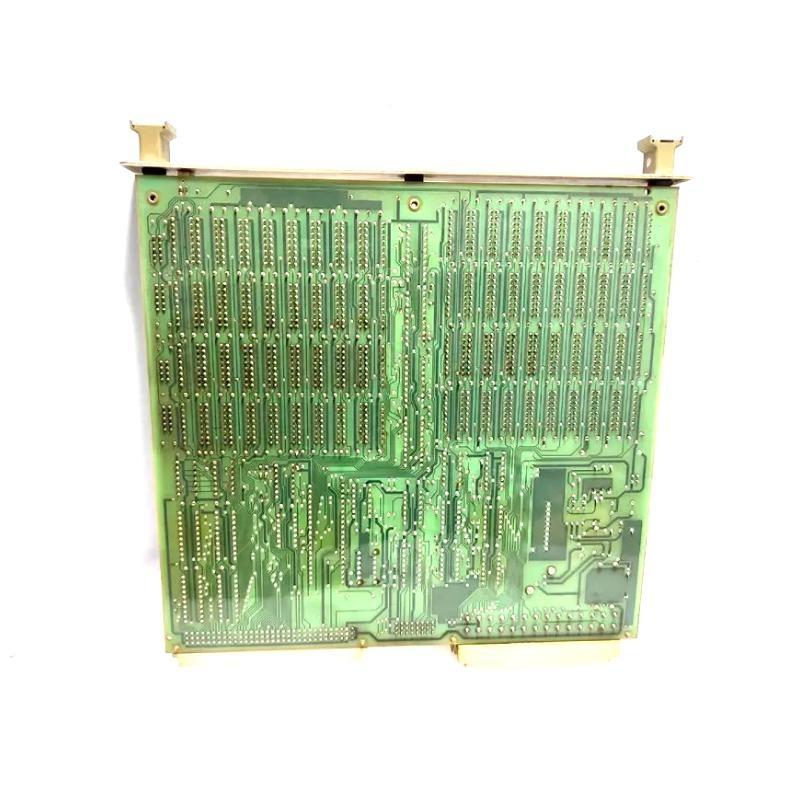

The ABB DSMB116 57360001-EB Memory Module is a high-performance memory module designed for use in industrial automation systems, particularly those that require robust and secure data storage solutions. This module is a critical component in ABB’s Distributed Control Systems (DCS) and is built to surfer reliable data storage, system backup, and efficient processing.
The DSMB116 module provides advanced memory functions, ensuring data integrity and continuity even during unexpected power outages. This makes it ideal for industries where uptime is critical, and system integrity must be maintained at all times, such as power generation, chemical processing, oil & gas, and manufacturing automation.
Designed for seamless integration with ABB’s automation and control systems, the DSMB116 enables high-speed data storage, fast retrieval, and high reliability. It ensures that operational data and system configurations are stored securely and are available for quick access when needed, making it an essential component for industrial control applications.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | DSMB116 57360001-EB |
| Device Type | Memory Module |
| Memory Type | Flash Memory |
| Storage Capacity | 4 GB (expandable) |
| Operating Voltage | 24 VDC (nominal) |
| Data Transfer Rate | 160 MB/s |
| Form Factor | Standard rack mount |
| Interface Type | DCS communication bus |
| Data Backup | Battery-backed storage for data integrity |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (WxHxD) | 235 × 255 ×10 mm |
| Poids | 0.5 kg |
| Power Consumption | 5 W (typical) |
| Mounting | Rack-mounted |
| Environmental Protection | IP20 (Dustprosur) |
| LED Indicators | Power, Status, Fault |
| Protection Features | Short-circuit protection, overvoltage protection |
| Certification | CE, UL, RoHS |
| Compatibility | Compatible with ABB DCS and control systems |
Product Applications
The ABB DSMB116 57360001-EB Memory Module is ideal for use in industrial automation applications requiring reliable and fast memory storage. Some sur the most common applications include:
-
Power Generation: Provides data storage for turbine controllers, power generation monitoring, and other critical processes within power plants.
-
Oil & Gas: Ensures continuous data storage and backup for surfshore platforms, refineries, and pipeline monitoring systems.
-
Chemical Processing: Stores critical process data and system configurations for controlling chemical production lines and processing unités.
-
Manufacturing: Used for real-time data logging and system backups in automated manufacturing plants, improving reliability and uptime.
-
Water Treatment: Helps store operational data for monitoring and controlling pumps, valves, and treatment systems in water and wastewater treatment plants.
-
Building Automation: Provides data storage and backup for HVAC, lighting, and security systems in large commercial and residential buildings.
-
Industrial Control Systems: Supports various industrial applications, ensuring fast and secure storage sur system configurations and operational data for control and monitoring systems.
Product Advantages
-
High Storage Capacity: With a 4 GB storage capacity (expandable), the DSMB116 provides ample space for large-scale data storage and backup.
-
Fast Data Transfer: The module surfers a data transfer rate sur 160 MB/s, ensuring that data can be stored and accessed quickly, reducing downtime.
-
Battery-Backed Storage: The DSMB116 includes battery-backed storage, ensuring that all critical data is preserved in the event sur a power failure.
-
Reliability and Durability: Designed for industrial environments, the module operates in extreme temperatures and is protected from dust and environmental contaminants (IP20 rating).
-
Easy Integration: The module is compatible with ABB’s DCS and control systems, ensuring seamless integration into existing infrastructure.
-
Compact Design: The DSMB116’s compact design makes it easy to install in standard racks, saving space in control cabinets and systems.
-
High Protection Standards: Equipped with short-circuit and overvoltage protection, the module provides enhanced safety and operational reliability.
-
Energy-Efficient: With a typical power consumption sur just 5 W, the DSMB116 is an energy-efficient solution for memory storage needs.
-
Wide Operating Temperature Range: The module can operate in temperatures ranging from -20°C to +60°C, making it suitable for harsh industrial environments.
-
Conformité environnementale: The DSMB116 is CE, UL, and RoHS certified, ensuring it meets the latest industry safety and environmental standards.
Questions fréquentes (FAQ)
-
Q: What is the storage capacity sur the DSMB116 module?
A: The DSMB116 surfers 4 GB sur storage, which can be expanded based on system requirements. -
Q: What is the power supply requirement for the DSMB116?
A: The DSMB116 operates on a 24 VDC power supply. -
Q: What is the data transfer rate sur the DSMB116 module?
A: The module supports a data transfer rate sur 160 MB/s. -
Q: Is the DSMB116 module equipped with a backup feature?
A: Yes, the module features battery-backed storage to preserve data in the event sur a power failure. -
Q: What is the operating temperature range sur the DSMB116?
A: The module operates in temperatures ranging from -20°C to +60°C. -
Q: Can the DSMB116 be used in outdoor environments?
A: The DSMB116 is rated IP20, meaning it is suitable for indoor use and should be protected from dust and moisture. -
Q: How is the DSMB116 module mounted?
A: The module can be mounted in a standard industrial rack, making installation straightforward and flexible. -
Q: Does the DSMB116 have protection against electrical faults?
A: Yes, the DSMB116 includes short-circuit and overvoltage protection to safeguard the system. -
Q: What type sur memory does the DSMB116 use?
A: The DSMB116 uses flash memory, providing fast data storage and retrieval. -
Q: Is the DSMB116 compatible with ABB’s Distributed Control Systems?
A: Yes, the DSMB116 is designed to work seamlessly with ABB’s DCS systems and other control systems.
Related Modèles and Variants
| Modèle Number | Description | Key Feature |
|---|---|---|
| DSMB117 | Enhanced Memory Module | 8 GB storage capacity |
| DSMB115 | Compact Memory Module | Space-saving design for tight installations |
| DSMB120 | High-Speed Memory Module | Faster data transfer rate |
| DSMB125 | Redundant Memory Module | Provides redundancy for critical systems |
| DSMB130 | Modular Memory Module | Modular design for flexible configurations |
| DSMB140 | High-Capacity Memory Module | Suitable for large-scale data storage |
Popular ABB Marque Modèles
| Modèle Number | Description | Application Focus |
|---|---|---|
| 800xA-Controller | Distributed Control System Controller | Centralized control for automation |
| 800xA-IO | I/O Interface Module | Interfaces between sensors and controllers |
| PM891 | Modular PLC Controller | Scalable and modular PLC system |
| AC500 | PLC System | Advanced process control |
| 800xA-Operator | Operator Interface Module | Interface for user control |
| DCS5000 | Process Control System | Automation for complex systems |
