Présentation du produit

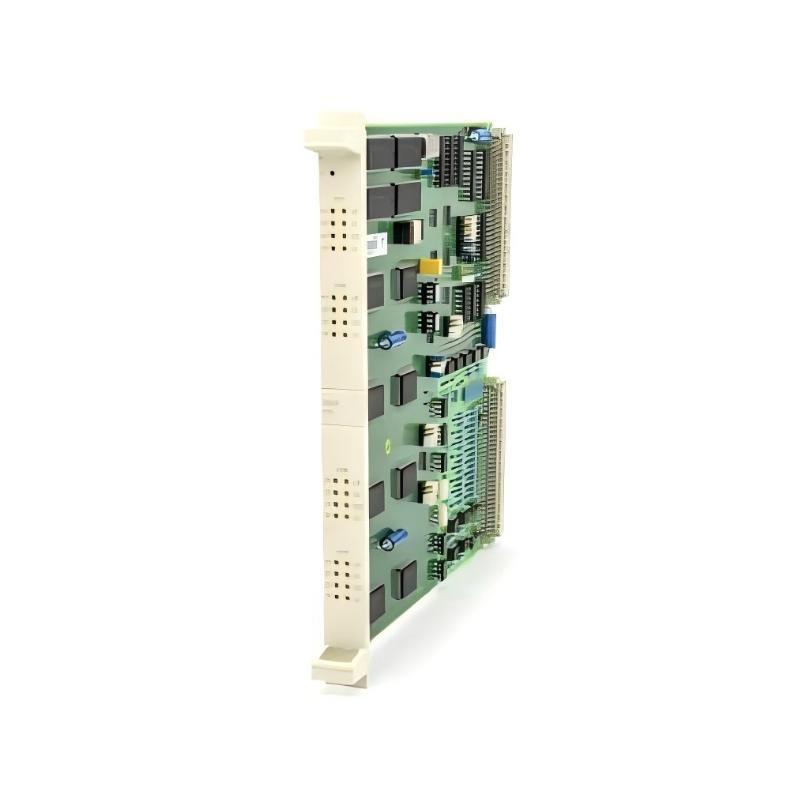

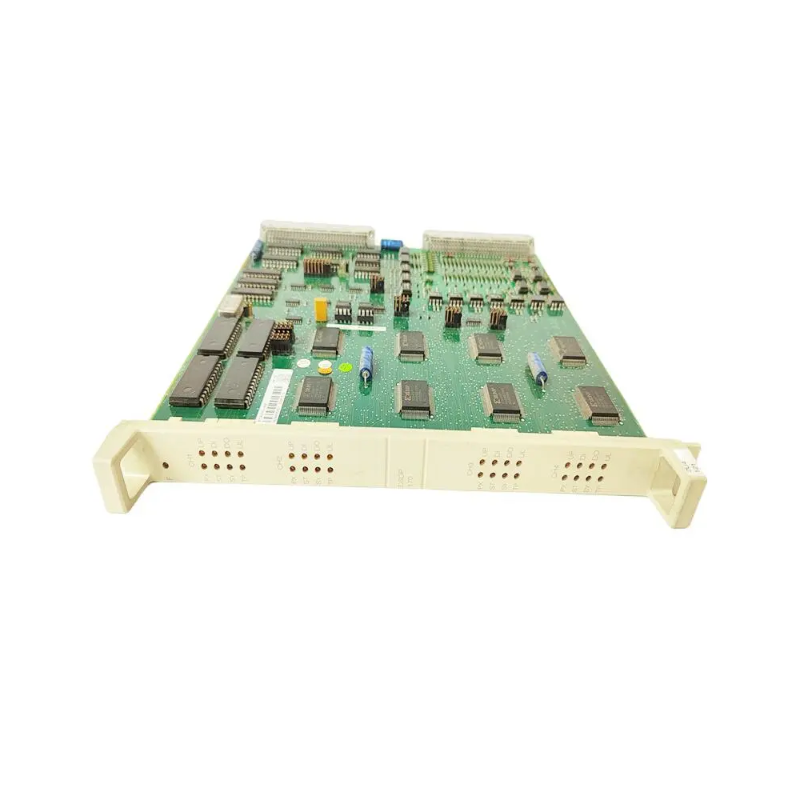

The ABB DSDP 170 57160001-ADF is a highly specialized digital signal processing (DSP) pulse counter board that is widely used in industrial automation systems. This module is designed to handle pulse counting tasks with high precision and efficiency, making it suitable for various applications, including process control and measurement systems. The DSDP 170 board integrates seamlessly into ABB’s extensive range sur control systems, surfering optimal performance, reliability, and versatility in industrial environments.
The DSDP 170 pulse counter board provides accurate counting sur pulses and is essential for systems where precise measurement and monitoring sur pulse events are critical. Whether used in high-speed data acquisition, real-time process control, or automation systems, this module ensures smooth operations and timely responses, crucial in industries requiring fast decision-making and data processing.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 328.5 × 18 × 238.5 mm |
| Poids | 0.38 kg |
| Operating Voltage | 24 V DC |
| Input Type | Pulse Input |
| Counter Type | Digital Counter |
| Max Counting Speed | 100 kHz |
| Mounting Type | Rail-mounted |
| Temperature Range | -20°C to +60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compliance | CE, UL, CSA certified |
Applications
The ABB DSDP 170 pulse counter board is suitable for a wide range sur applications across various industries:
-
Process Control Systems: Ideal for counting pulses generated by flow meters, speed sensors, or other mechanical devices in industrial processes.
-
Data Acquisition Systems: Used in systems that require high-frequency data capture and pulse counting for measurement and analysis.
-
Automation Systems: Vital in systems where accurate counting sur events, like cycles or pulses from actuators and sensors, is required for automated control.
-
Manufacturing and Production Lines: Applied in automated production lines to monitor cycles, product counts, or equipment performance.
-
Energy and Utilities: Used for monitoring energy consumption, generating usage data, and counting pulses in energy meters or utility control systems.
-
Water and Wastewater Treatment: The module tracks flow measurements and other pulse-based data to ensure proper treatment processes are carried out.
Advantages
-
High Precision: The DSDP 170 provides highly accurate pulse counting with minimal error, essential for process monitoring and control applications.
-
Fast Processing Speed: Capable sur counting pulses at speeds up to 100 kHz, making it ideal for high-speed processes.
-
Compact Design: With its slim prsurile, the DSDP 170 can be installed in confined spaces where size is a concern.
-
Durability: The module is designed to operate under harsh environmental conditions, with a wide temperature and humidity tolerance.
-
Easy Integration: The DSDP 170 integrates seamlessly with ABB’s control systems and can be easily installed in existing automation setups.
-
Reliability: With certifications like CE, UL, and CSA, the module meets industry standards for safety and operational reliability, ensuring long-term performance.
FAQs
-
What is the maximum pulse counting speed sur the DSDP 170?
The DSDP 170 can handle pulse counting speeds sur up to 100 kHz. -
What is the operating voltage for the DSDP 170?
The DSDP 170 operates at 24 V DC. -
How many channels does the DSDP 170 support for pulse counting?
The DSDP 170 supports multiple channels for pulse input, suitable for complex applications. -
Is the DSDP 170 module compatible with other ABB systems?
Yes, the DSDP 170 is compatible with other ABB automation and control systems. -
What is the size sur the DSDP 170 module?
The DSDP 170 has dimensions sur 328.5 × 18 × 238.5 mm. -
What is the weight sur the DSDP 170 module?
The DSDP 170 weighs 0.38 kg. -
Can the DSDP 170 module be used in high-temperature environments?
The module operates within a temperature range sur -20°C to +60°C, making it suitable for most industrial environments. -
What types sur inputs does the DSDP 170 support?
The DSDP 170 supports digital pulse inputs for counting. -
What certifications does the DSDP 170 have?
The module is CE, UL, and CSA certified, ensuring it meets global safety and quality standards. -
Is the DSDP 170 module suitable for use in energy monitoring systems?
Yes, the DSDP 170 is ideal for energy monitoring and counting pulses from energy meters and utility systems.
Recommended Modèles (Same Series or Related Modèles)
| Modèle | Description | Dimensions (L x W x H) | Poids |
|---|---|---|---|
| DSDP 180 | Pulse counter board, higher frequency | 328.5 × 18 × 238.5 mm | 0.38 kg |
| DSDP 190 | 8-channel pulse counter board | 328.5 × 18 × 238.5 mm | 0.38 kg |
| DSDP 200 | High-speed pulse counter board | 328.5 × 18 × 238.5 mm | 0.38 kg |
| DSDP 210 | 16-channel pulse counter board | 328.5 × 18 × 238.5 mm | 0.38 kg |
| DSDP 220 | Multi-function pulse counter board | 328.5 × 18 × 238.5 mm | 0.38 kg |
| DSDP 230 | Pulse counter board for industrial use | 328.5 × 18 × 238.5 mm | 0.38 kg |
Popular ABB Modèles
| Modèle | Description | Dimensions (L x W x H) | Poids |
|---|---|---|---|
| DSDI 130 | Digital signal input module | 120 x 90 x 60 mm | 0.3 kg |
| DSDI 131 | Digital signal input module with enhanced features | 120 x 90 x 60 mm | 0.3 kg |
| DSDI 451 | Digital input module for high-speed applications | 150 x 100 x 80 mm | 0.4 kg |
| DSDI 130A | Advanced version sur DSDI 130 with additional I/O | 120 x 90 x 60 mm | 0.35 kg |
| DSDI 131A | Advanced version sur DSDI 131 with added functionality | 120 x 90 x 60 mm | 0.35 kg |
| DSDI 452 | Digital input module for extended range applications | 150 x 100 x 80 mm | 0.45 kg |
