Présentation du produit

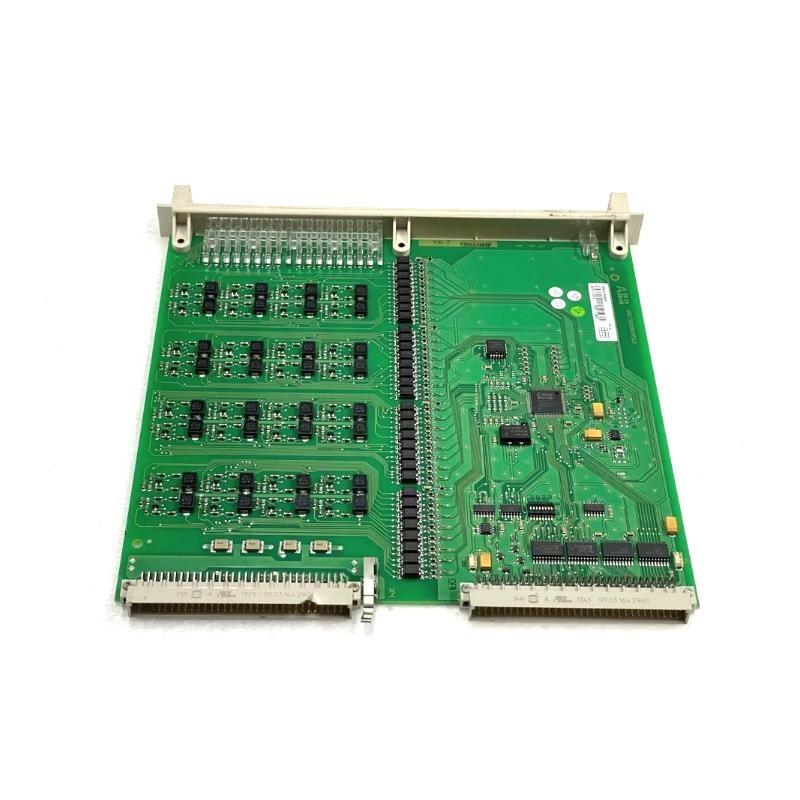

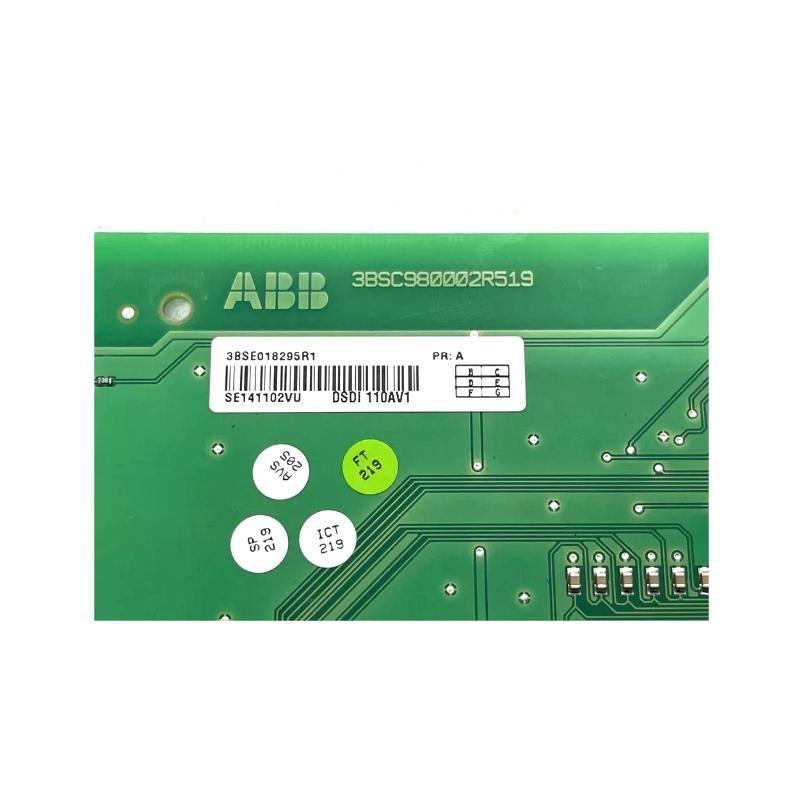

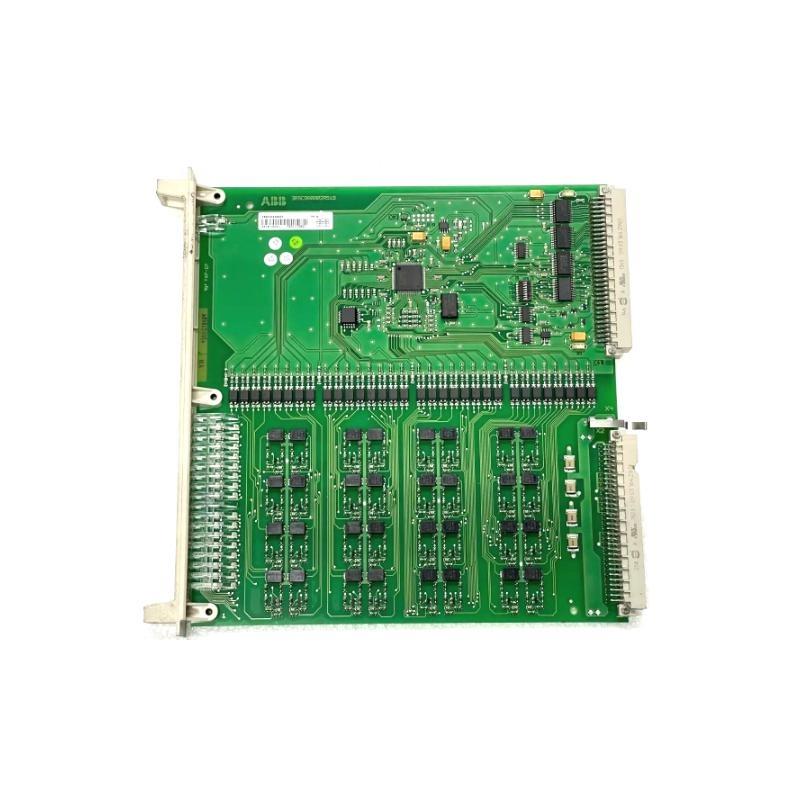

The ABB DSDI 110AV1 3BSE018295R1 is a high-performance digital input module designed for use in ABB’s AC 800M control system within the ABB Freelance and 800xA automation platforms. It provides robust 24 V DC digital input interfacing for field devices and supports signal status monitoring and diagnostic capabilities. Engineered for reliability in demanding industrial environments, the DSDI 110AV1 is essential for signal acquisition in process automation applications, ensuring precise control and efficient data acquisition across critical infrastructures.
Product Advantages
-
High Integration with ABB Systems: Seamlessly integrates with the AC 800M and 800xA DCS platforms for consistent system architecture.
-
Reliable Signal Processing: Supports 16 opto-isolated digital input channels, providing stable and noise-immune performance.
-
Wide Range Compatibility: Compatible with various field sensors and actuators operating at 24 V DC.
-
Diagnostic Support: Offers LED indicators for each channel, enhancing troubleshooting and reducing system downtime.
-
Compact Design: Space-efficient module suitable for dense cabinet installations.
-
Long Operational Life: Built for extended usage with industrial-grade components and protective features.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | DSDI 110AV1 |
| ABB Référence | 3BSE018295R1 |
| Function | 16-channel digital input module |
| Input Voltage | 24 V DC (nominal) |
| Input Type | Opto-isolated digital inputs |
| Number sur Channels | 16 |
| Input Current | 6 mA per channel |
| Isolation | Channel-to-bus and channel-to-channel |
| Diagnostic LEDs | One per input channel |
| Rated Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 234 x 18 x 229.5 mm |
| Poids | 0.332 kg |
| Mounting | DIN rail |
| Certification | CE, RoHS compliant |
| System Compatibility | AC 800M, 800xA, Freelance systems |
Product Applications
The ABB DSDI 110AV1 module is widely used across various industrial automation sectors, including:
-
Petrochemical plants for monitoring valve statuses and limit switches
-
Power generation facilities for circuit breaker and interlock feedback
-
Pharmaceutical manufacturing requiring high-precision input recognition
-
Pulp and paper industries for digital input consolidation from field instruments
-
Water and wastewater treatment plants for remote signal feedback from actuators
-
Food and beverage automation processes for hygiene-compliant signal integration
Its robustness makes it suitable for both central and distributed I/O architectures.
Compatible Modèles
The DSDI 110AV1 works effectively in conjunction with the following ABB components:
-
PM861, PM864, PM865 (AC 800M CPUs)
-
TB840/TB850 (Module Termination Unités)
-
TU810V1, TU812 (Mounting Unités)
-
DO820 (Digital Output Module)
-
DI810 (Alternative Input Module)
-
CI854 (Communication Interface for Prsuribus)
Installation Instructions
-
Mount the module on a standard DIN rail using a TU810 or TU812 terminal base.
-
Connect the 24 V DC power supply and field wiring according to the terminal diagram provided in the ABB installation manual.
-
Ensure input signals are correctly routed to prevent overvoltage or reverse polarity.
-
Insert the module into the base unité and secure it with the provided latching mechanism.
-
Connect the module to the controller using the appropriate system bus connector (e.g., TC512).
-
Power up the system and confirm status via diagnostic LEDs.
-
Use the ABB Control Builder to configure and monitor the module in your control strategy.
Related or Same Series Modèles (6 Recommendations)
| Modèle | Description | Voltage | Size (mm) | Poids |
|---|---|---|---|---|
| DI810 | 16-ch digital input module | 24 V DC | 100 × 50 × 120 | 210 g |
| DI814 | 16-ch DI, non-isolated | 24 V DC | 100 × 50 × 120 | 205 g |
| DI820 | 8-ch isolated digital input | 48 V DC | 100 × 50 × 120 | 215 g |
| DO810 | 16-ch digital output module | 24 V DC | 100 × 50 × 120 | 220 g |
| DSDO 115A | 16-ch isolated digital output | 24 V DC | 100 × 50 × 120 | 225 g |
| DSDI 110B | Enhanced version with extended diagnostics | 24 V DC | 100 × 50 × 120 | 215 g |
Popular Modèles from ABB (6 Recommendations)
| Modèle | Description | Voltage | Size (mm) | Poids |
|---|---|---|---|---|
| PM864 | AC 800M High-performance CPU | N/A | 186 × 59 × 124 | 480 g |
| CI854AK01 | Prsuribus communication interface | 24 V DC | 150 × 50 × 110 | 250 g |
| AI810 | 8-channel analog input module | 0–20 mA | 100 × 50 × 120 | 200 g |
| AO810 | 8-channel analog output module | 0–20 mA | 100 × 50 × 120 | 210 g |
| TU810V1 | Terminal unité base for modules | N/A | 140 × 45 × 100 | 180 g |
| TB840 | Module bus terminator | N/A | 90 × 45 × 40 | 120 g |
Questions fréquentes (10 QA Format)
Q1: What is the main function sur the DSDI 110AV1 module?
A1: It serves as a 16-channel digital input interface for 24 V DC signals, allowing field device states to be captured and processed by the ABB control system.
Q2: Can the DSDI 110AV1 be used with other vendor DCS systems?
A2: It is optimized for ABB systems like AC 800M and Freelance; integration with non-ABB platforms may require additional interfacing hardware and ssurtware.
Q3: Is the DSDI 110AV1 hot-swappable?
A3: No, it should only be installed or removed when the system is powered down to avoid potential damage or system faults.
Q4: What diagnostic features does the module include?
A4: Each channel includes an individual LED indicator for signal presence and channel status, aiding quick fault identification.
Q5: What is the module’s input isolation level?
A5: Inputs are opto-isolated from the system bus and between channels to prevent interference or cross-talk.
Q6: How is the DSDI 110AV1 configured?
A6: Configuration is done through ABB Control Builder ssurtware where signal mapping and diagnostics can be set up.
Q7: Can this module operate in extreme temperatures?
A7: It operates reliably between 0°C to +55°C, suitable for standard industrial environments.
Q8: Is there protection against reverse polarity?
A8: Yes, the module includes built-in protection against reversed polarity at input terminals.
Q9: What is the minimum current required per input?
A9: Each input typically requires around 6 mA at 24 V DC.
Q10: What type sur mounting is supported?
A10: It is designed for DIN rail mounting via TU810 or TU812 terminal bases.
