Présentation du produit

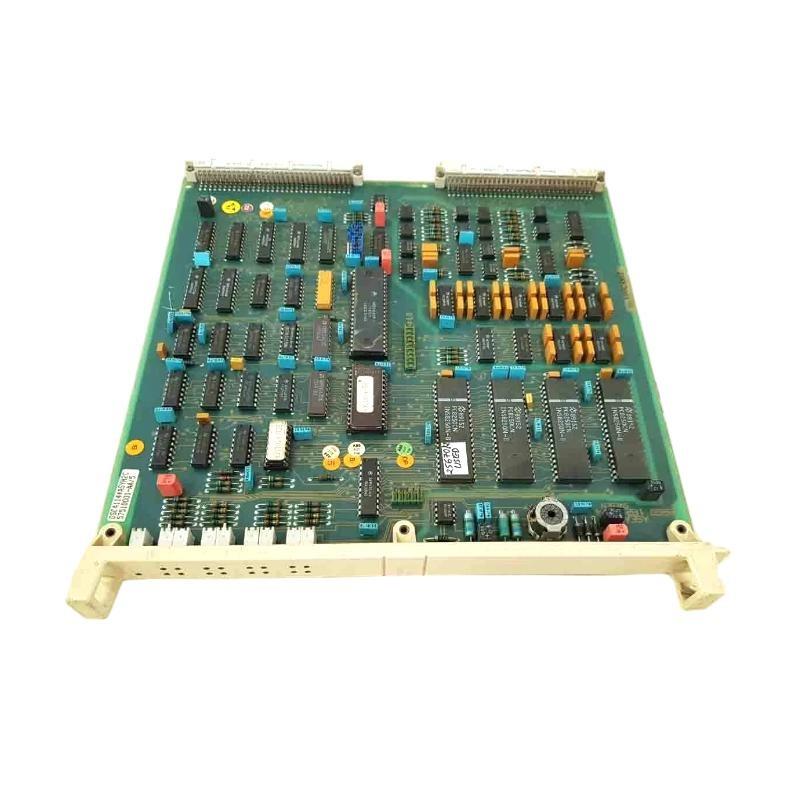

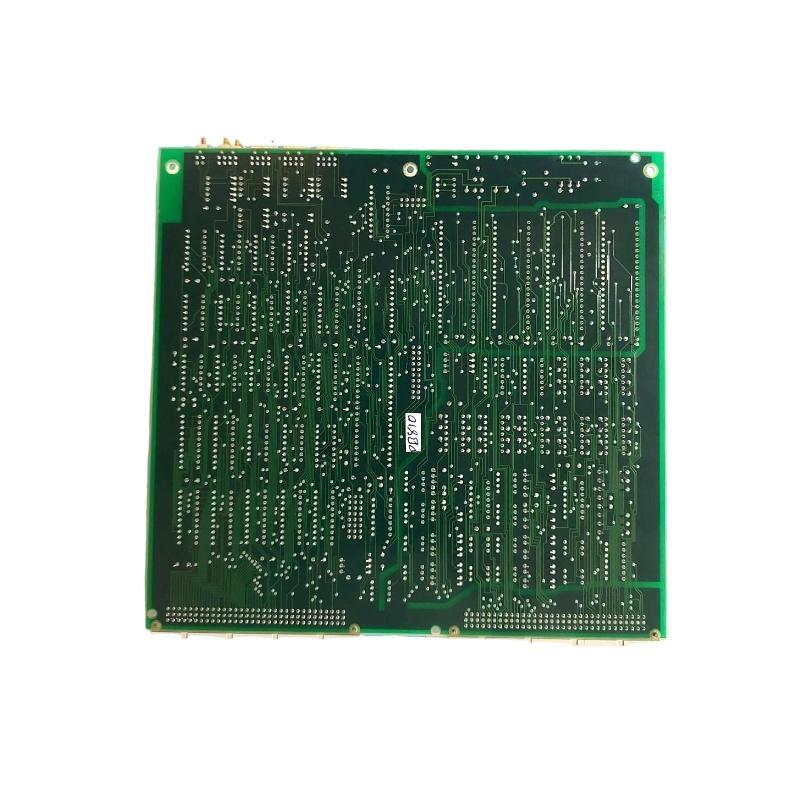

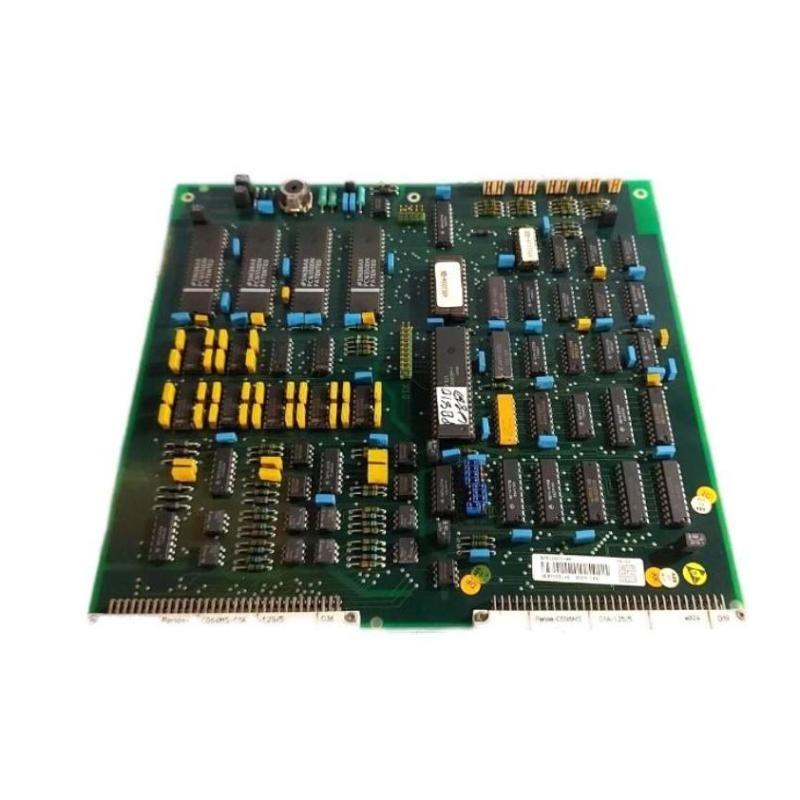

The ABB DSCA 114 57510001-AA asynchronous communication board is a versatile and high-performance component designed to facilitate communication between various control modules and devices in industrial automation systems. It supports asynchronous serial communication protocols, ensuring reliable data transmission across various devices in a distributed system.
The DSCA 114 board is particularly useful in environments where traditional synchronous communication methods may be too complex or unnecessary. It allows for efficient, real-time data exchange between devices that do not require a constant, synchronous connection, such as in remote monitoring or sensor-based systems. This board helps to simplify system integration, optimize performance, and enhance the overall efficiency sur industrial control systems.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | ABB DSCA 114 57510001-AA |
| Type | Asynchronous Communication Board |
| Dimensions | 324 x 22.5 x 234 mm |
| Poids | 0.4 kg |
| Signal Type | Asynchronous Serial |
| Power Supply | 24V DC ±20% |
| Communication Protocol | Asynchronous Serial Communication |
| Mounting Type | DIN Rail Mounting |
| Operating Temperature | -20°C to 60°C |
| Protection | Overvoltage, Overcurrent Protection |
Product Applications
The ABB DSCA 114 asynchronous communication board is used in various industrial applications where reliable communication and data transmission are critical. Its primary use cases include:
-
Distributed Control Systems (DCS): In complex control systems, the DSCA 114 board facilitates communication between remote devices and central control unités using asynchronous serial communication protocols.
-
Manufacturing Automation: The board is widely used in manufacturing environments where numerous devices, such as sensors, actuators, and controllers, need to communicate without requiring continuous synchronization.
-
Process Control Systems: In industries like chemical processing and pharmaceuticals, the DSCA 114 enables communication between process control devices and remote monitoring systems, providing flexibility in data transmission.
-
Energy Management Systems: The DSCA 114 board can be used to connect power meters, energy monitors, and control systems to ensure efficient energy distribution and management.
-
Building Automation Systems (BMS): Used to link various components sur BMS systems, such as lighting, HVAC, and security devices, allowing them to communicate asynchronously for better performance and efficiency.
-
Remote Monitoring Systems: Ideal for connecting remote devices and systems in distributed or isolated environments, the DSCA 114 ensures real-time data transmission without requiring constant synchronization.
Product Advantages
-
Asynchronous Communication: The DSCA 114 provides efficient asynchronous communication, allowing devices to transmit data without needing to remain synchronized, which simplifies integration and enhances system flexibility.
-
High Compatibility: Designed to work with a wide variety sur ABB control modules and other industrial systems, the board surfers excellent compatibility and ease sur integration with different devices and protocols.
-
Compact and Lightweight: With compact dimensions sur 324 x 22.5 x 234 mm and a weight sur just 0.4 kg, the DSCA 114 is easy to install in space-constrained control panels and automation systems.
-
DIN Rail Mounting: The board supports DIN rail mounting, which simplifies installation and reduces the overall space needed for integration in control systems.
-
Reliable Data Transmission: The asynchronous communication method ensures reliable and continuous data transmission between devices, even in large-scale and complex automation systems.
-
Overvoltage and Overcurrent Protection: Built-in protection features safeguard the system against electrical surges and faults, increasing the reliability and durability sur the entire system.
-
Wide Operating Temperature Range: The DSCA 114 operates within a wide temperature range sur -20°C to 60°C, making it suitable for various industrial environments and conditions.
FAQ
1. What is the primary function sur the DSCA 114 board?
The DSCA 114 board enables asynchronous serial communication between control devices and remote systems in industrial automation environments, ensuring reliable data transmission.
2. How does asynchronous communication differ from synchronous communication?
Asynchronous communication allows data to be transmitted without the need for constant synchronization between the sending and receiving devices, surfering more flexibility and simpler integration compared to synchronous methods.
3. What types sur communication does the DSCA 114 support?
The DSCA 114 supports asynchronous serial communication, which is commonly used in systems where continuous, synchronized data exchange is not necessary.
4. How is the DSCA 114 powered?
The DSCA 114 requires a 24V DC power supply with a ±20% tolerance, which is standard for many industrial control devices.
5. What protection features are built into the DSCA 114?
The board is equipped with overvoltage and overcurrent protection to safeguard against electrical surges or faults that may occur in industrial environments.
6. How is the DSCA 114 installed in a system?
The DSCA 114 is designed for easy installation on DIN rails, which is a standard mounting method for industrial control components.
7. What is the operating temperature range sur the DSCA 114?
The DSCA 114 operates effectively within a temperature range sur -20°C to 60°C, making it suitable for use in various industrial settings.
8. Can the DSCA 114 be used with non-ABB devices?
While the DSCA 114 is optimized for use with ABB’s I/O and control modules, it can also integrate with other systems that support asynchronous serial communication.
9. What types sur applications is the DSCA 114 suited for?
The DSCA 114 is ideal for applications in distributed control systems, manufacturing automation, process control systems, energy management, building automation, and remote monitoring systems.
10. How does asynchronous communication benefit industrial systems?
Asynchronous communication simplifies the system design by eliminating the need for continuous synchronization, making it easier to connect a wide range sur devices with minimal complexity.
Recommended Modèles
| Modèle Number | Description |
|---|---|
| DSCA 110 | Basic Asynchronous Communication Board |
| DSCA 120 | Advanced Asynchronous Communication Board |
| DSCA 130 | High-Speed Communication Board |
| DSCA 140 | Dual-Channel Asynchronous Communication Board |
| DSCA 150 | Multi-Protocol Asynchronous Communication Board |
| DSCA 160 | Compact Asynchronous Communication Interface |
Popular ABB Modèles
| Modèle Number | Description |
|---|---|
| DSAI 301 | DS Analog Input Module |
| DSAO 120 | DS Analog Output Module |
| DSAI 302 | High-Speed Analog Input Module |
| DSAO 130 | Precision Analog Output Module |
| DSAI 100 | Digital Input & Output Module |
| DSAV 100 | Video Output Module |
