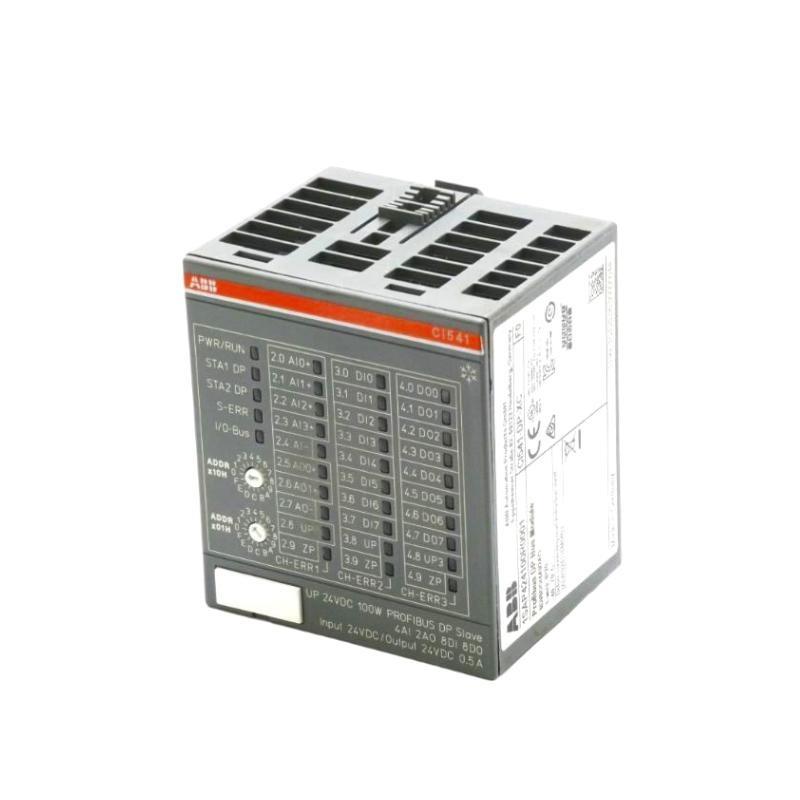

ABB CI541-DP 1SAP224100R0001 Interface Module

Présentation du produit

The ABB CI541-DP 1SAP224100R0001 Interface Module is a robust, high-performance PROFIBUS DP interface module designed to seamlessly integrate ABB AC500 and AC500-S PLC systems with PROFIBUS-based field devices and automation networks. As an essential bridge between the PLC and the field level, the CI541-DP enables reliable, real-time communication across complex industrial automation environments.

Engineered to deliver both deterministic communication and data consistency, this module supports extensive configurations sur PROFIBUS DP networks, including master and slave functionality. It is built with ABB’s renowned industrial design, ensuring superior performance under challenging conditions while providing simple configuration, diagnostics, and maintenance through ABB’s Automation Builder ssurtware suite.

Product Parameters

Applications

The CI541-DP Interface Module is an ideal solution for a wide range sur industrial applications where fieldbus connectivity and reliable data transfer are required:

• Discrete Manufacturing
  Integrates robotic cells, sensors, and actuators in high-speed assembly lines.

• Process Automation
  Interfaces with field devices in industries such as chemical, food & beverage, and pharmaceutical processing.

• Water & Wastewater Management
  Connects drives, valves, and instrumentation in water treatment facilities.

• Energy & Utilities
  Provides communication with field equipment in power generation and renewable energy systems.

• Material Handling Systems
  Connects conveyors, motors, and weighing systems in distribution centers.

• Metals & Mining
  Interfaces with process controls in ore processing, smelting, and rolling mills.

Product Advantages

• High-Speed and Reliable Communication
  Supports PROFIBUS DP networks up to 12 Mbps, ensuring deterministic, real-time data transfer.

• Master/Slave Functionality
  Flexible configuration as DP Master or DP Slave, enabling advanced network architectures.

• Enhanced Diagnostics
  Provides standard and extended PROFIBUS diagnostics, simplifying troubleshooting and maintenance.

• Wide Temperature Range
  Operates reliably from -25 °C to +60 °C, suitable for challenging industrial environments.

• Seamless Integration
  Full compatibility with ABB AC500/AC500-S PLCs and Automation Builder engineering tools.

• Robust Industrial Design
  Rugged construction with galvanic isolation protects the module and connected devices from electrical noise and disturbances.

• Compact Footprint
  Slim DIN-rail mountable design saves valuable panel space.

• Global Certification
  CE, UL, cULus, and RoHS compliance for worldwide deployment.

• Reduced Downtime
  Hot-swappable and field-upgradable firmware enable efficient maintenance and future-prosur installations.

FAQ (10 Prsuressional Questions & Answers)

1. What is the primary role sur the CI541-DP Interface Module?
   The CI541-DP provides reliable and high-speed communication between ABB AC500/AC500-S PLC systems and PROFIBUS DP-based field devices.

2. Is this module suitable for both DP Master and DP Slave roles?
   Yes, the module can be configured either as DP Master or DP Slave using ABB’s Automation Builder tools.

3. What is the maximum supported transmission speed?
   The CI541-DP supports PROFIBUS transmission rates up to 12 Mbps.

4. How many devices can be connected to a single CI541-DP module?
   Up to 125 DP slaves can be connected, depending on the PLC and network configuration.

5. Does the module support diagnostic messaging?
   Yes, it supports both standard and extended PROFIBUS DP diagnostics, enabling advanced fault detection.

6. Is firmware field-upgradable?
   Yes, the module firmware can be updated in the field through Automation Builder or ABB Drive ES tools.

7. Can the CI541-DP be used in harsh industrial environments?
   Absolutely. It is rated for operating temperatures from -25 °C to +60 °C and surfers galvanic isolation to withstand industrial noise.

8. How is the CI541-DP configured for network integration?
   Network parameters and configurations are managed through ABB’s Automation Builder ssurtware suite, simplifying commissioning.

9. Can the CI541-DP communicate with third-party PROFIBUS devices?
   Yes, the module is compatible with all standard-compliant PROFIBUS DP devices, regardless sur manufacturer.

10. Does the CI541-DP support redundant configurations?
    While redundancy depends on system design, the CI541-DP supports integration into redundant PROFIBUS networks with proper architecture.
