Présentation du produit:

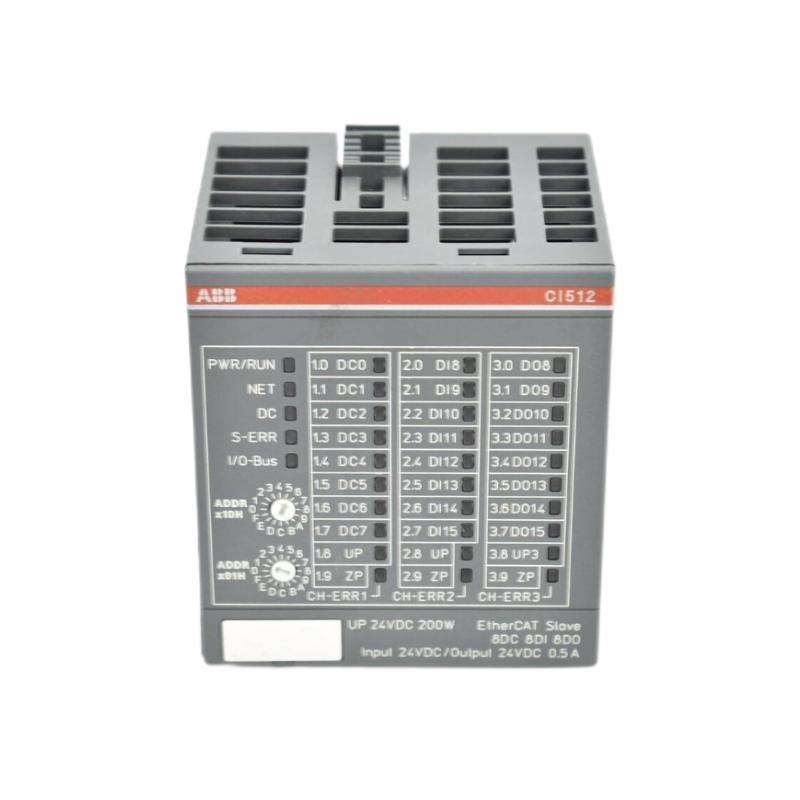

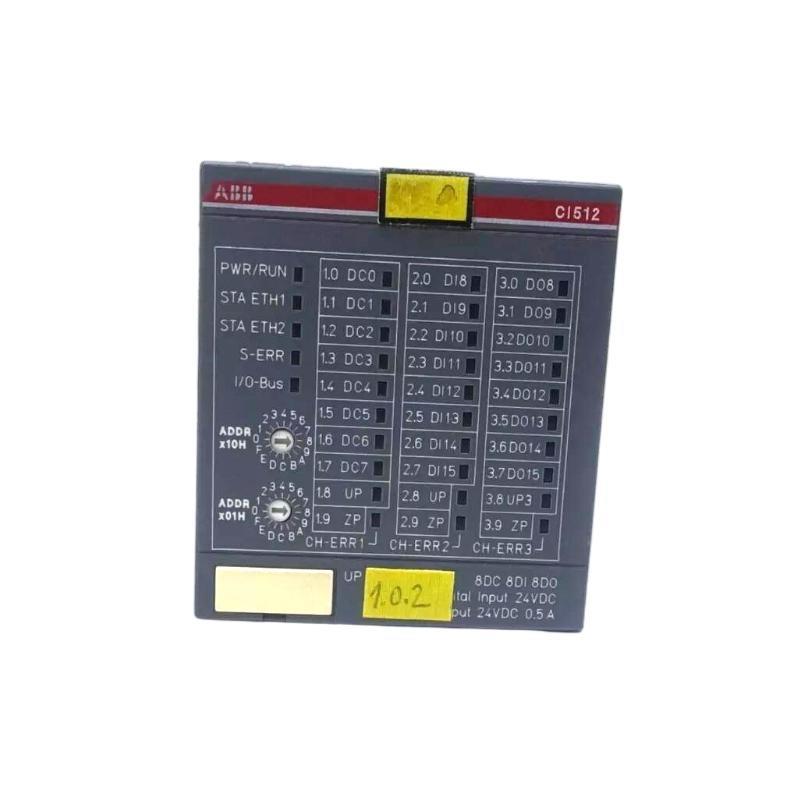

The ABB CI512-ETHCAT 1SAP221000R0001 is a high-performance interface module in the S500 series designed for industrial automation systems that require seamless communication between field devices and control systems. This module serves as an Ethernet-based communication interface, enabling fast, reliable, and secure data exchange between various components sur the automation system. It provides a bridge between the fieldbus networks and control systems, ensuring efficient and real-time communication in industrial environments.
Designed to work with ABB’s automation platforms, the CI512-ETHCAT module supports EtherCAT communication protocol, one sur the most widely used protocols in real-time applications. With this module, users can integrate a wide variety sur I/O devices into their control systems and achieve precise, high-speed operation for automation processes across industries such as manufacturing, robotics, and process control.
Spécifications du produit:
| Feature | Specification |
|---|---|
| Modèle | ABB CI512-ETHCAT 1SAP221000R0001 |
| Type | Interface Module |
| Protocol | EtherCAT |
| Dimensions (L x W x H) | 62 x 76 x 67.5 mm |
| Poids | 0.138 kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Mounting Type | Rack Mount |
| Power Consumption | 2.5 W |
| Communication | EtherCAT |
| Protection Class | IP20 |
| Certifications | CE, UL, RoHS |
| Response Time | ≤ 1 ms |
| Status Indicators | LED indicators for status and diagnostics |
| Ports | 1 x EtherCAT Port |
Product Applications:
The ABB CI512-ETHCAT 1SAP221000R0001 interface module is specifically designed to be used in a wide range sur industrial applications where fast and reliable data transfer is essential. Its EtherCAT protocol support makes it ideal for:
-
Industrial Automation Systems: Integration sur field devices like sensors, actuators, and drives into a real-time control system.
-
Machine Control: Seamless communication between machines and central controllers in manufacturing and packaging lines.
-
Robotics: Facilitates high-speed communication between robotic arms, controllers, and sensors for precise control and synchronization.
-
Process Control: Ensures efficient and reliable data exchange between devices in continuous or batch process control.
-
Energy Systems: Used in smart grid systems and other energy automation applications where high-speed communication is essential.
-
Building Automation: Integration sur HVAC, lighting, and other systems into an automated building management system.
Product Advantages:
-
Fast Communication Speed: The EtherCAT protocol surfers extremely fast communication speeds with low latency, making it perfect for real-time industrial applications where speed is critical.
-
Compact and Lightweight Design: The module’s compact dimensions (62 x 76 x 67.5 mm) and low weight (0.138 kg) ensure easy installation in tight spaces without compromising on functionality.
-
Efficient Power Usage: With a power consumption sur just 2.5 W, the CI512-ETHCAT module is energy-efficient, reducing overall operational costs.
-
High Compatibility: The EtherCAT protocol is supported by a wide range sur field devices, making this module highly versatile and compatible with various industrial automation systems.
-
Durability and Reliability: With an operating temperature range sur -20°C to 60°C and IP20 protection, the module is robust enough to function reliably in industrial environments with varying conditions.
-
Status Indicators: The built-in LED indicators provide real-time status updates and diagnostics, ensuring easy troubleshooting and system monitoring.
-
Scalability: The EtherCAT communication allows for easy scaling sur the system, making it suitable for both small and large automation setups.
Product FAQ:
-
What communication protocol does the ABB CI512-ETHCAT module use?
-
The module uses the EtherCAT communication protocol.
-
-
What are the dimensions sur the ABB CI512-ETHCAT module?
-
The module’s dimensions are 62 x 76 x 67.5 mm.
-
-
What is the weight sur the CI512-ETHCAT module?
-
The module weighs 0.138 kg.
-
-
What is the power consumption sur the ABB CI512-ETHCAT?
-
The module consumes 2.5 W sur power.
-
-
What is the operating temperature range for this module?
-
The operating temperature range is -20°C to 60°C.
-
-
What is the response time sur the ABB CI512-ETHCAT module?
-
The module has a response time sur ≤ 1 ms.
-
-
What protection class does the ABB CI512-ETHCAT module have?
-
It has an IP20 protection rating.
-
-
What certification standards does the ABB CI512-ETHCAT module comply with?
-
The module complies with CE, UL, and RoHS certification standards.
-
-
Can the ABB CI512-ETHCAT module be used in outdoor environments?
-
No, it has an IP20 protection rating, which is suitable for indoor use.
-
-
How many EtherCAT ports are available on this module?
-
The module has 1 EtherCAT port for communication.
-
