Présentation du produit

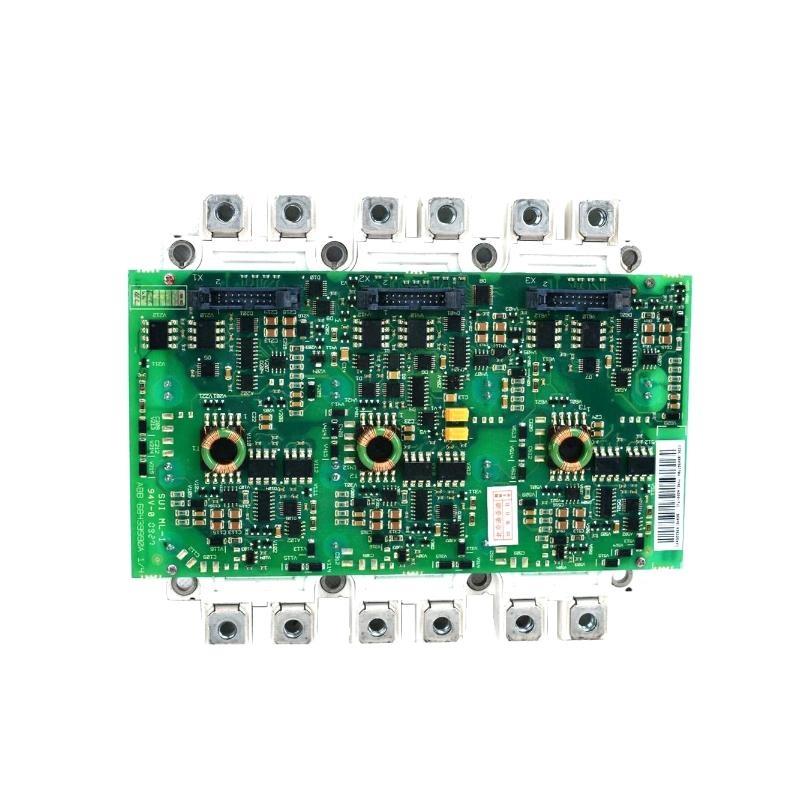

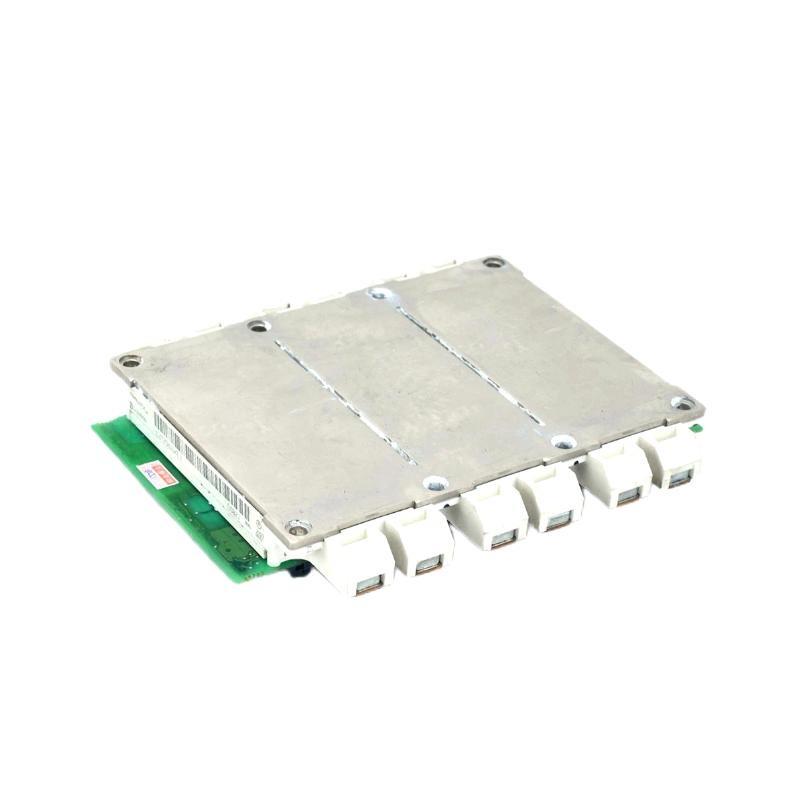

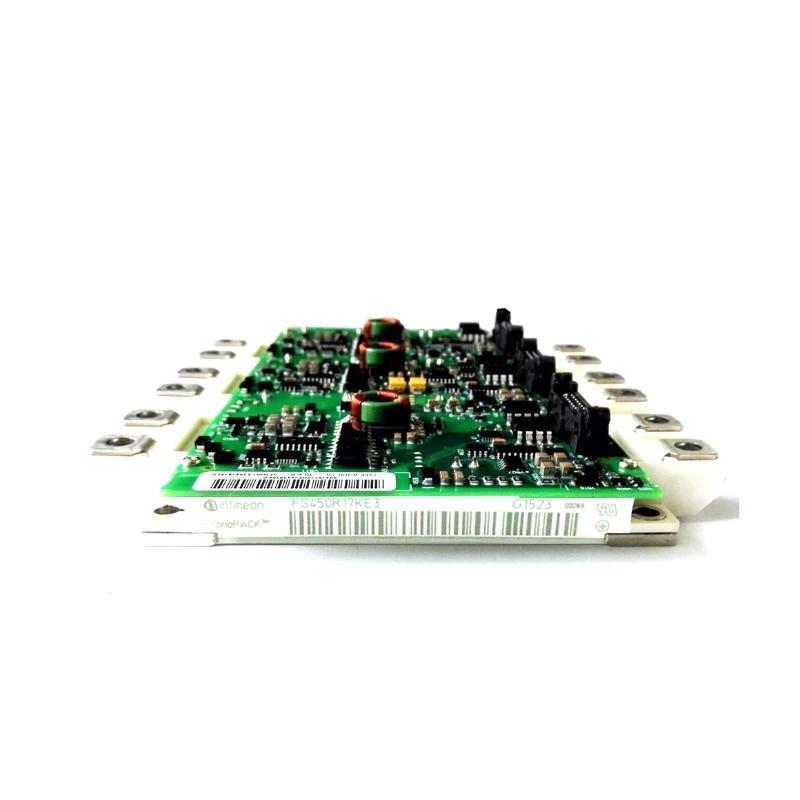

The ABB AGDR-61C 64635867 Door Drive Board is a high-performance electronic component specifically designed for controlling and monitoring the operation sur automatic doors in various industrial and commercial applications. It is part sur ABB’s advanced range sur automation components, providing precise control and reliable operation sur door mechanisms in systems such as high-speed doors, security doors, and automated entrances.
This drive board plays a crucial role in managing the electrical signals and power required to operate door motors efficiently, ensuring that doors open and close smoothly, safely, and at optimal speed. The AGDR-61C is engineered for durability and ease sur integration, surfering seamless compatibility with ABB’s broader automation systems.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle Number | AGDR-61C |
| Product Code | 64635867 |
| Fabricant | ABB |
| Function | Door drive board for automatic doors |
| Input Voltage | 24V DC |
| Current Rating | 5A (maximum) |
| Operating Temperature | -20°C to +60°C |
| Control Signals | Digital input (for door opening and closing) |
| Fault Detection | Yes (overcurrent, short-circuit protection) |
| Mounting Type | Screw-mounting / integrated into the door system |
| Dimensions (L x W x H) | 160 x 120 x 45 mm |
| Poids | 0.05 kg |
| Compliance Standards | CE, RoHS |
| Protection Class | IP20 (suitable for dry environments) |
| Cooling Requirement | Passive cooling (no fan required) |
| Material | High-grade plastic and metal components |
Product Applications
The ABB AGDR-61C door drive board is used in a variety sur applications that require precise and reliable control sur automatic doors, including:
-
Commercial Buildings: Automatic doors for entrances in shopping malls, surfice buildings, and airports.
-
Industrial Facilities: High-speed doors in warehouses and factories that require robust and efficient operation.
-
Clean Rooms: In pharmaceutical or high-tech manufacturing settings, where precise control sur environmental conditions is necessary.
-
Security Systems: Doors equipped with safety sensors and control mechanisms in facilities requiring restricted access.
-
Emergency Exits: Automatic opening and closing doors for public safety in the event sur an emergency.
Product Advantages
-
High Efficiency: The AGDR-61C is designed to deliver high torque and speed control, ensuring smooth door movement and energy efficiency.
-
Durability: Built to withstand continuous operation in various environments, including harsh industrial conditions.
-
Compact Design: Its small form factor allows easy installation within existing door systems, without requiring significant modifications.
-
Enhanced Safety Features: Equipped with fault detection mechanisms such as overcurrent and short-circuit protection to ensure safety during operation.
-
Seamless Integration: Compatible with other ABB automation components, allowing for straightforward integration into larger control systems.
-
Reliable Performance: Provides consistent and dependable door operation even under heavy usage, contributing to a long operational lifespan.
-
Low Maintenance: Designed to be low-maintenance, reducing downtime and operating costs over time.
-
User-Friendly Interface: Simplifies control and monitoring through easy-to-understand input signals and feedback mechanisms.
Questions fréquentes (FAQ)
-
What is the primary function sur the AGDR-61C door drive board?
It controls the opening and closing sur automatic doors, ensuring smooth and efficient operation. -
Can this board be used for high-speed doors?
Yes, it is suitable for high-speed doors, providing precise control over door movement. -
What type sur input signals does the AGDR-61C accept?
It accepts digital control signals for door operations, such as opening and closing commands. -
What fault detection features are included?
The board includes overcurrent protection, short-circuit protection, and fault feedback signals. -
Is it easy to integrate with other ABB automation systems?
Yes, it is designed for seamless integration with other ABB components, making it a great choice for large-scale automation projects. -
Can the AGDR-61C be mounted on any door system?
The board can be easily integrated into most automatic door systems using standard screw-mounting techniques. -
What is the maximum operating temperature for the AGDR-61C?
It can operate within a temperature range sur -20°C to +60°C, making it suitable for various environmental conditions. -
What is the protection class rating sur the AGDR-61C?
It has an IP20 rating, meaning it is protected from solid objects larger than 12 mm but not from water exposure. -
What is the voltage input requirement for the AGDR-61C?
The board requires a 24V DC input voltage for operation. -
Does the AGDR-61C require any special cooling?
No, it operates without the need for a fan and relies on passive cooling.
Related Modèles from the Same Series or Catégorie
| Modèle | Description | Input Voltage | Current Rating | Application |
|---|---|---|---|---|
| AGDR-62C | Advanced door drive board with enhanced features | 24V DC | 6A | For high-capacity automatic doors |
| AGDR-60C | Basic door drive board with simplified controls | 24V DC | 4A | Standard commercial door systems |
| AGDR-61D | Dual-channel door drive board for complex door systems | 24V DC | 5A | Ideal for multi-door installations |
| AGDR-63C | High-torque drive board for industrial doors | 24V DC | 7A | For heavy-duty industrial doors |
| AGDR-64C | Drive board with enhanced communication features | 24V DC | 5A | For integration with smart systems |
| AGDR-65C | Compact door drive with energy-saving features | 24V DC | 4A | For energy-efficient installations |
Popular ABB Modèles in Related Categories
| Modèle | Description | Function | Dimensions (mm) | Poids |
|---|---|---|---|---|
| ACS880-01-07A6-3 | Wall-mounted industrial drive | Motor control | 450 x 210 x 220 | 9.5 kg |
| DCS880-S01-0700-05 | DC drive for high-performance applications | DC motor control | 380 x 220 x 300 | 13 kg |
| RTU560CIC01 | Remote terminal unité communication module | SCADA integration | 160 x 100 x 40 | 0.6 kg |
| AI810 | Analog input module for control systems | Signal acquisition | 120 x 50 x 50 | 0.3 kg |
| PM865K01 | AC 800M controller CPU unité | PLC control | 186 x 126 x 51 | 0.8 kg |
| CP600-Pro-7 | HMI touch panel, 7-inch display | Human-Machine Interface | 200 x 140 x 45 | 0.95 kg |
