Product Overview

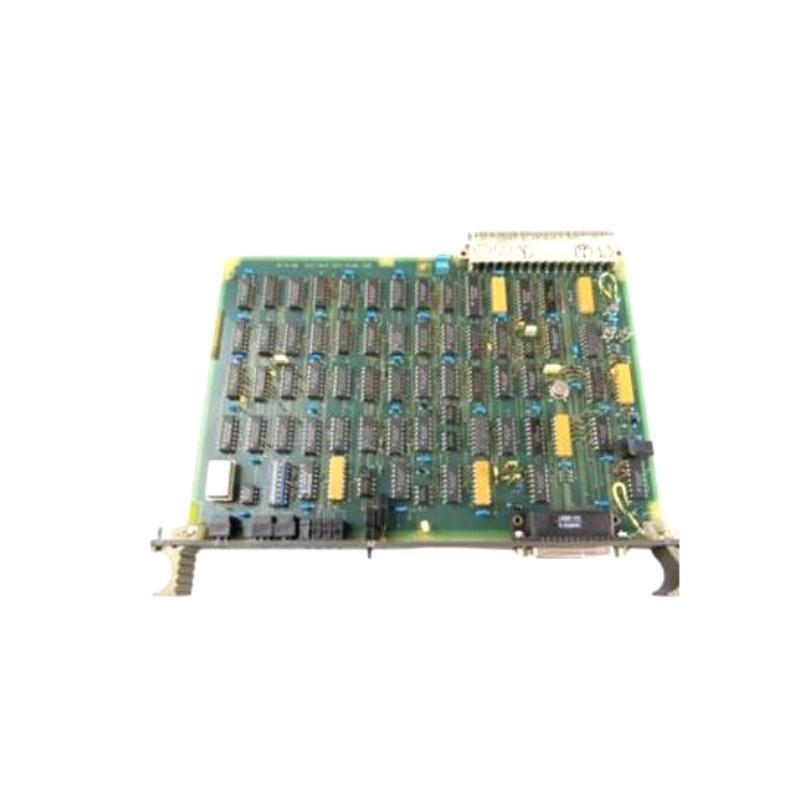

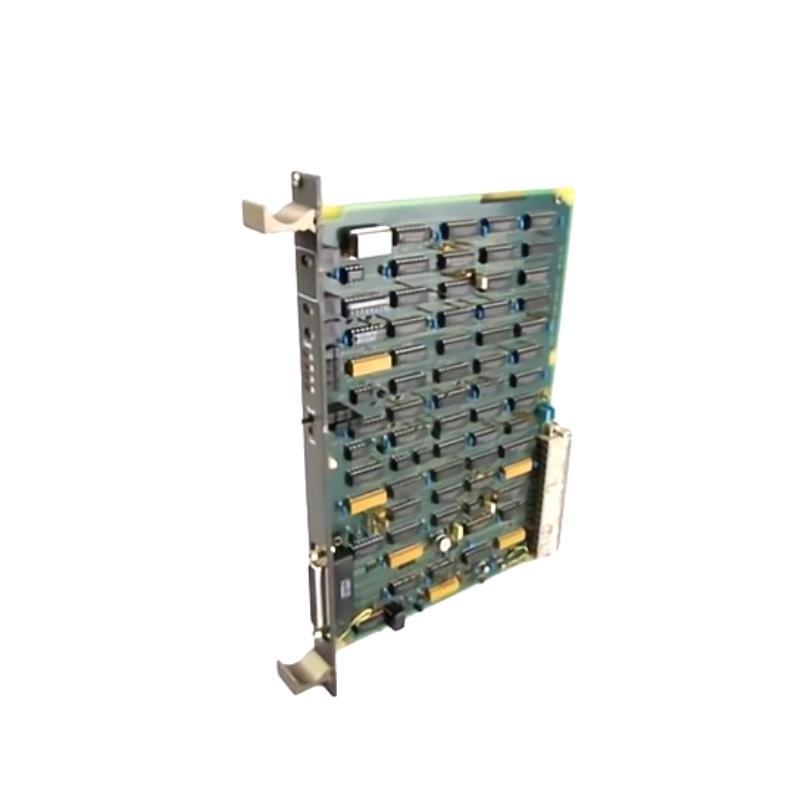

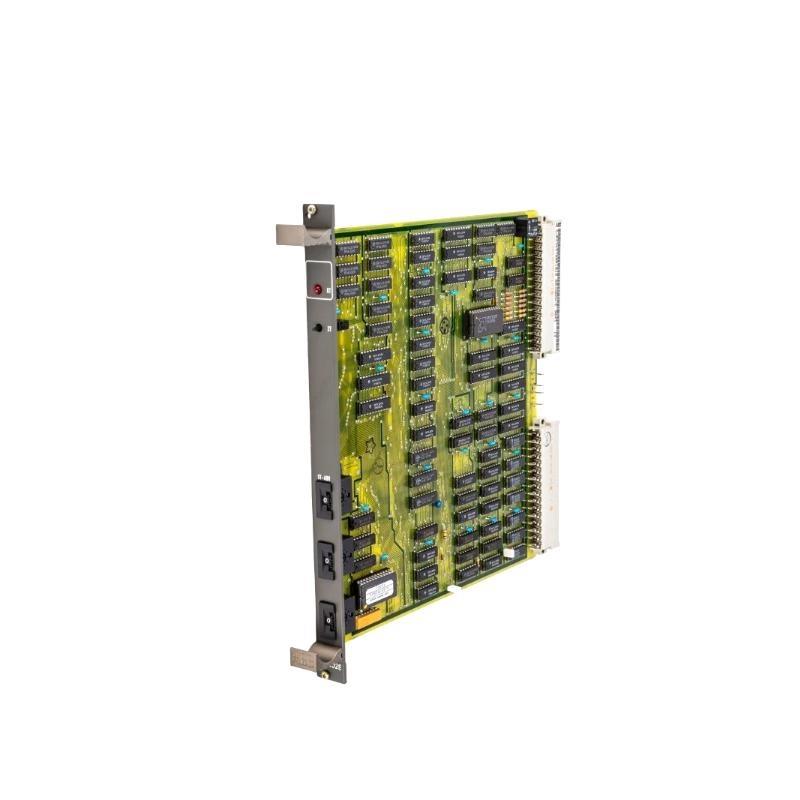

The ABB 88VA02A-E GJR2365700R1010 is a high-performance relay output module designed for integration within ABB’s Procontrol P14 automation system. This module provides reliable switching capabilities for various industrial applications, including motor control, solenoid operation, and lamp switching. Its robust design ensures dependable performance in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 88VA02A-E |
| Référence | GJR2365700R1010 |
| Series | Procontrol P14 |
| Product Type | Relay Output Module |
| Number sur Channels | 2 |
| Nominal Load Current | 8 A per channel |
| Input Voltage Range | 24 VDC to 250 VAC |
| Output Type | Form A (SPST) |
| Switching Power | 88 VA per channel |
| Contact Material | AgSnO |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | DIN rail mount |
| Dimensions (W x H x D) | 254 x 254 x 13 mm |
| Poids | 0.4 kg |
Applications
The ABB 88VA02A-E module is suitable for a wide range sur industrial control applications, including:
-
Motor Control: Managing the operation sur motors in pumps, fans, and conveyors.
-
Solenoid Control: Operating solenoids in valves and actuators.
-
Lamp Control: Controlling lamps in signaling and indication systems.
Its high switching capacity and wide input voltage range make it versatile for various industrial environments.
Advantages
-
High Switching Capacity: Capable sur switching loads up to 8 A per channel, accommodating a variety sur industrial devices.
-
Wide Input Voltage Range: Operates across a broad voltage spectrum (24 VDC to 250 VAC), ensuring compatibility with different power systems.
-
LED Status Indicators: Provides clear visual feedback on the status sur each relay output, facilitating monitoring and diagnostics.
-
Test Button: Allows manual operation sur the relay outputs for testing purposes, enhancing maintenance efficiency.
-
Protection Features: Equipped with safeguards against short circuits and overloads, promoting safe and reliable operation.
Questions fréquentes (FAQ)
-
What is the primary function sur the ABB 88VA02A-E module?
It serves as a relay output module for switching various loads in industrial control applications.
-
How many channels does this module have?
It features 2 independent relay channels.
-
What is the maximum load current per channel?
Each channel can handle up to 8 A.
-
What is the input voltage range?
The module operates within a range sur 24 VDC to 250 VAC.
-
What type sur output does it provide?
It surfers Form A (SPST) relay outputs.
-
Is there any indication for relay status?
Yes, it has LED indicators for each relay output.
-
Can the relays be tested manually?
Yes, the module includes a test button for manual operation.
-
What are the mounting options?
It is designed for DIN rail mounting.
-
What is the operating temperature range?
The module operates between -25°C and +55°C.
-
What protections are included?
The module is protected against short circuits and overloads.
Related Modèles in the Same Series
| Modèle | Référence | Description |
|---|---|---|
| 88VA01A-E | GJR23656R1010 | 8-channel relay output module |
| 88VA03A-E | GJR23658R1010 | Relay module with enhanced EMI protection |
| 88VA04A-E | GJR23659R1010 | Output module with isolated channels |
| 88VA05A-E | GJR23660R1010 | Industrial-grade relay output module |
| 88VA06A-E | GJR23661R1010 | Output module with extended voltage range |
| 88VA07A-E | GJR23662R1010 | Rugged relay output module for outdoor installations |
Popular ABB Control Modules
| Modèle | Référence | Description |
|---|---|---|
| 88VP02D-E | GJR2371100R1040 | Control module with solid-state relay output |
| 88VP02E | GJR2394100R1210 | Control module for Procontrol P14 system |
| 88VT02 | GJR2363900R1000 | Circuit board for ABB AC 800M control system |
| 88FN02E | GJR2370800R0100 | Advanced control board for industrial automation |
| 88VA02B-E | GJR2365700R1010 | 2-channel relay module with high switching capacity |
| 88VP02E | GJR2394100R1210 | Control module with PROCONTROL bus system |
