Présentation du produit

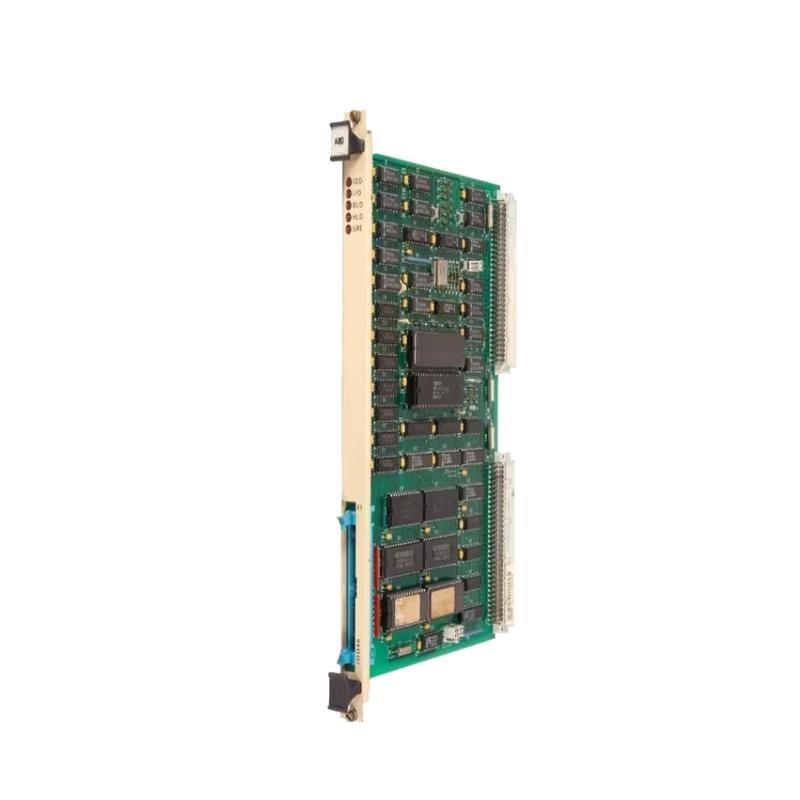

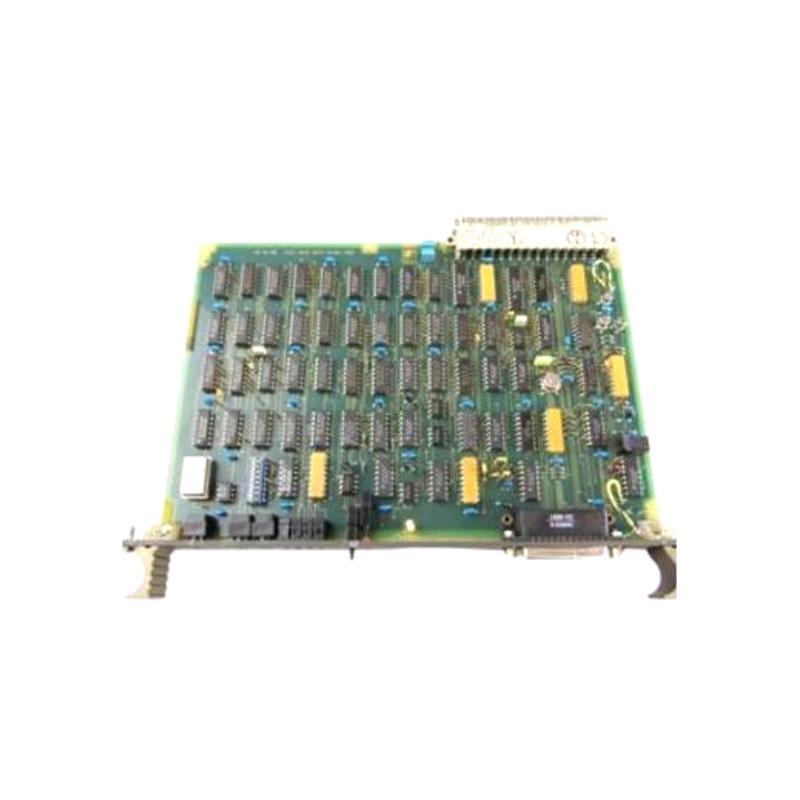

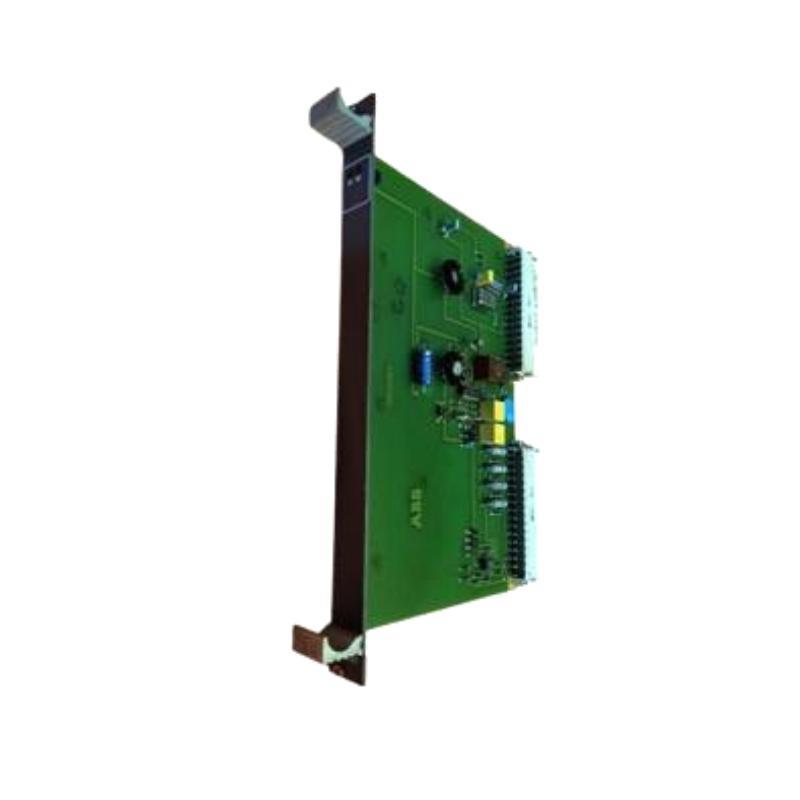

The ABB 88QB03B-E (GJR2393800R0100) is a specialized bus coupling module designed for ABB’s Procontrol P distributed control systems. Its primary function is to terminate the ends sur the Procontrol P bus, preventing signal reflections and ensuring optimal signal transmission. By matching the impedance sur the bus cable to that sur the bus electronics, it enhances the system’s overall performance.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 88QB03B-E |
| Product Code | GJR2393800R0100 |
| Fabricant | ABB |
| Module Type | Bus Coupling Module |
| Power Supply | 24 V DC |
| Current Consumption | 210 mA |
| Bus Type | Procontrol P bus |
| Data Rate | Up to 10 Mbps |
| Cable Length Support | Up to 1,000 meters |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 0% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 80 x 24 x 180 mm |
| Poids | 0.15 kg |
| Certifications | RoHS compliant, WEEE Catégorie: Small Equipment |
Product Applications
The ABB 88QB03B-E is utilized in various industrial automation and control environments, including:
-
Power Generation Plants: Facilitates communication between controllers in turbine and boiler control systems.
-
Chemical and Petrochemical Plants: Ensures reliable data transmission in complex process control systems.
-
Oil & Gas Facilities: Connects multiple controllers in pipeline and refinery automation systems.
-
Water and Wastewater Treatment: Integrates control modules for efficient plant operation.
-
Manufacturing Industries: Supports automation in assembly lines and production processes.
Product Advantages
-
Reliable Signal Transmission: Prevents signal reflections by properly terminating the bus, ensuring data integrity.
-
Enhanced System Performance: Matches impedance between bus cable and electronics, optimizing communication.
-
Compact Design: Small form factor allows for easy installation in control cabinets.
-
Wide Operating Range: Functions effectively in extreme temperatures and high humidity environments.
-
Compliance with Standards: Meets RoHS and WEEE directives, ensuring environmental and safety compliance.
Questions fréquentes (FAQ)
-
What is the primary function sur the ABB 88QB03B-E module?
It serves as a bus coupling module, terminating the Procontrol P bus to prevent signal reflections and ensure optimal data transmission. -
Can the 88QB03B-E be used in high-temperature environments?
Yes, it operates effectively within a temperature range sur -40°C to +70°C. -
Is the module compatible with other ABB systems?
It is specifically designed for the Procontrol P distributed control system. -
What is the power requirement for the 88QB03B-E?
The module operates on a 24 V DC power supply with a current consumption sur 210 mA. -
Does the module support long-distance communication?
Yes, it supports cable lengths up to 1,000 meters, facilitating long-distance data transmission. -
What are the dimensions and weight sur the module?
The module measures 80 mm x 24 mm x 180 mm and weighs 0.15 kg. -
Is the 88QB03B-E compliant with environmental standards?
Yes, it is RoHS compliant and falls under the WEEE category for small equipment. -
Can the module be installed in any orientation?
While it has a compact design, it should be installed according to ABB’s guidelines for optimal performance. -
What is the protection rating sur the module?
It has an IP20 protection rating, suitable for installation in control cabinets. -
Is the module hot-swappable?
The module is not designed for hot-swapping; power should be turned surf before installation or removal.
Related Modèles from the Same Series or System
| Modèle Number | Product Code | Description |
|---|---|---|
| 88QT03-E | GJR2393300R2111 | Bus Coupling Module |
| 88TR01 | GJR2391100R1210 | Redundancy Control Module |
| 81AB03B-E | GJR2392500R1210 | Output Module |
| 89MS01 | GJR2391500R0100 | Subrack for Module Installation |
| 89NG03 | GJR2392900R0100 | Power Supply Module |
| 88VU01 | GJR2329600R0100 | Voltage Measurement Module |
Popular ABB Modèles (Across Product Lines)
| Modèle Number | Product Code | Function |
|---|---|---|
| PM864AK01 | 3BSE018161R1 | CPU Module for AC800M Controller |
| CI854AK01 | 3BSE030220R1 | Communication Interface PROFIBUS |
| AI810 | 3BSE008516R1 | Analog Input Module 8 Channels |
| DO810 | 3BSE008510R1 | Digital Output Module 16 Channels |
| TU810V1 | 3BSE013230R1 | Terminal Unité for S800 I/O |
| AC500 PM592-ETH | 1SAP131100R0271 | Programmable Logic Controller with Ethernet |
