Présentation du produit:

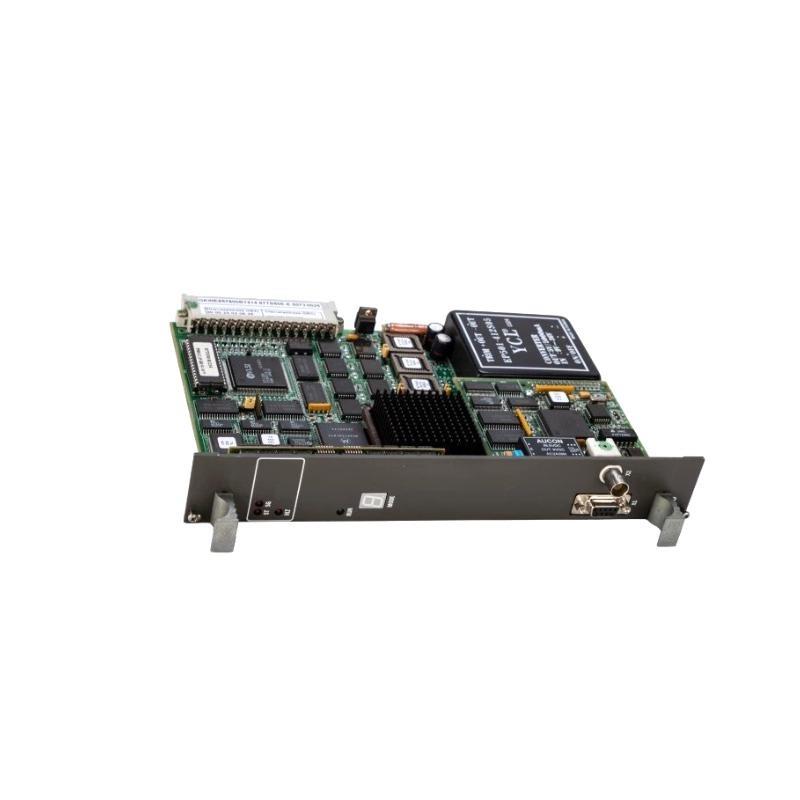

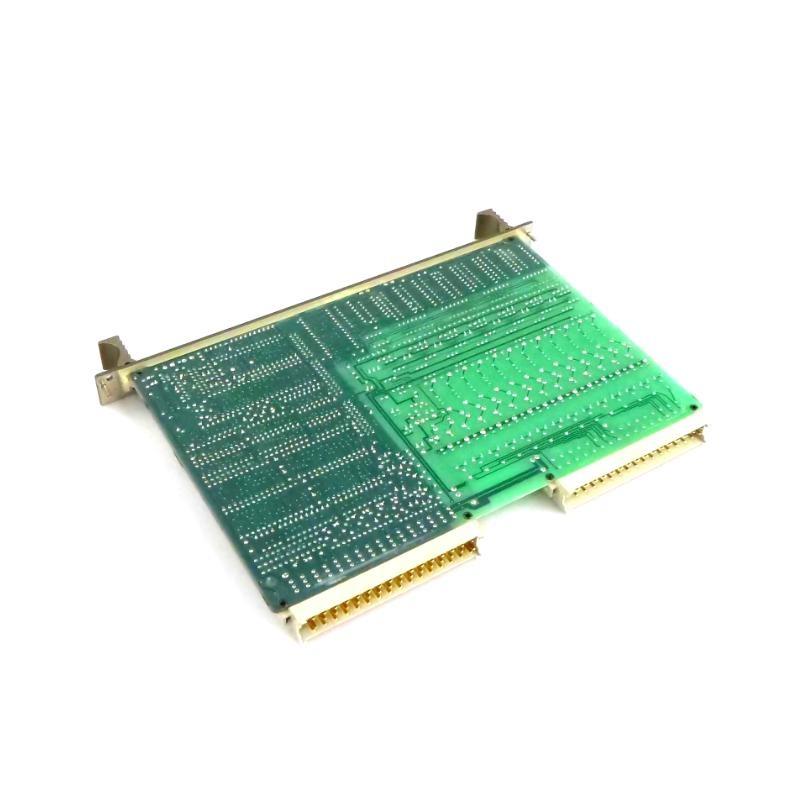

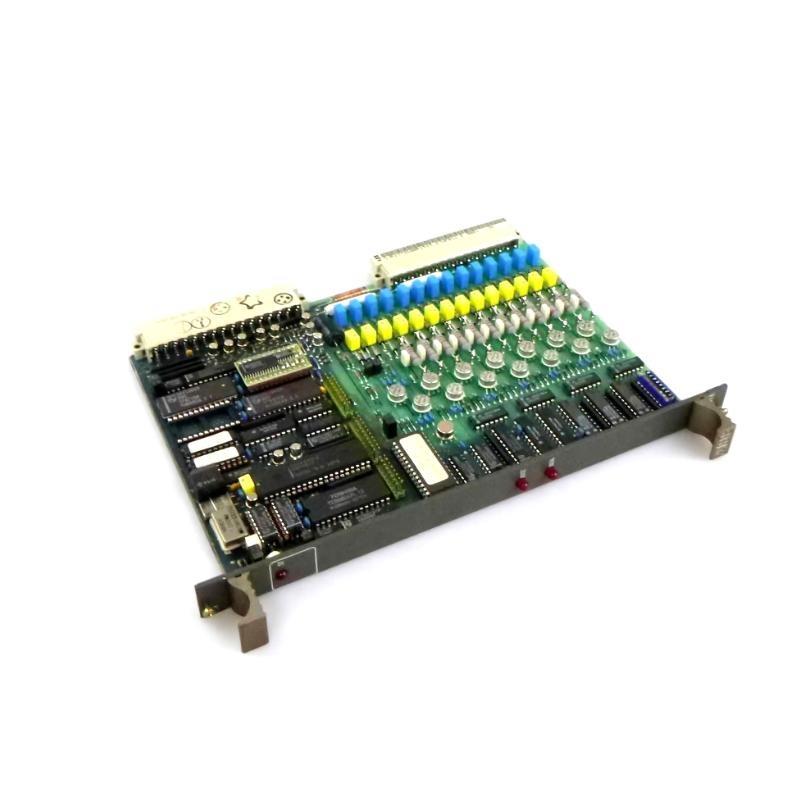

The ABB 87TS50 GKWE857800R1214 Communication Module is a high-performance communication interface module designed for robust data exchange in industrial automation environments. It is part sur ABB’s Symphony™/Harmony Control System architecture, where it plays a pivotal role in linking process control unités with supervisory systems or external devices.
Engineered for critical infrastructure such as power generation, process industries, and utility automation, the 87TS50 enables secure, high-speed communication with exceptional reliability. Whether used for SCADA integration, distributed control systems (DCS), or remote I/O data transfer, this module ensures dependable connectivity between intelligent devices and higher-level systems.
The module complies with stringent ABB industrial standards, providing support for various protocols and enabling real-time communication in even the most demanding applications.
Spécifications du produit:
| Parameter | Description |
|---|---|
| Modèle Number | 87TS50 |
| Order Code | GKWE857800R1214 |
| Fabricant | ABB |
| Product Type | Communication Module |
| Function | Network and I/O Communication Interface |
| Supported Protocols | Symphony™ Network Protocols, Harmony Bridge Communication, Serial/RS-232/485 |
| Baud Rate | Configurable; supports up to 115.2 kbps |
| Interface Type | Serial, Ethernet (depending on variant/config) |
| Power Supply | 24 VDC nominal, internally regulated |
| Mounting Type | Rack-mounted or DIN rail compatible |
| Redundancy Support | Yes (Hot standby or redundant link options) |
| Isolation | Optical and galvanic isolation for all interfaces |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% – 95% non-condensing |
| Dimensions (W × H × D) | 120 x 80 x 60 mm |
| Poids | 0.38 kg |
| Certifications | CE, RoHS, UL listed, IEC compliant |
| Diagnostics | Onboard status LEDs, internal self-check |
| Firmware Upgradeable | Yes (field-upgradable) |
| Hot Swappable | Yes |
Applications:
-
Power Generation Facilities – Interfaces field devices and control nodes with central SCADA/monitoring systems.
-
Substation Automation – Acts as a bridge for protocol conversion and real-time data transfer between IEDs.
-
Petrochemical Plants – Supports large-scale DCS communications across process areas.
-
Metals and Mining – Links plant-floor automation with enterprise monitoring infrastructure.
-
Water and Wastewater Treatment – Provides communication gateway for remote process control unités.
-
Chemical and Pharmaceutical Industries – Ensures reliable and redundant data transmission in validated processes.
Product Advantages:
-
Reliable Industrial Communication: Enables deterministic and secure communication in mission-critical systems.
-
Redundancy Capable: Supports dual communication paths or redundant systems for uninterrupted operation.
-
Protocol Versatility: Handles serial and ABB proprietary protocols with broad configuration options.
-
Isolation and Safety: Optical and galvanic isolation protects internal electronics from field disturbances.
-
Flexible Mounting: Can be installed in both rack and DIN environments for seamless system integration.
-
Diagnostic LEDs: Simplifies troubleshooting with visual indicators and internal self-checks.
-
Hot Swapping Support: Enables in-service replacement without halting system processes.
-
Extended Temperature and Humidity Range: Built for rugged industrial environments.
Questions fréquentes (FAQ):
-
What is the primary use sur the ABB 87TS50 module?
It functions as a communication interface for ABB Harmony and Symphony systems, facilitating real-time data exchange. -
Which protocols does the module support?
It supports serial protocols like RS-232/485 and ABB proprietary Symphony/Harmony protocols. -
Can the 87TS50 be used in redundant system configurations?
Yes, it is designed to support redundant communication paths for critical applications. -
Does the module support Ethernet?
Some configurations may include Ethernet; verify with the specific system integration requirements. -
Is the module hot-swappable?
Yes, it can be replaced while the system is running, minimizing downtime. -
How is the module powered?
It operates on a 24 VDC nominal supply with internal regulation. -
Is firmware upgrade possible in the field?
Yes, firmware upgrades can be performed in the field using ABB’s supported tools. -
What environments can the module operate in?
It supports operation from 0°C to +60°C with high humidity tolerance, suitable for industrial use. -
What type sur mounting does it support?
It is rack-mounted by default and can also be DIN rail mounted with appropriate hardware. -
Are there onboard diagnostics?
Yes, status LEDs and internal diagnostics help monitor health and performance.
Related Modèles from the Same Series or Family:
| Modèle | Description |
|---|---|
| 87TS51 GKWE857801R1214 | Advanced Redundant Communication Module |
| 87BT60 GJR2368900R0001 | Bus Terminal Communication Processor |
| 83SR50 GJR2392700R1210 | Analog Signal Transmission Interface |
| 81EU50-E GJR2391500R1210 | Power and Communication Backplane |
| 87AM51 GKWE857802R1214 | Alarm and Monitoring Communication Interface |
| 84SW51 GJR2393100R1210 | Ssurtware Configurable Communication and I/O Module |
Popular ABB Modules (Same Marque):
| Modèle | Description |
|---|---|
| CI854AK01 | Communication Interface Module for PROFIBUS DP |
| PM864AK01 | Central Processing Unité Module for AC 800M Controllers |
| AI810 | Analog Input Module, 8 Channels, S800 Series |
| DO810 | Digital Output Module, 16 Channels, S800 Series |
| REF615 | Feeder Protection and Control Relay with IEC 61850 support |
| RTU560 | Remote Terminal Unité for Substation Automation and Telemetry |
