Product Overview

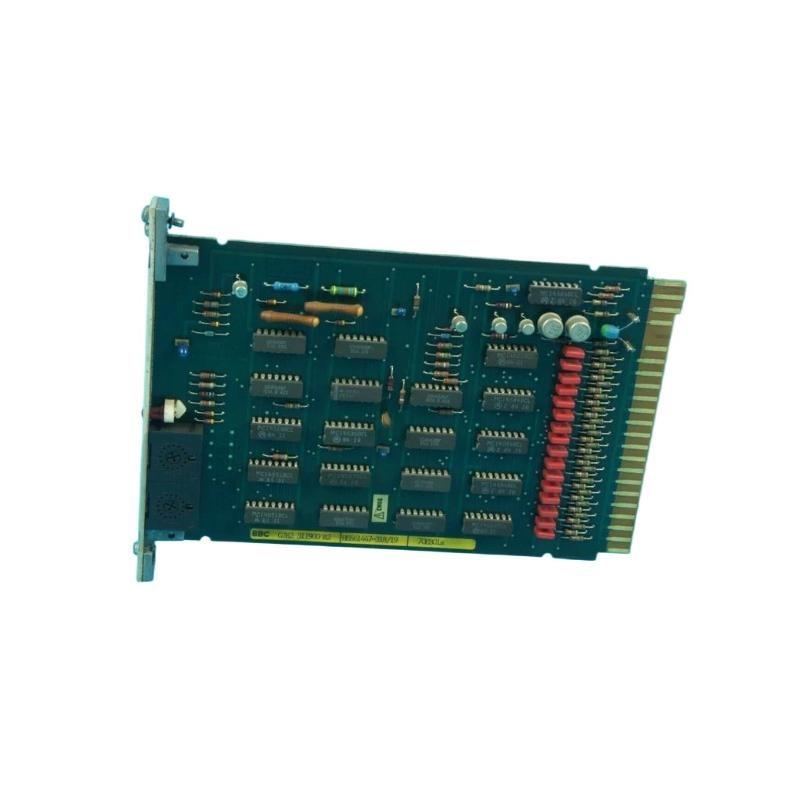

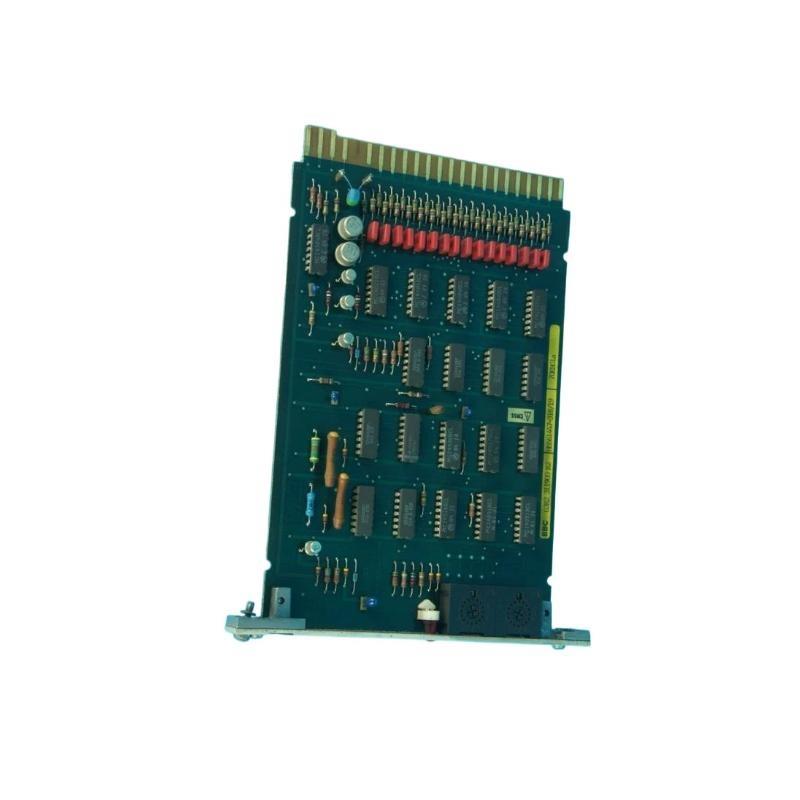

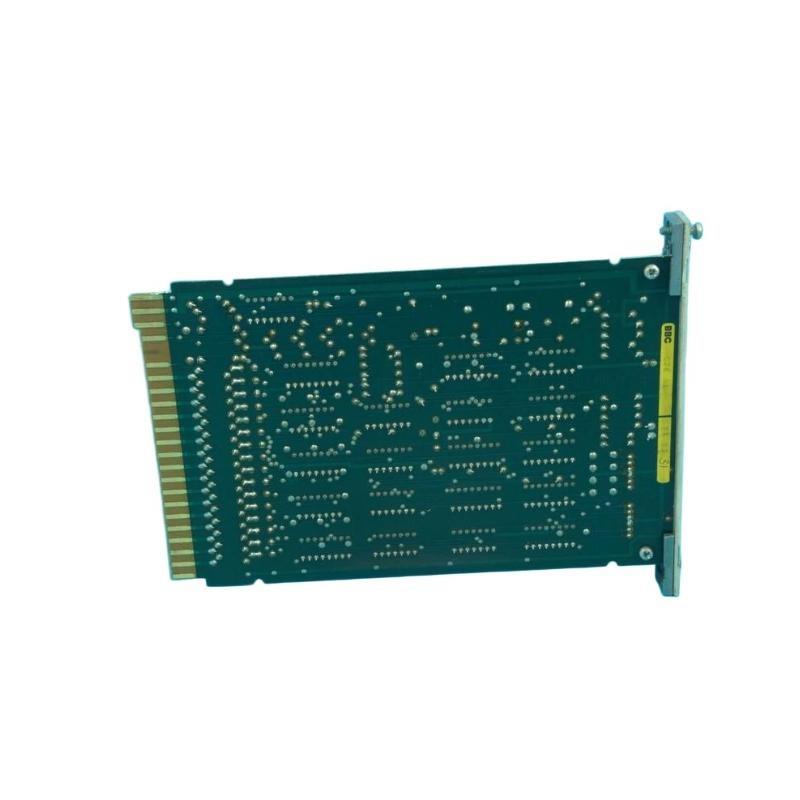

The ABB 70EB01a GJR2311900R2 Digital Input Module is a high-reliability industrial automation component designed for seamless integration into ABB’s Symphony Harmony series control systems. This module provides robust digital input acquisition capabilities, surfering fast and secure signal processing from field devices such as switches, sensors, and relays. Engineered to operate in demanding industrial environments, the 70EB01a ensures stable performance, minimal latency, and fault detection mechanisms that align with safety-critical systems.
The module’s compact footprint, durability, and compatibility with ABB’s legacy and current DCS (Distributed Control System) architectures make it a preferred solution across multiple industries, including oil & gas, energy, chemicals, and water treatment.
Key Features
-
16-channel digital input interface
-
Optically isolated input channels
-
Direct interfacing with field devices (dry or wet contacts)
-
Status indication LEDs per channel
-
Built-in diagnostics and fault monitoring
-
DIN rail or rack-mountable
-
Integration-ready for Symphony Harmony control systems
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Digital Input Module |
| Modèle Number | 70EB01a GJR2311900R2 |
| Number sur Input Channels | 16 |
| Input Voltage Range | 24 VDC (nominal), supports 18–30 VDC |
| Input Signal Type | Dry Contact / Wet Contact |
| Input Current | ≤ 8 mA per channel |
| Isolation | Optical isolation between channels and logic |
| Status Indicators | Individual LEDs for each input channel |
| Input Delay (Filter Time) | Configurable; typically 2–10 ms |
| Diagnostic Functions | Line monitoring, open/short circuit detection |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Consumption | Approx. 3.5 W |
| Mounting | DIN rail or system rack |
| Communication Interface | Compatible with Symphony Harmony systems |
| Dimensions | 104 × 145 × 186 mm |
| Poids | 0.9 kg |
| Certification | CE, RoHS, UL compliant |
Industry Applications
The ABB 70EB01a Digital Input Module is widely used in industrial automation applications where reliable signal acquisition from binary devices is essential. Its primary use cases include:
-
Power Generation & Distribution: Monitoring sur switchgear, circuit breaker statuses, and alarm contacts.
-
Oil & Gas Processing: Input monitoring from field switches and emergency shutdown systems (ESD).
-
Chemical & Petrochemical Plants: Integration with interlocks, process safety switches, and local operator panels.
-
Water & Wastewater Management: Status acquisition from level switches, flow control actuators, and pump control signals.
-
Manufacturing Automation: Monitoring sur limit switches, safety mats, and interlocking systems on production lines.
-
Transportation Infrastructure: Tunnel ventilation systems, railway interlocks, and airport runway systems.
Product Advantages
-
High Reliability: Designed to function reliably in harsh and high-noise industrial environments.
-
Long-Term Compatibility: Fully compatible with ABB Symphony Harmony systems for both new and existing installations.
-
Signal Integrity: Optical isolation and configurable debounce filters reduce false readings and electrical interference.
-
Compact Form Factor: Enregistrers space in control cabinets without compromising channel count or performance.
-
Efficient Diagnostics: In-built diagnostic tools help in rapid fault identification and troubleshooting.
-
Energy Efficient: Low power consumption reduces overall system power load.
-
Safety-Oriented Design: Supports monitoring for safety-critical digital inputs.
-
Modular Architecture: Enables flexible system design and easy maintenance.
Questions fréquentes (FAQ)
-
Q: What types sur digital signals does the 70EB01a support?
A: It supports both dry contact and wet contact (24 VDC) signals. -
Q: Is the 70EB01a hot-swappable?
A: It depends on system configuration. Generally, hot-swapping is supported if the backplane and system ssurtware allow it. -
Q: Can I use the module in safety-critical applications?
A: Yes, the module includes diagnostic features suitable for SIL-rated systems when used appropriately. -
Q: Does the module support LED status indication?
A: Yes, each input channel is equipped with an individual status LED. -
Q: Is the module programmable or configurable?
A: Input filtering and diagnostic settings can be configured through the control system. -
Q: What is the maximum cable length for input devices?
A: Typically up to 500 meters for shielded cables, depending on installation standards. -
Q: Does it require an external power supply?
A: The input signals are powered externally; the module itself draws power from the rack/system bus. -
Q: Is it compatible with ABB’s 800xA system?
A: Direct integration is for Symphony Harmony, but interoperability may be achieved via gateways. -
Q: What safety or compliance certifications does it have?
A: It meets CE, RoHS, and UL requirements for industrial automation equipment. -
Q: How do I check if a channel is faulty?
A: The system diagnostics will report faults via system alarms; faulty channels may also be indicated by LEDs.
Related or Compatible Modèles
| Modèle Number | Description |
|---|---|
| ABB 70EI01C GJR2391500R1210 | Digital Input Module, 16 Channels |
| ABB 70AB03B GJR2368900R2100 | Analog Output Module |
| ABB 70AI01C GJR2368900R4100 | Analog Input Module |
| ABB 81EU01E-E GJR2391500R1210 | Digital Output Module |
| ABB 70EB02 GJR2365500R1100 | Digital Input Module, 32 Channels |
| ABB INFI 90 BAILEY 70EA01 | Digital Input Module for INFI 90 Systems |
