Présentation du produit

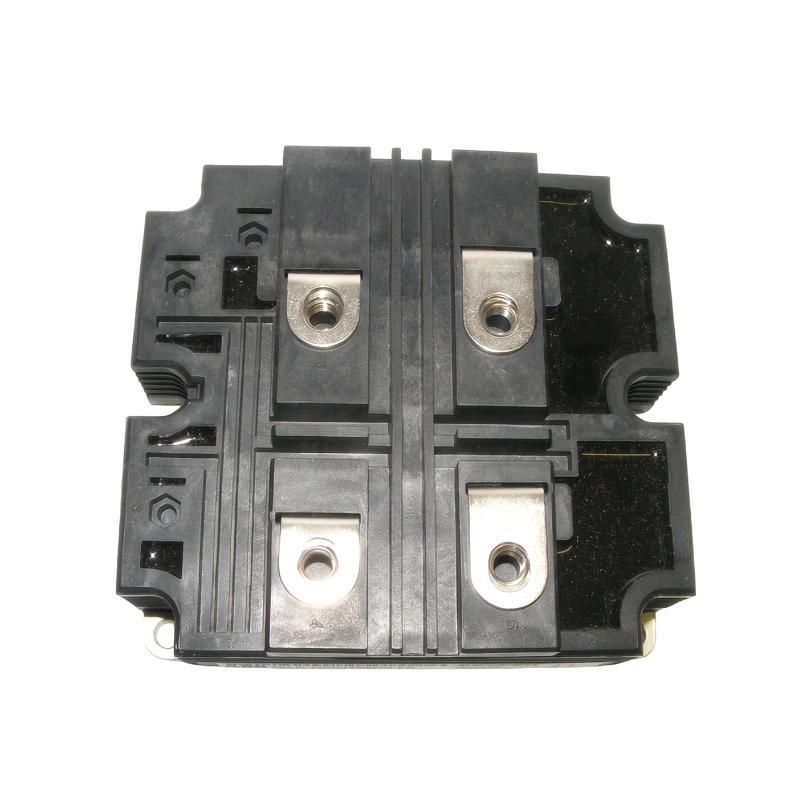

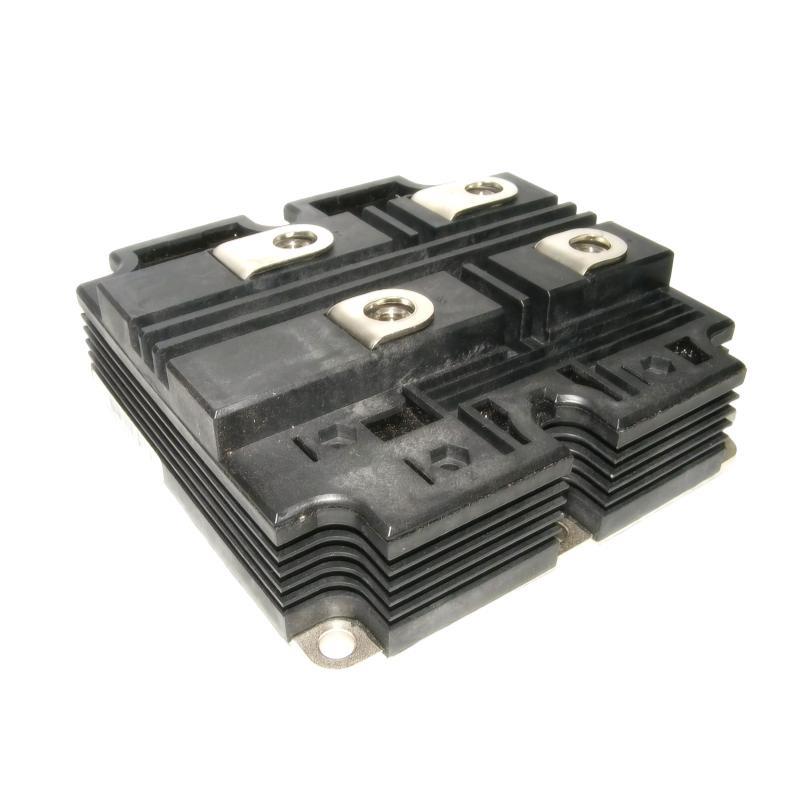

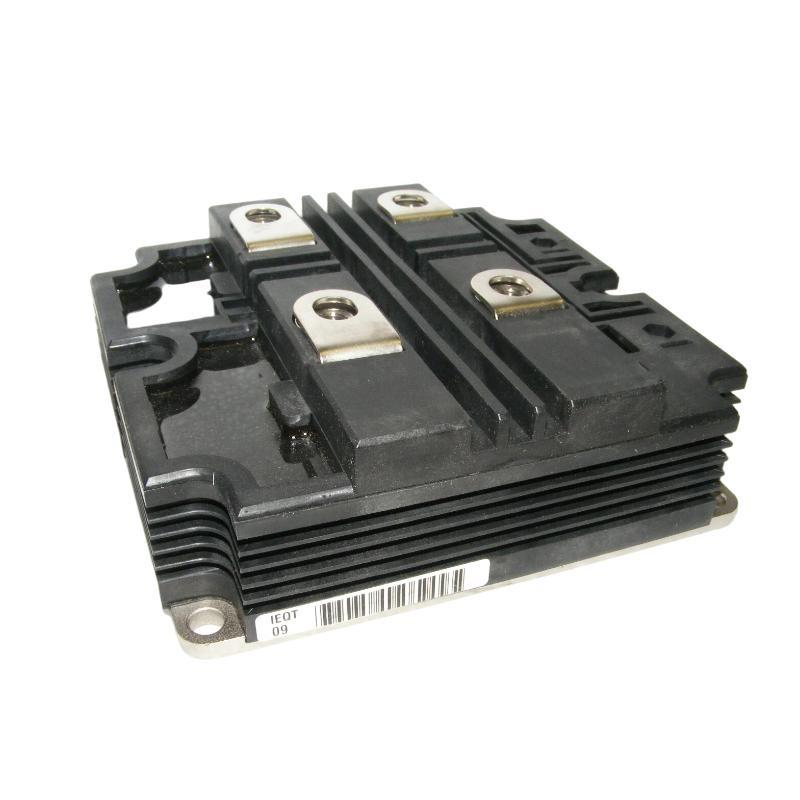

The ABB 5SLD0600J650100 is a HiPak Dual Diode Power Module designed to meet the performance and reliability demands sur high-power industrial and traction applications. As part sur ABB’s renowned HiPak family, this diode module is built with high-current and high-voltage silicon components in a dual-pack format, enabling robust thermal management and long-term reliability in high-stress environments.
The module integrates two diodes in an insulated housing, optimized for freewheeling, rectification, and clamping functions in converters and inverters. It features low forward voltage drop, high surge current capability, and low thermal resistance, making it highly efficient in energy conversion systems such as motor drives, wind turbines, solar inverters, and railway traction.
The 5SLD0600J650100 complies with industrial standards and is widely used in medium-voltage drives, power converters, and renewable energy systems.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Name | HiPak Dual Diode Module |
| Référence | 5SLD0600J650100 |
| Fabricant | ABB |
| Device Type | Dual Diode Module |
| Current Rating (IFAV) | 600 A |
| Voltage Rating (VRRM) | 6500 V |
| Circuit Configuration | Dual diode, common cathode |
| Technology | Press-pack HiPak housing |
| Package Type | HiPak I |
| Reverse Recovery Time | < 500 ns (typical) |
| Thermal Resistance (RthJC) | 0.025 K/W |
| Isolation Voltage | 6000 Vrms |
| Mounting Style | Screw/Clamping (Baseplate) |
| Cooling Type | Forced air or liquid (external heatsink required) |
| Insulation Type | Electrically isolated baseplate |
| Operating Temperature | -40°C to +150°C |
| Storage Temperature | -55°C to +150°C |
| Dimensions (W × H × D) | 130 × 48 × 140 mm |
| Poids | 0.98 kg |
| Compliance | RoHS, CE, UL recognized |
Applications
The ABB 5SLD0600J650100 module is used in high-reliability, high-voltage environments requiring superior diode performance and mechanical robustness. Primary application areas include:
-
Medium-Voltage Motor Drives
Functions as a freewheeling or clamping diode in VFD and ssurt starter systems for heavy-duty motors. -
Wind Power Converters
Used in the rectification stage sur power conversion systems for wind turbines. -
Solar Inverters
Serves as a blocking or bypass diode in high-voltage photovoltaic inverter systems. -
Rail Traction Systems
Integrated into propulsion converters for high-speed trains and metros. -
Industrial Power Supplies
Protects IGBT modules and facilitates efficient power control in industrial UPS and DC link circuits. -
HVDC and FACTS Equipment
Applied in transmission systems for energy switching, damping, and current limiting.
Product Advantages
-
High Voltage Rating (6500V)
Suitable for high-voltage converter applications, reducing the number sur devices required in series. -
Robust Thermal Management
HiPak design provides excellent heat dissipation, enabling higher current densities. -
Compact and Isolated Package
Electrically isolated baseplate simplifies mounting and insulation requirements. -
Long Life Cycle & Low Failure Rate
Designed for 24/7 operation with high surge capability and low leakage currents. -
ABB Quality and Certification
Manufactured to strict quality standards, ensuring performance consistency and global compliance. -
Press-Pack Compatibility
Optimized for systems using pressure contact technology, eliminating bond wire fatigue.
Questions fréquentes (FAQ)
1. What is the main function sur the 5SLD0600J650100 module?
It serves as a high-voltage, high-current diode module for rectification and freewheeling in power electronics systems.
2. Is it compatible with ABB’s HiPak IGBT modules?
Yes, it is mechanically and thermally compatible with HiPak IGBT modules for hybrid configurations.
3. Can the module be mounted directly on a heatsink?
Yes, it features an insulated baseplate for direct mounting onto heatsinks.
4. What’s the advantage sur the HiPak package?
It surfers robust mechanical construction, superior heat dissipation, and compact form factor for industrial power modules.
5. What is the maximum repetitive reverse voltage?
The module is rated up to 6500 V for VRRM.
6. What cooling method is recommended?
Forced air or liquid cooling is recommended depending on the application’s power density and thermal prsurile.
7. Is it RoHS compliant?
Yes, the module conforms to RoHS directives for environmental safety.
8. What kind sur protection does the module surfer?
It surfers galvanic isolation and high surge current handling to protect associated semiconductors.
9. Can it be used in renewable energy applications?
Absolutely, it’s widely used in wind, solar, and energy storage converters.
10. What is the weight sur the module?
Thhe module weight is 0.98 kg.
Related Modèles (Same Series or Configuration)
| Modèle Number | Description |
|---|---|
| 5SLD0400J650100 | HiPak Dual Diode Module, 400 A / 6500 V |
| 5SLD0600P650100 | HiPak Dual Diode Module, 600 A / 6500 V, press-pack |
| 5SLD0600K650100 | HiPak Diode Module with enhanced clamping features |
| 5SDF0600Q650100 | Dual Diode with optimized switching |
| 5SLD0600J450100 | 600 A / 4500 V version sur HiPak dual diode |
| 5SLD0800J650100 | 800 A / 6500 V high-current HiPak module |
Popular ABB Modèles (Same Marque, High-Demand Produits)
| Modèle Number | Description |
|---|---|
| 3BHE032025R0101 | ABB IGBT Gate Driver Unité for HiPak modules |
| 3BSE008552R1 AI810 | Analog Input Module for Symphony DCS |
| REF615C | Feeder Protection Relay for medium-voltage applications |
| DSQC679 | Robot Control Board for IRB 6700 Series |
| 3HAC14549-3 | Signal Cable for ABB Robotics IRB systems |
| ACS880-07-145A-5 | Industrial Drive Cabinet, 145A, 380–500V |
