Product Overview

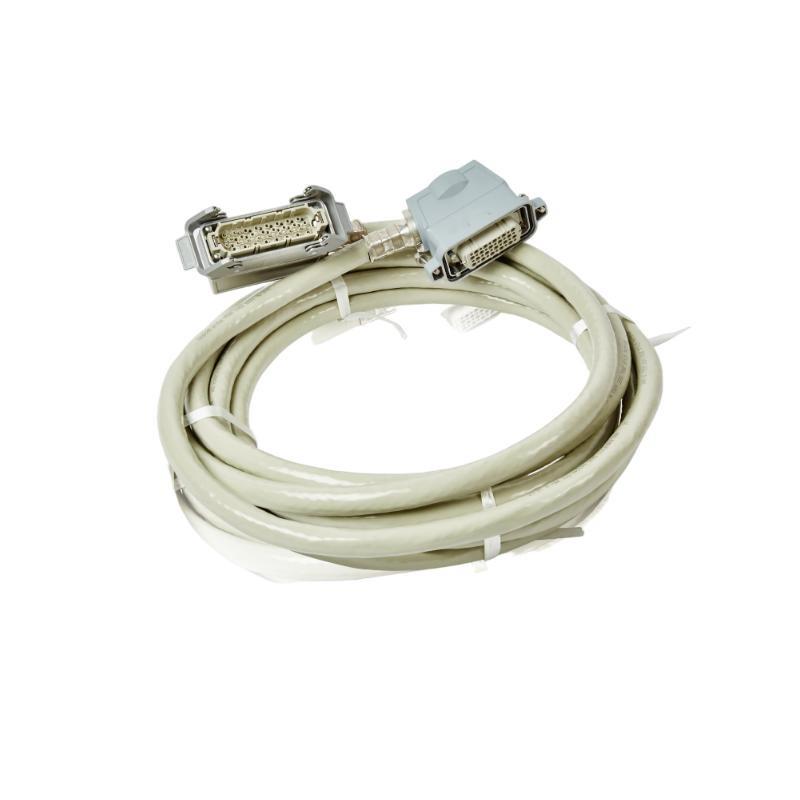

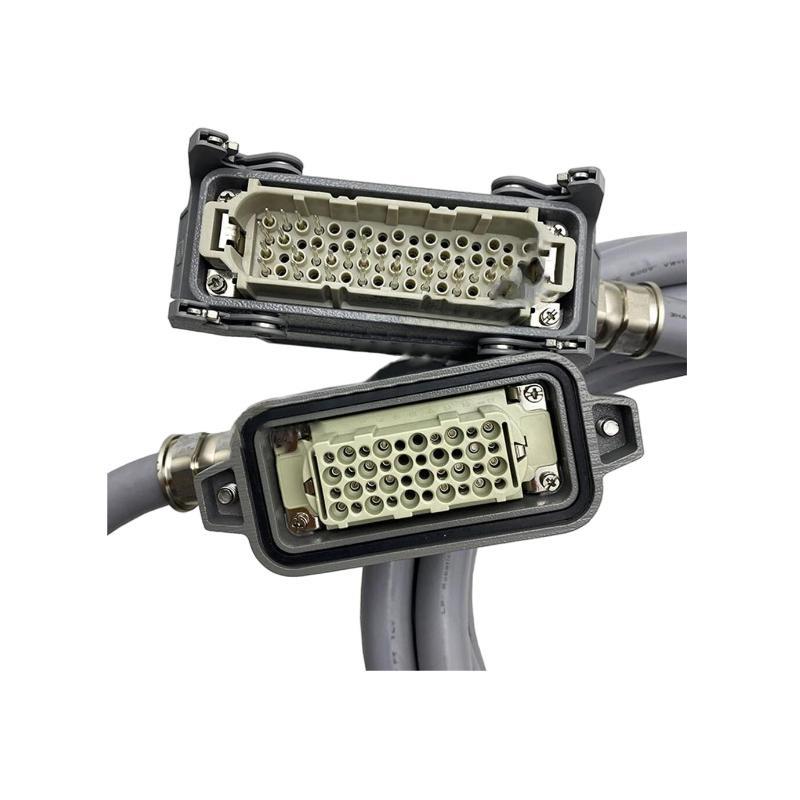

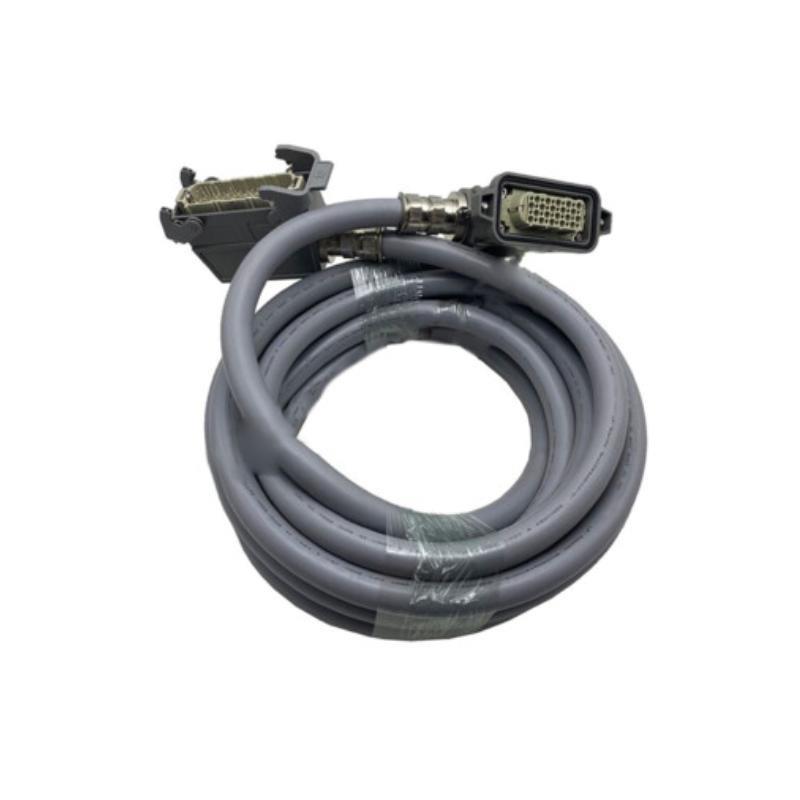

The ABB 3HAC9038-001 control power cable is designed for industrial power transmission, surfering reliable performance in automation systems, control panels, and critical electrical installations. This high-quality cable is engineered to deliver stable and efficient power supply for a wide range sur applications, ensuring the optimal functioning sur control equipment, motors, and safety systems.
With an impressive 7-meter cable length and weighing 7.665 kg, this power cable is robust yet flexible enough to meet the needs sur various industrial sectors. Its durable construction features excellent resistance to wear, heat, and chemical exposure, making it ideal for harsh environments. The cable also meets international safety and environmental standards, ensuring that it performs optimally in a variety sur industrial control and power distribution systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | 3HAC9038-001 |
| Marque | ABB |
| Cable Type | Control Power Cable |
| Cable Length | 7 meters |
| Poids | 7.665 kg |
| Voltage Rating | 600V |
| Current Rating | 25 A |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Conductor Material | Copper (Stranded) |
| Conductor Size | 2.5 mm² |
| Temperature Range | -30°C to +70°C |
| Fire Resistance | UL 94 V-0 (Flame Retardant) |
| Color Code | Blue/Black |
| Shielding | Unshielded |
| Use | Industrial Automation, Electrical Panels |
| Certifications | CE, RoHS, UL |
| Dimensions (L × W × H) | Cable length: 7 meters, Poids: 7.665 kg |
Applications
-
Industrial Automation
The 3HAC9038-001 cable is primarily used in industrial automation systems, providing power to PLCs, sensors, and control equipment that manage critical manufacturing processes. -
Power Distribution
This cable is ideal for electrical installations, ensuring stable and efficient power distribution between control panels, circuit breakers, and other power control devices. -
Control Systems
Used to power control systems in manufacturing plants, power generation facilities, and other high-demand industrial settings where continuous, reliable power is crucial. -
Safety Systems
This cable plays a vital role in safety control systems, transmitting power to safety relays, emergency shutdown systems, and other critical monitoring devices. -
Robotics and Automation
It supports power transmission to robotic systems, conveyor belts, and other automated machinery in production lines, ensuring high performance and reliability. -
Mining and Oil & Gas
Given its durability, this cable is also suitable for harsh environments, including mining operations and oil & gas industries, where rugged and reliable power connections are necessary.
Advantages
-
Durable and Long-lasting
The high-quality PVC insulation ensures long-term durability, resistance to abrasion, and protection against environmental factors such as moisture, chemicals, and oils. -
Flexible Design
Despite its robust construction, this cable remains highly flexible, allowing for easy installation and management in confined spaces. -
Wide Temperature Range
The cable operates effectively across a wide temperature range sur -30°C to +70°C, making it suitable for use in extreme environments, from freezing cold to high heat. -
High Current Capacity
With a current rating sur 25A, the cable is capable sur handling demanding power transmission applications in various industries. -
Flame Retardant
The cable complies with UL 94 V-0 flame retardant standards, ensuring safety in environments where fire resistance is a priority. -
Versatile Applications
It can be used across a wide range sur industries, from manufacturing and automation to energy and infrastructure, providing stable and reliable power.
FAQs
Q1: What is the primary function sur the ABB 3HAC9038-001 control power cable?
A1: The ABB 3HAC9038-001 cable is designed for power transmission to control systems, electrical panels, automation equipment, and safety systems in industrial environments.
Q2: What is the cable’s voltage rating?
A2: The cable is rated for 600V, making it suitable for use in a wide variety sur industrial power and control applications.
Q3: How long is the cable?
A3: The cable is 7 meters in length, providing ample reach for industrial installations.
Q4: What is the current rating sur this cable?
A4: The cable can support a current sur up to 25A.
Q5: What insulation material is used in this cable?
A5: The cable features PVC (Polyvinyl Chloride) insulation, which surfers excellent resistance to mechanical wear, chemicals, and temperature extremes.
Q6: Can this cable be used in outdoor environments?
A6: While it is durable, the cable has an IP20 rating, meaning it is not designed for direct outdoor use without additional protective housing.
Q7: What is the temperature range for this cable?
A7: The cable operates efficiently within a temperature range sur -30°C to +70°C.
Q8: Is the ABB 3HAC9038-001 cable flexible?
A8: Yes, the cable is designed to be flexible, allowing for easier installation in tight or complex spaces.
Q9: Does this cable have flame-resistant properties?
A9: Yes, the cable meets UL 94 V-0 flame retardant standards, ensuring it is safe for use in environments with fire risks.
Q10: What are the typical applications for this cable?
A10: The cable is widely used in industrial automation, power distribution, control systems, robotics, and safety systems, among other critical applications.
Related Modèles (Same Series or Function)
| Modèle | Description | Cable Length | Poids | Voltage Rating | Current Rating |
|---|---|---|---|---|---|
| 3HAC9038-002 | Flexible control power cable with higher current capacity | 10 m | 9.2 kg | 600V | 30 A |
| 3HAC9038-003 | High-temperature resistant power cable | 5 m | 5.5 kg | 600V | 20 A |
| 3HAC9038-004 | Heavy-duty power cable for industrial machinery | 12 m | 11 kg | 600V | 40 A |
| 3HAC9038-005 | Flame-resistant industrial control cable | 7 m | 7.7 kg | 600V | 25 A |
| 3HAC9038-006 | Long-range power cable for automation systems | 15 m | 14.3 kg | 600V | 35 A |
| 3HAC9038-007 | Control cable for robotics and conveyor systems | 8 m | 8 kg | 600V | 28 A |
Popular ABB Modules (Same Marque)
| Modèle | Description | Dimensions (mm) |
|---|---|---|
| MP1-7016 | Multi-purpose controller, 16-channel, analog/digital I/O | 130 x 100 x 50 |
| MPM810 | Power management module, multi-phase, high-efficiency operation | 120 x 80 x 45 |
| MPOT-01 | Temperature sensor module, 4-channel, high-accuracy | 120 x 80 x 45 |
| MP1-7017 | Multi-purpose controller, 16-channel, extended diagnostics | 130 x 100 x 50 |
| MPM811 | Power management module, multi-phase, with fault detection | 120 x 80 x 45 |
| MPOT-02 | Temperature sensor module, 8-channel, extended temperature range | 120 x 80 x 45 |
