Présentation du produit

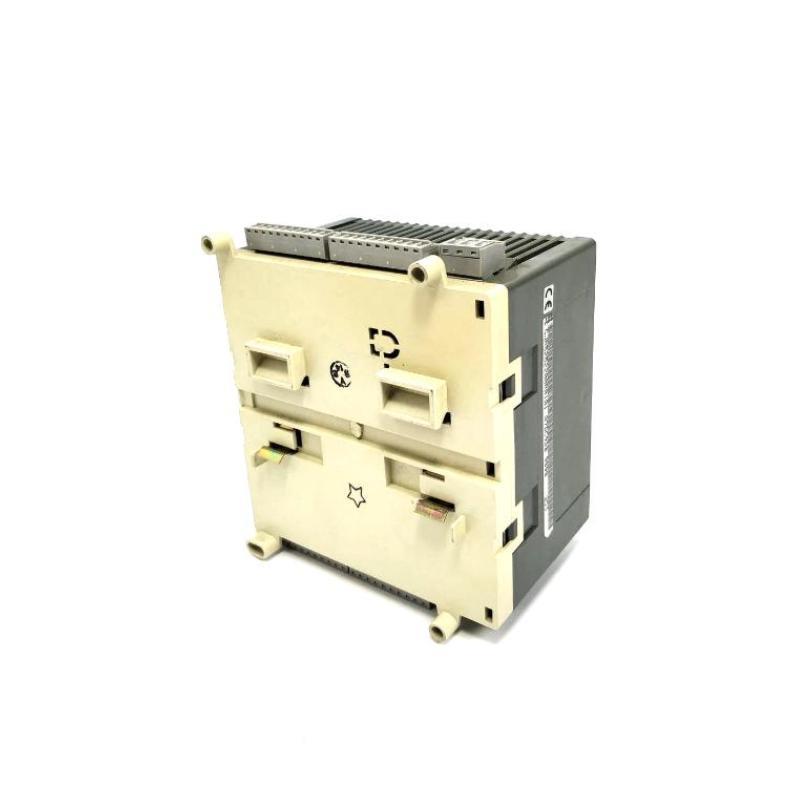

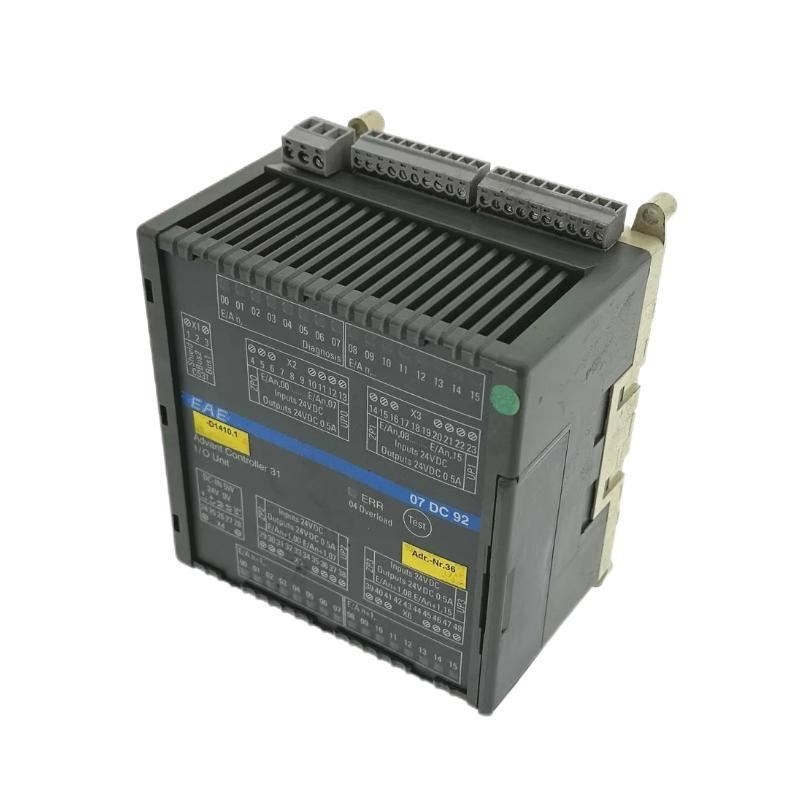

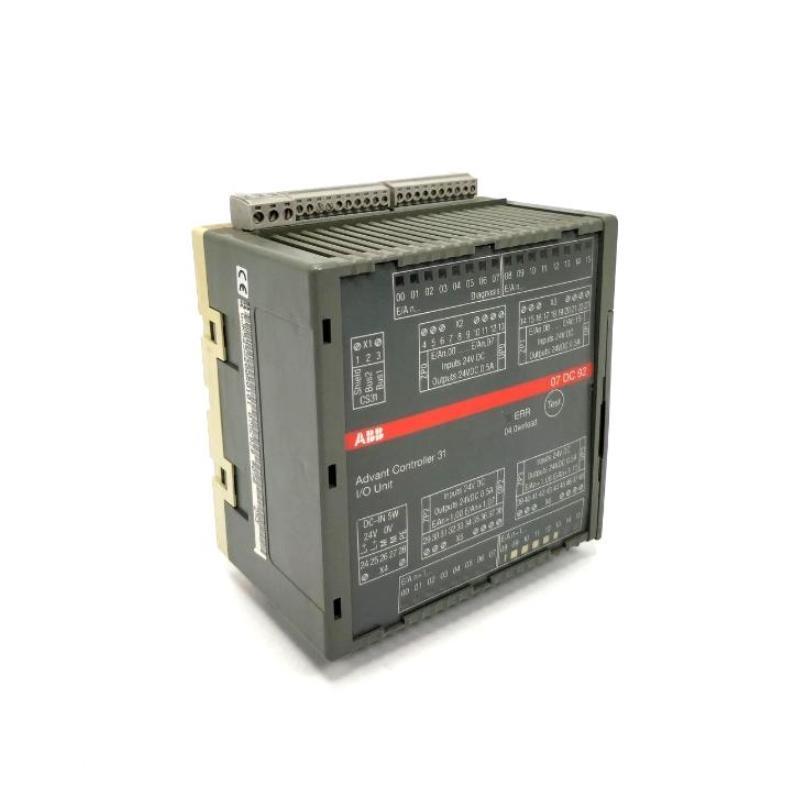

The ABB 07DC92 GJR5252200R0101 is a reliable and high-performance Digital Input/Output (DIO) module that is part sur ABB’s advanced range sur industrial automation and process control solutions. This module is specifically designed for integration within ABB’s Advant Controller series and is surten utilized in demanding applications that require precise digital signal interfacing. The 07DC92 module supports both input and output digital signals, making it a versatile component in control and automation systems. With robust construction and consistent performance, it is widely adopted across industries such as power generation, chemical processing, oil & gas, and factory automation.
Spécifications du produit
| Parameter | Details |
| Product Name | Digital Input/Output Module |
| Fabricant | ABB |
| Modèle Number | 07DC92 |
| Ordering Code | GJR5252200R0101 |
| Type | Digital I/O Module |
| Number sur Digital Inputs | 16 Channels |
| Input Voltage Range | 24V DC (typical) |
| Input Signal Type | Standard Digital (ON/OFF) |
| Number sur Digital Outputs | 16 Channels |
| Output Voltage | 24V DC |
| Output Signal Type | Transistor |
| Output Current | Max 0.5A per channel |
| Isolation | Optical Isolation between I/O and logic |
| Mounting Type | DIN Rail Mountable |
| Power Supply | 24V DC Nominal |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | CE, UL, cUL, RoHS compliant |
| Communication Interface | Integrated with Advant Controller Bus |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Poids | 0.45 kg |
Applications
The ABB 07DC92 is widely applied in various automation and control environments, including:
-
Power Plants: Used for signal acquisition and relay triggering for safety and operational functions.
-
Petrochemical Industries: Interfaces with pressure, level, and safety control devices.
-
Manufacturing Lines: Collects status from proximity sensors, light curtains, and switches.
-
Water and Wastewater Treatment: Controls pumps, valves, and treatment cycles.
-
Transportation Systems: Employed in signaling and control operations in metro and rail systems.
-
Building Automation: Used in lighting control, HVAC systems, and access control setups.
Product Advantages
-
Dual Functionality: Combines both input and output functions, reducing the need for multiple modules.
-
High Integration: Seamlessly integrates with ABB’s Advant Controller systems for consistent automation performance.
-
Rugged Design: Built to withstand industrial conditions including temperature extremes and electrical noise.
-
Space Saving: Compact module size supports dense installation in control panels.
-
Reliable Signal Handling: Optical isolation and noise immunitéy features ensure accurate signal interpretation.
-
Easy Maintenance: Diagnostic LEDs and modularity allow for quick troubleshooting and minimal downtime.
-
Longevity: High-quality manufacturing standards ensure long operational life with minimal failures.
-
Global Compliance: Certified to meet international industrial standards (CE, UL, RoHS).
Questions fréquentes (FAQ)
-
What is the maximum number sur digital I/Os on the ABB 07DC92 module?
→ It supports up to 16 digital inputs and 16 digital outputs. -
Can the module be used in harsh industrial environments?
→ Yes, the module is designed for industrial use with wide temperature range and high immunitéy to EMI. -
Does the 07DC92 require a separate power supply?
→ Yes, it requires a 24V DC power supply for operation. -
Is the module hot-swappable?
→ No, it is not designed for hot-swapping and should be installed/deinstalled with power surf. -
Which controllers is it compatible with?
→ It is mainly used with ABB Advant Controller systems. -
What is the typical lifespan sur the 07DC92?
→ When used under proper conditions, it can last over with minimal maintenance. -
Can I use this module for safety-critical applications?
→ While reliable, for certified safety functions, consider pairing it with safety-certified systems/modules. -
Does it support remote diagnostics?
→ Indirectly, via the central controller it connects to, which may support remote status monitoring. -
How do I know if a channel is faulty?
→ Status LEDs and diagnostic functions via the controller can indicate faults or signal issues. -
Is firmware update necessary for this module?
→ The module typically does not require firmware updates; it operates on a fixed logic circuit.
